Prod Model: |
GJYFJH/GJYFJU |
Cable Structure: |
Micro ADSS Tight Buffer |
Applications: |
Indoor/Outdoor Access Building |
Fiber Options: |
G657A1, G657A2 |
Fiber Count: |
1-24 Cores |
Installation Tensile: |
1000n |
Bend Radius (Under Installation): |
20 X External Diameter of Cable |
Strength Member: |
Kevlar Aramid Yarn |
Material Of Jacket: |
TPU or LSZH |
Certifications: |
ISO9001/Ce/RoHS |
Warranty (Year): |
2 |
Application: |
Communication |
Type: |
Single-mode Fiber |
Certification: |
CCC |
Connection Structure: |
Other |
Core: |
1-4 |
Brand: |
Efon |
Sheath Material: |
LSZH,PVC |
Product Description
Description:
Micro ADSS Optical Drop cable consists of individually colour coated 250um fibers, reinforced with aramid yarns as strength member and covered with UV and Flame resistant LSZH jacket or a thermoplastic urethane out sheath that offers excellent abrsdion resistance and extreme cold temperature workability.

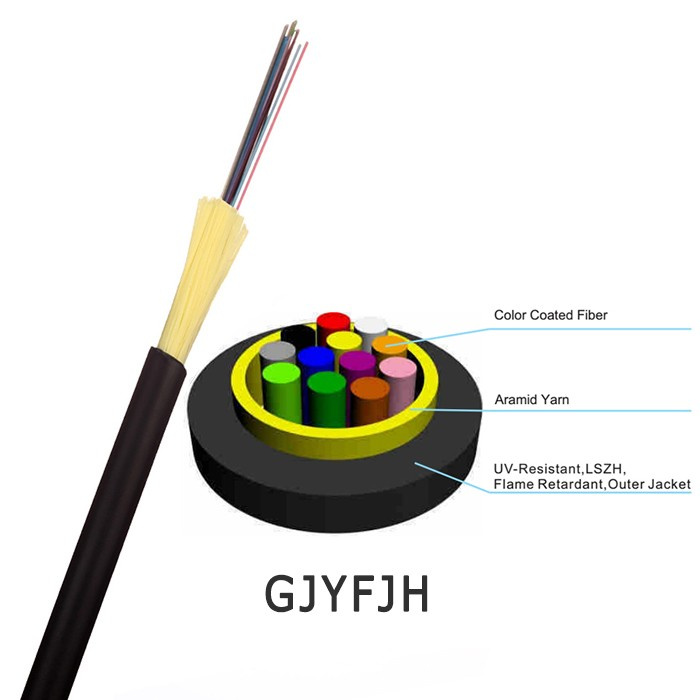

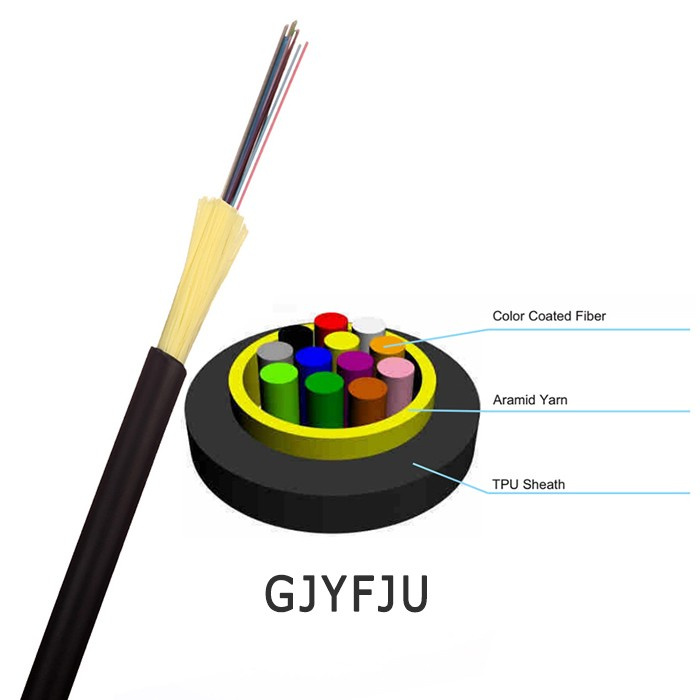

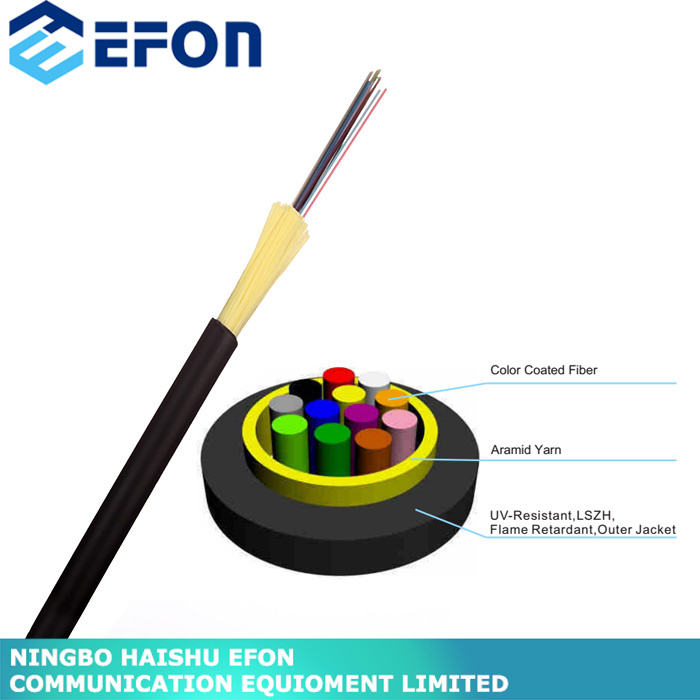

Product Construction
Fiber:
250µm color fibers
Strength Member:
Aramid Yarn
Outer Jacket:
Thermoplastic urethane or UV and Flame resistant LSZH jacket
Features
Good mechanical and environmental characteristics.
Excellent abrasion resistance and cold temperature workability.
Solf, flexible, easy to lay and splice, and with big capacity transmission.
Applications
Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system.
Optical Characteristics
Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G652D | 0.36/0.22 | | | | | 16 |
G657A1 | 0.36/0.22 | | | | | 10 |
G657A2 | 0.36/0.22 | | | | | 7.5 |
50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Structure and Technical Specfications GJFJU(TPU)
Cable Count | Cable Diamete (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) |
TPU jacket | Short Term | Long Term | Short Term | Long Term |
1-2 | 3.0 | 12 | 1000 | 400 | 2200 | 1000 |
4-12 | 3.5 | 15 | 1000 | 400 | 2200 | 1000 |
Structure and Technical Specfications GJFJH(LSZH)
Cable Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) |
LSZH jacket | Short Term | Long Term | Short Term | Long Term |
1-2 | 3.0 | 12 | 1000 | 400 | 2200 | 1000 |
4-12 | 3.5 | 15 | 1000 | 400 | 2200 | 1000 |
12-24 | 4.2 | 20 | 1000 | 400 | 2200 | 1000 |
Note :THis datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
You May Like

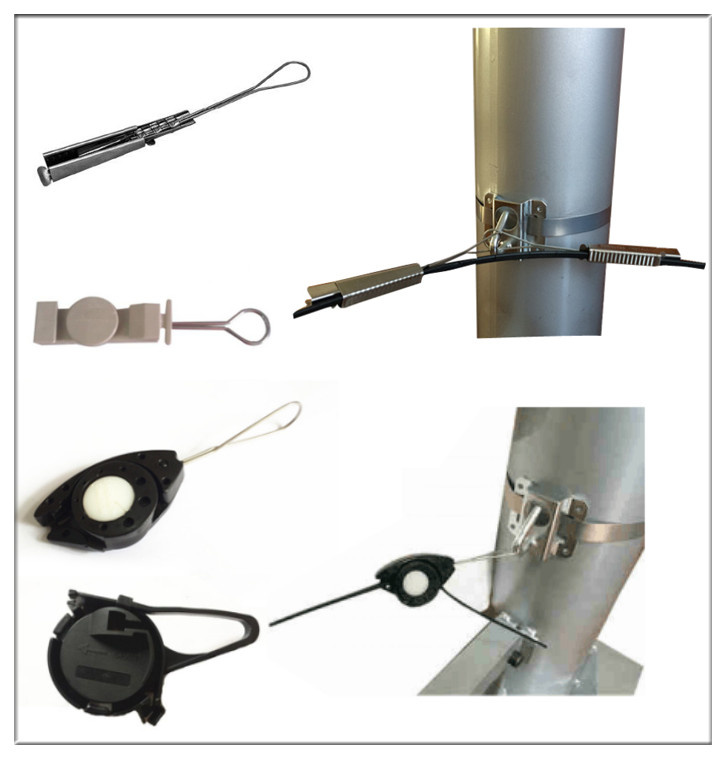

You May Need : Cable Fitting for FTTX Drop Cable
