Alloy Wheel Repair CNC Lathe for Diamond Cutting Wheel Machine

Name: Alloy Wheel Repair CNC Lathe for Diamond Cutting Wheel Machine
Brand: tool-buy.com
SKU: 729431982
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Taian Yuzhuo Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	WRC22
Product Name:	CNC Alloy Wheel Lathe
Power:	5.5kw
Max.Wheel:	22 Inch
Warranty:	One Year
Function:	Repair Wheel
Voltage:	380V/220V
Control System:	Syntec
Accessory:	Diamond Cutter Tools
Max. Swing Diameter:	635mm
Turret Type:	4 Station Electrix Turret
Process Usage:	Metal-Forming CNC Machine Tools
Control Method:	Open-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Movement Method:	CNC

Product Description

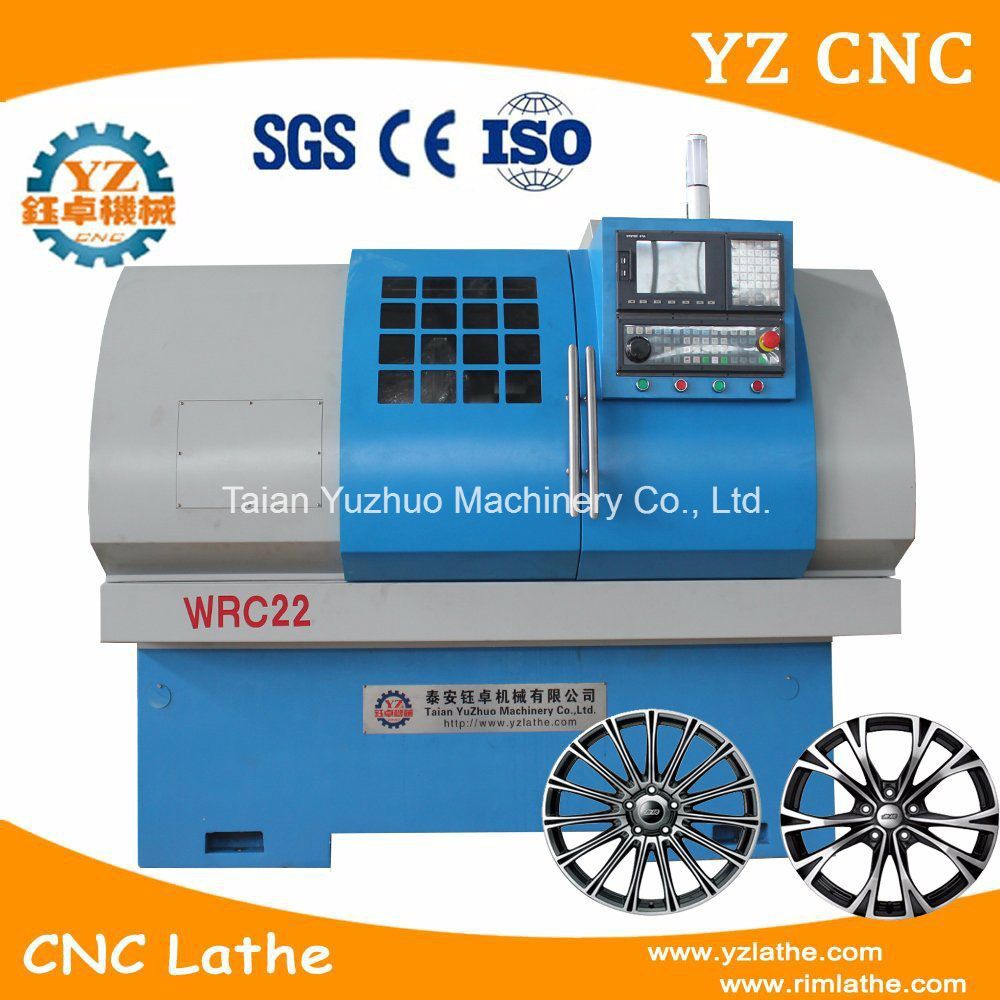

WRC22 Alloy wheel repair cnc lathe for diamond cutting wheel machine

Specifciation:

ITEMS	WRC22
Max. swig over bed (mm)	Φ635(22')
Max. swig over cross slide (mm)	Φ410
Max. Size of alloy wheel	22'
Cross slide travel (mm)	330
Width of the rail	265
Length of the rail	1180
Size of the three-jaw chuck	10'
Range of spindle speed (RPM)	50~2500
Spindle speed control	Automatic
Spindle bore (mm)	Φ60
Taper of spindle bore	MT6
Taper of spindle nose	A2-6
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 4m/min
Motor power	5.5KW
Machine base	Whole cast iron base
Machine size(L×W×H) (mm³)	2000×1500×1950
Net weight	1400kgs

Standard configuration:
1-3-Jaws Chuck(With Special Soft Jaws)
2-Manual Quick Change Toolpost ,four-station turret,
3-Automatic lubrication system,
4-Turning the cooling system.
5-With probing system(TP300 Pioneer Sensing Probe TP300;)
6-Diamond Cutter 1 set
7-cnc controller syntec
8-Full Enclose(Security Guard Door)
9-Specific Digital Optimization Software
10-Training Video CD
11-Work Lighting System
Services:
1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile

Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
