Alloy Wheel Repair Diamond Cutting CNC Lathe

Alloy Wheel Repair Diamond Cutting CNC Lathe
Price: US $ 13500-14000SET
Min Order: 1SET
Pay Type: L/C,T/T,Western Union
Prod Model: WRC26
Product Name: Alloy Wheel Repair Diamond Cutting CNC Lathe
Power: 7.5kw
Max.Wheel: 26 Inch
Warranty: One Year
Function: Repair Wheel
Voltage: 380V/220V
Control System: Syntec
Accessory: Diamond Cutter Tools
Max. Swing Diameter: 720mm
Turret Type: 4 Station Electrix Turret
Process Usage: Metal-Forming CNC Machine Tools
Control Method: Open-Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools
Movement Method: CNC

Product Description

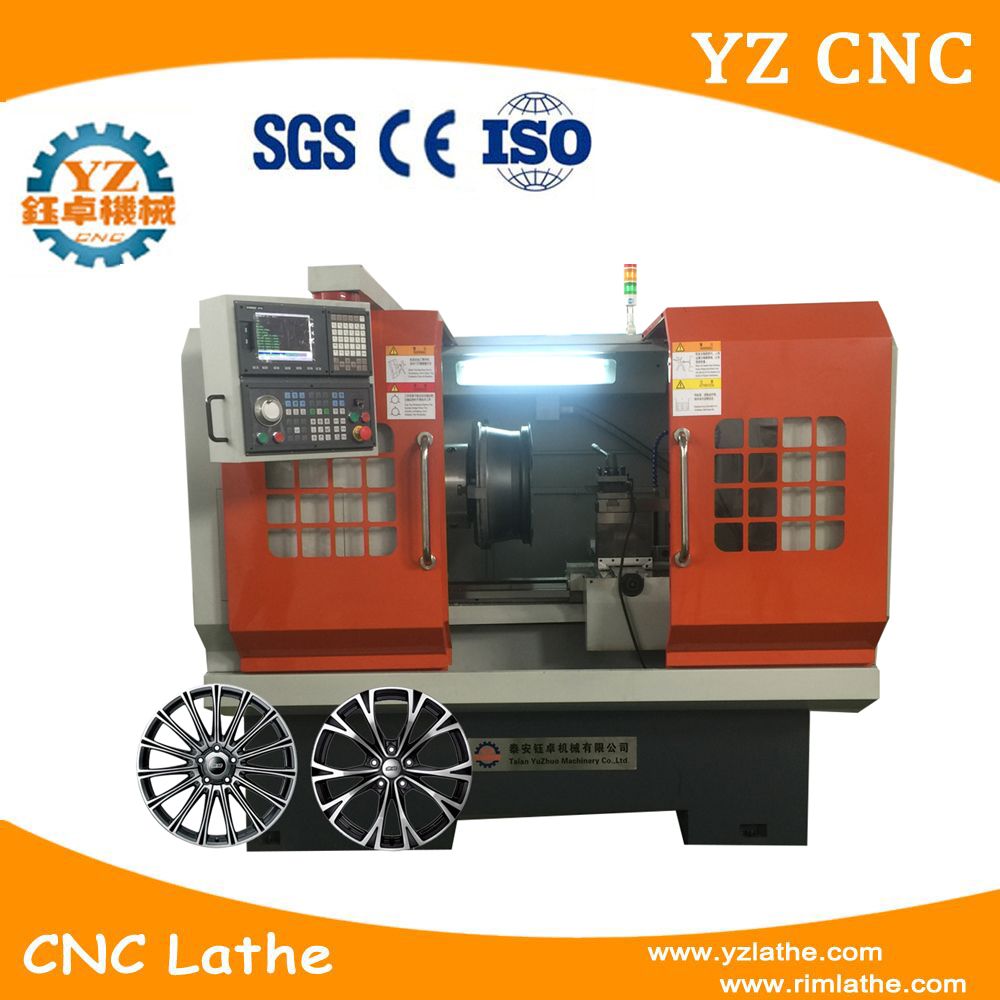

  WRC26 Alloy wheel repair diamond cutting CNC lathe

Specifciation:
ITEMSWRC26
Max. swig over bed (mm)Φ720(28')
Max. swig over cross slide (mm)Φ540
Max. Size of alloy wheel26'
Cross slide travel (mm)350
Width of the rail330
Length of the rail1320
Size of the three-jaw chuck12'
Range of spindle speed (RPM)50~2000
Spindle speed controlAutomatic
Spindle bore  (mm)Φ60
Taper of spindle boreMT6
Taper of spindle noseA2-6
Max. size of tool post25×25mm
Stations of tool carrier4 position
Min. setting unit of motor(Z) long    0.001mm,
(X) cross   0.001mm
Moving speed of post(Z) long     8m/min,
(X) cross    4m/min
Motor power7.5KW
Machine baseWhole cast iron base
Machine size(L×W×H) (mm³)2200×1650×1750
Net weight2600kgs
Standard configuration:
1-3-Jaws Chuck(With Special Soft Jaws)
2-Manual Quick Change Toolpost ,four-station turret,
3-Automatic lubrication system,
4-Turning the cooling system.
5-With probing system(TP300 Pioneer Sensing Probe TP300;)
6-Diamond Cutter  1 set
7-cnc controller syntec
8-Full Enclose(Security Guard Door)
9-Specific Digital Optimization Software
10-Training Video CD
11-Work Lighting System
Services:
1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile
More products :




Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
