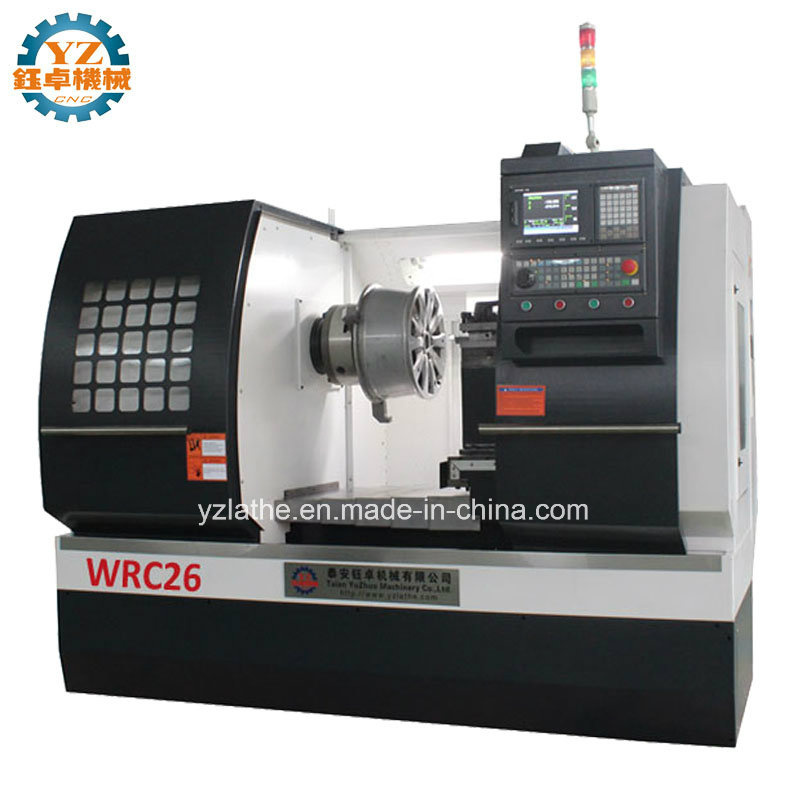

Alloy Wheel Repair Machine Diamond Cut Wheel Lathe

Alloy Wheel Repair Machine Diamond Cut Wheel Lathe
Price: US $ 13800-14800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: WRC26
CNC Or Not: CNC
Control System: Syntec
Turret Type: 4 Station Electrical Tool Turret
Function: Wheel Rim Repair
Max. Swing Dia. Over Bed: 700mm
Max. Repair Wheel: 26inch
Power Motor: 5.5kw
Type: Horizontal
Chuck: 3-Jaw Chuck
Color: Custom Made
Process Usage: Diamond Cutting CNC Machine Tools
Control Method: Open-Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools
Application: Alloy Wheel Rim
Movement Method: CNC

Product Description

Alloy Wheel Repair Machine Diamond Cut Wheel Lathe

Specifciations:
ModelWRC22WRC26WRC28WRC30WRC32
Max. swing over bed640mm700mm770mm800mm820mm
Max. Diameter of alloy wheel22inch26inch28inch30inch32inch
Chuck Size250mm320mm
Range of spindle speed50~2500rpm50~2000rpm50~1800rpm
Spindle bore60mm82mm
Max. size of tool post25×25mm
Stations of tool carrier4
Motor power5.5kw11kw
Machine size(L*W*H)2100*1700
*1900mm
2300*1750
*1950mm
2300*1750
*1950mm
2970*1660
*2080mm
2970*1660
*2080mm
Net weight2000kg2600kg2700kg3200kg3300kg


Standard Configuration:
1. Diamond cutter;
2. 3-Jaws manual chuck (with special soft jaws);
3. Diamond digital probe tip;
4. Taiwan SYNTEC system;
5. Manual quick change tool post, four-station;
6. Work lighting system;
7. Automatic lubrication system;
8. Cooling system;
9. Full cover (security guard door);
10. Accessories tools and tool box;
11. Wheel curve optimize sofeware.


After-sale Services:
Warranty is one year.We would offer the parts (quality problem) free of charge during this period, freight collect.

Note :  GSK ,Servo driven, motor and transformer, Warranty is 3 years.

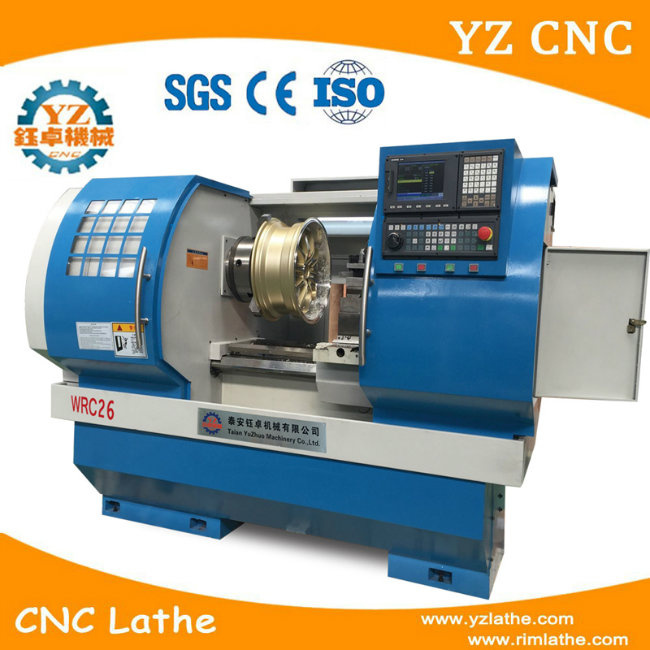

Machine Detailed Photos:

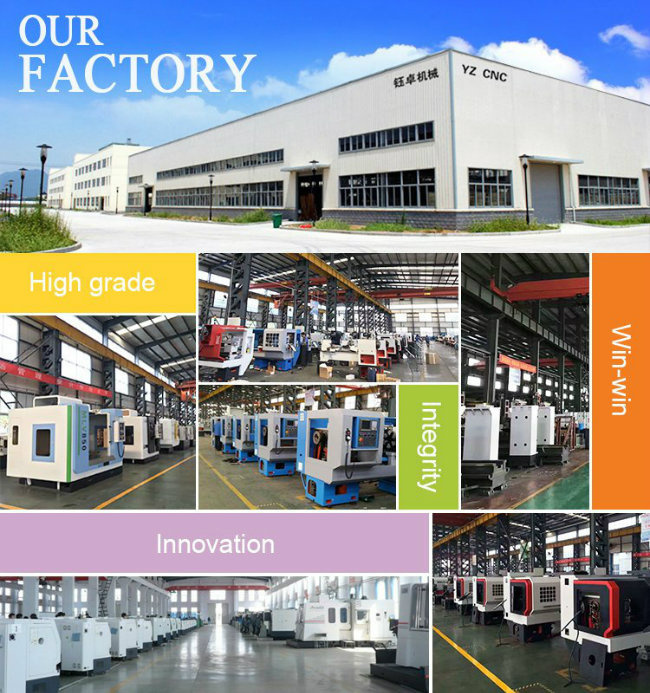

Company Information:









Tai'an YuZhuo Machinery Co., Ltd (as for "YZ CNC"), is a company including active and professional teams, specialized in CNC machining Center, CNC Lathe Machine, Wheel Lathe machine. Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
