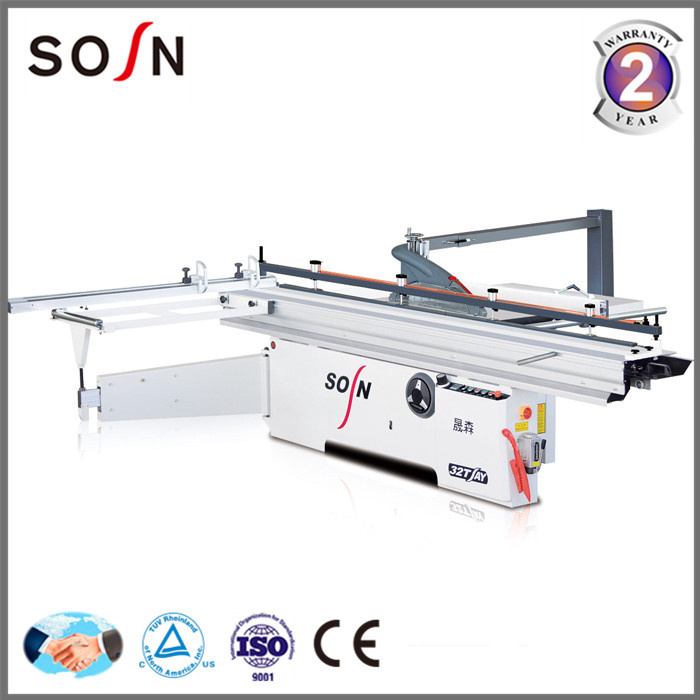

Altendorf 3200*400mm Sliding Table Wood Panel Saw
| Price: |
US $ 1000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6132TAY |
| Dimension Of Sliding Table: |
3200 X 400mm |
| Opening Cut: |
1250mm |
| Diameter Of Saw Cutting: |
250-400mm |
| Cutting Height: |
125mm |
| Cutting Height At 45 Degrees: |
80mm |
| Rotation Of Saw Cutting: |
4000/6000mm |
| Diameter Of Scoring Saw: |
120mm |
| Motor: |
5.5kw+1.1kw |
| Control Of Saw Blade Degree: |
Digital |
| Package Size Of Machine Body: |
2200*1150*1100mm |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Parameter| Dimension of sliding table | 3200 x 400mm |
| Opening cut | 1250mm |
| Diameter of saw cutting | 250-400mm |
| Cutting height | 125mm |
| Cutting height at 45 degrees | 80mm |
| Rotation of saw cutting | 4000/6000mm |
| Diameter of scoring saw | 120mm |
| Motor | 5.5kw+1.1kw |
| Control of Saw blade degree | Digital |
| Package size of machine body | 2200*1150*1100mm |
| Package size of sliding table | 3350*480*320mm |
| Weight | 850kgs |
Welcome to SOSN

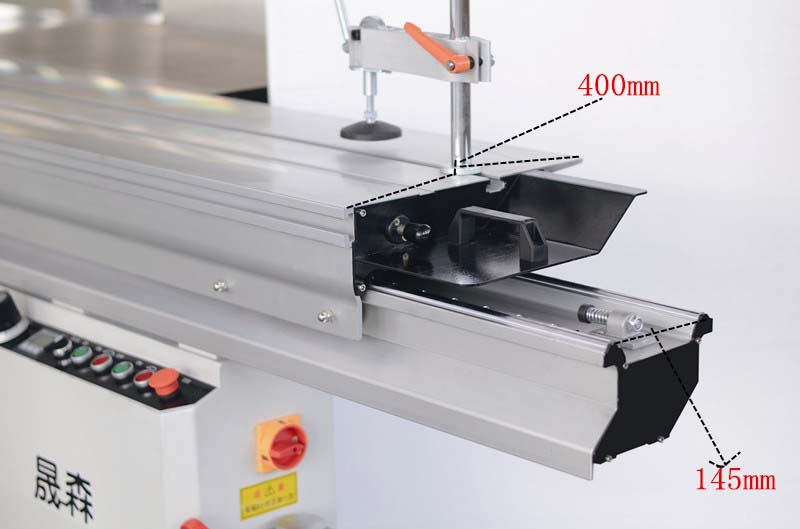

Advantage of sosn panel sawAltendorf sliding table, 400mm width, inner side between rail guide is 145mm, wider, stable, precise working.
|

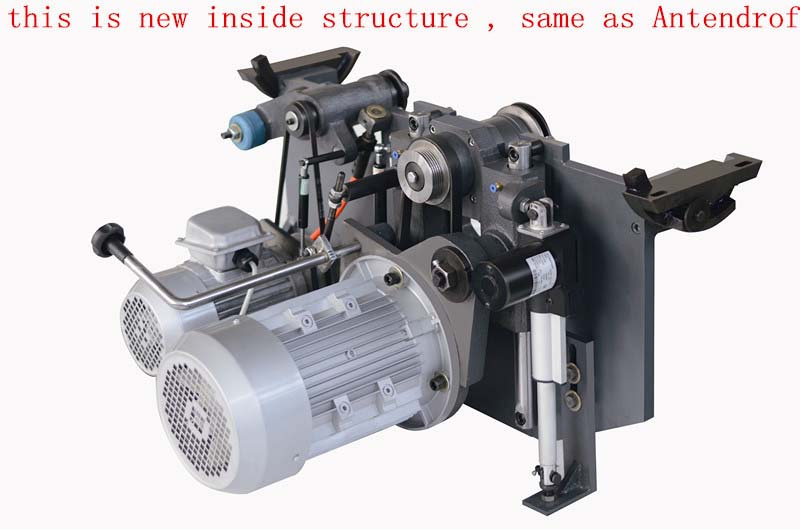

Cylindrical guide way of lifting,
Same as Altendorf.
|
1.5.5kw +1.1kw big power motor,
2.National standard,
3.Cooper wire,
4.Aluminum shells,(radiating faster, not easy to burn out the motor, so this motor's life is much longer than common),
5.Maximum motor power transfer from the Poly-V belt .
|
High quality manual pressure
|
Digital display for saw blade tilt, precision.
Electric control up and down of main saw blade.
Europe quality buttons.
|
European dust hood
|
Lubrication oil pump.
Emergency button for safety working.
|
Aluminum extruded fence with large stopper;
Big ruler with high quality |
NOTE1.Payment term:30% TT as deposit,70%TT after readiness of the machine
2.Package:standard wooden case for export
3.Delivery time:20 days after getting deposit
4.Warranty:12 month for whole machine. Should you have any need of the machine , please feel free to contact with me

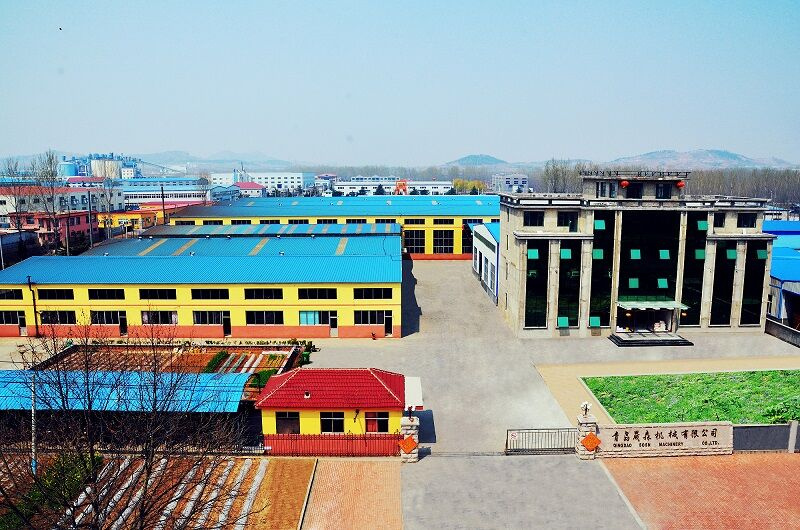

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
