| Prod Model: |
CNC-32TA |
| Name: |
Sliding Table Panel Saw |
| Dimension Of Sliding Table: |
3200X400mm |
| Gross Cut Capacity : |
3200mm |
| Width Of Cut Between Saw Blade And Rip F: |
1250mm |
| Saw Blade Diameter: |
300(250-400)mm |
| Height Of Cut (300mm) : |
90mm |
| Height Of Cut With Saw Blade300mm At45 D: |
60mm |
| Speed Of Main Saw Spindle : |
4500/6000rpm |
| Tilting Saw Blade : |
0-45 Degree |
| Main Motor : |
5.5kw |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

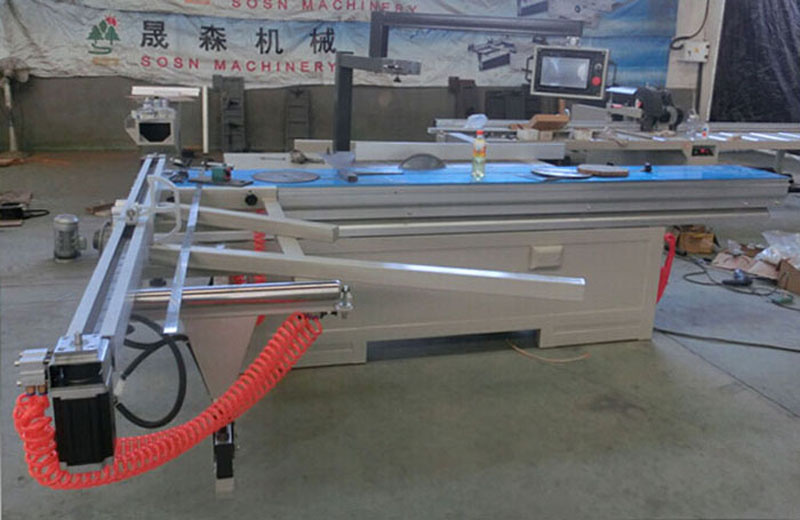

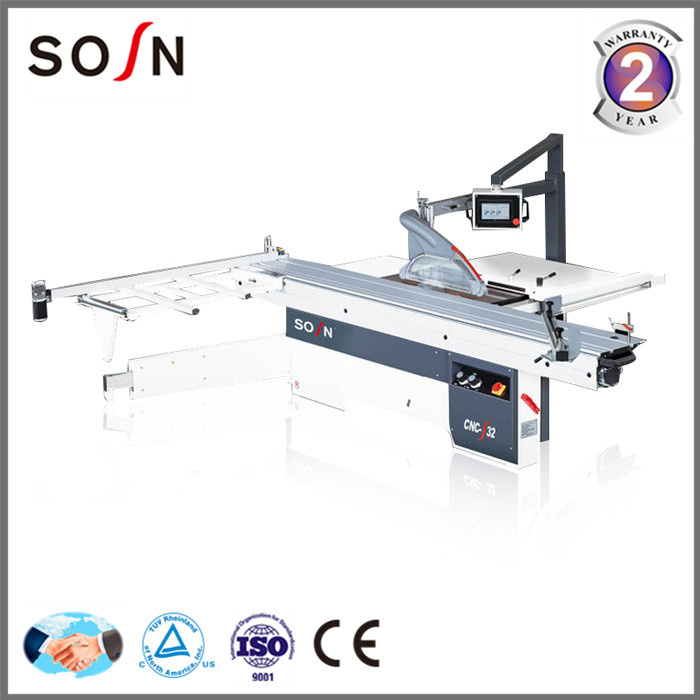

Altendorf sliding table panel saw for wood cutting
Machine parameters| Model | CNC-32 |
| Dimension of sliding table | 3200x400mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300(250-400)mm |
| Height of cut (300mm) | 90mm |
| Height of cut with saw blade300mm at45 degree | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45 degree |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight (with wooden package) | 1000kg |
| Overall dimension | 3300*3150*900mm |
| Packing size of the machine body(L*W*H) | 2200*1150*1100mm |
| Packing size of the sliding table(L*W*H) | 3350*480*320mm |

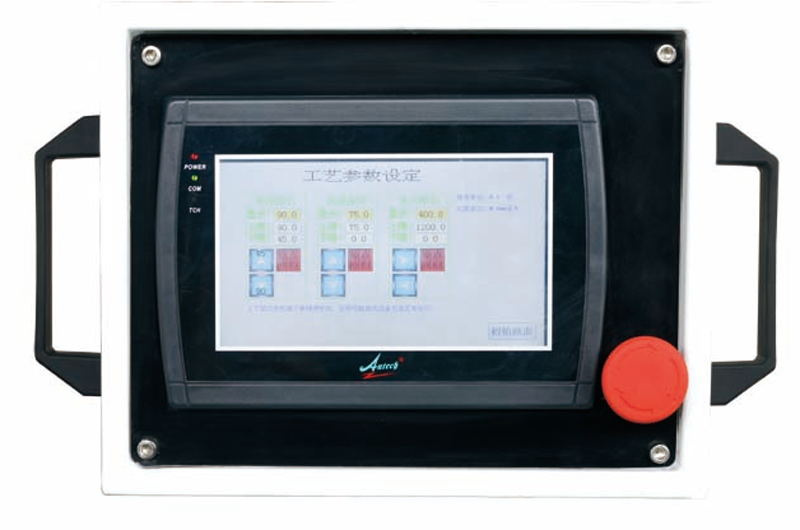

1.all machine control in an touch screen,easy operation

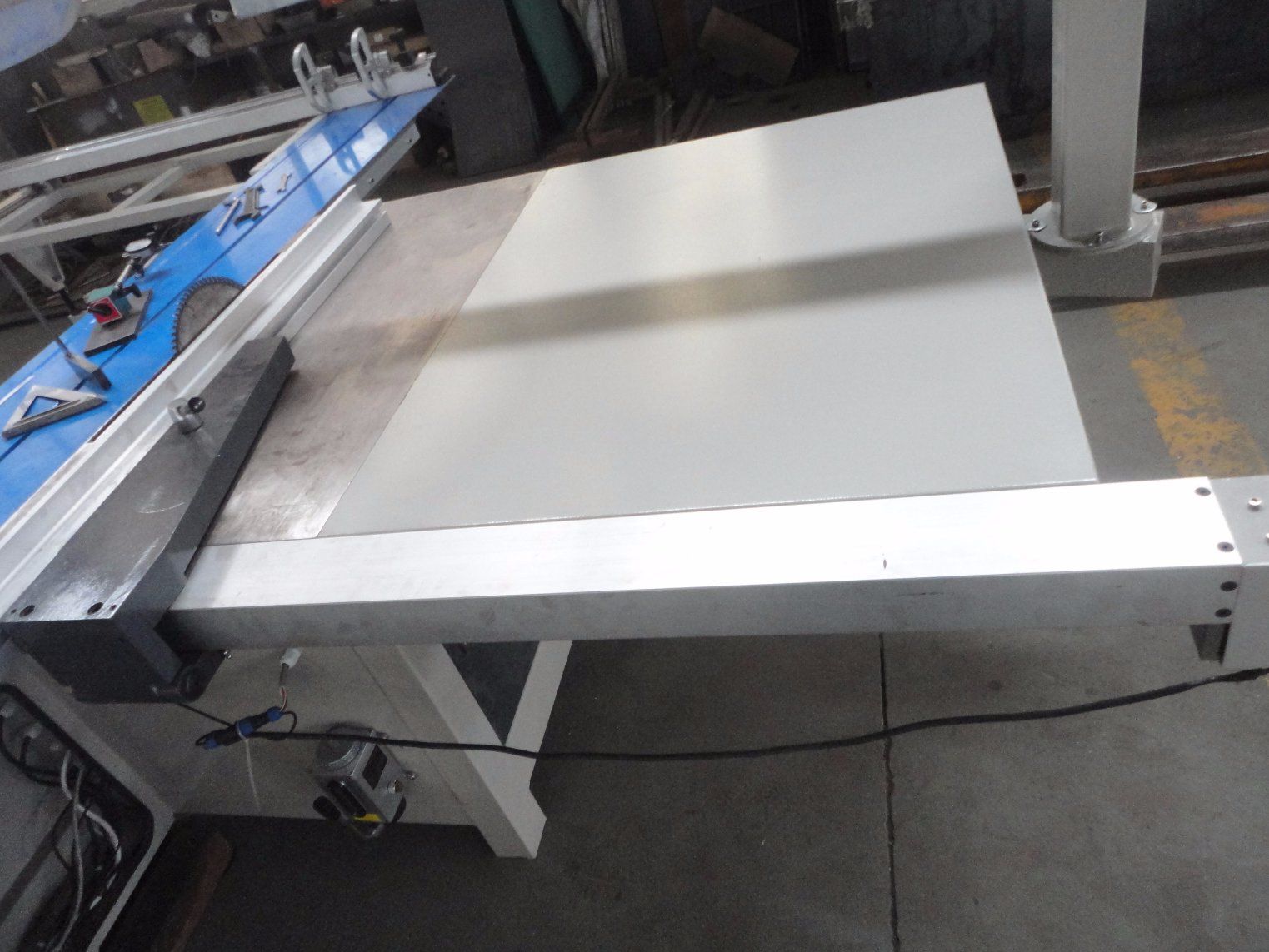

2. 3200*400 mm sliding table make machine more stable
3. new design inner structure make machine more stable and extending the service life of the machine
Features:
1.digital control for main saw blade up and down
2.Digital control and readout for the saw blade tilting
3.Digital control and readout for big ruler and the rip fence with stepper motor
4.Linear guide structure for inner structure
5.5.5KW+1.1kw motor
6.European style protection cover
Note:
1.All the prices are FOBQINGDAO,valid for two months
2.Payment terms:30% T/T down payment+70%T/T balance payment before
shipment
3.Package: standard wooden case
4.Delivery Time:20 days after receiving the prepayment
Should you have any need of the machine , please feel free to contact with us
