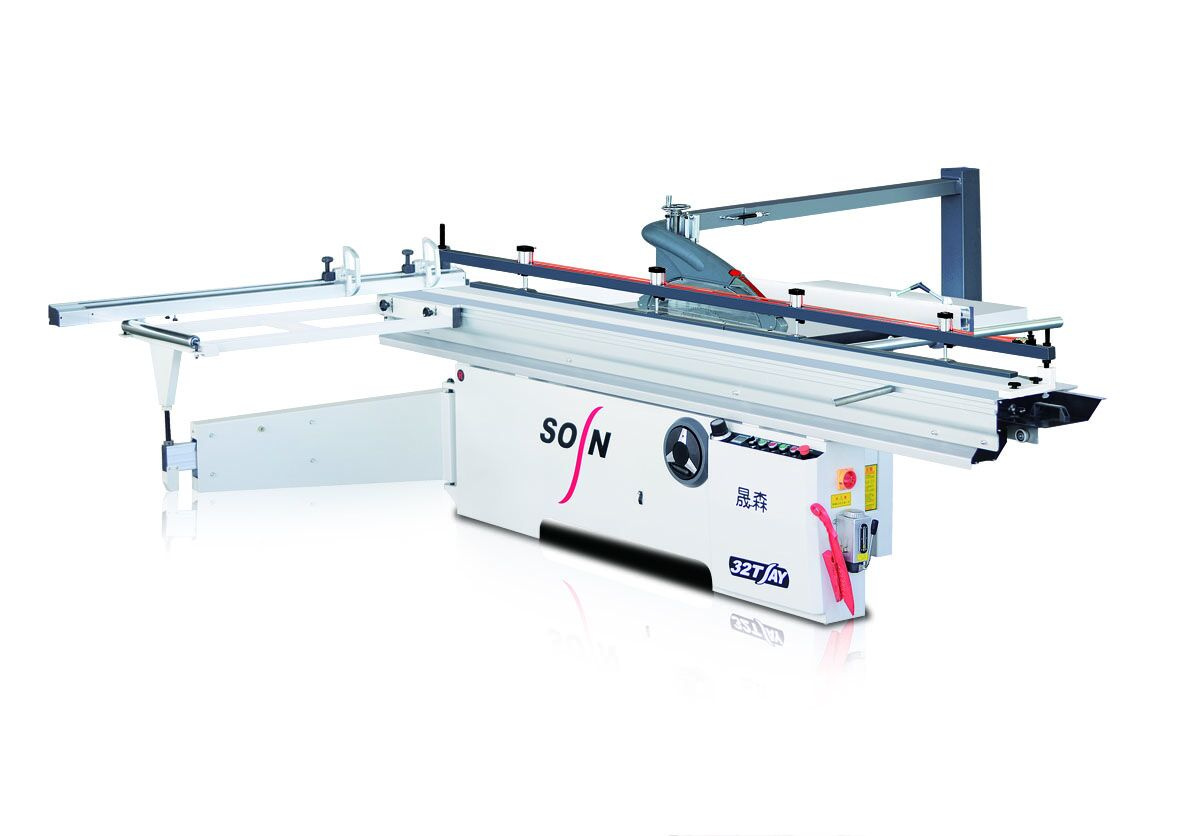

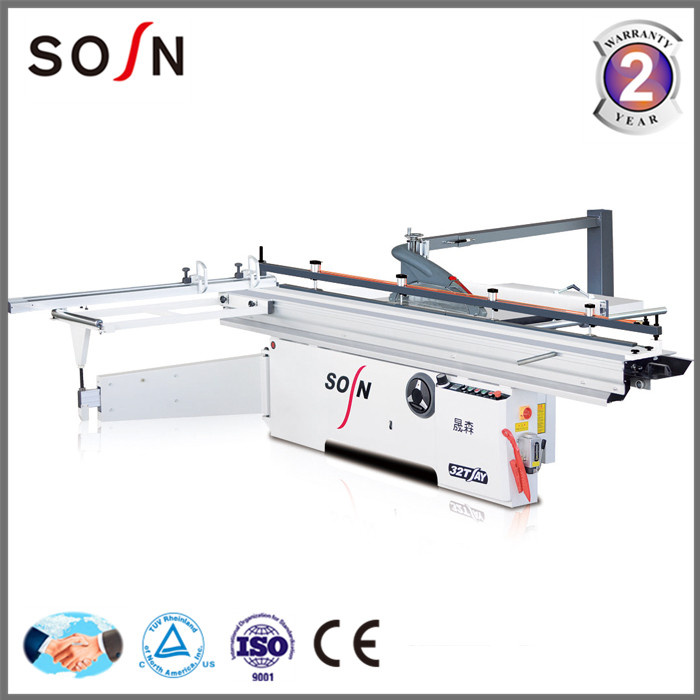

Altendorf Sliding Tale Saw
| Price: |
US $ 1000-5000set |
| Min Order: |
1set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MJ6132TAY |
| Dimension Of Sliding Table: |
3200*400mm |
| Gross Cut Capacity: |
3200mm |
| Saw Blade Diameters: |
250--400mm |
| Height Of Cut: |
90mm |
| Speed Of Main Saw Spindle: |
4500-6000rpm |
| Main Spindle Dimater: |
30mm |
| Scoring Spindle Diameter: |
20mm |
| Tilting Saw Blade: |
0-45 Degree |
| Motor Power: |
5.5+1.1kw |
| Weight: |
850kg |
| Type: |
Wood Saw Machine |
| Controlling Mode: |
Artificial |
| Feed Mode: |
Manual |
| Spindle Layout: |
Horizontal |
| Certification: |
CE |
| Screw: |
Multi-Screw |
| Spindle Number: |
Double-Spindle |
| Precision: |
High Precision |
| Plastic Processed: |
ABS |
| Cutting Machine Type: |
Hydraulic Cutting Machine |
Product Description
Parameters| Dimension of sliding table | 3200 x 400mm |
| Opening cut | 1250mm |
| Diameter of saw cutting | 250-400mm |
| Cutting height | 125mm |
| Cutting height at 45 degrees | 80mm |
| Rotation of saw cutting | 4000/6000mm |
| Diameter of scoring saw | 120mm |
| Motor | 5.5kw+1.1kw |
| Control of Saw blade degree | Digital |
| Package size of machine body | 2200*1150*1100mm |
| Package size of sliding table | 3350*480*320mm |
| weight | 850kgs |

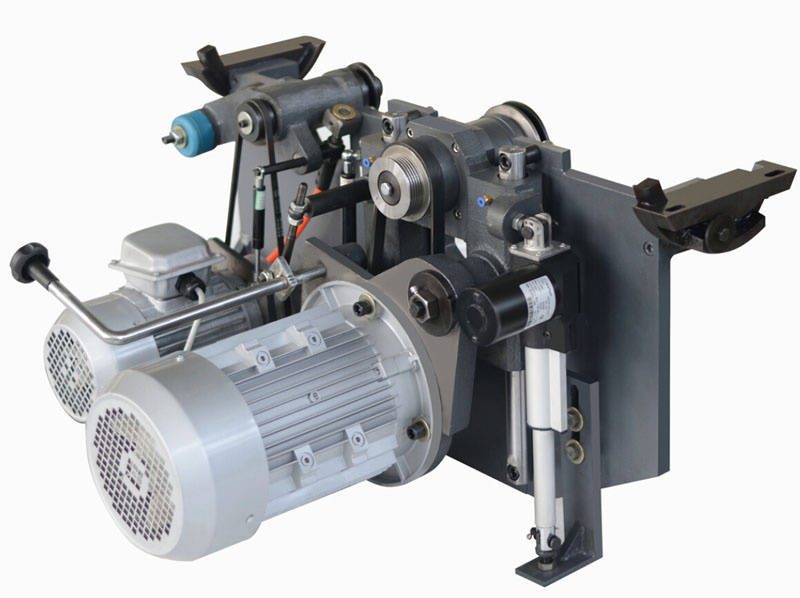

1. inner structure of sliding table panel saw MJ6132TAYvertical motor power 5.5+1.1kw with aluminum cover prolong service time of machine

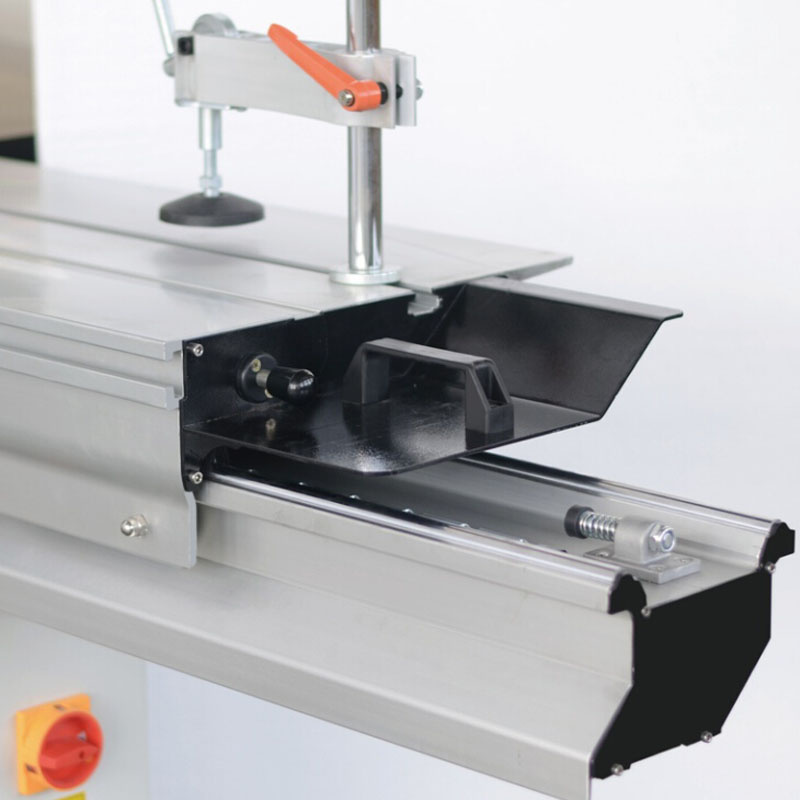

2.3200*400mm width and thickness sliding table ,smoothly and stable
3.electric un & down,digital readout ,more stable and easy operation
Features:
3200*400mm size Altendorf type sliding table, electric up and down, 0-45 tilting with digital readout, 5.5kw+1.1kw motor power, cylinder guide internal structureAdvantages of precision sliding table saw MJ6132TAY1.Altendorf sliding table, 400mm width, inner side between rail guide is 145mm, wider, stable, precise wor king.
2.cylindrical guide way of lifting,same as Altendorf.
3.5.5kw +1.1kw big power motor,,National standard, Cooper wire, Aluminum shells, Maximum motor power transfer from the Poly-V belt .

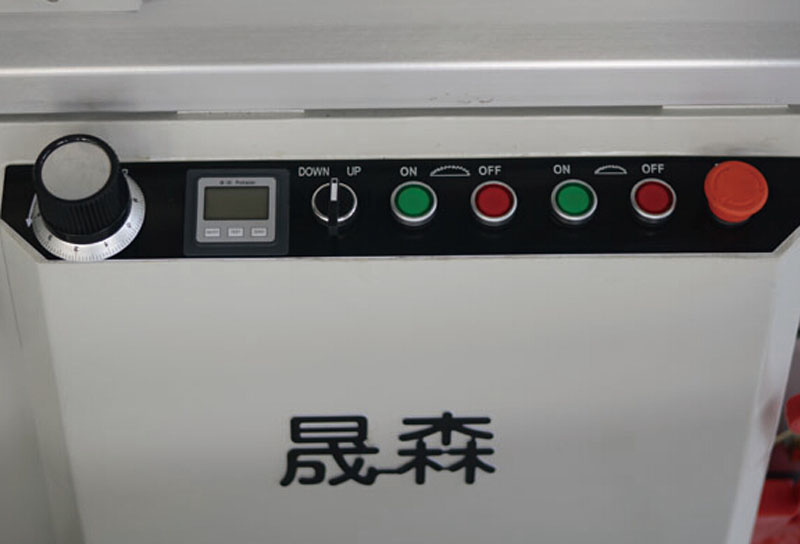

4.Digital display for saw blade tilt, precision.Electric control up and down of main saw blade.Europe qu ality buttons.
5.Lubrication oil pump.Emergency button for safety working.
6.Aluminum extruded fence with large stopper;Big ruler with high quality Emergency button for safety working.NOTE1.Payment term:30% TT as deposit,70%TT after readiness of the machine
2.Package:standard wooden case for export
3.Delivery time:20 days after getting deposit
4.Warranty:24 months for whole machine.
