Aluminium Foil Container Making Machine Jh21-110t Pneumatic Power Press

Aluminium Foil Container Making Machine Jh21-110t Pneumatic Power Press
Price: US $ 920-19998/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JH21
Color: Customized
Voltage: Customized
Material: Aluminum, Ss, Ms, etc
Safety Protection: Photoelectric Protection
Electrical: Chnt
Function: Metal Processing, Aluminum Foil Product
CNC Feeding System: Available
Worktable: Fixed
Type: High-Speed Punching Machine
Controlling Mode: CNC
Automatic Grade: Automatic
Power Source: Pneumatic
Precision: High Precision

Product Description

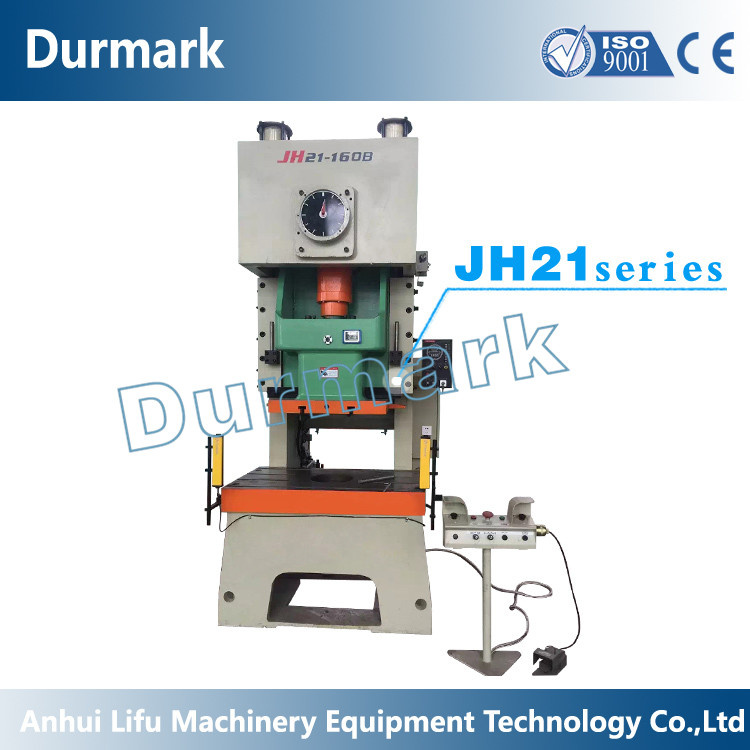

Aluminium Foil Container Making Machine JH21-110T Pneumatic Power Press
Product description

With high rigidity design in machine frame, welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.


Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.

In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.

The crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.

Reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision and safe production.

Technical parameter
No
Name
JH21-80T
1
Nominal force(KN)
800
2
Nominal force stroke(mm)
5
3
Slider stroke(mm)
140
4
Slider stroke times(time\min)
60
5
Maximum height for die loading
320
6
Adjustment range for die loading height
80
7
Distance between slider center line and the fuselage
300
8
Worktable size
580*1000
9
Work table blanking hole size(Upper hole diameter &depth*Below hole diameter)
D200*40*D180
10
Slider bottom size
420*560
11
Shank hole size
D50*Depth80
12
Distance between columns(mm)
640
13
Bolster thickness(mm)
120
14
Dimension
1640*1280*2700
15
Motor(kw)
7.5

Main Features

1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;

2.Vertical located crankshaft, compact structure;

3.The crankshaft undergoes grinding treatment after high frequency quenching;

4.Lengthened rectangular guideway with a surface of bronze plate;

5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise

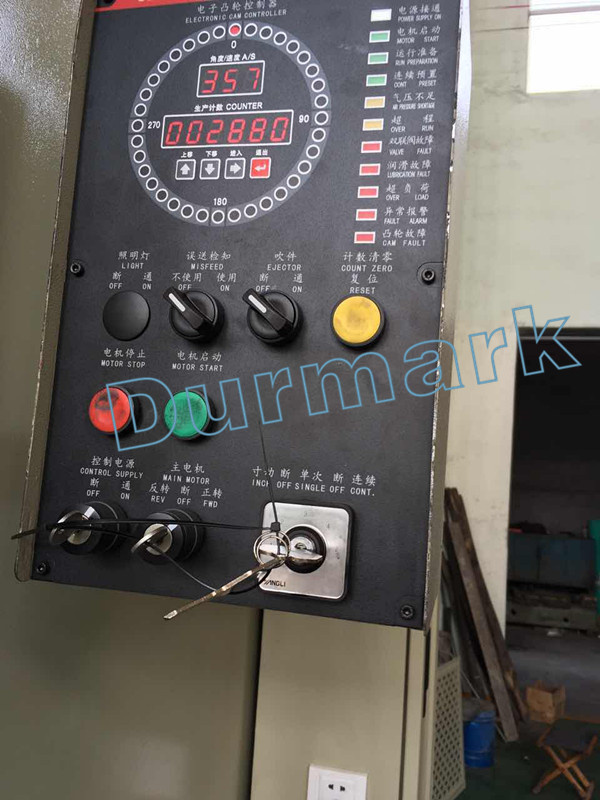

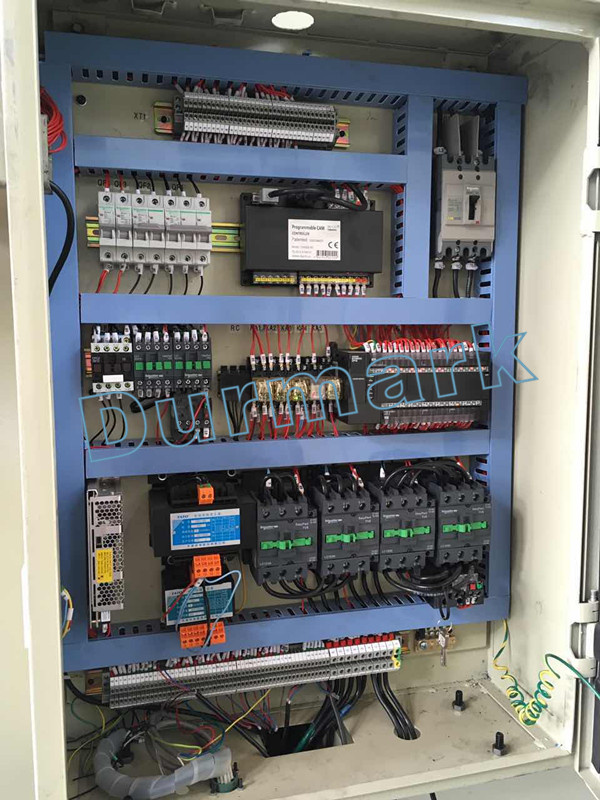

6.PLC control and imported safety dual valve;

7.Wet clutch and hydraulic overload protector.

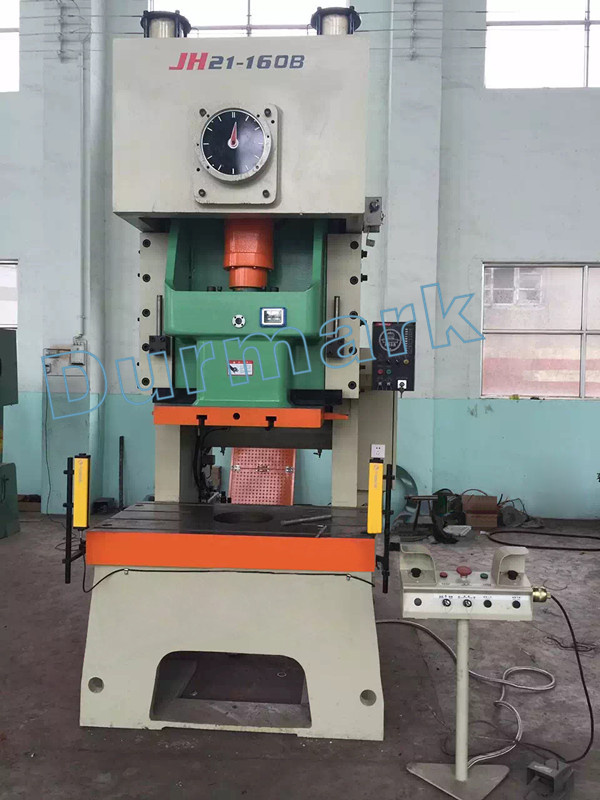

Details photos

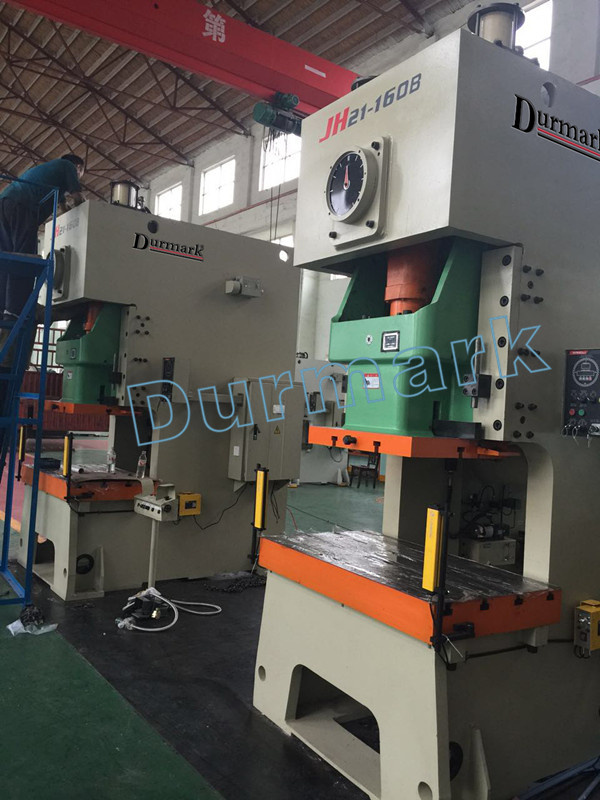

Workshop

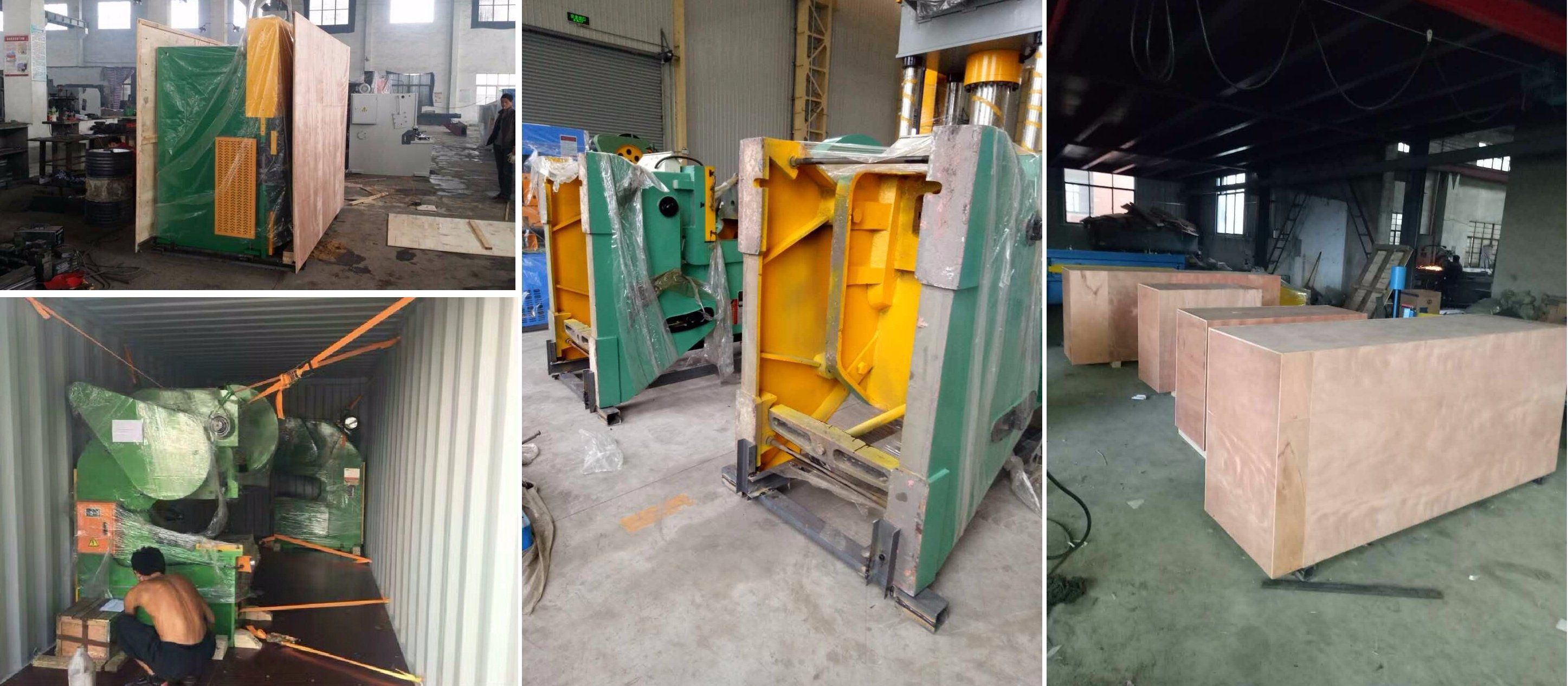

Package


Service

Pre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed

After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea

Contact
Phone number : 86 15156107235
QQ : 442780615
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.

In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.

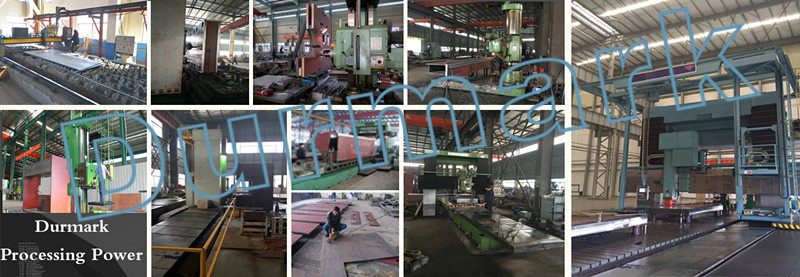

The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,

One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
