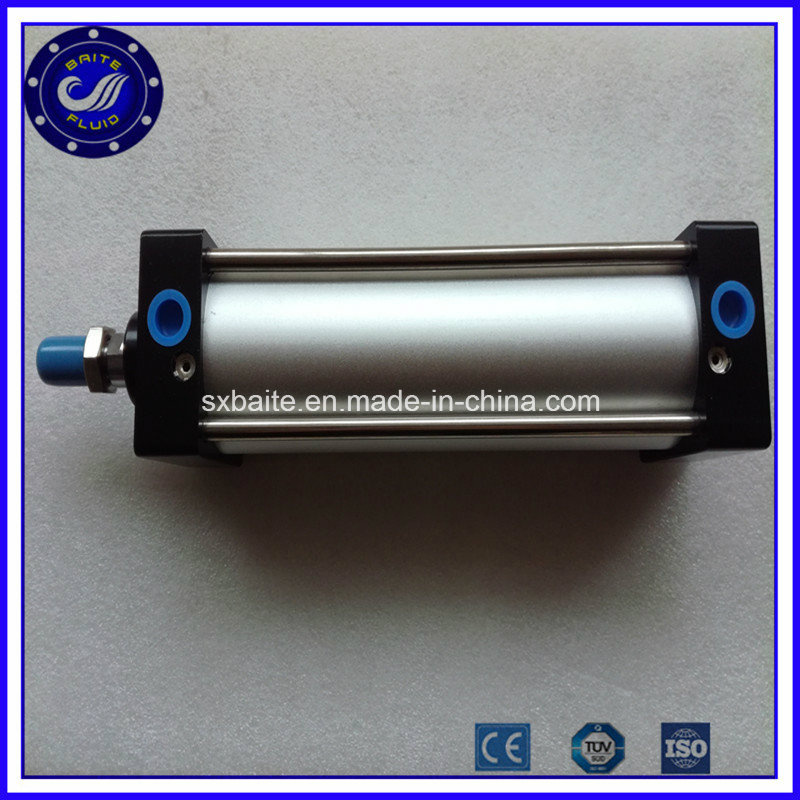

Aluminum Piston Double Acting Adjustable Long Stroke Pneumatic Air Cylinder

Aluminum Piston Double Acting Adjustable Long Stroke Pneumatic Air Cylinder
Price: US $ 1-10/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: BTF-PC-111
Stroke: 5-3000 mm
Working Pressure: 0.5-10 Bar
Working Temperature: -20deg--80deg
Model Type: Dng Series Air Cylinder
Bore Diameter(mm): 32-40-50-63-80-100-125-160-200-250-320mm
Cylinder Action: Single Acting or Double Acting
Operating Medium: Filtered Compressed Air, with or Without Lubricati
Type Standard: ISO15552,ISO6431,DIN
Name: Adjustable Long Stroke Pneumatic Air Cylinder
Structure: Series Cylinder
Power: Pneumatic
Standard: Standard
Pressure Direction: Double-acting Cylinder
Material: Stainless Steel ,Aluminum

Product Description

 aluminum piston double acting adjustable long stroke pneumatic air cylinder
Product Features
This series of cylinders are standard pneumatic cylinder, with complete specifications and wide applications.
1) Working medium: double actions
2) Motion pattern: filtered air
3) Max. operating pressure: 1.0MPa
4) Min. operating pressure: 0.1MPa
5) Ambient temperature: -5~70°C
6) Operating speed: 50-500mm/s
7) Oil: lubricated and not lubricated
8) Joint pipe bore: 1/8"-1/2"
9) Cushion: adjustable cushion at both ends

Product specifications
Meets StandardsCorresponds to ISO15552,withdrawn ISO 6431,DIN ISO 6431, VDMA 24 562,NF E 49 003.1 and UNI 10290
Bore Diameter(mm)32,40,50,63,80,100,125,160,200,250,320mm
Stroke Range(mm)5-3000mm
Cushioning TypeAdjustable at both ends
Operating MediumFiltered compressed air, with or without lubrication
Cylinder ActionSingle acting or Double acting
Position SensingProximity Sensor
Type of MountingFA,FB,CA,CB,TC-M,LB ,etc.
Product Description

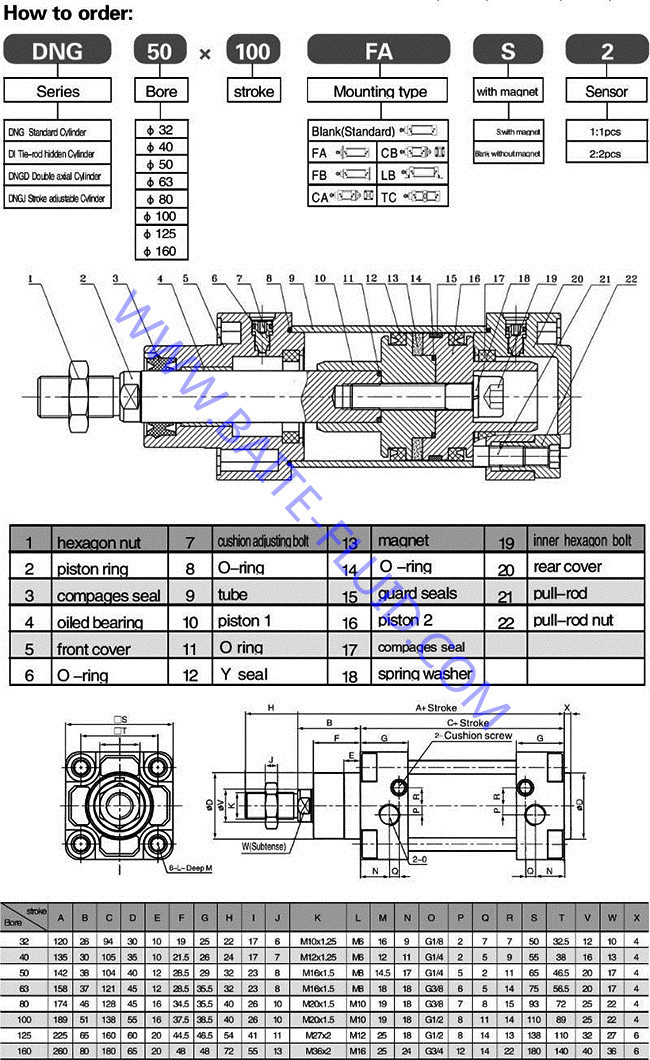

Product details

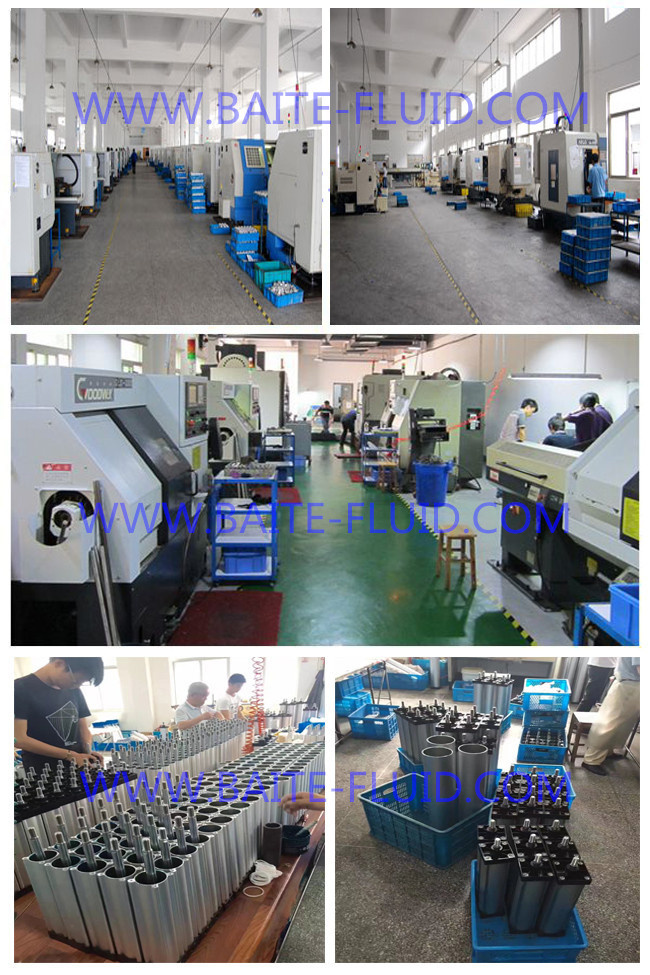

Production Workshop

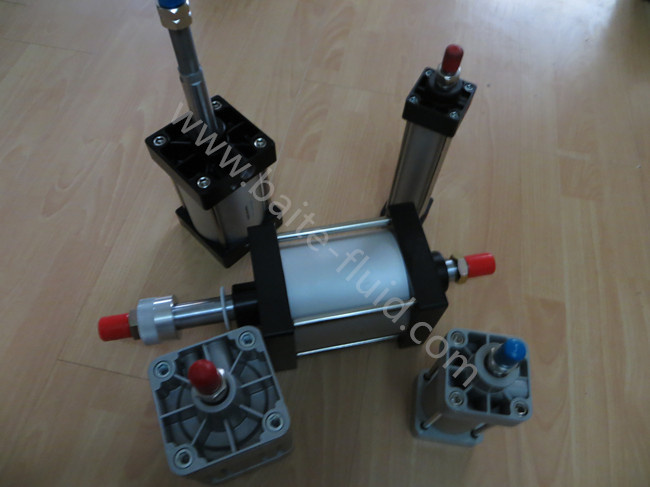

Cylinder Accessories

Quality Assurance

Main Equipment:
automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.
Perfect Inspection Process:
Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.
Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.
Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirements



Contact Us

All products can be customerized designed . We will supply professional service within 24 hours .Welcome to contact .





Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.

Our products are as below:

1. Standard Flanges.

2. Wind tubine tower connecting flange, wind power tower flanges.

3. Forged Steel Rings, seamless steel rolled rings.

4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.

4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.

5. Machinery parts.

6. Stamped parts.

7. Oil lubricator system.

They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.

Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.

Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.

Baite Fluid Main principles

Reciprocity principle:

Reciprocity principle

Commitment and inertia principle

Social identity principles

Friendship principles
