| Prod Model: |
air gripper cylinder BTF-PC-028 |
| Max Operating Frequency: |
180 C.P.M |
| Operating Pressure Range: |
0.15-0.7MPa |
| Wok Temperature: |
-10 to 60 Degree |
| Fluid: |
Air |
| Port Size: |
M3 X 0.5,M5 X 0.8 |
| Name: |
Pneumatic Air Gripper Cylinder |
| Material: |
Aluminum |
| Structure: |
Piston Cylinder |
| Power: |
Pneumatic |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |
| Special Cylinder Type: |
Air Gripper |
Product Description
OEM pneumatic air gripper cylinder smc pneumatic machine air gripper cylinder

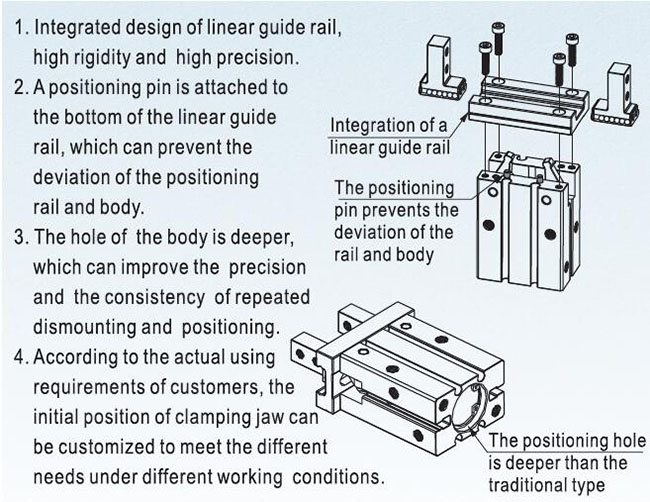

Product Features
Product specification| Bore size (mm) | 6 | 10 | 16 | 20 | 25 | 32 | 40 |
| Fluid | Air | |
| Action | Double acting, Single Acting | |
| Operating pressure | Double acting | 0.15 to 0.7 | 0.2 to 0.7 | 0.1 to 0.7 |
| Single Acting | 0.3 to 0.7 | 0.35 to 0.7 | 0.1 to 0.7 |
| Ambient and fluid temperature | -10 to 60°C |
| Repeatability | ±0.01mm | ±0.02mm |
| Max. operating frequency | 180 c.p.m. | 60 c.p.m. |
| Lubrication | Non-lube |
| Auto Swith (Option) | Solide state switch (3-wire, 2-wire) |
| Port size | M3 x 0.5 | M5 x 0.8 |

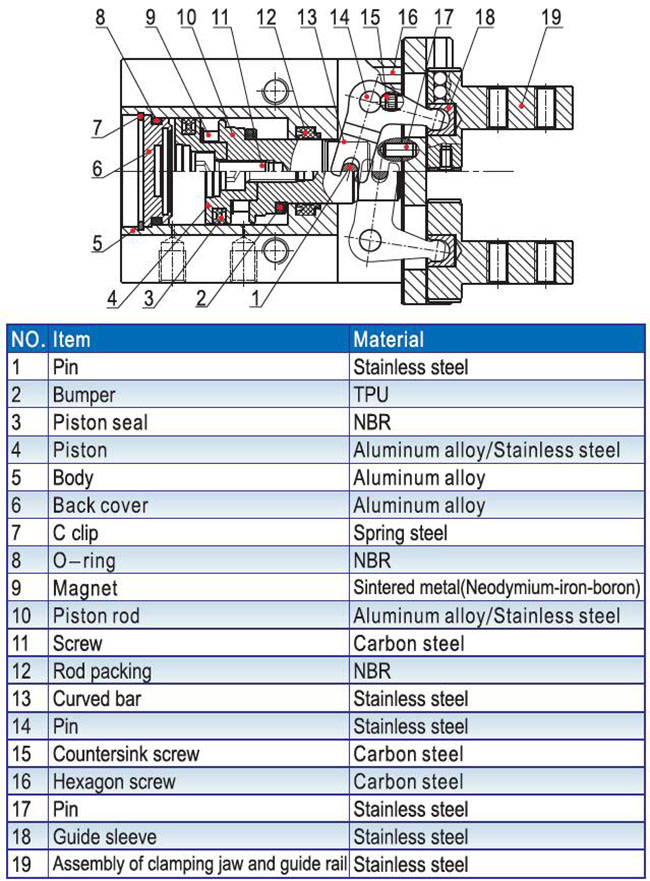

Product Structure

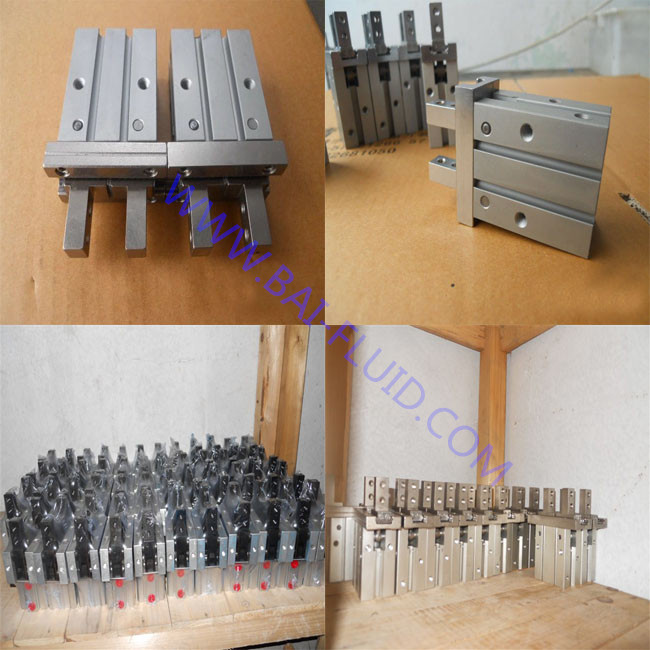

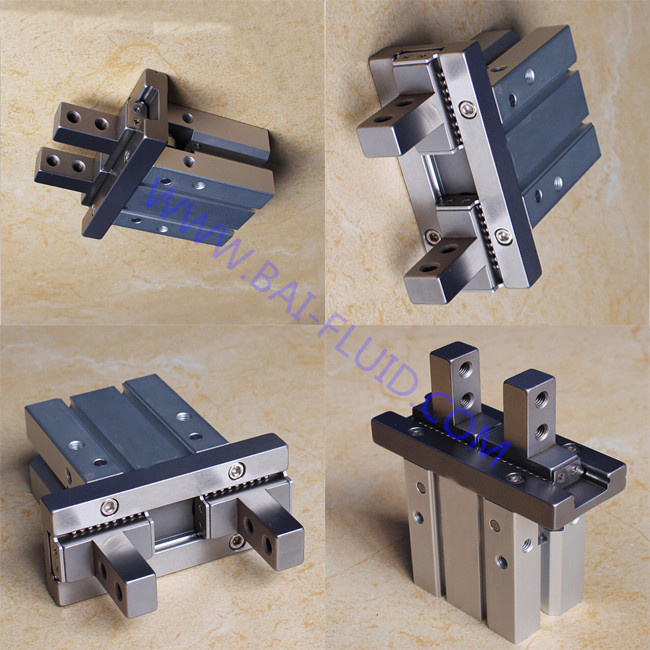

Product Show

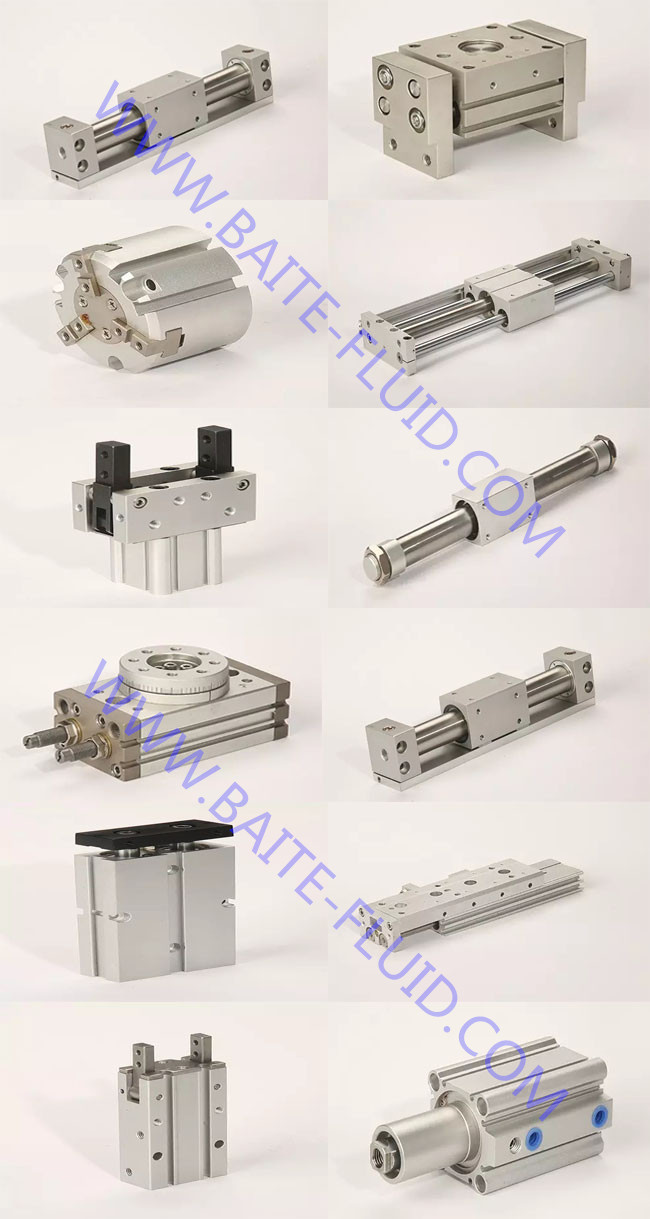

Related Products
Quality Assurance
Main Equipment:
automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.
Perfect Inspection Process:
Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.
Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.
Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirements
Contact Us
Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.
Our products are as below:
1. Standard Flanges.
2. Wind tubine tower connecting flange, wind power tower flanges.
3. Forged Steel Rings, seamless steel rolled rings.
4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.
4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.
5. Machinery parts.
6. Stamped parts.
7. Oil lubricator system.
They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.
Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.
Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.
