| Prod Model: |
TN502 TW502 |
| Name: |
Tire Pressure Monitor System |
| Feature: |
OBD,Bluetooth APP with Smart Phone |
| Chip: |
Infineon |
| Batteries Brand: |
Japan Panasonic Batteries |
| Batteries Life Time: |
5year |
| APP: |
Download on Smart Phone |
| Tire Match: |
on APP of Smart Phone |
| Tire Changing: |
on Smart Phone |
| Alarm: |
Human Voice Alarm |
| Alarm Language: |
Chinese,English |
| Function: |
Tire Pressure Monitor System |
| Type: |
Car Tire TPMS |
Product Description
Bluetooth APP TPMS can connect by USB or cable or OBD.
APP language could be changed to local language. custom made logo.

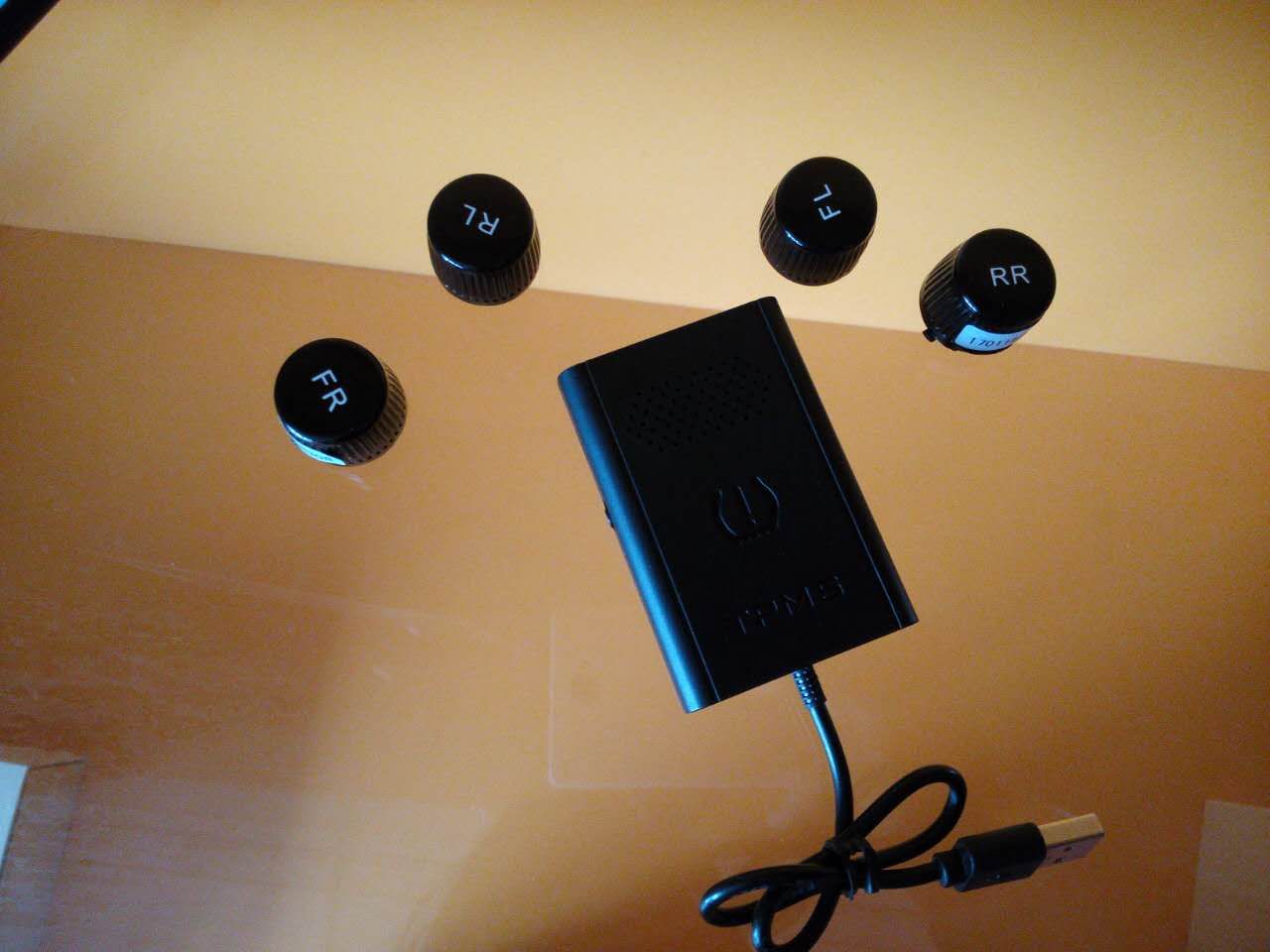

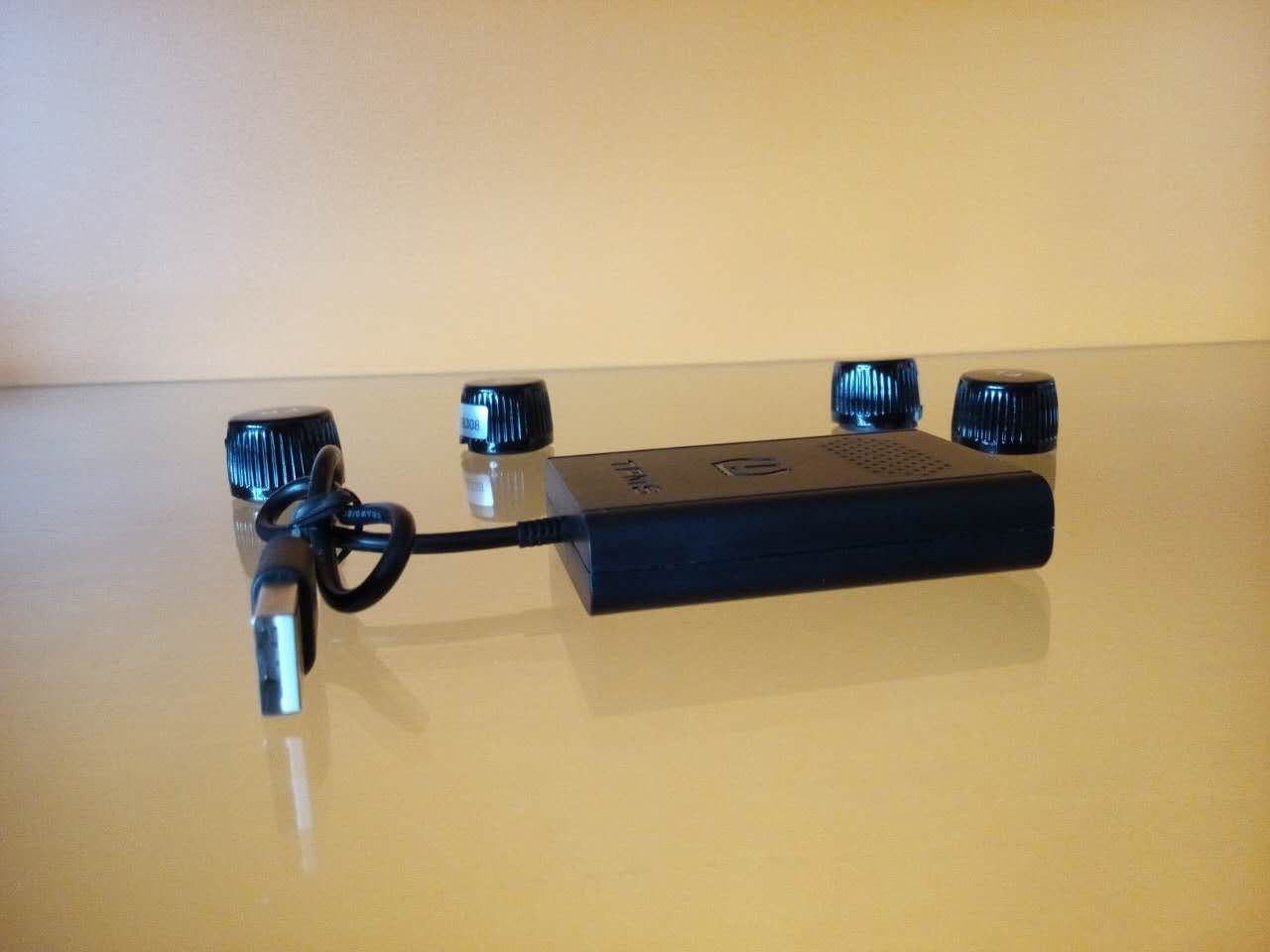

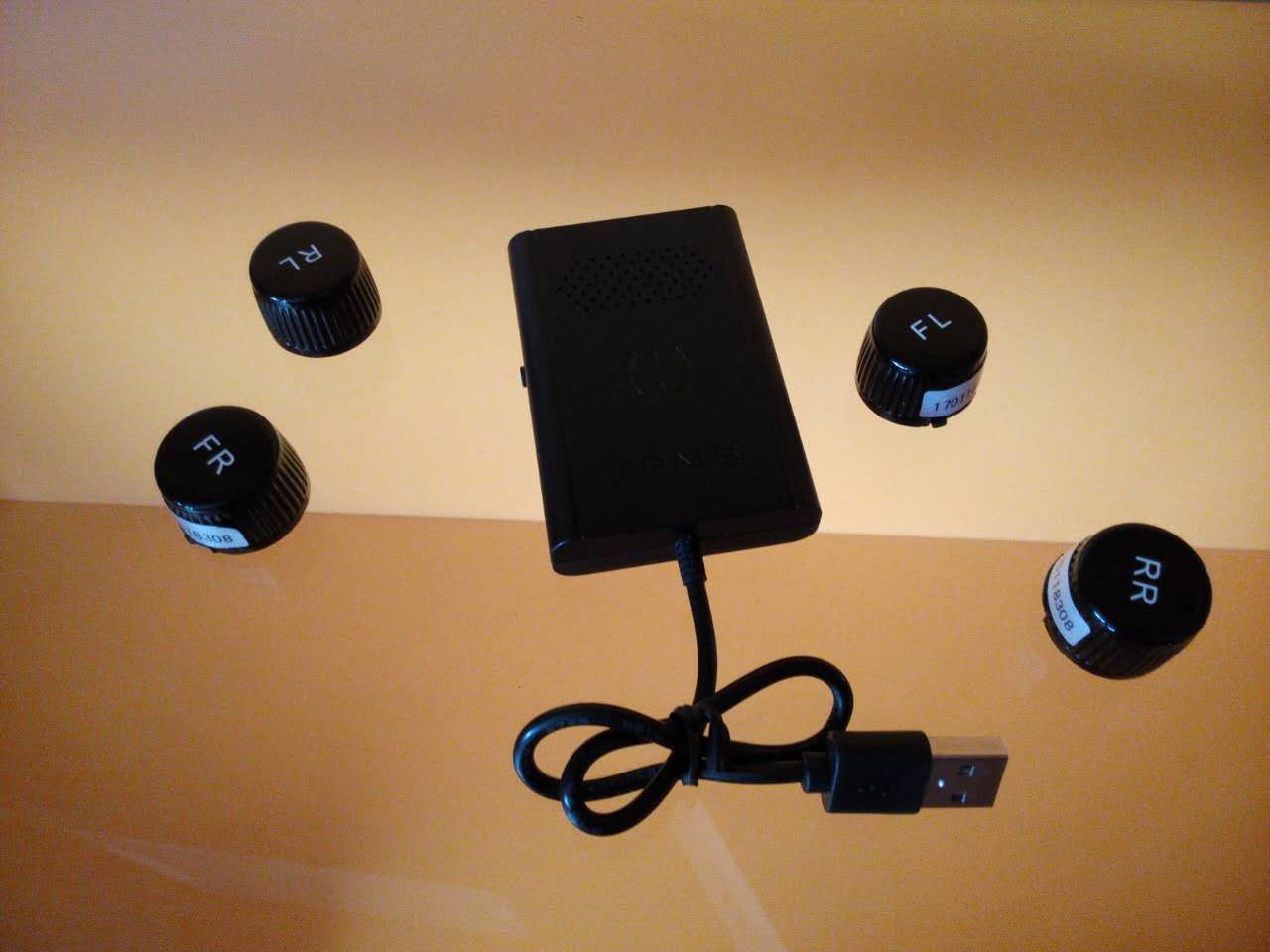

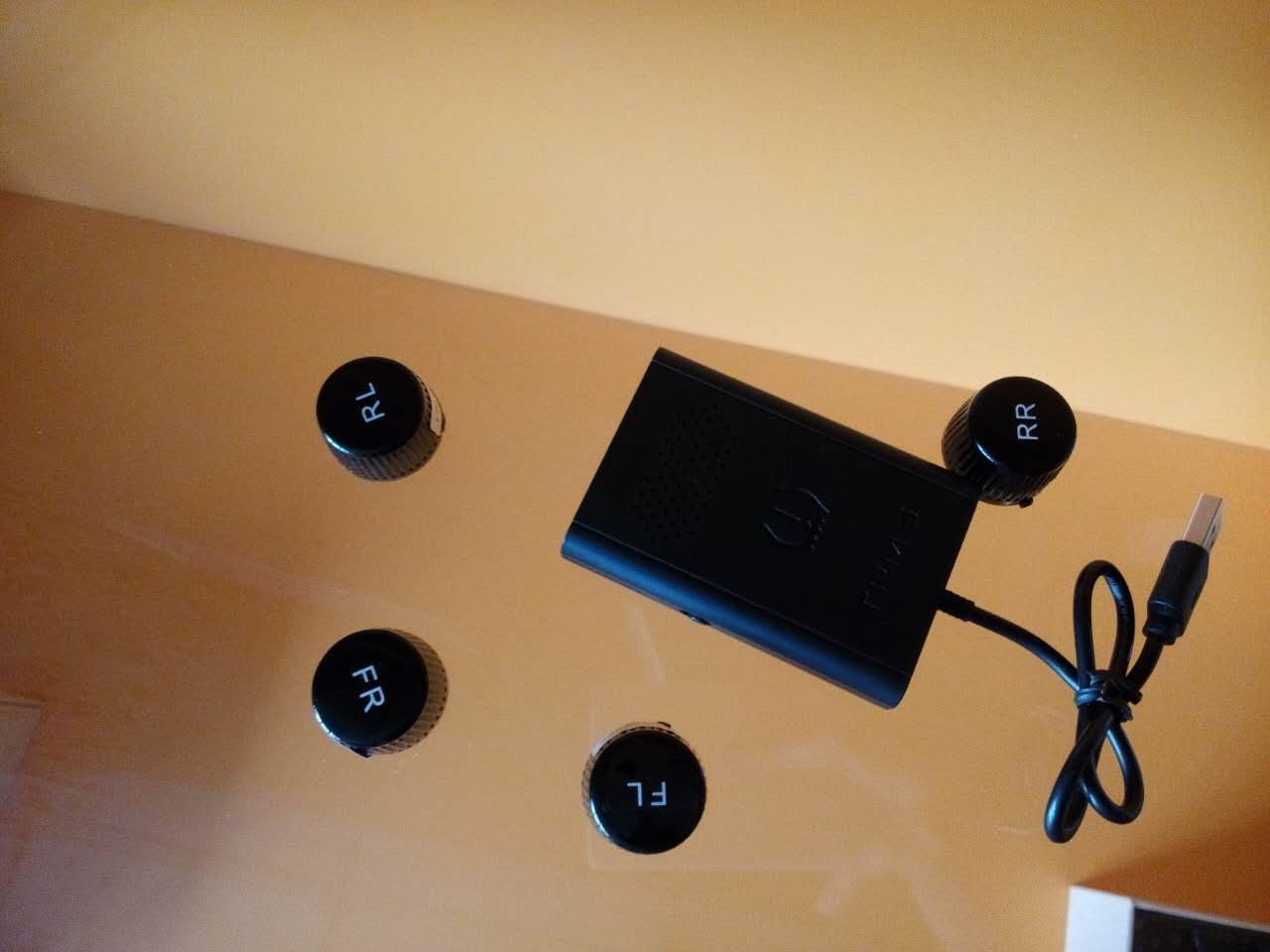

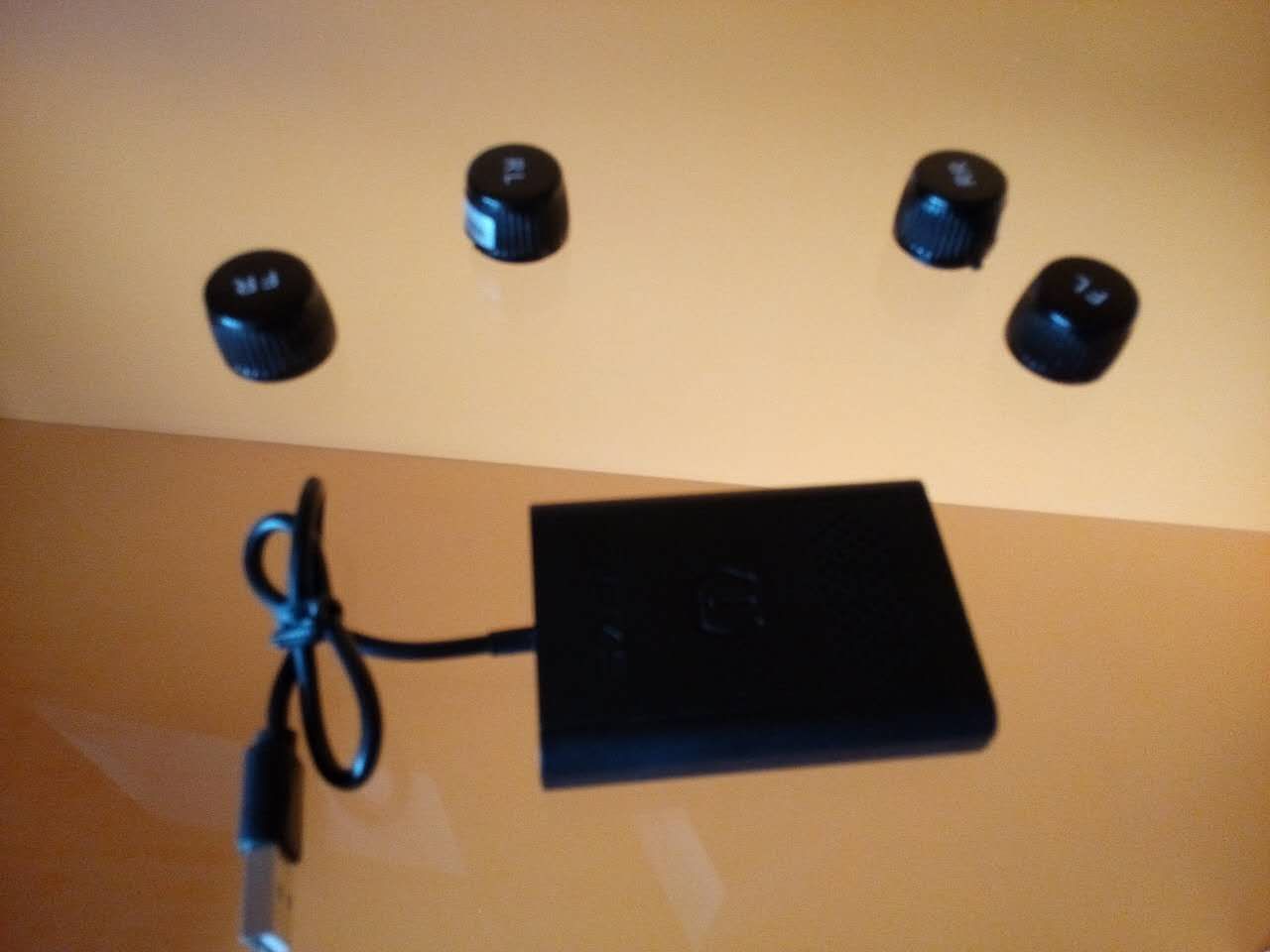

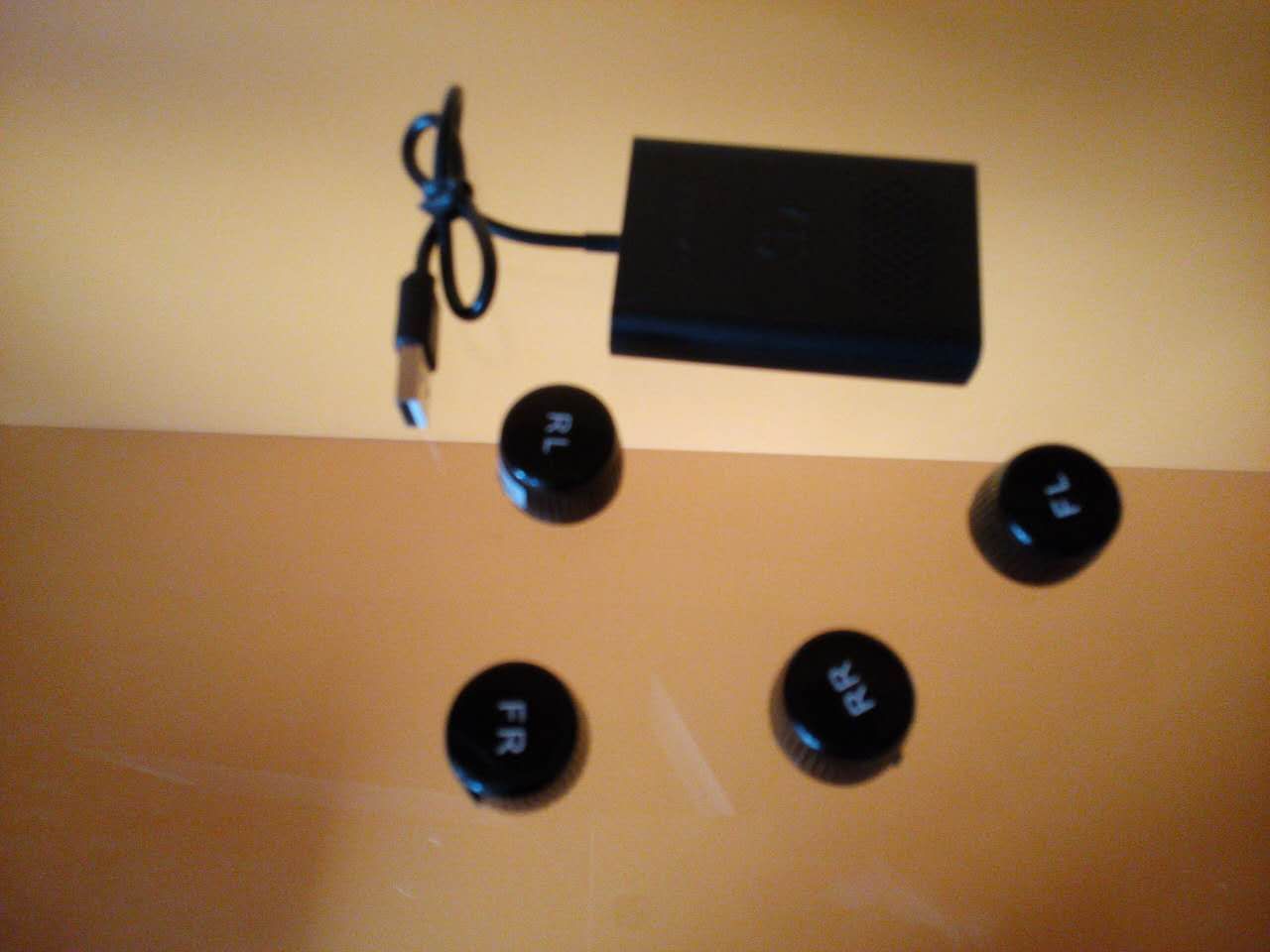

External Wireless Bluetooth TPMS with APP Display:
1.With 4 external sensor
2.Support Android and IOS system
3.Get power from the OBD socket
4.APP display
5.Selectable temperature unit(Psi,BAR)
6.Display the tire pressure and Temperature of 4 tires simultineously
7.Configurable tire pressure and temprature alert setting
Note:Only Suitable for Bluetooth version 4.0 above
Package includes:
1.1x Monitor
2.4x External Sensors
3.2x Wrench
4.1x Professional wrench
5.5x Hexagon nut
6.1x English manual
7.Original box pack
| Operating Temperature | -20ºC-80ºC |
| Pressure Range | 0-4.5Bar (65Psi) |
| Pressure Sensitivity | ±0.1Bar(1.5Psi) |
| Temperature Sensitivity | ±3ºC |
| Power | <10dbm |
| Frequency | 433.92MHZ |
| Dimension | 20mm*17mm (Diameter*Height) |
| Sensor Weight | 10 g |
*Search and download APP SYTTPMS in Google play or APP store for Android and ios smartphones
*The pressure / temperature alarm value be adjusted
*Forget to take Mobile phone ;This system also has the human voice to remind
*Parking air leakage, open the door immediately remind
*Tire pressure and temperature units arbitrary switching Global Universal
*Standard OBD plug and play, apply to most cars with four tires
*Visual, audible and vibration alarm
Internal Sensor Parameters
*Operating temperature: -40 to 120ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 73*63*10mm (Length*Width*Height)
*Battery life: 5 years (Non-replaceable battery)
*Weight: 38 grams
