| Prod Model: |
TN503 TW503 |
| Name: |
Tire Pressure Monitor System |
| Feature: |
OBD,Bluetooth APP with Smart Phone |
| Chip: |
Infineon |
| Batteries Brand: |
Japan Panasonic Batteries |
| Batteries Life Time: |
5year |
| APP: |
Download on Smart Phone |
| Tire Match: |
on APP of Smart Phone |
| Tire Changing: |
on Smart Phone |
| Alarm: |
Human Voice Alarm |
| Alarm Language: |
Chinese,English |
| Material: |
Plastic |
| Type: |
Car Tire TPMS |
| Bumper Position: |
Car Tire |
Product Description
Bluetooth APP TPMS can connect by USB or cable or OBD.
APP language could be changed to local language. custom made logo.

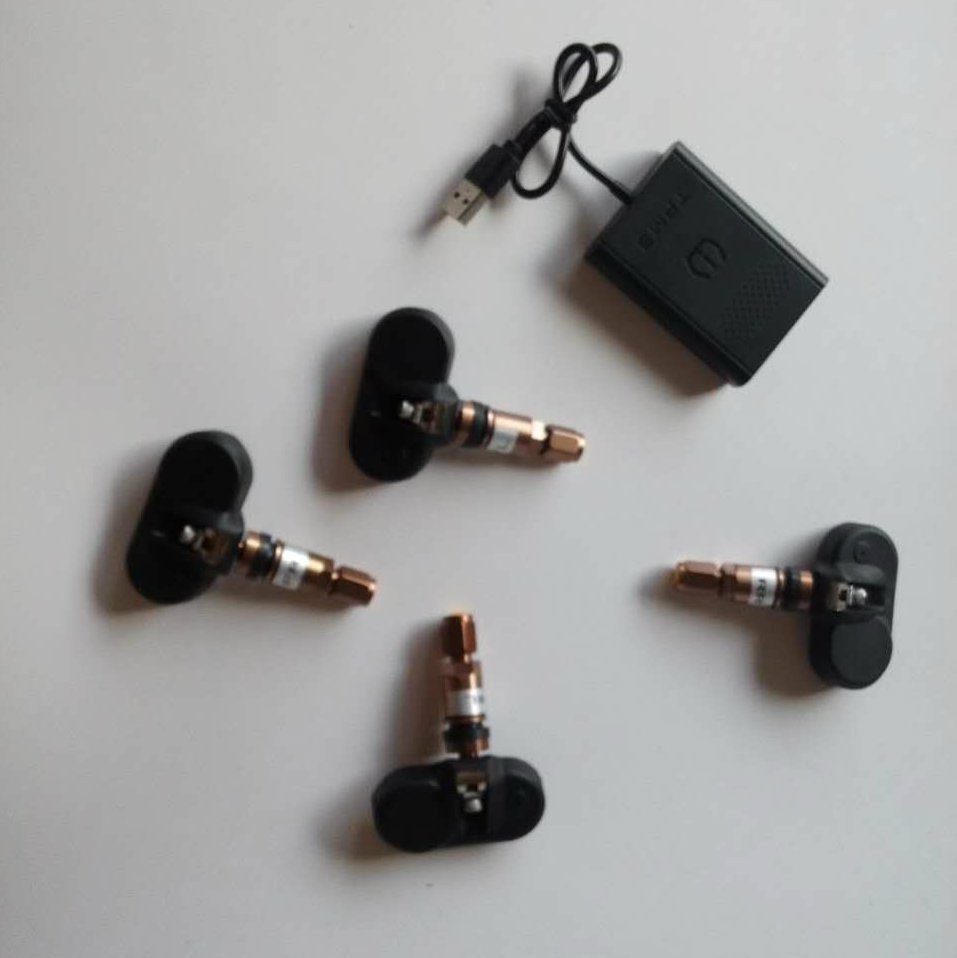

External Wireless Bluetooth TPMS with APP Display:
1.With 4 external sensor
2.Support Android and IOS system
3.Get power from the OBD socket
4.APP display
5.Selectable temperature unit(Psi,BAR)
6.Display the tire pressure and Temperature of 4 tires simultineously
7.Configurable tire pressure and temprature alert setting
Note:Only Suitable for Bluetooth version 4.0 above
Package includes:
1.1x Monitor
2.4x External Sensors
3.2x Wrench
4.1x Professional wrench
5.5x Hexagon nut
6.1x English manual
7.Original box pack
| Operating Temperature | -20ºC-80ºC |
| Pressure Range | 0-4.5Bar (65Psi) |
| Pressure Sensitivity | ±0.1Bar(1.5Psi) |
| Temperature Sensitivity | ±3ºC |
| Power | <10dbm |
| Frequency | 433.92MHZ |
| Dimension | 20mm*17mm (Diameter*Height) |
| Sensor Weight | 10 g |
*Search and download APP SYTTPMS in Google play or APP store for Android and ios smartphones
*The pressure / temperature alarm value be adjusted
*Forget to take Mobile phone ;This system also has the human voice to remind
*Parking air leakage, open the door immediately remind
*Tire pressure and temperature units arbitrary switching Global Universal
*Standard OBD plug and play, apply to most cars with four tires
*Visual, audible and vibration alarm
Internal Sensor Parameters
*Operating temperature: -40 to 120ºC
*Pressure range: 0 to 65Psi (4.5Bar)
*Pressure accuracy: ±1.5Psi (0.1Bar)
*Temperature accuracy: ±3ºC
*Transmission power: <10dBm
*Transmission frequency: 433.92MHz
*Dimension: 73*63*10mm (Length*Width*Height)
*Battery life: 5 years (Non-replaceable battery)
*Weight: 38 grams
Shenzhen Shenyongtong have been found in 2004, for 12years. A manufacturer with 44 employees; It was established in 2004, located in 5/F, Bbuilding Yufeng Industrial Park, Yanguang 6th Road, Xili Town, Nanshan District Shenzhen City, Guangdong Province, China.
Our company occupies an area of more than 1000 square meters. Our company has its obtianed test report and patent certificates.
We has successuful foreign trading experience in Europe, North America, South America, Southeast Asia and Mideast. Our customers come from all over the world.
It is a reliable and professional manufacture on auto part car aftermarket.
At present we focus on producing tire pressure monitoring system.
There are different models.
We have our own research and developing team.
Our sale team. And have our own brand.
Our product brand have been very famous in Chinese market.
We attend several exibition shows each year.
You are welcome to visit our factory and talk.
We are the best choice for you!
