ANSI Certified High Quality Floor Hinge HD84 for Aluminum Door
| Price: |
US $ 29.53-36/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HD84 |
| Finish: |
Satin/Polish |
| Speed: |
2 Speed Adjustment |
| Spindle: |
German Type/Brazil Type/Italy Type/Customizable |
| Warranty: |
5 Years |
| Name: |
High Quality Durable Floor Hinge( Spring)HD84 |
| Material: |
Iron |
| Type: |
Embedded |
| Installation Type: |
Standard |
| Function: |
Adjustable |
| Standard: |
European Standard |
| Usage: |
School |
| Door Width: |
1250mm |
| Door Weight: |
100kg,120kg,150kg |
| Color: |
Customized |
Product Description
| Model NO: | HD84 |
| Type: | Door Closer |
| Enginee Cylinder | Double |
| Applicable standard | EN1154&ANSI |
| Max Door Weight | 100kg,120kg,150kg. |
| Max Door Width | 1250mm |
| Max Open Degree | 130° |
| Fixing Degree | 90° |
| Latching Speed Adjustment | 0° ~20° |
| Closing Speed Adjustment | 20° ~130° |
| Application Temperature | -40°~60° |
| Dimension(L*W*H) | 306mm*108mm*41mm |
| Material of body | Casting Iron |
| Material of Cover | 304SS or 201SS |
| Thickness of Cover | 0.8mm ~2mm |
| Thickness of Glass | 10mm ~12mm |
| Service life | Over 1000,000cycles |
Packaging & Delivery 1.Packaging detail: 1pc in inner box,4pcs in carton.
2.Delivery time: 20-30 days after deposit receivedQuick details1.Application: Our products can be used for glass doors,wooden doors,steel doors and the glass doors of metal
frame and wooden frame.
2.Payment term: 30% deposit by T/T before production, balance the payment before delivery.
3.Port: Main port of China(Mainland).
4.Service: ODM;OEM is accepted.Drawing of product:
1. Our Floor spring comply to EN1154&ANSI standard,and fire-rated EN1634 standard.
2. Over 1000,000 cycles tested without any damage.
3. Double ways opening with smoothly movement and noiseless,90°stop-device.
4. Closing speed and latching speed is adjustable,latching point accurately at 0°.

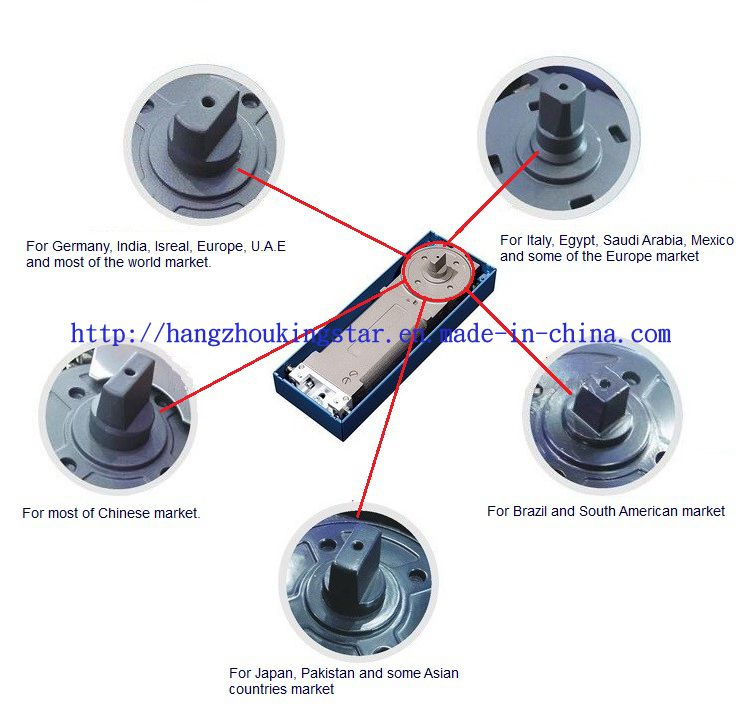

5. All spindle types available for different countries.
6. Anti-freezing oil and imported seal rings,keep perfect working from -40°to 60°temperature.Packing

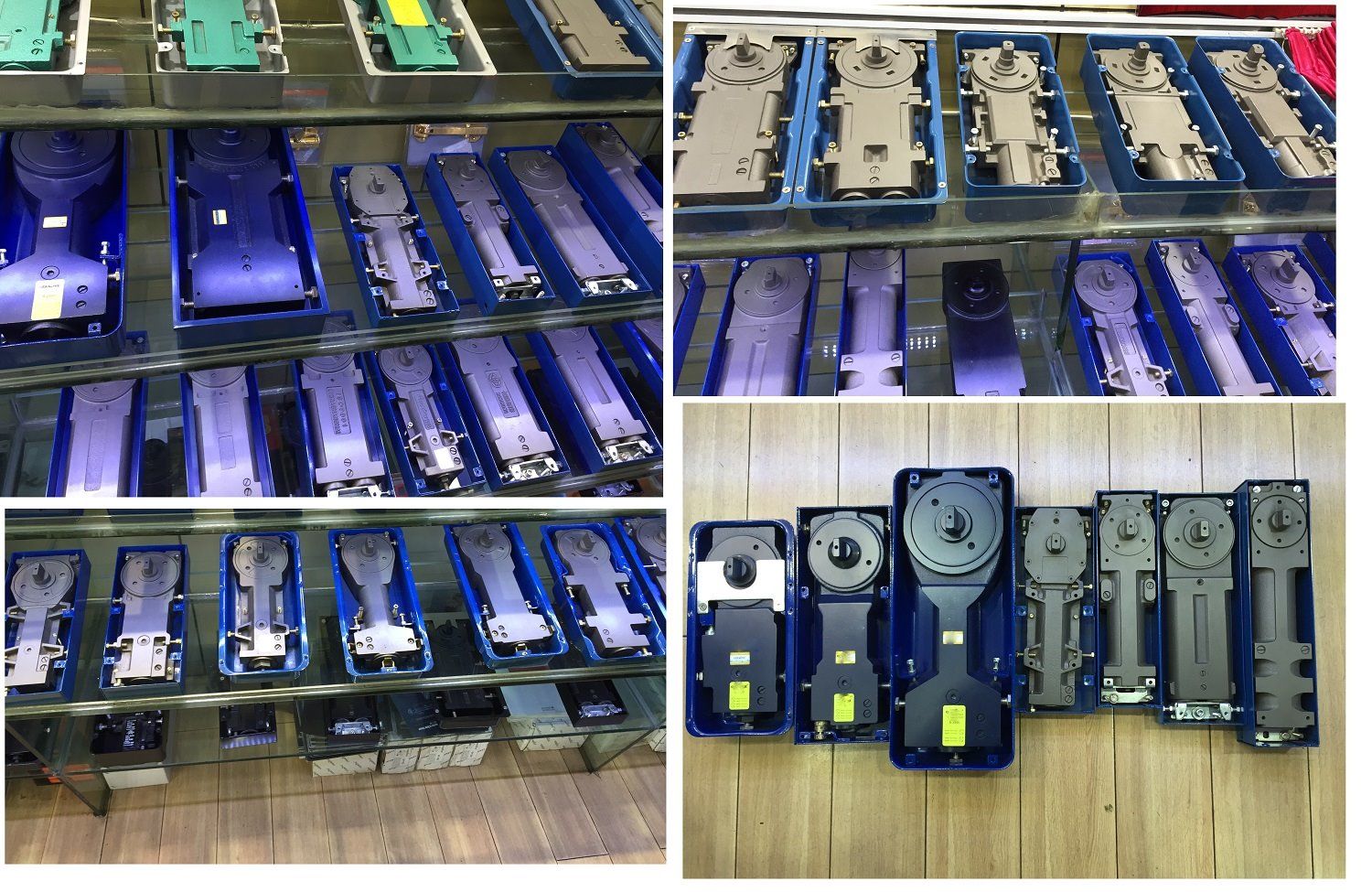

Products show
Our Advantage1. We have rich experience to export our products to abroad.
2. Advanced production line to make our products with high quality.
3. Providing personalized and flexible services to our clients.
4. We have strictly production management.
Hangzhou Kingstar Hardware Products Co. Ltd is a professional manufacturer for various types of high-quality door control hardware products which are used for building and decoration, "Kingstar" engaged in the development, production and trading for hardware products. As well as "Kingstar" has rich experience in product production and sales, and has high-tech and advanced production technology level. Company has its own famous brand "BKL", "M-WELL". Our company survive with high quality products, Products are made of high quality materials. They have advantages of durable, harmonious, attractive and excellent in performance. They are well received and trusted by our customers. The series of our products including floor spring, door closers, sliding door fittings, glass door patch fittings, bathroom glass clamp, glass door locks, door clips, glass door handle, glass hardware fittings and so on.
All the procedures of products of researching developing, manufacturing quality controlling are strictly operated in accordance with the advanced management mode, and the products are exported all over the world.
