| Prod Model: |
HPF100 |
| Finish: |
Satin/Polish |
| Speed: |
2 Speed Adjustment |
| Warranty: |
4 Years |
| Name: |
Floor Spring Hydrauilc Patch Fitting Hpf100 |
| Installation Type: |
Standard |
| Function: |
Adjustable |
| Standard: |
European Standard |
| Door Width: |
1100mm |
| Usage: |
School |
| Door Weight: |
100kg |
| Color: |
Customized |
Product Description
| Model NO: | HPF100 |
| Type: | Door Closer,Patch fitting |
| Enginee Cylinder | Single |
| Max Door Weight | 100kg |
| Max Door Width | 1100mm |
| Max Open Degree | 180°(Right&Left direction) |
| Location function | 90° hold open location or Non Location is optional |
| Latching Speed Adjustment | 0° ~10° |
| Closing Speed Adjustment | 10° ~180° |
| Application Temperature | -40°~60° |
| Dimension(L*W*H) | 195mm*45mm*75mm |
| Material of body | Stainless steel |
| Material of Cover | 304SS or 201SS |
| Thickness of Cover plate | 1.0mm |
| Thickness of Glass | 10mm ~12mm |
| Service life | 500,000cycles |
Packaging & Delivery 1.Packaging detail: 1pc in inner box,6pcs in carton.
2.Delivery time: 20-30 days after deposit receivedQuick details1. Application: Our products can be used for glass doors.
2. Payment term: 30% deposit by T/T before production, balance the payment before delivery.
3. Port: Main port of China(mainland).
4. Service: ODM;OEM is accepted. --------- printing logo on customized products
--------- customized design and material
--------- customized packing for products
5. Sample could be prepared for you on time.

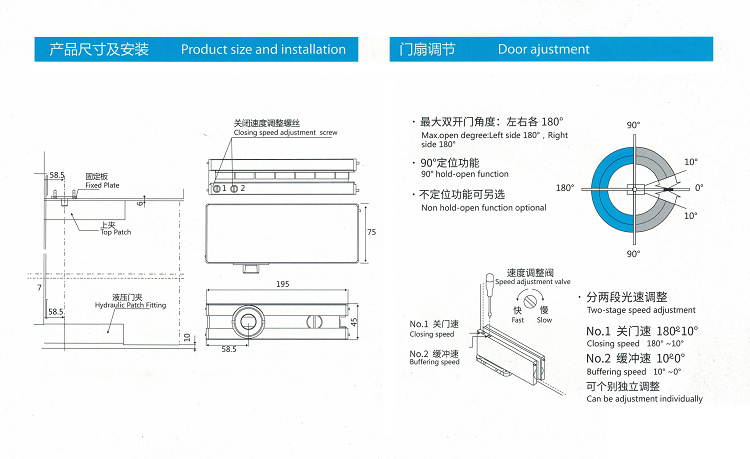

Drawing of product:
Packing

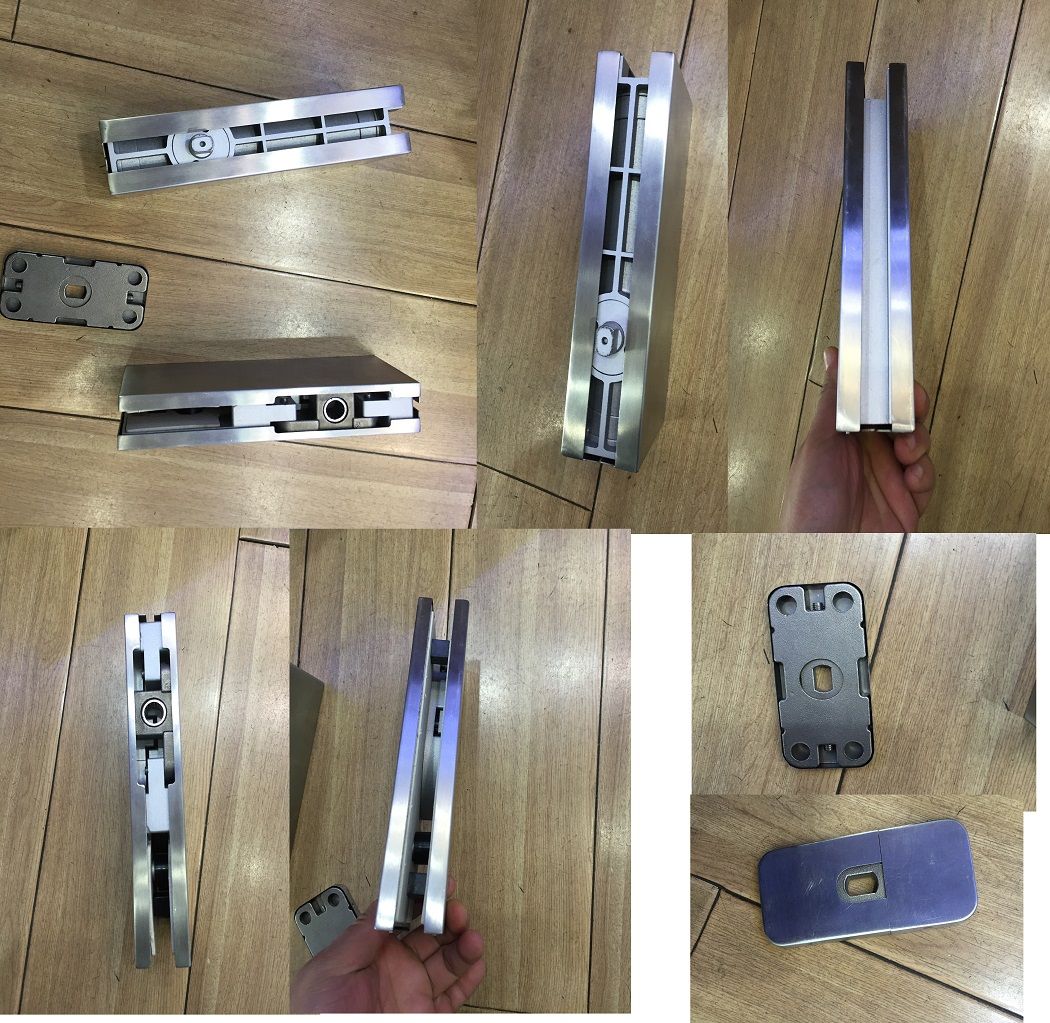

Products show
Our Advantage
1. We have rich experience to export our products to abroad.
2. Advanced production line to make our products with high quality.
3. Providing personalized and flexible services to our clients.
4. We have strictly production management.
