| Prod Model: |
WBV01 |
| Certificate: |
ISO, API.Ce, Crn |
| Brand: |
OEM /Xb |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Wcb |
| Function: |
Ball Valve |
Product Description

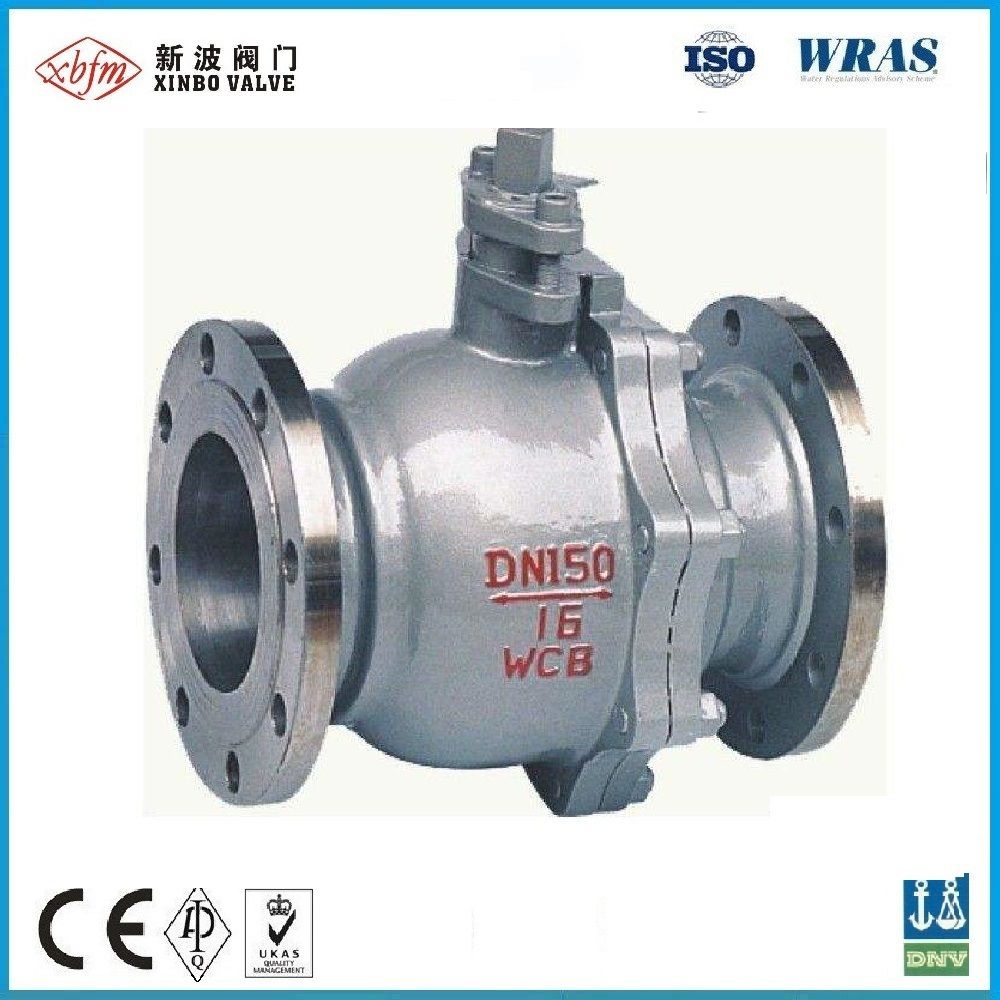

ANSI WCB BALL VALVE , WCB flange ball valves , PN16 WCB BALL VALVE
SpecificationsBall valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance. 070-2 cast iron gate valve rising stemApplication:Product name :ANSI WCB BALL VALVE
Product specification :1/2" ~ 12 "
End flange size :ANSI 16.1
Nominal pressure :150LB
Stress test :Shell Test 400psi (by water ) Seal Test 320psi (by water) Seal Test 60~100psi(by air)
Actuator mounting pad :ISO5211
Main material :A126-B
Design and manufacture :ANSI B16.34
Major design standards :ANSI 16.34
Flange standard :ANSI 16.10
Structural length :ANSI 16.10
Inspection and test standard :API 598
Test:Workingpressure 125PSI 150PSI
TestpressureShell 21.1kgf/c 21.1kgf/c
Seat 15.0kgf/c 15.0kgf/cComponents:1. Body: WCB
2. Ball: Stainless steel
3. Glandpacking: PTFE
4. Bonnet:WCB
5. Stem: Stainless steel
6. Handle: Ductile iron | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| | 1/2" | 3/4" | 1" | 1.25" | 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" |
| L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 356 | 394 | 457 | 533 |
| H | 59 | 63 | 75 | 86 | 97 | 131 | 142 | 170 | 201 | 252 | 286 | 340 | 410 |
| D | 89 | 98 | 108 | 117 | 127 | 152 | 178 | 191 | 229 | 254 | 279 | 343 | 406 |

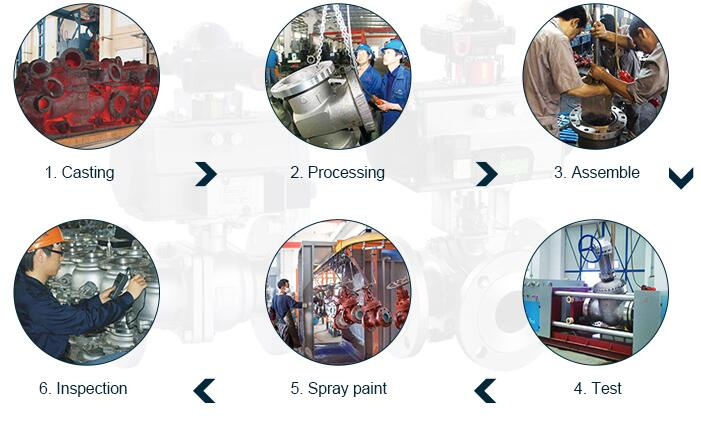

Machining Process

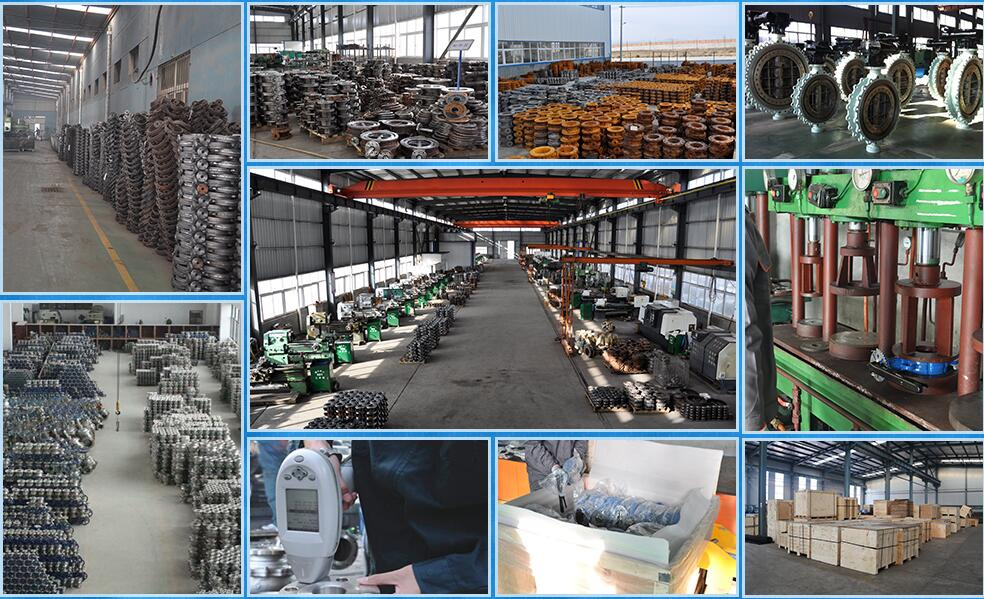

Work Shop

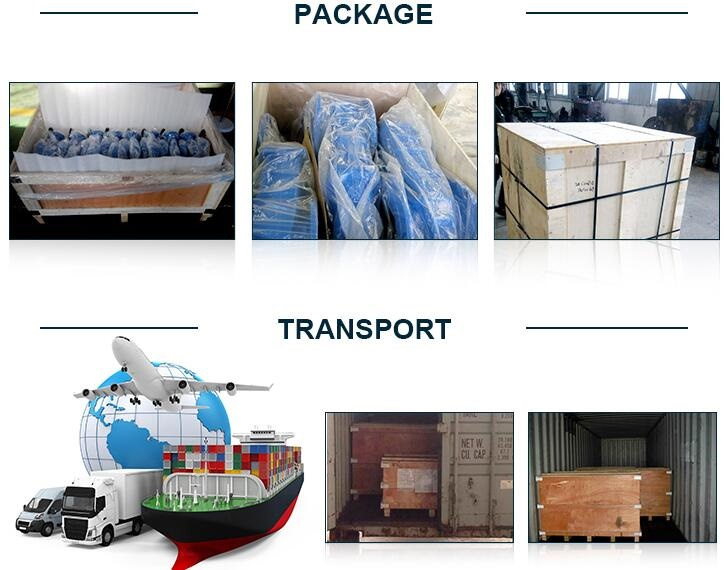

Shipment and packing , transport

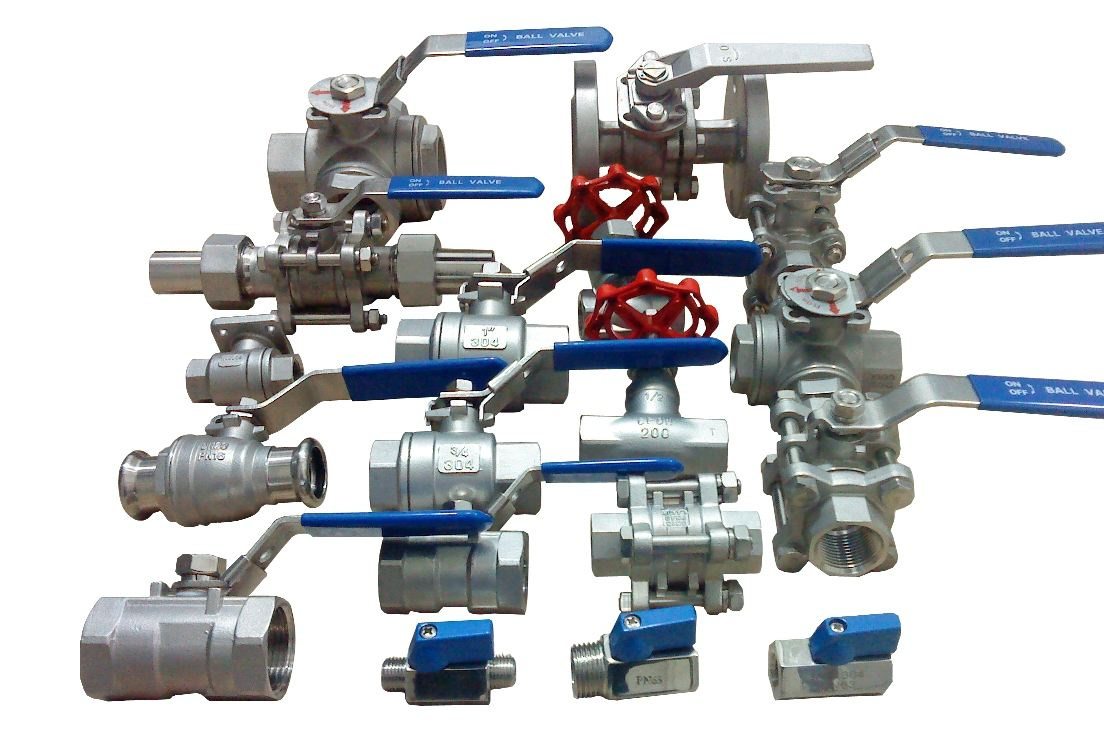

Other Porducts
Why Choose USWe control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
