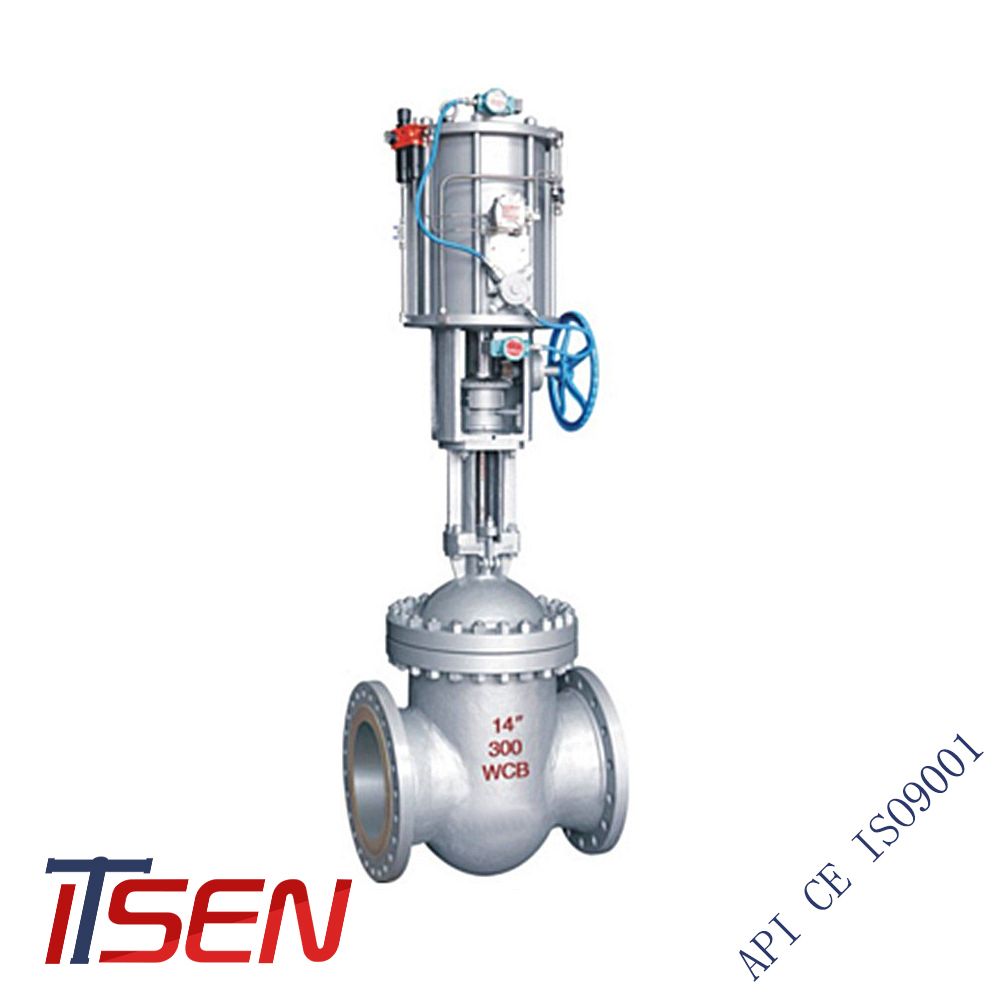

API ANSI 150lb Cast Carbon Steel Wcb Flange RF Slide Gate Valve of Pneumatic/Electric Pressure Control Valve with Prices

Name: API ANSI 150lb Cast Carbon Steel Wcb Flange RF Slide Gate Valve of Pneumatic/Electric Pressure Control Valve with Prices
Brand: tool-buy.com
SKU: 837192685
Availability: InStock
Rating: 4.3 (100 reviews)

Price:	US $ 15-220/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Qingdao Itsen Metal Products Co., Ltd.

Showroom Product Company Profile

Prod Model:	ZFS01
Body Material:	Wcb/CF8/CF8m
Bonnet Material:	Wcb/CF8/CF8m
Sealing Material:	2Cr13/Stl+PTFE
Sealing Shim:	2Cr13/Stl+PTFE
Stem Material:	Wcb/CF8/CF8m
Packing Material:	Flexible Graphite
Testing:	API 598
Certificate:	Ce/ISO/API
Face To Face:	ANSI B16.10
Flange Standard:	ANSI B16.10
Material:	Carbon Steel
Connection Form:	Flange
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Inside Gate Valve
Application:	Household Usage
Pressure:	Class150-Class600
Actuator:	Manual/Electric/Pneumatic

Product Description

Production enforce standard
Design and Manutacture		Face to face		Flange Dimension		Butt welding	Inspection and test
ANSI B16.34/BS1873		ANSI B16.10		ANSI B16.5		ANSI B16.25	API 598
Chief property and specification
Normal Pressure	Shell test		Water seal test		Air seal test
LB	Mpa	Lbf/in²	Mpa	Lbf/in²	Mpa	Lbf/in²
150	3.1	450	2.2	315	0.5-0.7	60-100
300	7.8	1125	5.6	815
600	15.3	2225	11.2	1630
900	23.1	3350	16.8	2440
1500	38.4	5575	28.1	4080
2500	64.6	9367	47.4	6873

Material for main parts
Body/Cover/Disc	Stem	Sealing Face	Sealing shim	Packing	Suitable medium
WCB	2 CR13	13Cr STL with body material PTFE Nylon	13Cr/Enhanced Flexible 1Cr13 /Flexible graphite SFB-208 Soft steel F304 F316 F304L F316L	Flexible graphite Enhanced Flexible graphite SFB/260SFP/ 260PTFE	Water Steam Petroleum Products
WC1	38CrMoAl 25Cr2Mov
WC6
WC9
C5 C12
CF8	F304				Nitric acid Aceic acid
CF3	F316
CF8M	F304L
CF3M	F316L

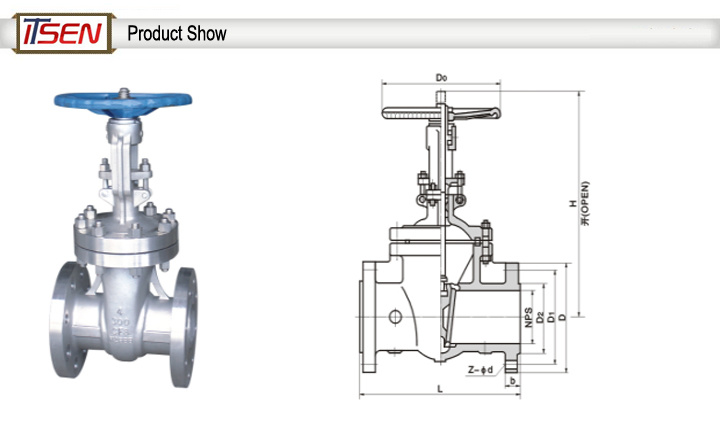

Main external and connection dimension
Size		L	D	D1	D2	b	z-d	Do	H(open)
2	in	7	6	4.75	3.62	0.75	4-0.75	8	16.1
2	mm	178	152	120.5	92	19.1	4-19	200	409
3	in	8	7.5	6	5	0.94	4-0.75	10	20
3	mm	203	90	152.5	127	23.9	4-19	250	570
4	in	9	9	7.5	6.19	0.94	8-0.75	10	23.2
4	mm	229	229	190.5	157	23.9	8-19	250	590
6	in	10.5	11	9.5	8.5	1	8-0.88	12	24.8
6	mm	267	279	241.5	216	25.4	8-22	300	630
8	in	11.5	13.5	11.75	10.62	1.12	8-0.88	13.88	37.8
8	mm	292	343	298.5	270	28.5	8-22	350	960
10	in	13	16	14.25	12.75	1.19	12-1	15.7	45.6
10	mm	330	406	362	324	30.2	12-25	400	1158
12	in	14	19	17	15	1.25	12-1	17.7	5430
12	mm	356	483	432	381	31.8	12-25	450	1378
14	in	15	21	18.75	16.25	1.38	12-1.12	19.7	60.75
14	mm	381	533	476.5	413	35	12-29	500	1543
16	in	16	23.5	21.25	18.5	1.44	16-1.12	23.6	68.4
16	mm	406	597	539	470	36.6	16-29	600	1738
18	in	17	25	22.75	21	1.56	16-1.25	23.6	74.1
18	mm	432	635	578	533	39.7	16-32	600	1959
20	in	18	27.5	25	23	1.69	20-1.25	26.8	87.2
20	mm	457	698	635	584	42.9	20-32	680	2214
24	in	20	32	29.5	27.25	1.88	20-1.38	29.9	102.3
24	mm	508	813	749.5	692	47.7	20-35	760	2599
30	in	24	38.75	36	33.75	2.94	28-1.38	36	125.3
30	mm	610	985	914	857	74.5	28-35	915	3183
36	in	28	46	42.75	40.25	3.56	32-1.62	36	147
36	mm	711	1170	1086	1022	90.5	32-41	915	3737

Q. Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.

Q. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.

Q. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock,it is according to your quantity.

Q C an I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

Q. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q. What is your payment terms?
A: Payment<=1000USD,100% in advance.
Payment>=1000USD,30% T/T in advance,banlance before shippment.

If you have another questions,please feel free to contact us below:

Qingdao Itsen Metal Products Co., Ltd is a leading producer in valves control system for water, gas and oil.

ITSEN is specialized in design, research and production of all industrial valves.

ITSEN products cover the following industry area:

Water supply system, water treatment, food, chemical, cement, air- conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on.

ITSEN has a overal prouduction capacity of around 3500 Tons and export value around 10 million dollars per year.

ITSEN has wide variety of industrial valves, including following main products:

1. Fire Protection Valve( UL/FM Certified)

2. Gate Vave(DIN, BS, API, ANSI, MSS, JIS)

3. Ball Valve (DIN, API, ANSI, JIS)

4. Butterfly Valve (DIN, BS, API, ANSI, JIS)

5. Globe Valve (DIN, ANSI, API, MSS)

6. Check Valve (DIN, ANSI, API, MSS)

7. Y strainer (DIN, ANSI)

8. Air Valve DIN

9. Foot Valve DIN

We have a good advantage on the lower labor cost and lower material cost. In this way, our prices are always in high competitive and all these are based on a reliable and trust quality.
