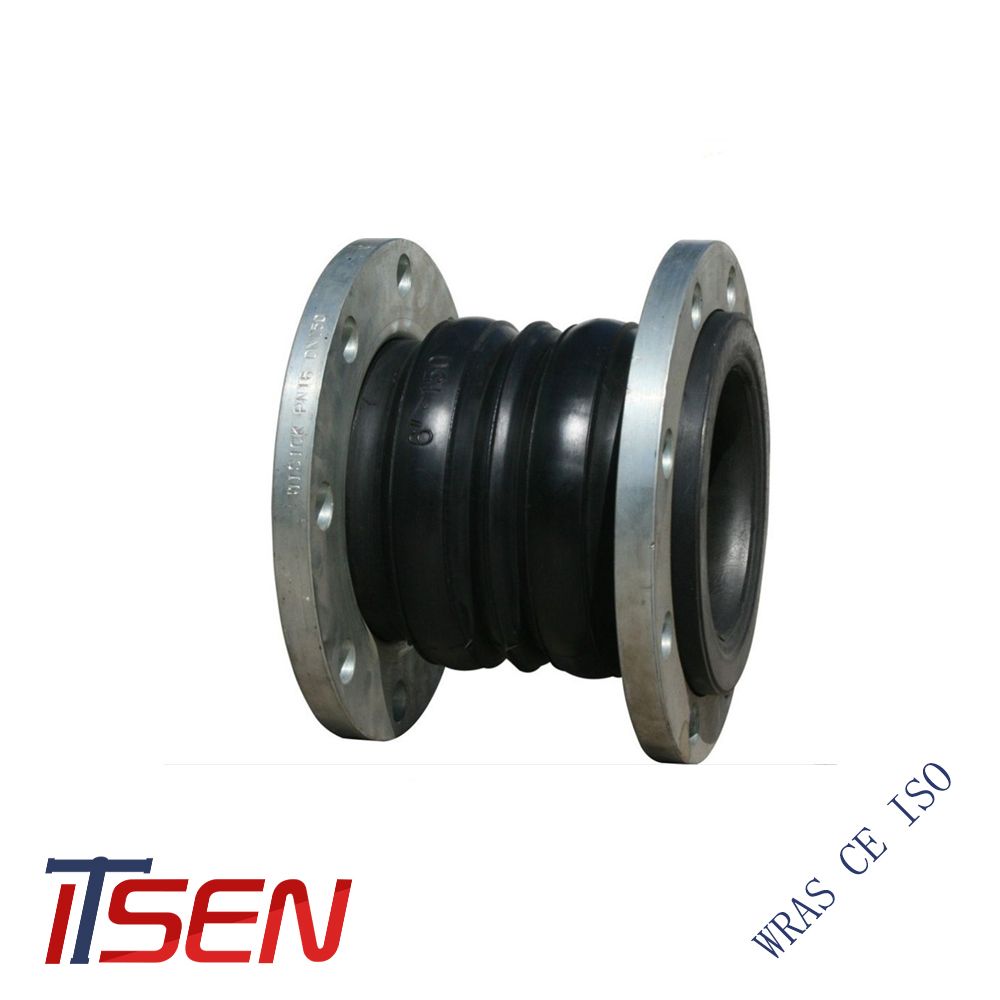

DIN/ANSI Double/Single Sphere/Rubber Bellow/Ball Flange/Thread/Screw Rubber Expansion Joint of Pn10/16 or Class150/300/600

Name: DIN/ANSI Double/Single Sphere/Rubber Bellow/Ball Flange/Thread/Screw Rubber Expansion Joint of Pn10/16 or Class150/300/600
Brand: tool-buy.com
SKU: 838946985
Availability: InStock
Rating: 4.4 (100 reviews)

Price:	US $ 4-120/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Qingdao Itsen Metal Products Co., Ltd.

Showroom Product Company Profile

Prod Model:	JT01
Flange Material:	Carbon Steel
Ball Material:	EPDM/NBR
Flange Standard:	ANSI Cl150, BS4504 Pn10-16, JIS10K, En1092
Pressure:	125-150lbs, Pn10, Pn16, JIS10K
Bellows:	Single/Double
Kind:	Natural Compensator
Type:	Horizontal
Head Code:	Round
Surface Treatment:	Galvanized
Customized:	Non-Customized
Certification:	ISO9001
Warranty:	12 Months
Application:	Building
Connection:	Flange/Screw
Material:	Carbon Steel+Rubber(EPDM/NBR)

Product Description

DN	Length	Axial Compression	Axial Tension	Lateral Displacement	Deflection Angle
mm	mm	mm	mm	mm	Degree
50	105	10	7	10	15
65	115	13	7	11	15
80	135	15	8	12	15
100	50	19	10	13	15
125	165	19	12	13	15
150	180	20	12	14	15
200	210	25	16	22	15
250	230	25	16	22	15
300	245	25	16	22	15
350	255	25	16	22	15
400	255	25	16	22	15
450	255	25	16	22	15
500	255	25	16	22	15
600	260	25	16	22	15
700	260	25	16	22	15
800	260	25	16	22	15
900	260	25	16	22	15
1000	260	26	18	24	15

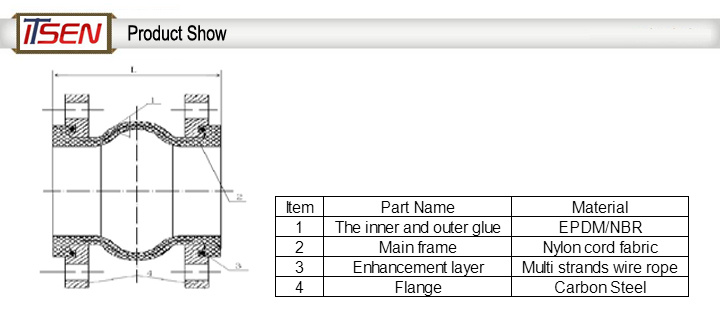

Item	Part Name	Material
1	The inner and outer glue	EPDM/NBR
2	Main frame	Nylon cord fabric
3	Enhancement layer	Multi strands wire rope
4	Flange	Carbon Steel

DN		Length	Axial Compression	Axial Tension	Lateral Displacement	Deflection Angle
mm		mm	mm	mm	mm	Degree
50	2	165	30	50	45	35°
80	3	175	35	50	45	35°
100	4	225	35	50	40	35°
125	5	230	35	50	40	35°
150	6	325	35	50	40	35°
200	8	325	35	50	40	35°
250	10	325	35	60	35	30°
300	12	325	35	60	35	30°
350	14	28	35	60	40	25°
400	16	30	35	50	40	25°
450	18	30	35	50	40	25°
500	20	32	35	50	35	25°
750	30	38	35	50	30	25°
1000	40	44	35	50	30	25°
1200	48	48	350	50	30	25°

Q. Do you provide samples?Is it free or extra?
A. Yes,we could offer the sample for free charge but do not pay the cost of the freight.

Q.  Do you provide samples?Is it free or extra?
A:  Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q.  Can I have my own Logo on the product?
A:  Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.

Q.  Can I request to change the form of packaging and transportation?
A:  Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.

Q.  How long is your delivery time?
A:  Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock,it is according to your quantity.

Q C an I request to advance the shipment?
A:  It should be depends on whether there is sufficient inventory in our warehouse.

Q.  Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q.  What is your payment terms?
A:  Payment<=1000USD,100% in advance.
Payment>=1000USD,30% T/T in advance,banlance before shippment.

Gate valve:
1.Standard: DIN3352 F4 / DIN 3352 F5 / BS 5163 / BS 4504 / ANSI,ext
2.Seal: Metal seated gate valve,Rubber coat gate valve
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Connection:Flange end / Socket end / Kinfe / Threaded end / Wafer Type,ext
5.Pressure:PN10/16/25

Butterfly valve:
1.Type:Wafer type butterfly valve / lug type butterfly valve/flange type butterfly valve(concentric and eccentric) /u type butterfly valve/grooved butterfly valve,ext
2.Pressure:PN10/16/25
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Standard:DIN/BS/ANSI,ext

Check valve:
1.Type:Wafer(dual)check valve/Swing check valve/Slient check valve/Ball check valve/lift check valve,ext
2.Pressure:PN10/16/25
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Standard:DIN/BS/ANSI,ext

Ball valve:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Standard:ANSI/JIS
3.Type:Flange ball valve/Tee ball valve/Welding ball valve,ext

Globe valve:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Type:Globe valve / Lift globe valve,ext

Strainer:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Type: Y strainer / T strainer,ext

Other valves:
Foot valve,Marine Valve,ext

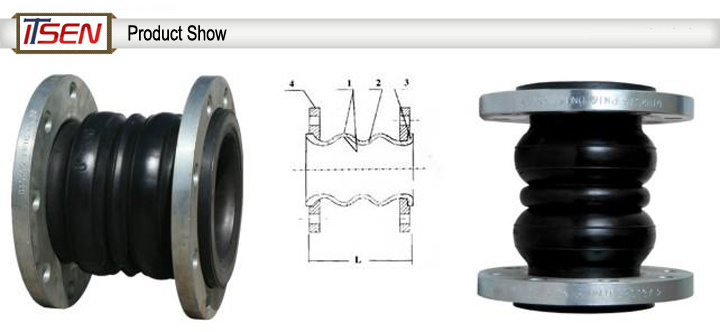

Rubber Expansion Joint:

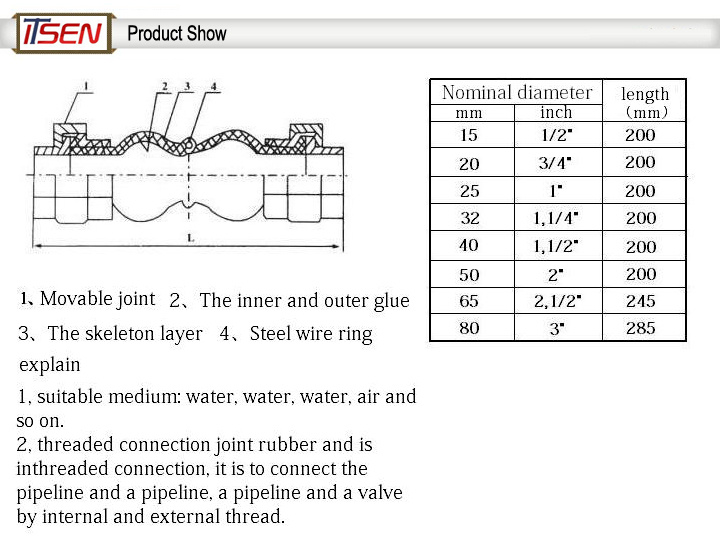

1.Connection:Flange and screwed
2.Bellows:Double and single

Dismantling Joint

If you have another questions,please feel free to contact us below:
Miss Claudia

TEL:0532-86025478

Qingdao Itsen Metal Products Co., Ltd is a leading producer in valves control system for water, gas and oil.

ITSEN is specialized in design, research and production of all industrial valves.

ITSEN products cover the following industry area:

Water supply system, water treatment, food, chemical, cement, air- conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on.

ITSEN has a overal prouduction capacity of around 3500 Tons and export value around 10 million dollars per year.

ITSEN has wide variety of industrial valves, including following main products:

1. Fire Protection Valve( UL/FM Certified)

2. Gate Vave(DIN, BS, API, ANSI, MSS, JIS)

3. Ball Valve (DIN, API, ANSI, JIS)

4. Butterfly Valve (DIN, BS, API, ANSI, JIS)

5. Globe Valve (DIN, ANSI, API, MSS)

6. Check Valve (DIN, ANSI, API, MSS)

7. Y strainer (DIN, ANSI)

8. Air Valve DIN

9. Foot Valve DIN

We have a good advantage on the lower labor cost and lower material cost. In this way, our prices are always in high competitive and all these are based on a reliable and trust quality.
