| Prod Model: |
Z40H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Industrial Usage |
Product Description
Product Description:

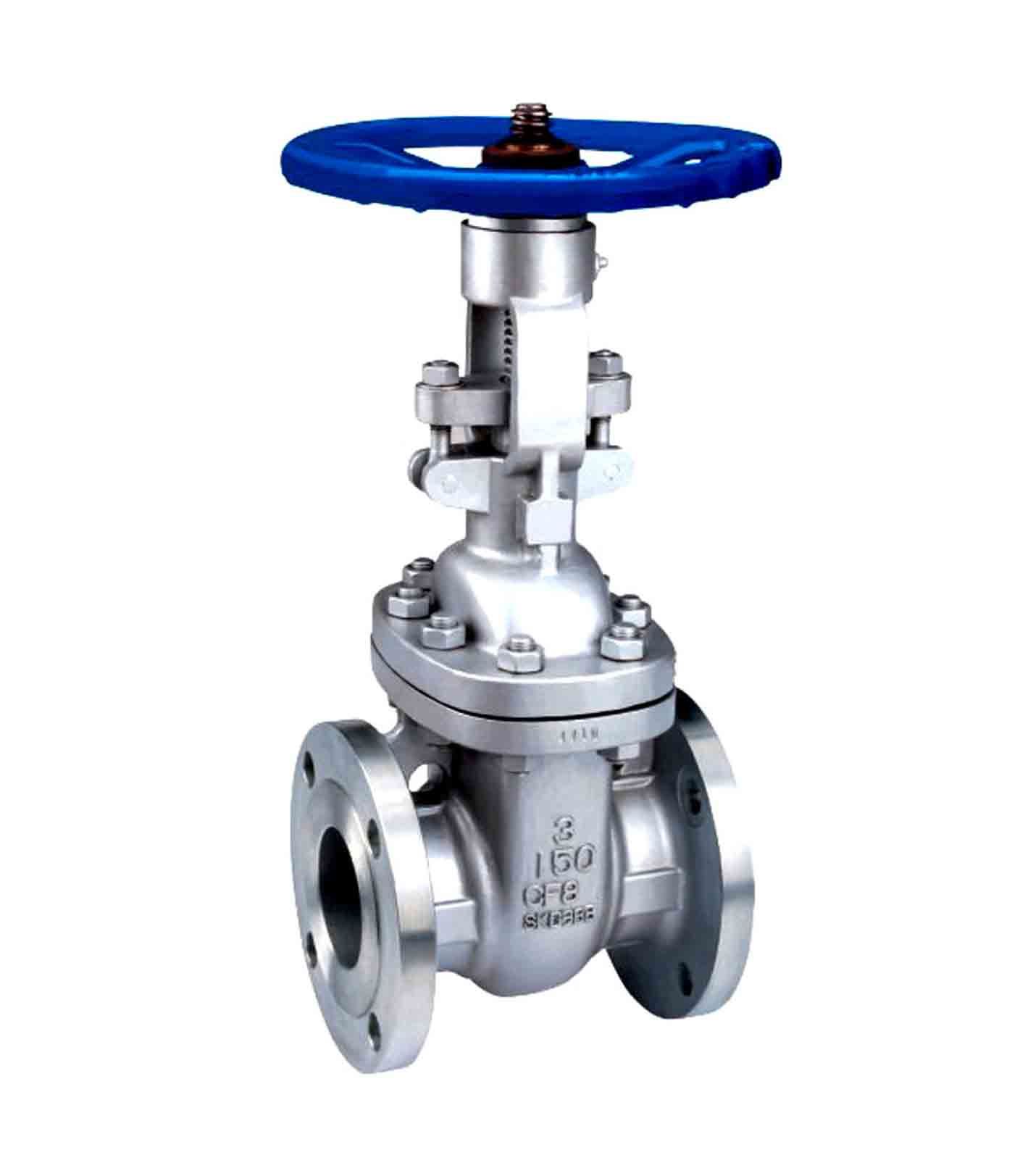

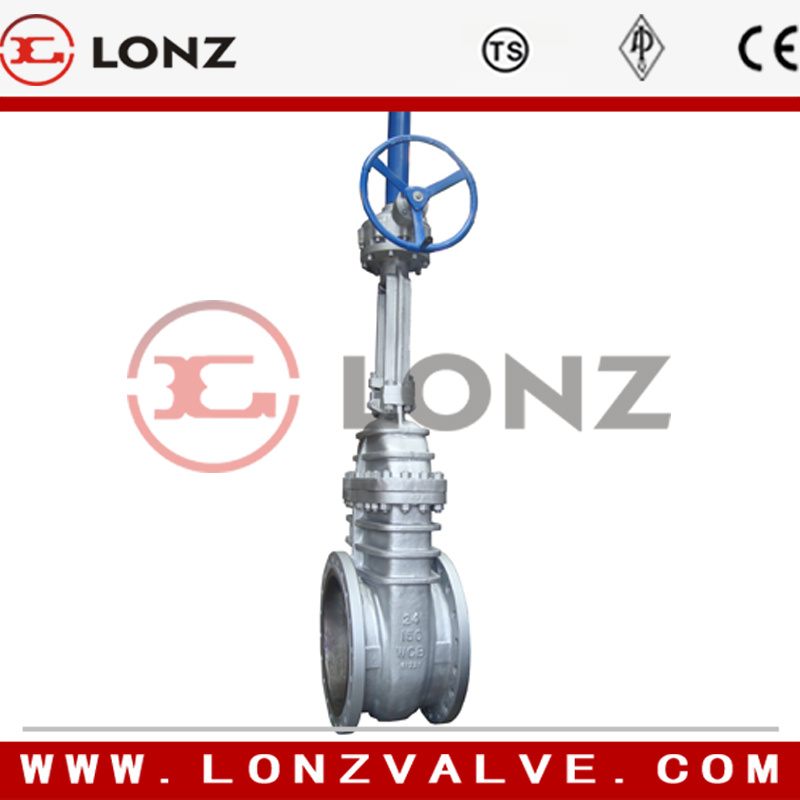

Gate valve features
1) Size: NPS 1/2" - 36"
2) Pressure: Class 150 - 1, 500
3) Material:
A) 1/2" - 2": A105, LF2, F11, F22, F5, F304, F316, F304L, and F316L
B) 2" - 36": WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, and CF8M
4) Design and manufacture standard: API 600, BS 1414, and ASME B16.34
5) Face to face standard: API 6D, ASME B16.10, DIN 3202, and BS2080
6) End connection standard: ASME B16.11, ASME B1.20.1, ASME B16.5,
ASME B16.47 and DIN2543-2551
7) Test standard: ISO5208, API 600, and BS 6755
8) Structure type: Rising stem and wedge single disc
9) Operated way: Hand wheel, bevel gear, pneumatic, and electric
Our company produce cast steel gate valve, forged gate valves, API valves including gate valve, api Gate Valve, globe valve and check valve
Zhejiang Ronze Valve Co., Ltd. is located in well-known China Pump&Valve hometown-Five-star Industrial zone, Oubei town, Wenzhou. The company, established in 1989, being to the first steep provider net of China Petroleum&Natural Group, the pointed manufacture company of the Chemical Industrial Equipment Corpporation, and the mtmbder of China CITYGAS ASSCOCIATION. The company covers 4500 square meters and the construction area is 3400 square meters. It has become a valve company which integrates Researching, manufacturing, designing, sales and after services as a specialized unit. Our main products is API valves, forged valves and steam traps. Including gate valve, globe valve, check valve, ball valve and steam traps. The valves manufactured by our company are widely applicable to the fields of petroleum, chemical industry, power industry, metallurgy, pharmacy paper making and food with good reputation and reliability from users.
The small-bore valves mainly include gate valves, stop valves, check valves and low-temperature valves. All of our products are made in accordance with the API standards.
The steam traps mainly include thermodynamic type, free ball float type, inverted bucket type bimetal type, bellow type, sylphon type, high temperature pressure disc type, and lever ball float type.
Materials of the products can be carbon steel, austenitic stainless steel, alloy steel and other special materials.
Our ball valve, gate valve, globe valve and check valve all sell well in many markets.
