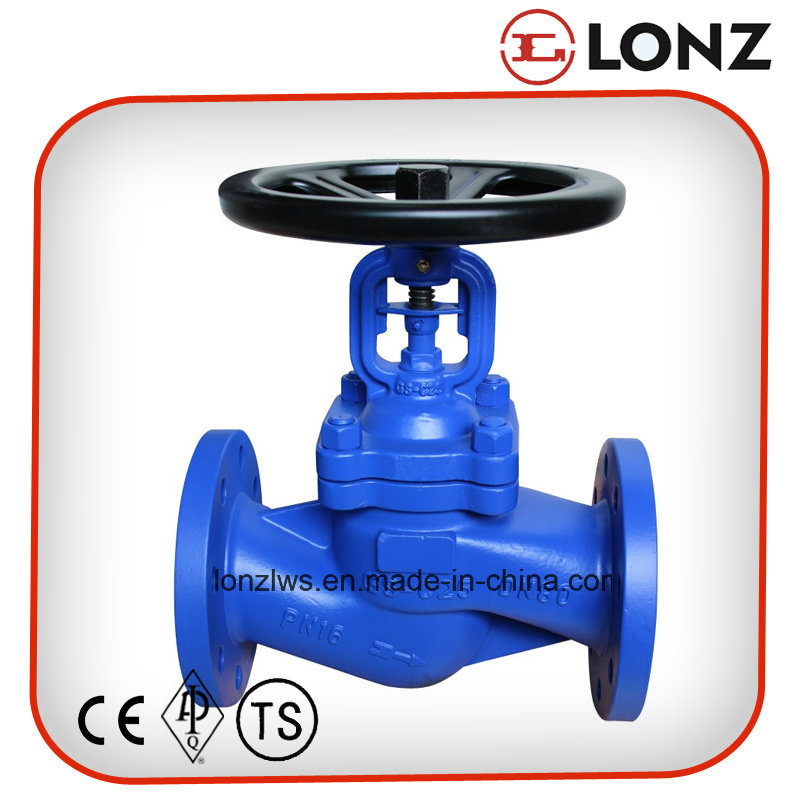

DIN Cast Steel GS-C25 1.7363 Bellow Seal Globe Valve
Price: |
US $ 250-5000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
WJ41H |
Class: |
Pn16~Pn64 |
Certificate: |
API |
Media: |
Wog |
Painting: |
Epoxy Painting |
Color: |
as Customers Request |
Fields: |
Metallurgy, Light Industrial, Electric Power... |
Power: |
Manual |
Temperature: |
Normal Temperature |
Structure: |
Through Way Globe Valve |
Sealing Form: |
Bellows Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Application: |
Bellows Globe Valve |
Standard: |
DIN |
Product Description
1. Materials: CS-C25, 1.7363,1.4308,1.4408,WCB,CF8,CF8M...
2. Size: DN50~DN400
3. Class: PN16~PN64
4. Connection:RF,RTJ,BW
5. Standard: DIN EN 13709
6. Face to Face: DIN EN1092-1
7.Flanged End: DIN EN 588-1

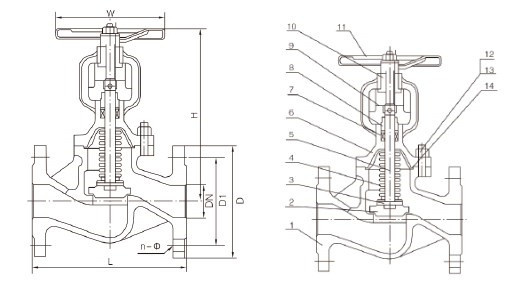

No. | Part Name | Material |
1 | Body | GS-C25 1.7363,1.4308,1.4408,1.4306,1.4301 |
2 | Disc | GS-C25 1.7363,1.4308,1.4408,1.4306,1.4301 |
3 | Pin | ASTM A182 F6a,F22,F304,F316,F321,F304L,F316L |
4 | Bellows Unit | 304,316 |
5 | Stem | 13Cr,F304,F316 |
6 | Bonnet | GS-C25 1.7363,1.4308,1.4408,1.4306,1.4301 |
7 | Packing | Flexible Graphite,PTFE |
8 | Gland | GS-C25 1.7363,1.4308,1.4408,1.4306,1.4301 |
9 | Guide Piece | 25,45,304,316 |
10 | Yoke Nut | Copper Alloy |
11 | Handwheel | WCB,QT400 |
12 | Bolt | B7,B8,B8M |
13 | Nut | 2H,8,8M |
14 | Gasket | Flexible Graphite+Stainless Steel,PTFE |
Packing Details: | Inner Package:bubble bags + plastic cover Outer Package:plywoodcase with dryer inside |
Delivery Details: | 30~45 days after receiving the payment |
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 35- 48 days if goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2500USD, 100%TT in advance.Payment>2500USD,30% T/T in advance ,balance before shippment.
Contact Person:Gloria
Phone:+8618867705237
If you have another question, pls feel free to contact us.

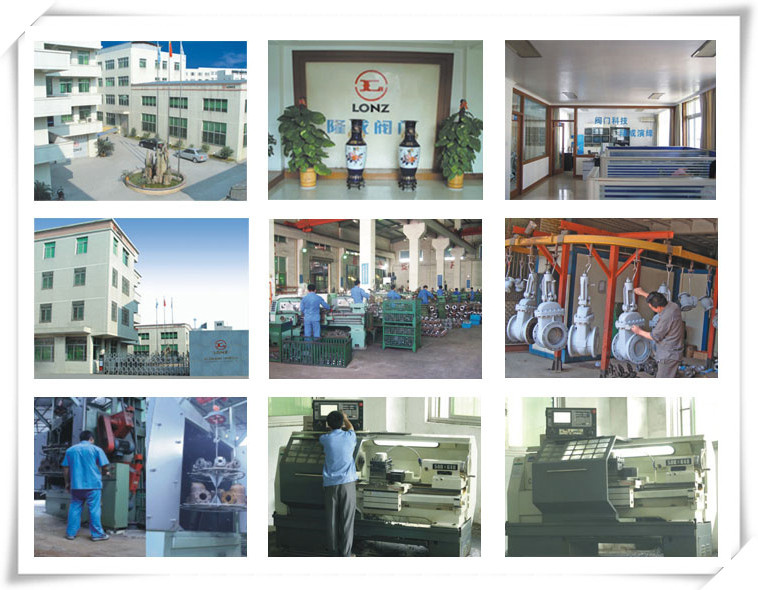

Zhejiang Ronze Valve Co., Ltd. is located in well-known China Pump&Valve hometown-Five-star Industrial zone, Oubei town, Wenzhou. The company, established in 1989, being to the first steep provider net of China Petroleum&Natural Group, the pointed manufacture company of the Chemical Industrial Equipment Corpporation, and the mtmbder of China CITYGAS ASSCOCIATION. The company covers 4500 square meters and the construction area is 3400 square meters. It has become a valve company which integrates Researching, manufacturing, designing, sales and after services as a specialized unit. Our main products is API valves, forged valves and steam traps. Including gate valve, globe valve, check valve, ball valve and steam traps. The valves manufactured by our company are widely applicable to the fields of petroleum, chemical industry, power industry, metallurgy, pharmacy paper making and food with good reputation and reliability from users.
The small-bore valves mainly include gate valves, stop valves, check valves and low-temperature valves. All of our products are made in accordance with the API standards.
The steam traps mainly include thermodynamic type, free ball float type, inverted bucket type bimetal type, bellow type, sylphon type, high temperature pressure disc type, and lever ball float type.
Materials of the products can be carbon steel, austenitic stainless steel, alloy steel and other special materials.
Our ball valve, gate valve, globe valve and check valve all sell well in many markets.
