Brief introduction



The ACI 318 rebar Coupler  works together with upset forging machine(GD-150) and rebar threading machine(GZL-45) for the connection of rebar whose diameter is between 12mm and 40mm.

As an important parallel thread connection technology, the upset forging parallel thread connection technology posses following advantage:

1,Wide working range: adaptable for Φ12mm-Φ50mm same diameter, different diameter,
bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.
2,High strength: stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar).It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003,JG171-2005.
3,High efficiency: upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.
4,Environmental protection and economy profit: no environment pollution, can work all day, not affected by weather, economize energy source and bar material.

Upset forging parallel thread system contains following products:
1.GD-150 rebar end upset forging machine Patent No. ZL 97 2 47900. 7

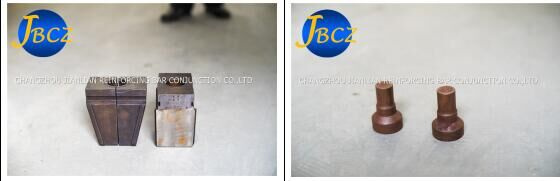

1.1 Machine easy wear parts: Mould (each size rebar need different size mould)

Female  mold	Male Mold
Size: 12/14/16/18/20/22/25/28/32/36/40mm

2.GZL-45 threading machine Patent No. ZL 97 2 43207. 8

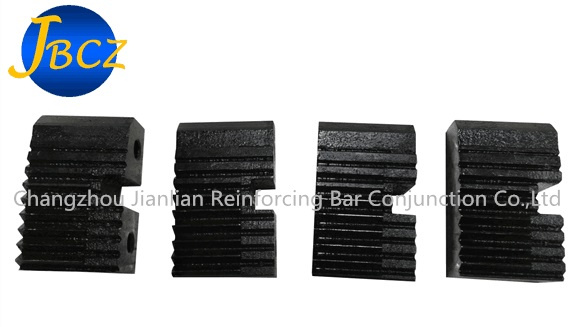

2.1 Machine easy wear part: Chaser

Size of Chaser	Can process re-bar diameter	Photo
M2.0	12/14MM
M2.5	16/18MM
M3.0	20/22MM
M3.5	25/28MM
M4.0	32/36/38/40MM
M4.5	36MM


3. The parameter of machine

Name	Working range	Motor power  (kw)	Net weight (kg)	Packing size  (mm)

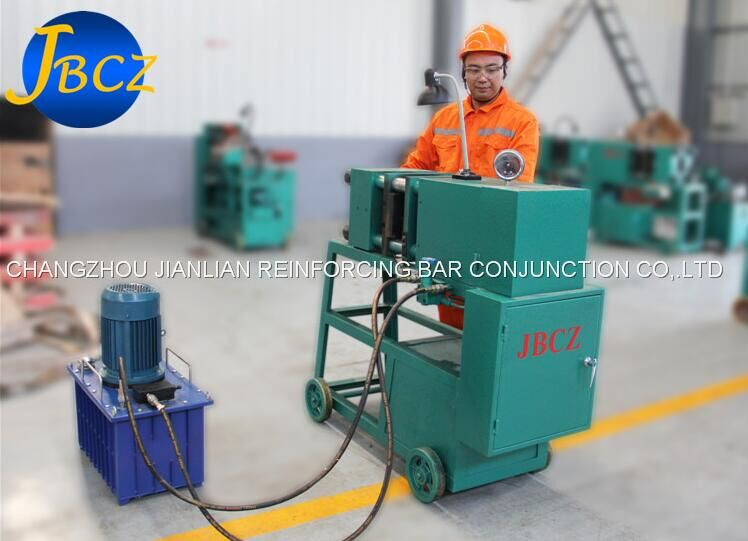

GD150 End upset forging machine	12mm~40mm	4	620	1480*700*1650

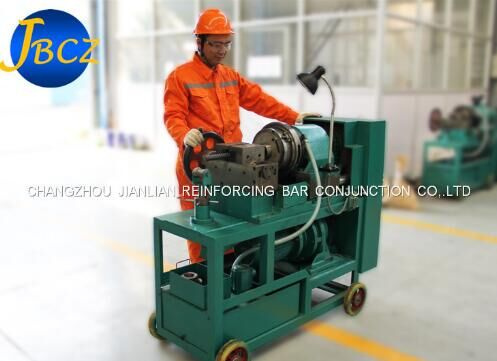

GZL-45 Threading machine	12mm~40mm	2.4/3	590	1570*710*1500
Oil pump	/	/	80	730*570*950

Working principle:
First, we use GD-150 to forge the end of rebar.
Second, we use the GZL-45 to thread the end of rebar.
Third, we use the  ACI 318 rebar Coupler to link the two ends of rebar.

3. Detailed information of machine:

Product name	GD-150 Upset forging machine	GZL-45 threading machine
Working range	Φ 12mm-Φ 40mm	Φ 12mm-Φ 40mm
Motor power	4.0KW	3/2.4KW

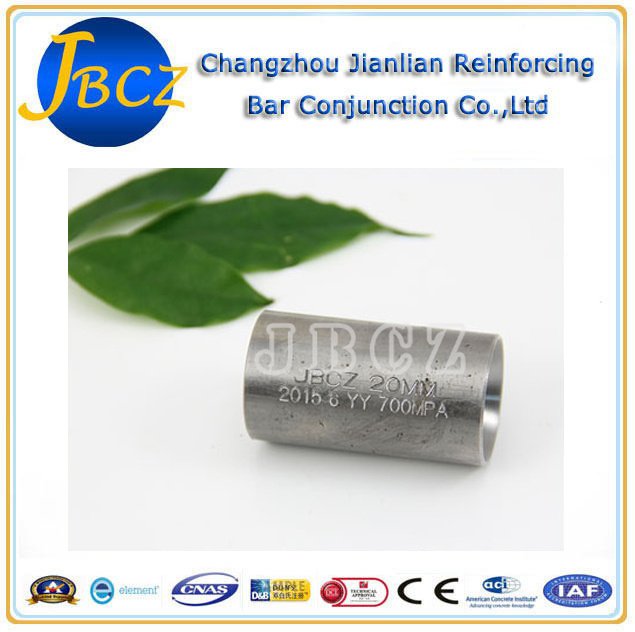

4. The Parameter For Standard Coupler (MM)
Steel bar Diameter(MM)	12	14	16	18	20	22	25	28	32	36	40
Out Dia.of Coupler(MM)	20	22	26	29	32	36	40	44.5	50	56	62
Inner Dia.of Coupler(MM)	11.9	13.9	17.4	19.4	20.9	23.9	26.3	29.3	31.8	34.8	40.3
Length of Coupler(MM)	30	34	40	44	48	52	60	66	72	80	90
Size of Thread(MM)	M14* 2	M16* 2	M20* 2.5	M22* 2.5	M24* 3	M27* 3	M30* 3.5	M33* 3.5	M36* 4.0	M39* 4.0	M45* 4.0

Packing information:
1). Packing of machine
1sets machine were packed in three wooden case.
2) Packing of rebar coupler
coupler were packed in carton box
.
FAQ:
Q: Are you trading company or manufacturer ?

A: We are factory. We are the FIRST manufacturer of rebar coupler since 1987.

Q: How long is your delivery time?

A: Generally it is within 5-10 days if the goods are in stock. or it is within  15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge , but clients do not need to pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 100% in advance.  Can communicate.

B:All the payment go through Aliababa Onetouch or Alibaba assurance payment

Q: How can I know the quality of JBCZ rebar coupler?
A: We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.

Q: Where is your company?
A:Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!

If you have any problems, please send message to me, I will reply you within 1 working day.
Contact me for FREE SAMPLES now!
