| Price: | US $ 15.85-16.67/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | AT-32D |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | at |
| Operation: | Double Acting ;Single Acting |
| Place Of Origin: | Zhejiang |
| Colour: | Blue; Gray; Orange |
| Body Material: | Aluminium Alloy |
| Piston Material: | Aluminium Alloy |
| Shaft Material: | Nickle Alloy Plated Steel |
| Torque: | 3.5 - 4150nm |
| Air Pressure: | 2.5 - 8 Bar |
| Motion Time: | 0.25-3s |
1). Pressure Range: Max. working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90°±5°
4). Ambient temperature: -20 ~ +90°C
5). Type: Single-acting (spring return), double-acting
6). Optional accessories: solenoid valves, limited switch, electric position
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time
Standards
a. Interface between actuator and valve: 4 or 8 bolt orifices according to DIN/ISO
5211, the axle assembles orifice according to DIN 3337
b. Interface between actuator and control valve: 7100 D/S-7350 D/S according to
NAMUR or VDI/VDE 3845, 7040 D/S-7090 D/S connecting via the adapter plate
c. Interface between actuator and signal box: according to VDI/VDE 3845

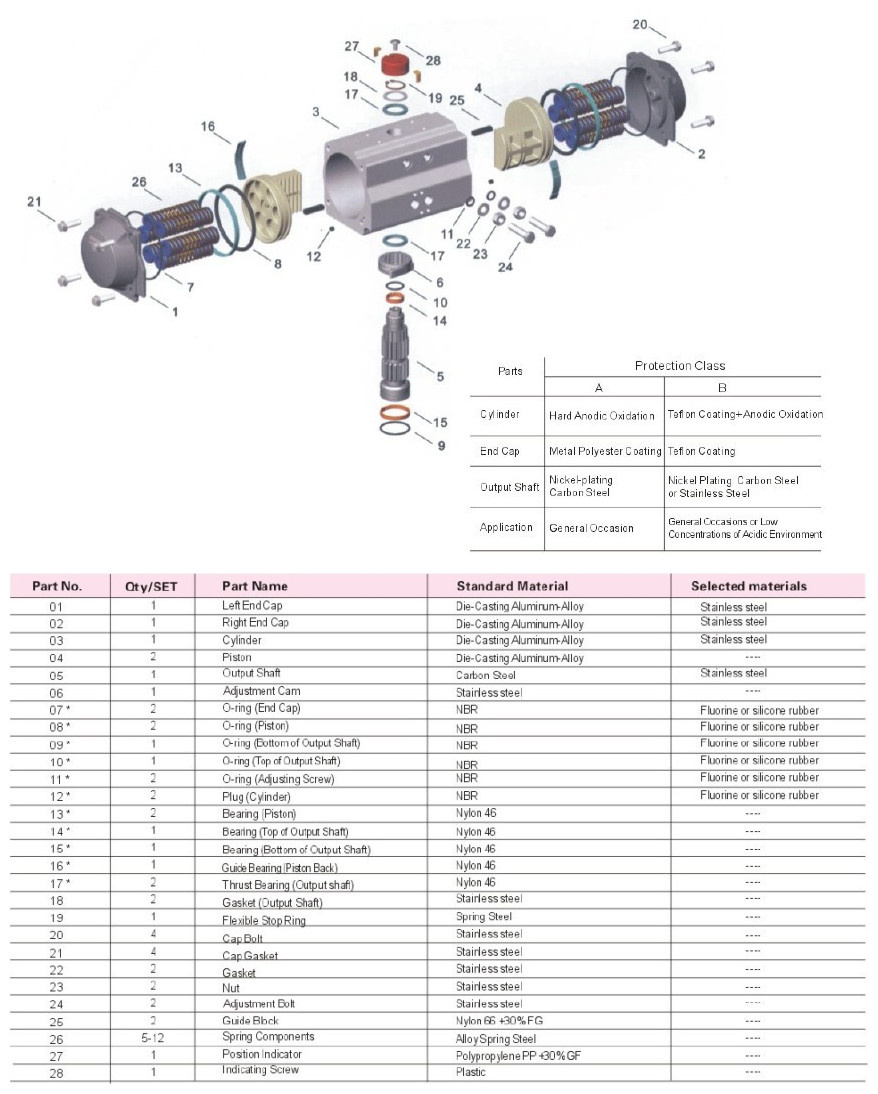

Introduction
I. Actuator Body
Boy material is aluminium alloy. Internal and external surface are treated with anodic oxidation and polishing. Outer surface is nickle plated so that the anti-corrosion fuction of actuator and minimum friction against pistons can be guaranteed.
II. End Cover
End cover material is die-casting aluminium. End cover is treated with epoxy polyester so as to best guarantee the anti-corrosion performance.
III. Drive Shaft
The drive shaft material is medium carbon steel with fine processing and nickle plating so that the pistons have better quality in anti-corrosion, anti-friction, etc.
IV. Piston
Piston material is die-casting aluminium alloy. Maxmium torque can be output when the actuator is actuated with certain pressure.
V. Piston Seal
NBR-70 rubber sealing is applied to ensure the normal and reliable performance of actuator under normal temperature. FPM can be also applied according to clients' requirements.
VI. Travel Adjustment
Plus/Mimus 5 degree travel can be adjusted through the two bolts.

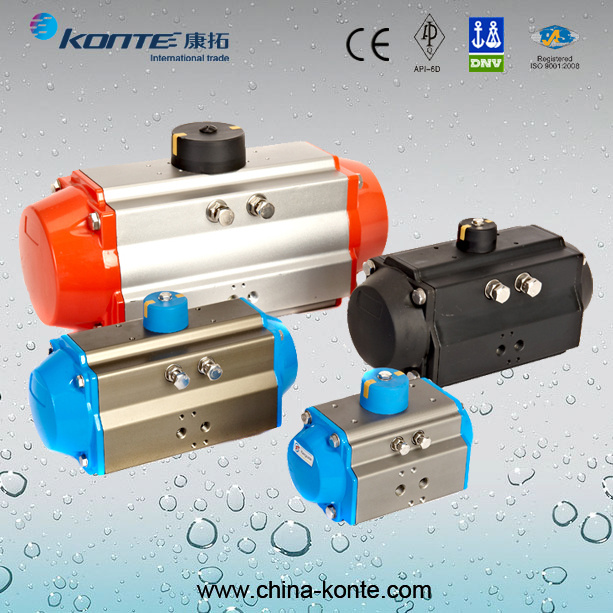

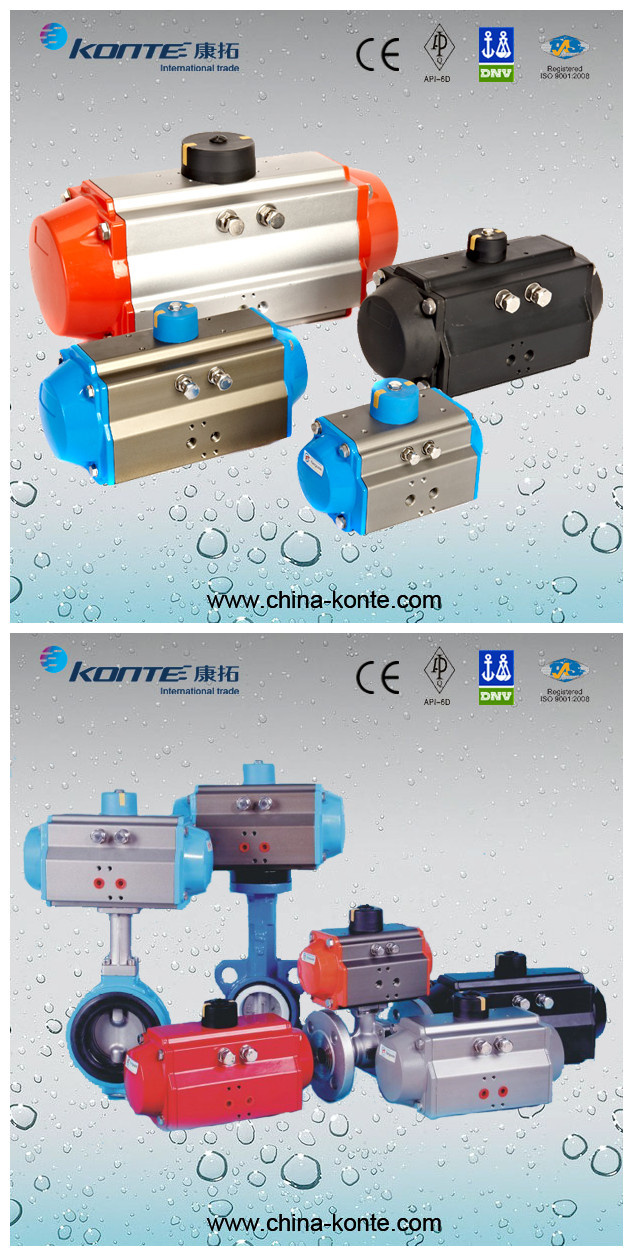

Products Show
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Ника Nika
| Brand: | KT/OEM |
| Applicable Media: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Certification: | CE/API/DNV/FDA/ISO9001-2008 |
| Sample Testing: | One Sample for free( Under $10),Freight Collect |
| Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
| Payment: | T/T, L/C, D/P, Western Union, Paypal |
| Port: | NINGBO/SHANGHAI, Customers' Request |
| Delivery Time: | Within 35days after receiving T/T deposit Payment |
| Term of Delivery: | FOB/CNF/CIF, Customers' Request |
