Q41f-16p/R/C 2PC Flanged Ball Valves ISO-Direct Mounting Pad

Q41f-16p/R/C 2PC Flanged Ball Valves ISO-Direct Mounting Pad
Price: US $ 20/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Q41F-16P/R/C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port Size: 1-1/2"-36"
Pressure: Low Pressure
Power: Gear Box
Temperature Of Media: Normal Temperature
Media: Heavy Particle Media, Corrosive Media
Place Of Origin: Zhejiang
Connection End: Flanged, Sw, Bw, Clamped
Actuator: Pneumatic/Electric
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage

Product Description

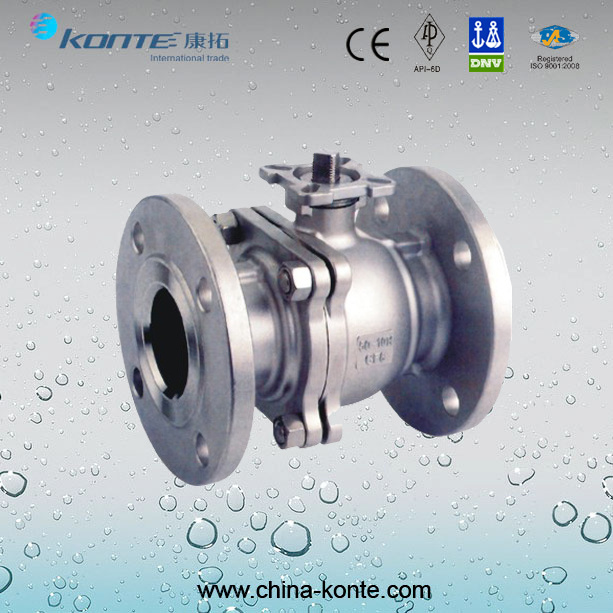

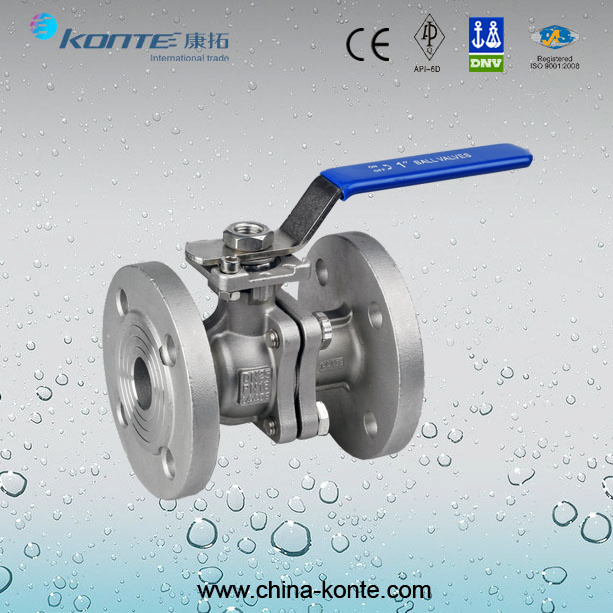

Q41F-16P/R/C 2PC Flanged Ball Valve ISO-Direct Mounting Pad

Specifications

1). Nominal Diameter: DN15-DN100(1/2"-4")
2). Pressure Range: 1.6-6.4Mpa
3). Medium Temp.: -20º C-+180º C
4). Environment Temp.: -20º C-+60º C
5). Body Material: CF8, CF8M, CF3, CF3M, WCB
6). Stem Material: 304, 316, 304L, 316L
7). Ball Material: 304, 316, 304L, 316L
8). Seat: PTFE, RPTFE
9). Connetion: Flanged
10). Standard: GB, ANSI, DIN, JIS
11). Applicable Medium: Water, gas, oil, acid, alkali, etc.


Contact

Thanks for your visiting.

If you have any questions about our products or company, please do not hesitate to contact olivia hu

Brand: KT/OEM
Applicable Media: Heavy Particle Media, Corrosive Media
Normal Pressure: PN16-PN110, 150LB-600LB
Certification: CE/API/DNV/FDA/ISO9001-2008
Sample Testing: One Sample for free( Under $10),Freight Collect
Packing: Plastic Bag, Carton & Plywood Case/According to customers' requirement.
Payment:  T/T, L/C, D/P, Western Union, Paypal
Port:  NINGBO/SHANGHAI, Customers' Request
Delivery Time: Within 35days after receiving T/T deposit Payment
Term of Delivery: FOB/CNF/CIF, Customers' Request
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.

Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. Is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).

With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.

We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
