Prod Model: |
DHW015 |
Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
Material: |
Low-Carbon Iron Wire |
Hole Shape: |
Square |
Application: |
Protecting Mesh |
Feature: |
Heat Resisting |
Customized: |
Customized |
Color: |
Black |
Certification: |
ISO9001 |
Surface Treatment: |
Black or Galvanized |
Weave Technique: |
Welded |
Standard Length: |
2.2X5.8m |
Product Description

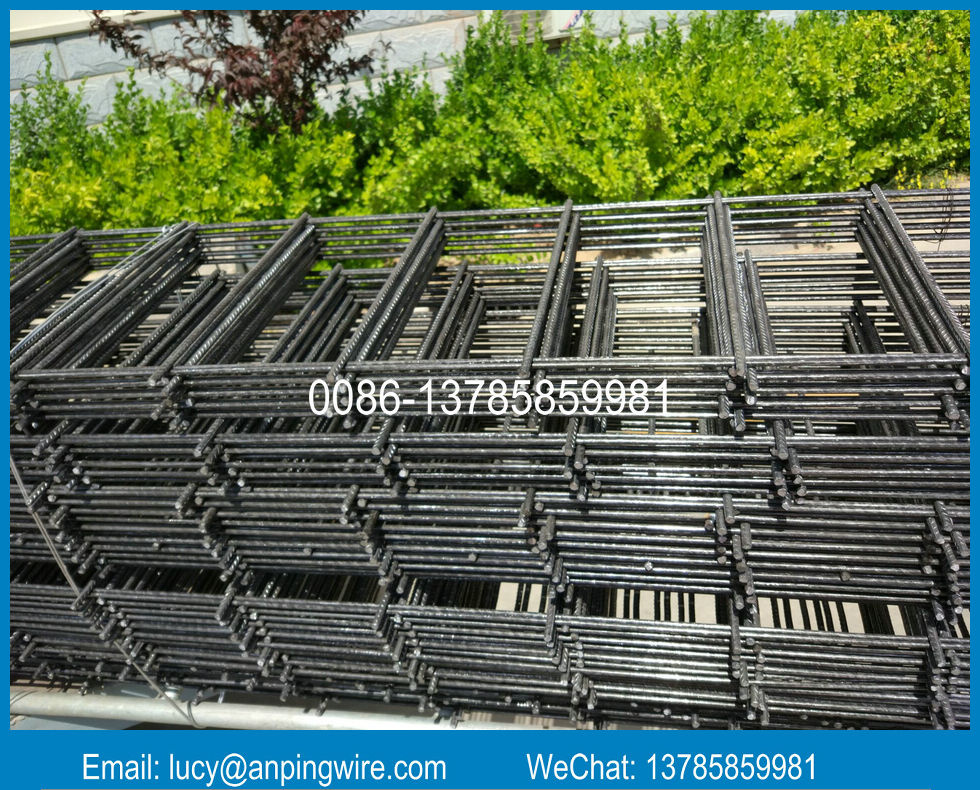

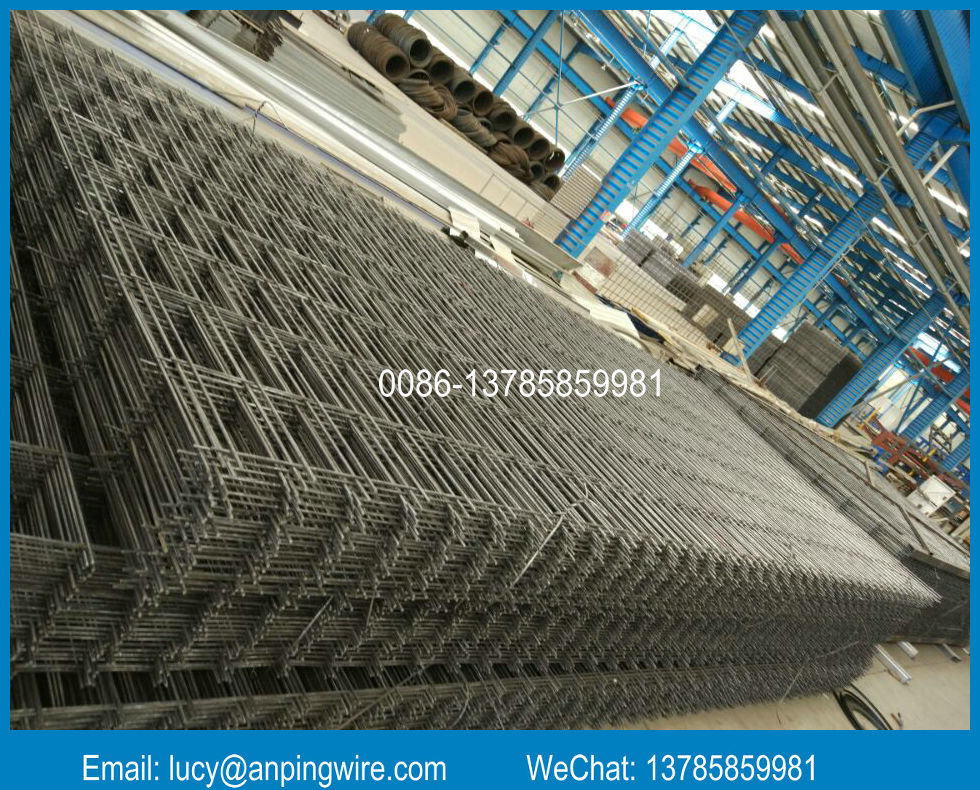

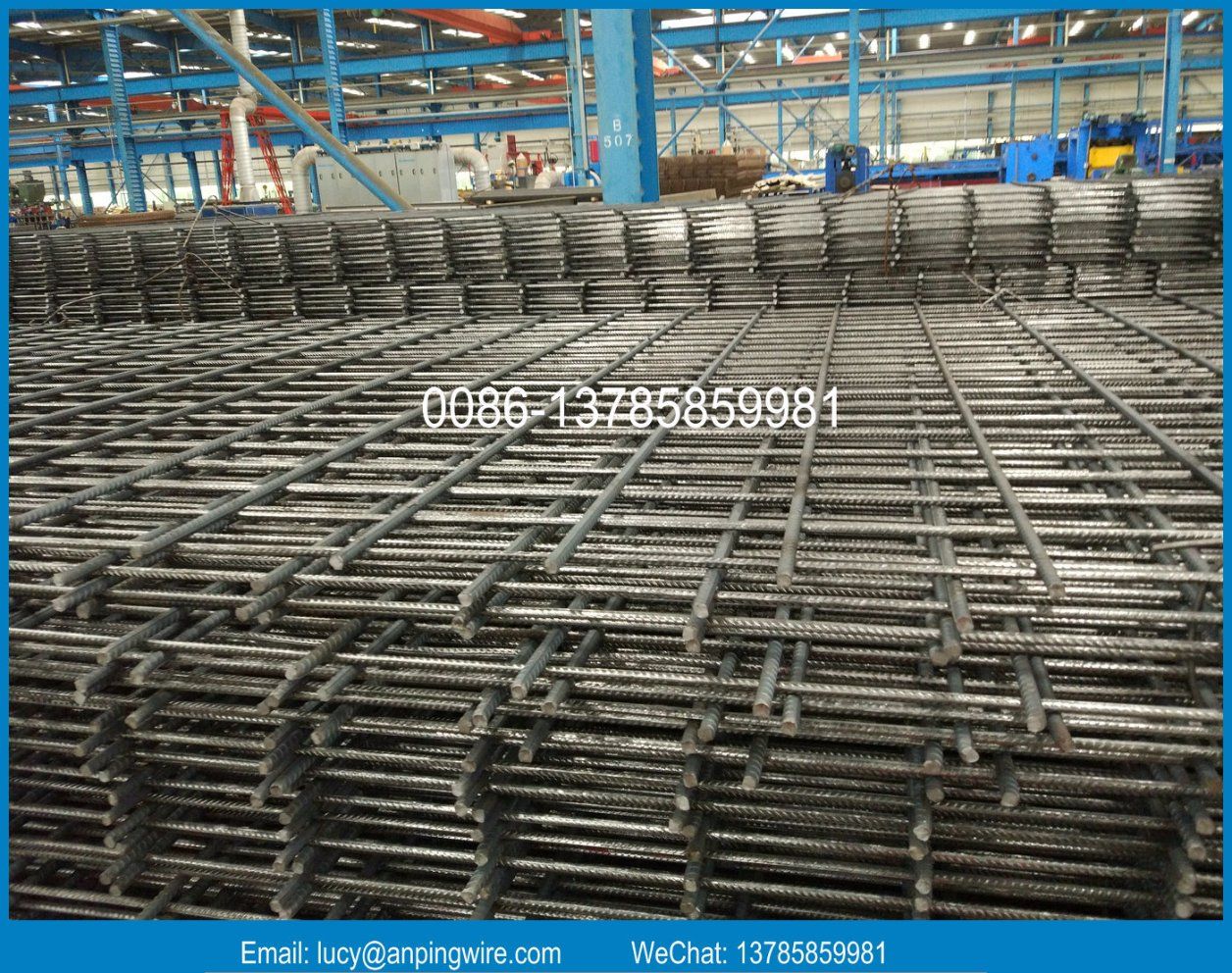

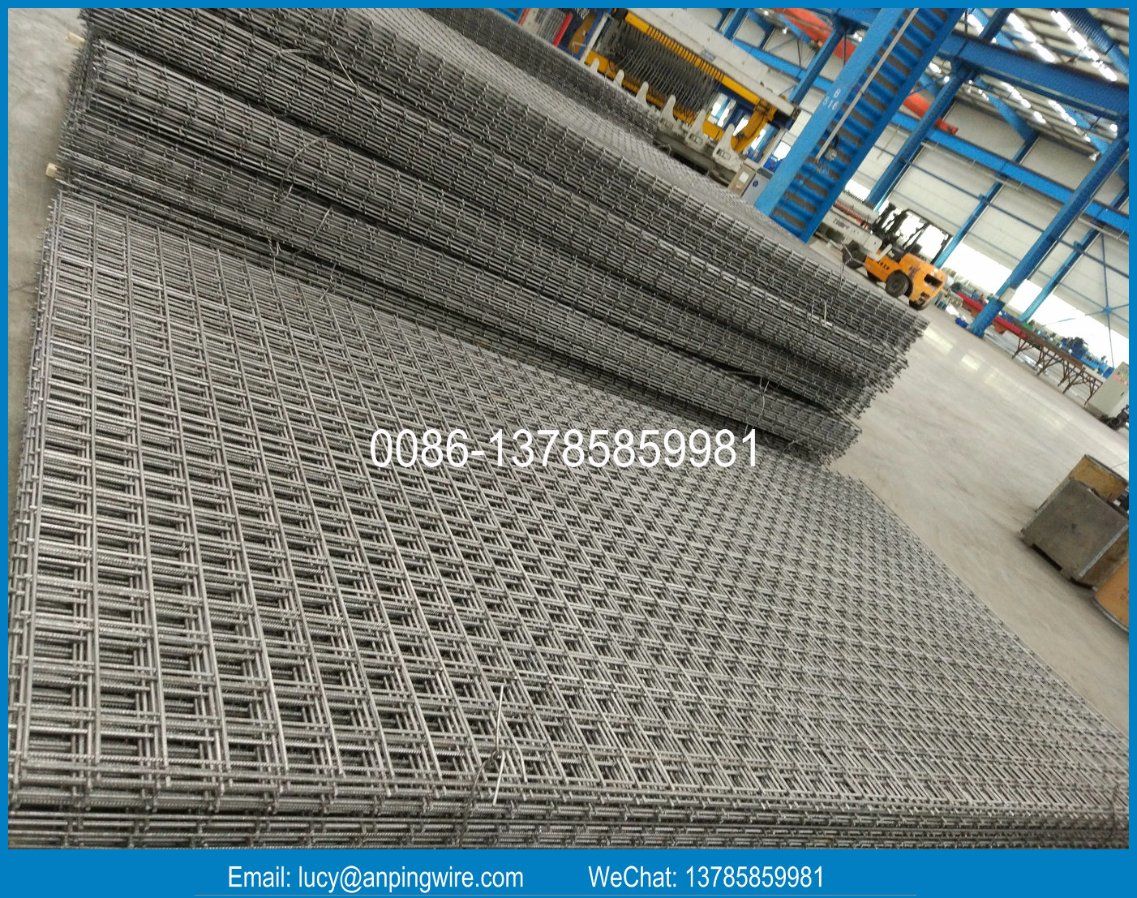

Australia and New Zealand SL62 SL72 SL82 SL92 Welded Concrete Reinforcing Wire Mesh Panel Factory / Ribbed Or Deformed Steel Bar Reinforcement Mesh
Materials: Q195 or Q235 low carbon steel, deformed steel bar
Concrete reinforcement mesh specification: SL82, SL72, SL62, SL92, SL102, 663,664,665,668 and so on.
Width and length:
width: 0.5m-2.4m;
length: 1m-6m
Uses: generally used in building constructions and so on.
We are the professional manufacturer of concrete wire mesh,black concrete wire mesh,pvc coated welded wire mesh ,galvanized welded wire mesh,reinforcement wire mesh,welded wire mesh,reinforcing wire mesh,deformed bar wire mesh.We call all of this welded wire mesh

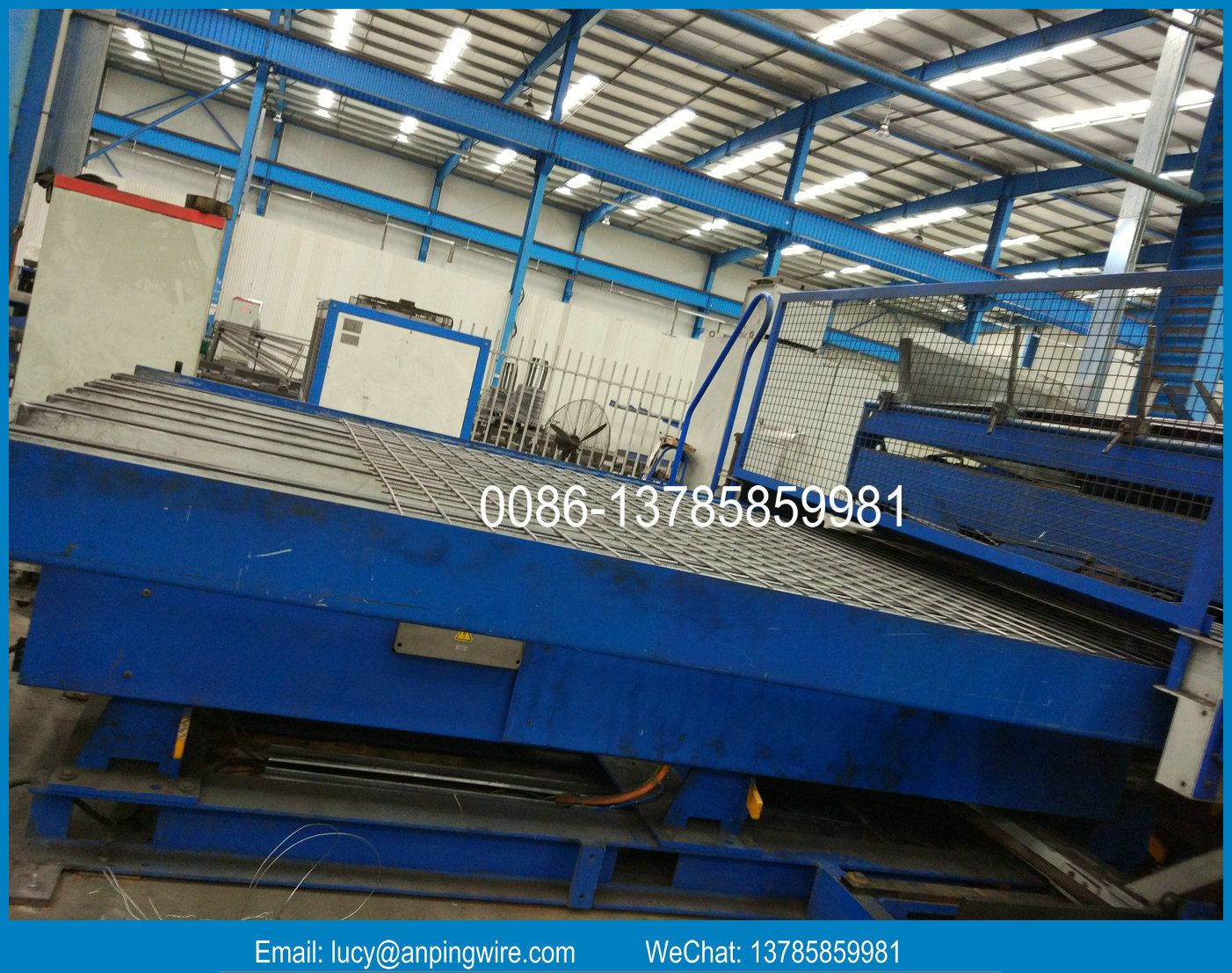

Concrete wire mesh is made of selected quality iron wires through the process of automation and sophisticated welding technique. The end product is level and flat, sturdy structure, and even strength throughout, the netting shows no signs of wear and tear when cutting off a part or under a stress.
PEACE brand welded wire mesh is galvanised by hot dipping after welding, having good corrosive resistance and qualities which are not usually found in average wire mesh.
Electrical welded wire mesh is widely used in industry, farming, construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock, and decorations etc. PEACE brand welded wire mesh is characteristic of its fine qualities, sturdiness and durable, economy as well as attractiveness.Specifications
DIN488 GERMAN STANDARD (SIZE:2150MMX5000MM)
Ref No. | Std Unit | Longitudinal Wires mm | Cross Wires mm | Pitch of wire | Mass Kg | Mass Kg/m2 |
Q131 | Sheet | 5 | 5 | 150 @ 150 | 22.476 | 2.091 |
Q188 | Sheet | 6 | 6 | 150 @ 150 | 32.401 | 3.014 |
Q221 | Sheet | 6.5/5.0 | 6.5 | 150 @ 150 | 33.707 | 3.136 |
Q295 | Sheet | 7.5/5.5 | 7.5 | 150 @ 150 | 44.245 | 4.116 |
Q378 | Sheet | 8.5/6 | 8.5 | 150 @ 150 | 66.659 | 5.157 |
AS/NZS 4671:2001 Australia/New Zealand Standard (SIZE:6000X2400mm)
Ref No. | Std Unit | Longitudinal Wires mm | Edge Wires mm | Cross Wires mm | Mass Kg |
SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
SL72 (F72) | Sheet | 6.75 @ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 | 21 |
BS4483 British Standard
Ref No. | Std Unit | Longitudinal Wires mm | Cross Wires mm | Pitch of wire | No. of sheet per ton | Mass Kg/m2 |
A393 | Sheet | 10 | 10 | 200 @ 200 | 15 | 6.16 |
A252 | Sheet | 8 | 8 | 200 @ 200 | 22 | 3.95 |
A193 | Sheet | 7 | 7 | 200 @ 200 | 29 | 3.02 |
A142 | Sheet | 6 | 6 | 200 @ 200 | 40 | 2.22 |
A98 | Sheet | 5 | 5 | 200 @ 200 | 57 | 1.54 |
Services Provided
Free sample services
We offer samples,with sample costs,shipping and taxes paid by the buyer.
Customize services
We can produce many kinds of welded mesh products,if you have your own design or have specification drawing,we can make products as your requirement.
If you don't have any idea, please tell us where will it be using, we will give you some specification to refer,and we can provide the drawing also.
After-Sales Services
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.We will send production process photos to customers for their inspection.

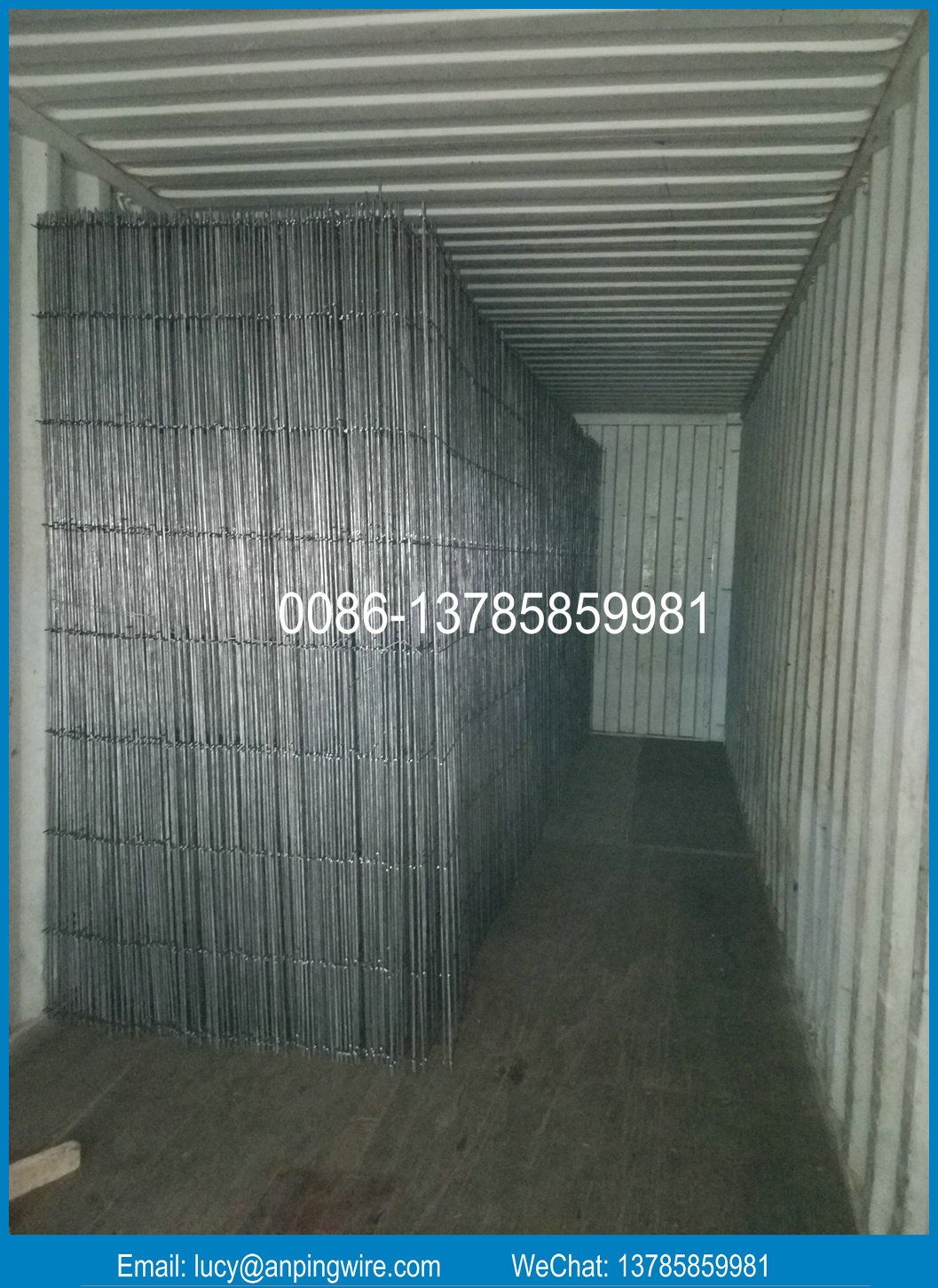

3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
In gerneral speaking , some specifications , we could be according to customer's request arrange for production , if you need any details informations , please just be contact us .
Welcome to receive your inquiry and visit our factory !
