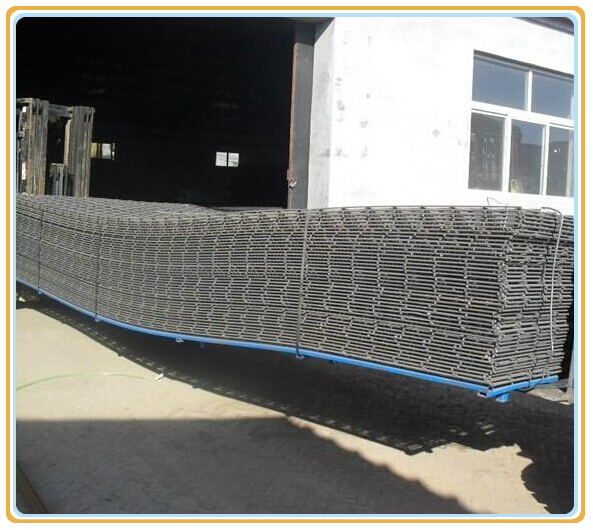

Steel Reinforcing Square Mesh for Concrete Building

Prod Model:	HPZS-1118
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Gauge:	Bwg12-Bwg24
Standard Panel Length:	6m(5.8m) to 12m(11.5m)
Width:	1.8m to 2.0m
Reference Weight Kg/M2:	4.44-15.99
Type:	Welded Mesh
Certification:	BV
Application:	Decorative Mesh
Surface Treatment:	Galvanized
Material:	Low-Carbon Iron Wire
Hole Shape:	Square
Condition:	New
Mesh Size:	as Customer's Request
Weave Technique:	Welding
Color:	as Customer's Request

Product Description

Concrete Reinforcing Mesh/Reinforcement Mesh

material:ribbed steel, smooth steel
The welded steel reinforcing mesh use the high quantity cold-drawing rebar (Ribbed or light round) as raw material, welded together by the welding machine after the straightening. It has a strong and firm body, can bear the high pressure from the concrete and exterior. The reinforcing mesh can save much man-haur, reduce the material cost in the process. The reinforcing mesh can design by the project requirement, improve the efficiency and bond to the concrete can meet the special construct needs.
Application: Welded steel reinforcing mesh is widely use in airport, tunnel, bridge, highway and wharf, also in the construction of building floor, wall, roof and balcony. We can produce the welded steel reinforcing mesh as per your special requirement.
With many years experience in the production of reinforcing mesh, we are a leading supplier of customised reinforcing products to most industry sectors.
We have ourself factory, we manufacture welded mesh panel machine and reinforcing mesh machine by ourself, at present, we have two kinds of reinforcing mesh machine to produce. One is 2.5mm---6mm reinforcing mesh machine, another is 6mm---12mm reinforcing mesh machine.

WIPE DIAMETER	WIRES NUMBER		PITCH OF WIRES					SHEET DIMENSION					(SQM)			Edge wires			(kg) SHEET				(kg/SQM)
MESH SHEET
TYDE	LONG	CROSS		LONG	CROSS		LONG		CROSS	WIDTH	LENGTH	AREA						WEIGHT
Sqaure Mesh
SL52	4.77	4.77		10	30	200			200	2400	6000	14.40						20.000				1.4000
SL62	6.00	6		10	30	200			200	2400	6000	14.40			4x4.24@100			33.000				2.292
SL72	6.75	6.75		10	30	200			200	2400	6000	14.40			4x4.77@100			41.000				2.778
SL81	7.60	7.60		25	60	100			100	2400	6000	14.40			0			105.000				7.100
SL82	7.6	7.6		10	30	200			200	2400	6000	14.40			4X5.37@100			52.000				3.611
SL92	8.6	8.6		10	30	200			200	2400	6000	14.40			4x6.00 @100			66.000				4.514
SL102	9.5	9.5		10	30	200			200	2400	6000	14.40			4X6.75@100			80.000				5.556
SL63	6	6		6	30	300			300	2300	6000	13.80			4X4.00@100			21.000				1.594
SL53	4.77	4.77		6	20	300			300	2300	6000	13.80			4X4.00@100			15.000				1.000

Welded Wire Mesh /Welded Wire Mesh panel / Welded wire / Welded wire mesh sheet /PVC coated welded wire mesh / Galvanized welded wire mesh/floor heating mesh

weaving and characteristic:including gavanizining after weaving. gavanizining before weaving.
it is divided to hot-dipped eletroplate gavanizing.PVC coating.plastic-soaked.special eletric welded wire mash.

Surface finish: electro galvanized ,Hot-dipped galvanized,Powder spraying coated,Power dipped coated,PVC coated

Features: With uniform surface, firm structure and precise opening, welded wire mesh panel has good property of corrosion-resistance and oxidation-resistance.

Uses:used wide in industry.agriculture.building.transportation.mine.field.lawn.etc.

Materials: Low carbon steel wire,stainless steel wire,iron wire,Galavanized steel wire,PVC coated iron wire in blue,green,yellow and other colors. Low carbon steel wire,stainless steel wire,iron wire,Galavanized steel wire,PVC coated iron wire in blue,green,yellow and other colors.
specification:



Standard Welded Wire Mesh (in 30m length, Width of 0.5m-1.8m)
Mesh		Wire Gauge (BWG)
Inch	MM
1/4" x 1/4"	6.4mm x 6.4mm	22-24
3/8" x 3/8"	10.6mm x 10.6mm	19-22
1/2" x 1/2"	12.7mm x 12.7mm	16-23
5/8" x 5/8"	16mm x 16mm	18-21,
3/4" x 3/4"	19.1mm x 19.1mm	16-21
1" x 1/2"	25.4mm x 12.7mm	16-21
1-1/2" x 1-1/2"	38mm x 38mm	14-19
1" x 2"	25.4mm x 50.8mm	14-16
2" x 2"	50.8mm x 50.8mm	12-16
1/4" x 1/4"	6.4mm x 6.4mm	12-16

Galvanized Fencing Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 756mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. 3. PVC coated welded wire mesh: is made by electric galvanized or hot dip galvanized then coated with plastic in high temperature   Used as fence panels, machine guards, partitions, barrier, and processed into various wire mesh containers and animal cages         PVC Coated Welded Mesh: Opening Wire Diameter In inch In metric unit(mm) 1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21 3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21 1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20 Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
