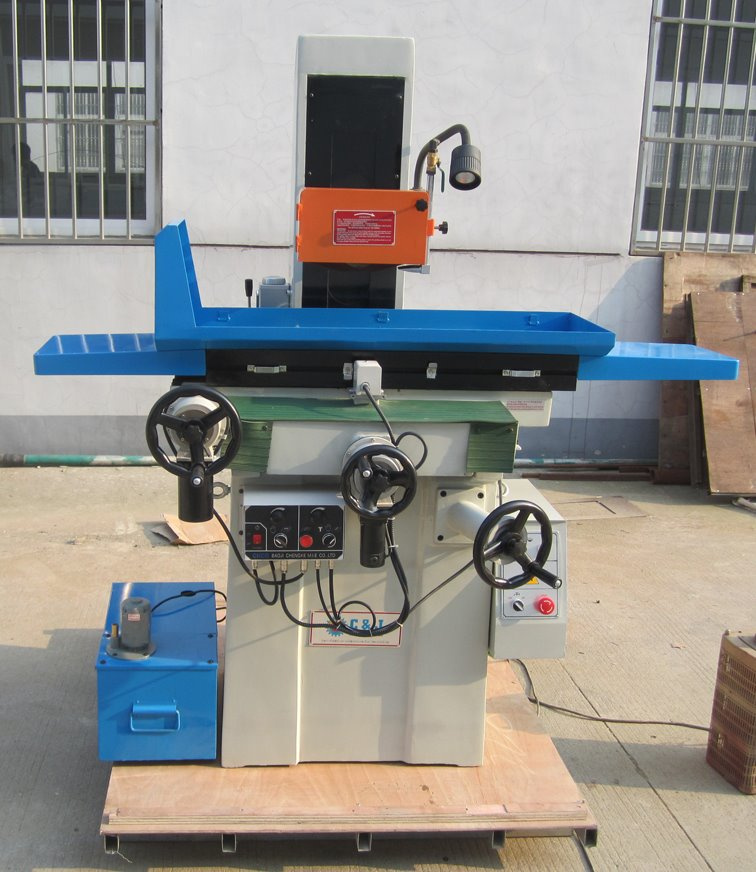

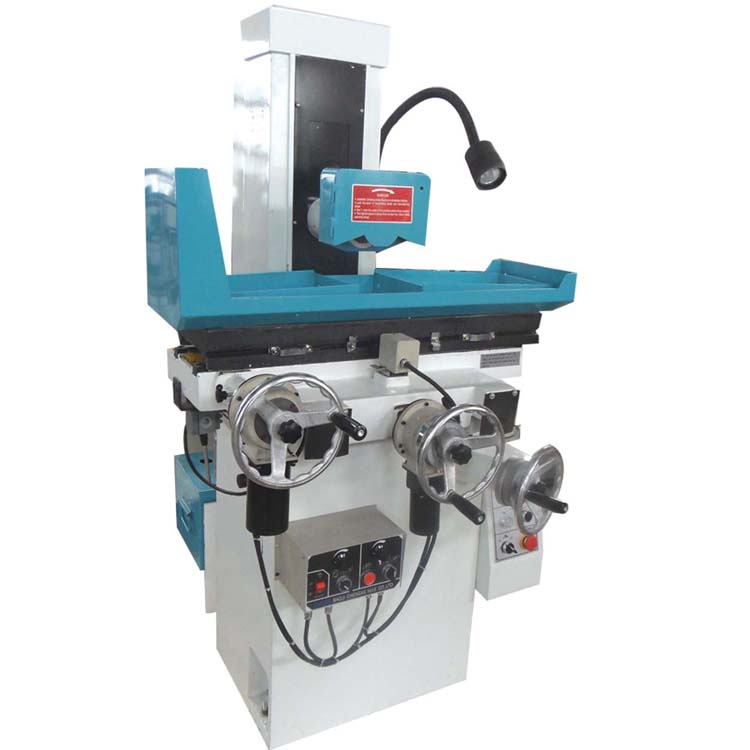

Auto Electric Prescion Surface Grinder (MD820 Table Size 200x500mm)
| Price: |
US $ 3100-3300/Piece |
| Trade Terms: |
others |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MD820 200x500mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Surface Grinding Machine |
| Processing Object: |
Gear |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Product Description
Standard features:
* X axis manual and auto electric transmission, Y axis manualand auto transmission, Z axis manual transmission.
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
* Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability.
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 T. I. R. Provides quiet, vibration free operation for better workpiece accuracy.
Quiet, vibration free operation for better workpiece accuracy.
* MD618: Roller steel balls on linear table ways for easy and smooth longitudinal movements and "V+Flat" shape saddle ways for rigidity.
* MD820: Roller steel balls on linear table ways for easy and smooth longitudinal movements and double V shape saddle ways for rigidity.
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench (5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner (9) wheel dresser holder (10) machine stand pad (11) wheel flange (12) wheel dresser (13) chuck
Optional accessories:
(1)tiltable permanent chuck (2) demagnetizer (3) overhead parallel dresser (4) angle dresser (5) radius dresser (6) precision vice (7) dust suction device (8)digital readout system
(9) working light (10)wheel flange
| Main specifications | unit | MD820 | MD618A |
| Max. workpiece to be Ground ( L× W× H) | mm | 500× 200× 320 | 420× 180× 250 |
| Max. Grinding Length | mm | 520 | 430 |
| Max. Grinding Width | mm | 220 | 190 |
| Distance From Table Surface To Spindle Center | mm | 490 | 335 |
| V-type rail with Steel-ball | Kg | 100 | 100 |
| Table Size (L× W) | mm | 500× 200 | 400× 180 |
| Number of T -Slot | mm× n | 12× 1 | 12× 1 |
| Speed OF Working Table(stepless) | m/min | 3-20 | 3-20 |
| Cross Feed On Handwheel | mm | 0.02/div. 2.5/rev. | 0.02/div. 2.5/rev. |
| Auto transverse movement(stepless) | mm | 0.5-10 | 0.5-10 |
| Rapid transverse movement | r/min | 144 | 144 |
| Wheel Size (dia. × width× bore ) | mm | 200× 16× 31.75 | 180× 13× 31.75 |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| Spindle Motor | Kw | 1.1 | 1.1 |
| Auto transverse movement power | Kw | 0.2 | 0.2 |
| Auto longitudinal movement power | Kw | 0.2 | 0.2 |
| Machine Size (L× W× H) | mm | 1680× 1140× 1800 | 1550× 1060× 1590 |
| Packing Size (L× W× H) | mm | 1140× 1280× 1960 | 1060× 1280× 1590 |
| GrossNet | T | O. 85 0.75 | O. 80 0.70 |
Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer's greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
As a growing factory located in Dafeng city, Jiangsu province, Yancheng C&J Machinery Co., Ltd. is specialized in manufacturing all kinds of shot blasting machine, surface grinder machine, lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement.
With high quality and competitive price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina, Poland, Turkey and so on.
In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.
Also quality assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warranty to our customers around the world as well as professional technical support and services.
With the sprite of "quality first, user supreme", we're insisting on seeking survival with quality, to seek the development with reputation, to compete by technology, with the management concept of taking customer as god, we provide best quality with best price to our overseas buyer and we will forever do our best to proceed and gain further success. Your demand is our pursuit forever. We are ready to establish mutual benefits with companies both at home and abroad. If you are interested in any of our products, please feel free to contact us immediately.
