Auto Motorcycle Parts Deep Groove Ball Bearing 6005 6205 6305zz

Prod Model:	6005 zz
Certificate:	Ios9001
Clearence:	C3
Tolerence:	P4
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small and Medium-Sized (',60-115mm)
Material:	Bearing Steel
Separated:	Separated

Product Description

6005ZZ

Specifications
Clearance	C0 (Normal)
Bore Size d	25.000 mm
Features	Shields
Weight	0.080 Kg

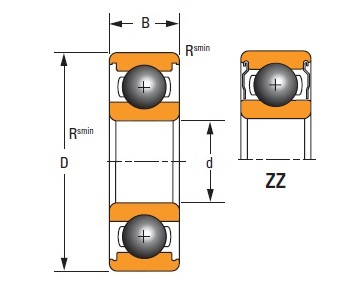

Dimensions
Outside Diameter D	47.000 mm
Outside Ring Width B	12.000 mm
Radius Rs min	0.600 mm
Basic Load Ratings
Cr - Dynamic Load Rating	10.1 kN
C0r - Static Load Rating	5.8 kN
Factors
Grease Reference Speed	14000 rpm
Oil Reference Speed	21000 rpm

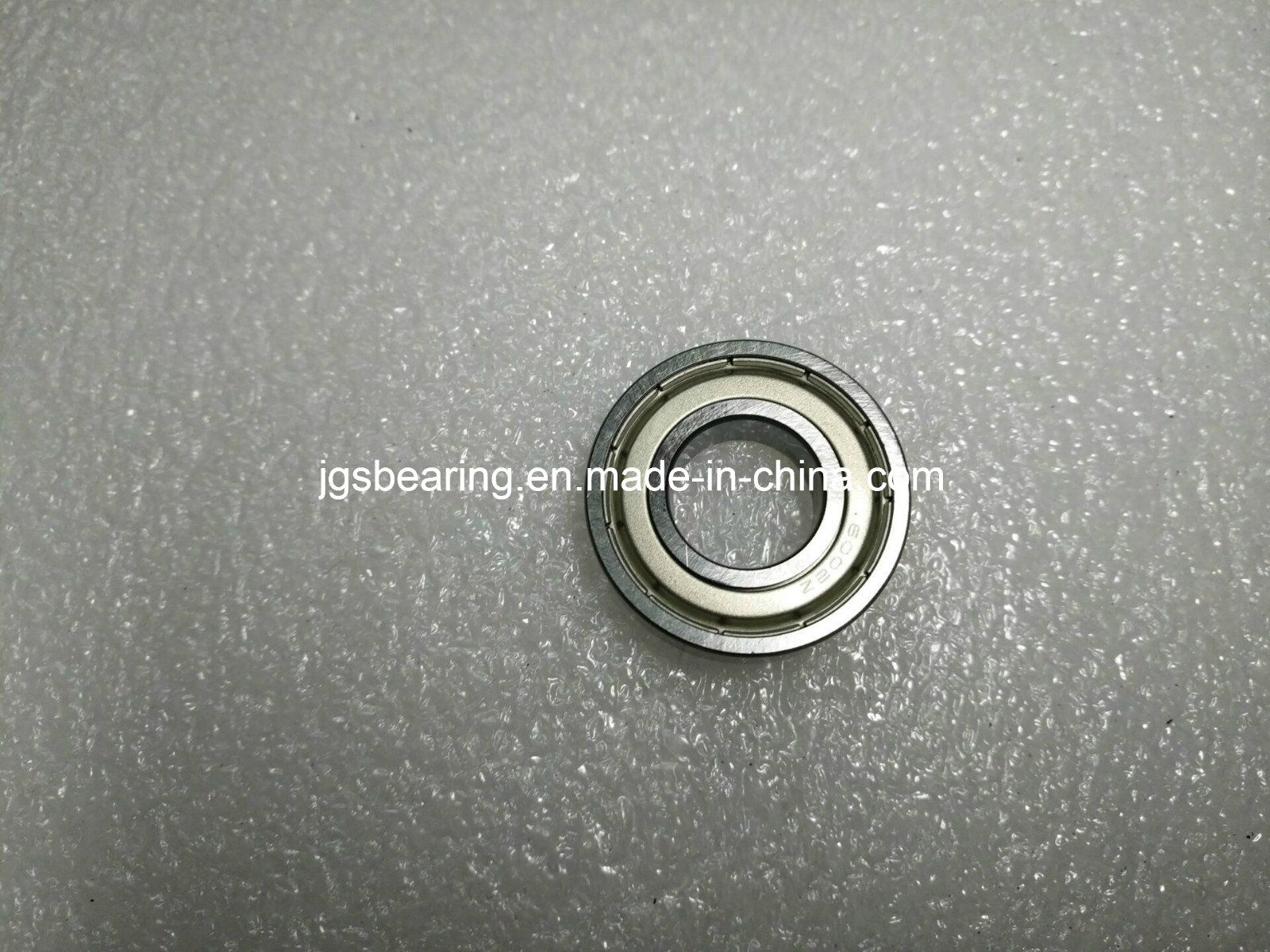

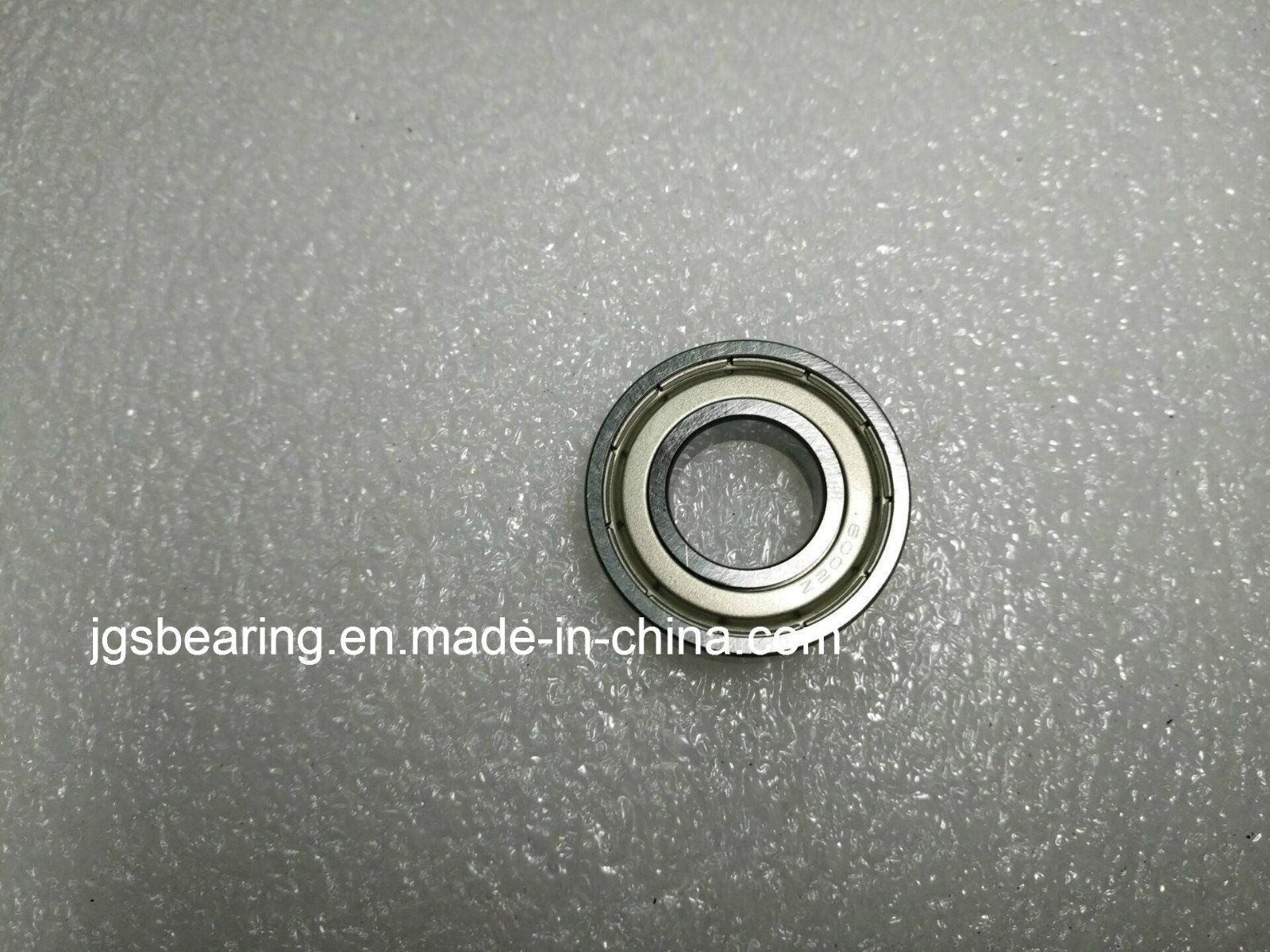

Product Picture:






Packing and Delivery:

1. Original packing: Box-Carton-Wooden Case
2. Delivery date: 3-7 days for stock order and 10-25 days for production
3. Delivery ways: Small weight by TNT/DHL/FEDEX and other competitive air express;
                 Big quantities by sea shipment


Reference Specification


Bearing No.	Boundary dimensions				Basic load ratings (kN)		Limiting speed		Mass
	mm				Dynamic	Static	rpm		Kg
	d	D	B	rs min	Cr	Cor	Grease	Oil	≈
6000	10	26	8	0.3	4.58	1.98	29000	34000	0.019
6001	12	28	8	0.3	5.1	2.38	26000	30000	0.022
6002	15	32	9	0.3	5.58	2.85	22000	26000	0.031
6003	17	35	10	0.3	6	3.25	20000	24000	0.04
6004	20	42	12	0.6	9.38	5.02	18000	21000	0.068
6005	25	47	12	0.6	10	5.85	15000	18000	0.078
6006	30	55	13	1	13.2	8.3	13000	15000	0.11
6007	35	62	14	1	16.2	10.5	12000	14000	0.148
6008	40	68	15	1	17.2	11.8	10000	12000	0.185
6009	45	75	16	1	21	14.8	9200	11000	0.23
6010	50	80	16	1	22	16.2	8400	9800	0.258
6011	55	90	18	1.1	30.2	21.8	7700	9000	0.362
6012	60	95	18	1.1	31.5	24.2	7000	8300	0.385
6013	65	100	18	1.1	30.5	25.2	6500	7700	0.435
6014	70	110	20	1.1	38.1	30.9	6100	7100	0.602
6015	75	115	20	1.1	39.6	33.5	5700	6700	0.638
6016	80	125	22	1.1	47.6	39.8	5300	6200	0.85
6017	85	130	22	1.1	49.5	43.1	5000	5900	0.89
6018	90	140	24	1.5	58.2	49.7	4700	5600	1.16
6019	95	145	24	1.5	60.4	53.9	4500	5300	1.21
6020	100	150	24	1.5	60.2	54.2	4200	5000	1.25
6021	105	160	26	2	72.3	65.8	4000	4700	1.59
6022	110	170	28	2	82	73	3800	4500	1.96
6024	120	180	28	2	85	79.5	3500	4100	2.07
6026	130	200	33	2	106	101	3200	3800	3.16
6028	140	210	33	2	110	109	3000	3500	3.35
6030	150	225	35	2.1	126	126	2800	3200	4.08
6032	160	240	38	2.1	143	144	2600	3000	5.05
6034	170	260	42	2.1	168	172	2400	2800	6.76
6036	180	280	46	2.1	189	199	2300	2700	8.8
6038	190	290	46	2.1	197	215	2100	2500	9.18
6040	200	310	51	2.1	218	243	2000	2400	11.9
6200	10	30	9	0.6	5.1	2.38	25000	30000	0.032
6201	12	32	10	0.6	6.82	3.05	22000	26000	0.035
6202	15	35	11	0.6	7.65	3.72	19000	23000	0.045
6203	17	40	12	0.6	9.58	4.78	18000	21000	0.064
6204	20	47	14	1	12.8	6.65	16000	18000	0.103
6205	25	52	15	1	14	7.88	13000	15000	0.127
6206	30	62	16	1	19.5	11.5	11000	13000	0.2
6207	35	72	17	1.1	25.5	15.2	9800	11000	0.288
6208	40	80	18	1.1	29.5	18	8700	10000	0.368
6209	45	85	19	1.1	31.5	20.5	7800	9200	0.416
6210	50	90	20	1.1	35	23.2	7100	8300	0.463
6211	55	100	21	1.5	43.4	29.4	6400	7600	0.607
6212	60	110	22	1.5	52.4	36.2	6000	7000	0.783
6213	65	120	23	1.5	57.2	40.1	5500	6500	0.99
6214	70	125	24	1.5	62.2	44.1	5100	6000	1.07
6215	75	130	25	1.5	67.4	48.3	4800	5600	1.18
6216	80	140	26	2	72.7	53	4500	5300	1.4
6217	85	150	28	2	84	61.9	4200	5000	1.79
6218	90	160	30	2	96.1	71.5	4000	4700	2.15
6219	95	170	32	2.1	109	81.9	3700	4400	2.62
6220	100	180	34	2.1	122	93.1	3500	4200	3.14
6221	105	190	36	2.1	133	105	3400	4000	3.7
6222	110	200	38	2.1	144	117	3200	3800	4.36
6224	120	215	40	2.1	155	131	2900	3400	5.15
6226	130	230	40	3	167	146	2700	3100	5.82
6228	140	250	42	3	166	150	2500	2900	7.57
6230	150	270	45	3	176	168	2300	2700	9.41
6232	160	290	48	3	185	186	2100	2500	11.7
6234	170	310	52	4	212	223	2000	2400	14.5
6236	180	320	52	4	227	241	1900	2200	15.1
6238	190	340	55	4	255	281	1800	2100	18.2
6240	200	360	58	4	269	310	1700	2000	21.6
6244	220	400	65	4	297	365	1500	1800	30.2
6300	10	35	11	0.6	7.65	3.48	23000	27000	0.053
6301	12	37	12	1	9.72	5.08	20000	24000	0.061
6302	15	42	13	1	11.5	5.42	17000	21000	0.08
6303	17	47	14	1	13.5	6.58	16000	19000	0.109
6304	20	52	15	1.1	15.8	7.88	14000	17000	0.142
6305	25	62	17	1.1	22.2	11.5	12000	14000	0.219
6306	30	72	19	1.1	27	15.2	10000	12000	0.349
6307	35	80	21	1.5	33.2	19.2	8800	10000	0.455
6308	40	90	23	1.5	40.8	24	7800	9200	0.639
6309	45	100	25	1.5	52.8	31.8	7000	8200	0.873
6310	50	110	27	2	62	38.3	6400	7500	1.07
6311	55	120	29	2	71.6	45	5800	6800	1.37
6312	60	130	31	2.1	81.9	52.2	5400	6300	1.7
6313	65	140	33	2.1	92.7	59.9	4900	5800	2..08
6314	70	150	35	2.1	104	68.2	4600	5400	2.52
6315	75	160	37	2.1	113	77.2	4300	5000	3.02
6316	80	170	39	2.1	123	86.7	4000	4700	3.59
6317	85	180	41	3	133	96.8	3800	4500	4.23
6318	90	190	43	3	143	107	3600	4200	4.91
6319	95	200	45	3	153	119	3300	3900	5.67
6320	100	215	47	3	173	141	3200	3700	7
6321	105	225	49	3	184	153	3000	3600	8.05
6322	110	240	50	3	205	180	2900	3400	9.54
6324	120	260	55	3	207	185	2600	3100	12.4
6326	130	280	58	4	229	214	2400	2800	15.3
6328	140	300	62	4	253	246	2200	2600	18.5
6330	150	320	65	4	274	284	2100	2400	22
6332	160	340	68	4	278	286	1900	2300	26
6334	170	360	72	4	325	355	1800	2100	30.7
6336	180	380	75	4	355	405	1700	2000	35.6
6338	190	400	78	5	355	415	1600	1900	41
6340	200	420	80	5	410	500	1500	1800	46.3
6344	220	460	88	5	410	520	1400	1600	60.8

Company Information

We are a professional manufacturer and trade of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, cylindrical roller bearing, tapered roller bearings etc, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in African American and European countries.  We are able to produce and supply bearings at mush competitive prices as well satisfied quality.
Awaiting your inquiry!!!
