Auto Trip Hammer (SPT Hammer)

Auto Trip Hammer (SPT Hammer)
Price: US $ 650-750/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SPT British Standard

Product Description

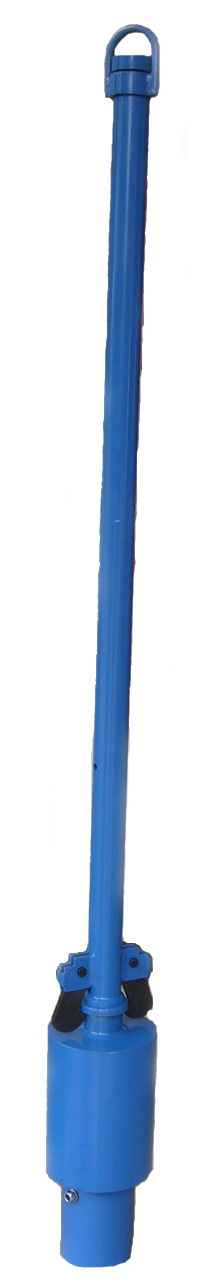

Auto Trip Hammer
The Automatic Trip Hammer is manufactured for complying with the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990. SPT Drive Rods and a Split Tube Sampler are connected to base of the anvil, and driven into the ground by the falling weight.

The Automatic Trip Hammer comprises a weight of 63.5 kg complete with pick-up and self-tripping mechanism that ensures that the weight has a free-fall of exactly 760 mm. The inner shaft acts as a guide that permits the weight to drop with minimal resistance and ensures that the weight strikes the anvil squarely.

The SPT drive rods thread usually be processed with a 1.1/2" B.S. whitworth to fit our standard SPT rods. Adaptors to other types of drill rod can be supplied on request.

The overall length of the hammer is 2.6 m extended and 1.8 m when unextended. The total weight of the hammer is 107 kg.

Pictures





FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.

Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.

Sizes Available:

Diamond core drill bits and diamond non-core drill bits

A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48

B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW

H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short

S- Gauge Core Bits: SWF-Long, SWF-Short

U- Gauge Core Bits: UWF-Long, UWF-Short

Z- Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146

And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
