Spt Hammer for Soil Test
| Price: |
US $ 630/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SPT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Per Your Request |
| Length: |
457mm, 610mm |
| Thread Connection: |
1-1/2" B.S. Whitworth, Nwy, Bw, Aw |
| Outside Diameter, Inside Diameter: |
50.8mm, 34.9mm |
| Usage: |
Soil Sampling, Soil Investigation, Core Drilling |
| Website: |
Www.Forsun-Tools.COM |
Product Description

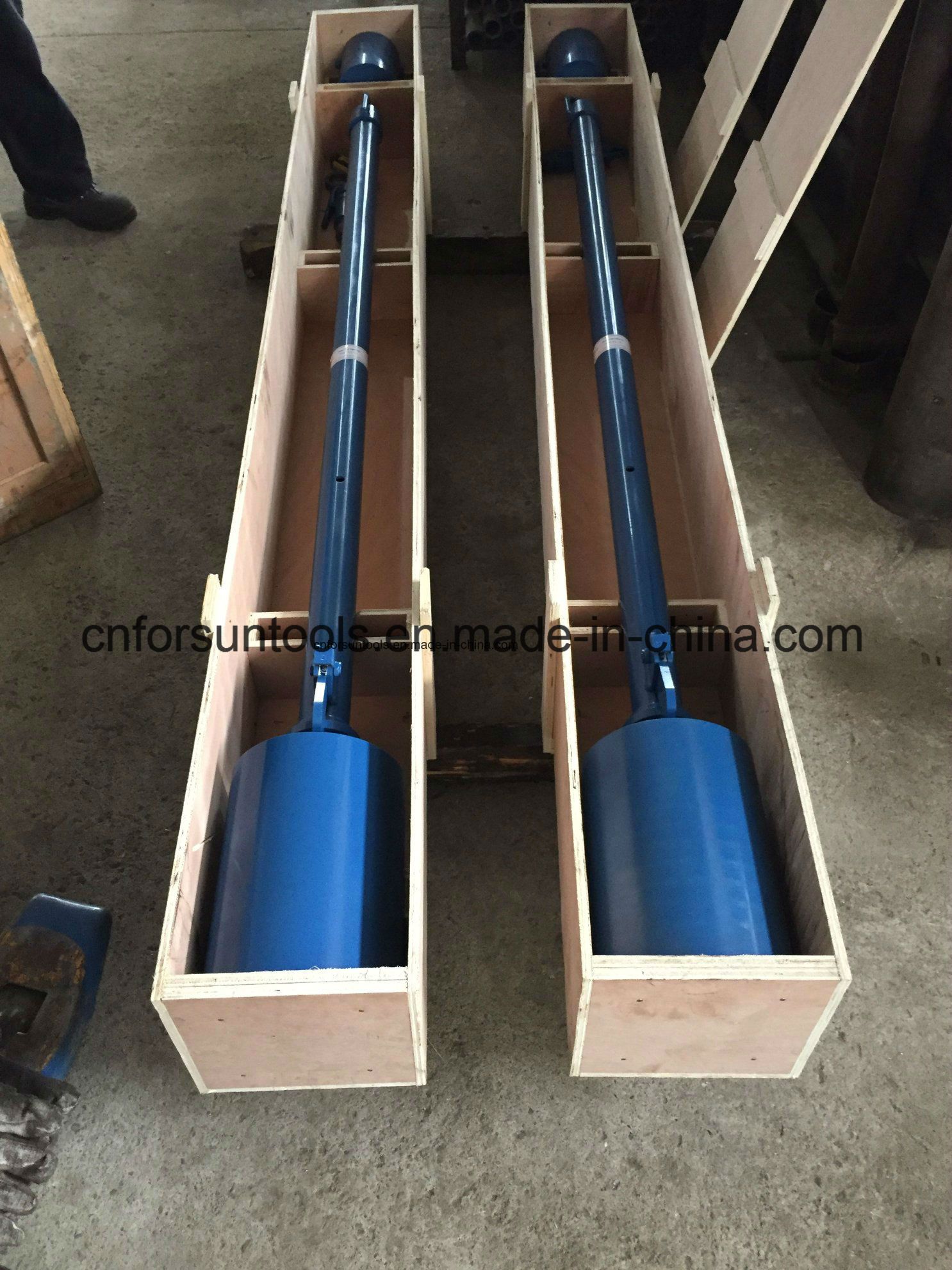

The Automatic Trip Hammer is designed for carrying out the Standard penetration Test (SPT) to BS 1377: Part 9: 1990. SPT Drive Rods and a split Tube Sampler are connected to base of the anvil, and driven into the ground by the falling weight.
The hammer comprises a drop weight of 63.5 kg and a pick-up and selftripping mechanism that ensures the weight has a free fall of exactly 760mm.
The inner shaft acts as a guide on which the weight drops with minimal resistance and strikes the anvil squarely.
The trip hammer is supplied with a Safety retaining bolt to prevent the weight from sliding when the hammer is not in use or during transport.
SPT sampler, Split tube sampler, Standard penetration test
SPT Split Tube Sampler design for carry out the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990 and ASTM standards. The Top Ball Valve Adaptor, pair of Split Spoons, and open SPT Shoe compose a complete of Split Tube Sampler. A Basket Retainer made from steel also is available as an option the sampler. The ball valve adaptor prevents samples from being washed out of the sampler when it is withdrawn from the borehole. A 60 degree nose cone or long solid rod with 60 degree point is available for carrying out SPT (c) tests in gravel and loose material. The screw connection on the top adaptor depends on the type of drill rods being used to drive the sampler. Most frequently used rods are 1-1/2" B.S. Whitworth, NWY Rod, BW or AW.
The standard Split Tube Sampler is 2" (50.8 mm) OD x 1-3/8" (34.9 mm ) ID x 18" (457 mm) / 24" (610 mm) long. For heavy driving conditions, the Heavy-duty "Tuflok" design is available.
SPT SAMPLER | ASTM / BS |
| STANDARD PENATRATION TEST |
|
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
