Automatic CNC Woodworking Sliding Table Panel Saw

Automatic CNC Woodworking Sliding Table Panel Saw
Price: US $ 5000-9000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: CNC-32
Function: Furniture Making
Control: Automatic
Motor: 5.5 +1.1 Kw
Using: Woodworking Cutting
Body: Heavy Duty
Voltage: 220V/380V
Style: Horizontal
Main Spindle Diameter  : 30mm
Tilting Saw Blade : 0-45 and 90 Degree
Structure: Heavy Duty
Type: Table Panel Saw
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO

Product Description

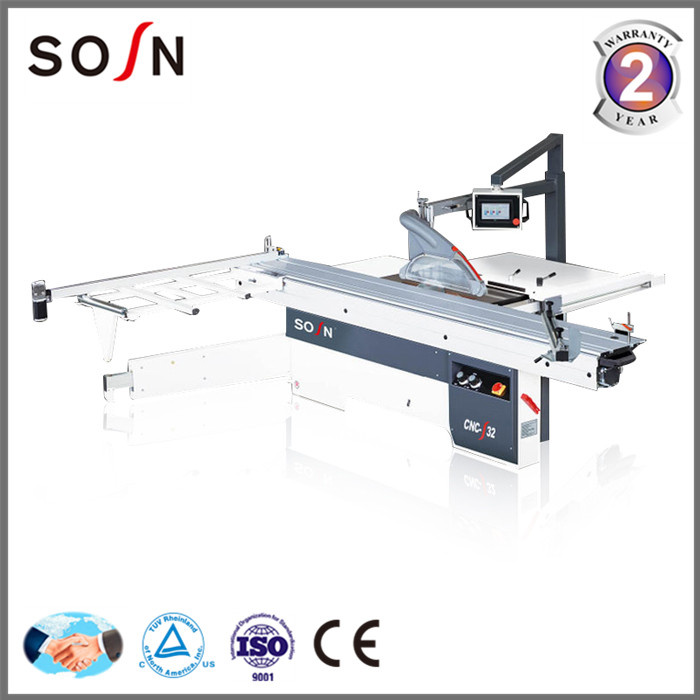

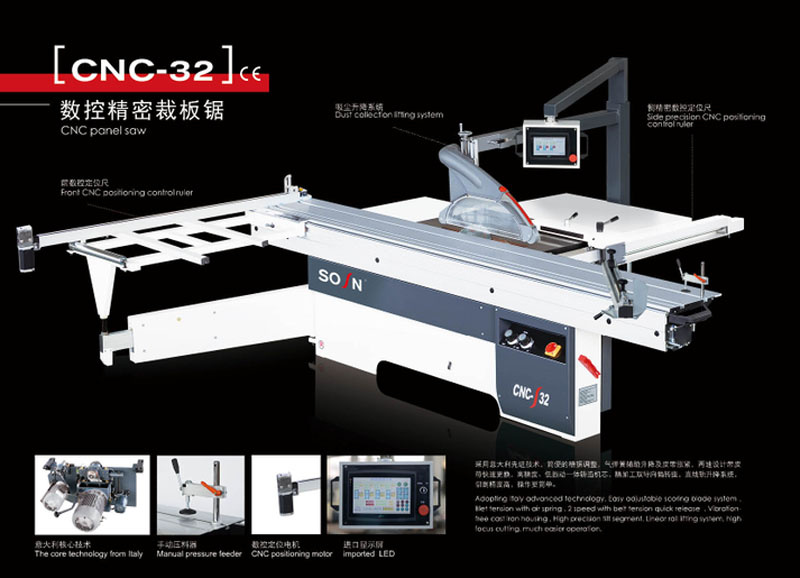

Automatic CNC Woodworking Sliding Table Panel Saw

Machine parameters
ModelCNC-32
Dimension of sliding table3200x430mm(415mm)
Gross cut capacity 3200mm
Width of cut between saw blade and rip fence    1250mm
Saw blade diameter 300(250-400)mm
Height of cut (300mm) 90mm
Height of cut with saw blade300mm at45 degree60mm
Speed of main saw spindle  4500/6000rpm
Main spindle diameter  30mm
Tilting saw blade 0-45 and 90 degree
Main motor  5.5kw
Scoring saw blade diameter 120mm
Speed of scoring saw blade 7000-8000rpm/min
Scoring spindle diameter 20mm
Scoring motor 1.1kw
Gross weight (with wooden package)1000kg
Overall dimension3300*3150*900mm
Packing size of the machine body(L*W*H)2200*1150*1100mm
Packing size of the sliding table(L*W*H)3350*480*320mm

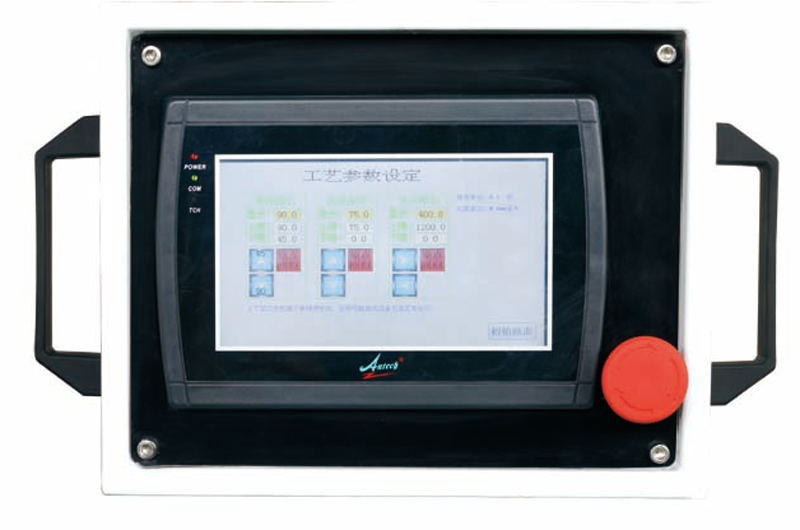

1.all machine control in an touch screen,easy operation

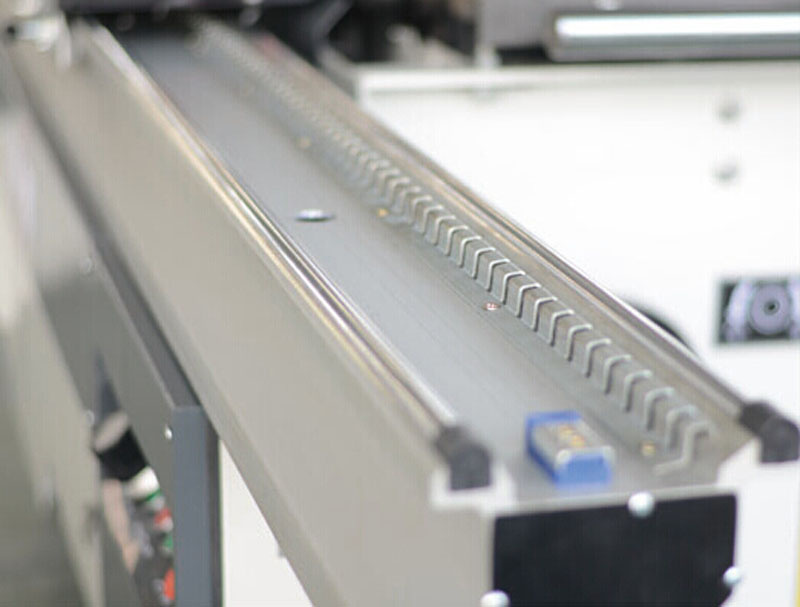

2. 3200*400 mm sliding table make machine more stable

3. new design inner structure make machine more stable and extending the service life of the machine


Work video :  https://www.youtube.com/watch?v=JcJChTb17Gk
Stable test :  http://youtu.be/f1q8dqMmqvA


Features:
1.digital control for main saw blade up and down
2.Digital control and readout for the saw blade tilting
3.Digital control and readout for big ruler and the rip fence with stepper motor

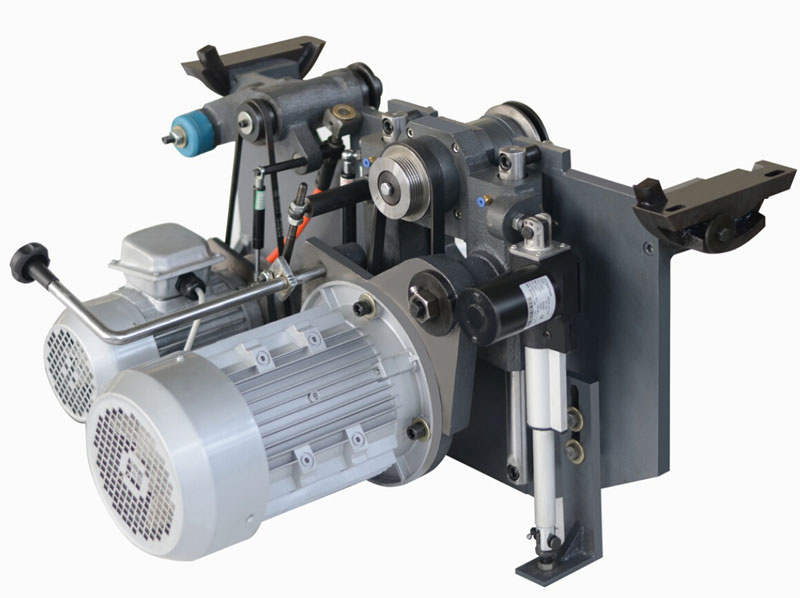

4.Linear guide structure for inner structure
5.5.5KW+1.1kw motor
6.European style protection cover

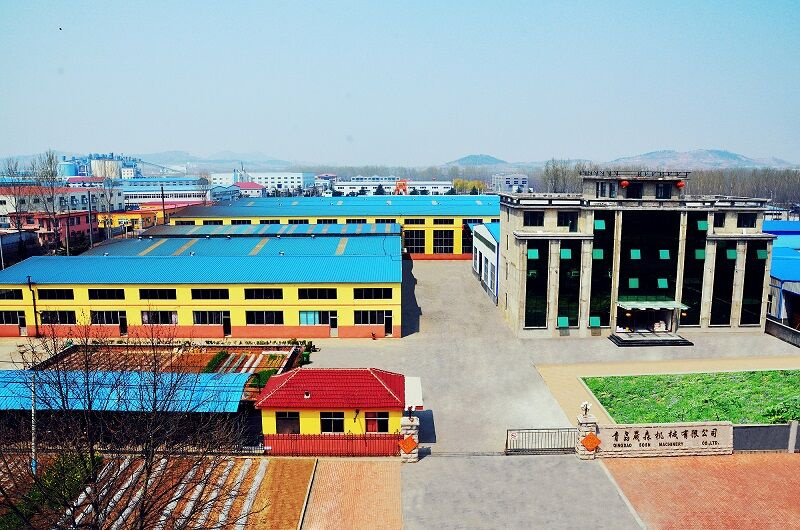

Welcome to SOSN factory


Note:

1.All the prices are FOBQINGDAO,valid for two months
2.Payment terms:30% T/T down payment+70%T/T balance payment before shipment
3.Package: standard wooden case
4.Delivery Time:20 days after receiving the prepayment

Should you have any need of the machine , please feel free to contact with me




Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
