| Prod Model: |
Z5050 |
| Name: |
Automatic Column Metal Vertical Drilling Machine |
| Max. Drilling Capacity(mm): |
50mm |
| Max. Taping Capacity(mm): |
M30 |
| Distance From Spindle Axis To Of Column: |
360mm |
| Max. Spindle Travel: |
240mm |
| Swivel Of Table And Table Reat: |
45 Degree |
| Spindle Bore Taper: |
Mt4, Mt5 |
| Spindle Steps: |
12 Steps |
| Spindle Speed(R/Min): |
42~2050 |
| Column Diameter: |
180mm |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Product Description

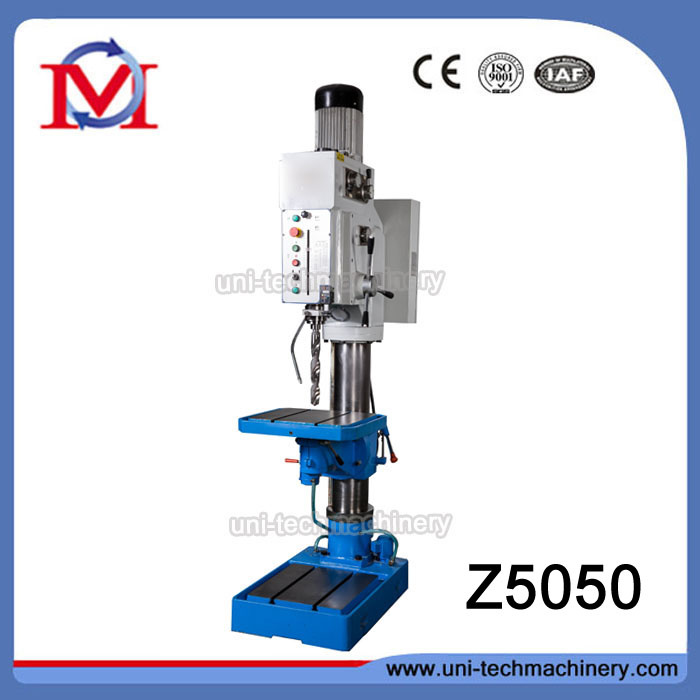

Automatic column round hole metal vertical drilling machine (Z5050)This Z5050 automatic column round hole vertical drilling machine for metal is used for drilling, counter boring, reaming, tapping and spot facing, with advantages of large drilling capacity and wide scope of processing parts, therefore not only used on the products workshop but also repairing workshop .
Drilling machine worktable support can up and down along the column, also can be rotated ±180º around the column. The table can be rotated ±180º in the table support, also rotated ±45º horizontally with support base .So the operation of this drilling machine is portable, flexible and reliable.

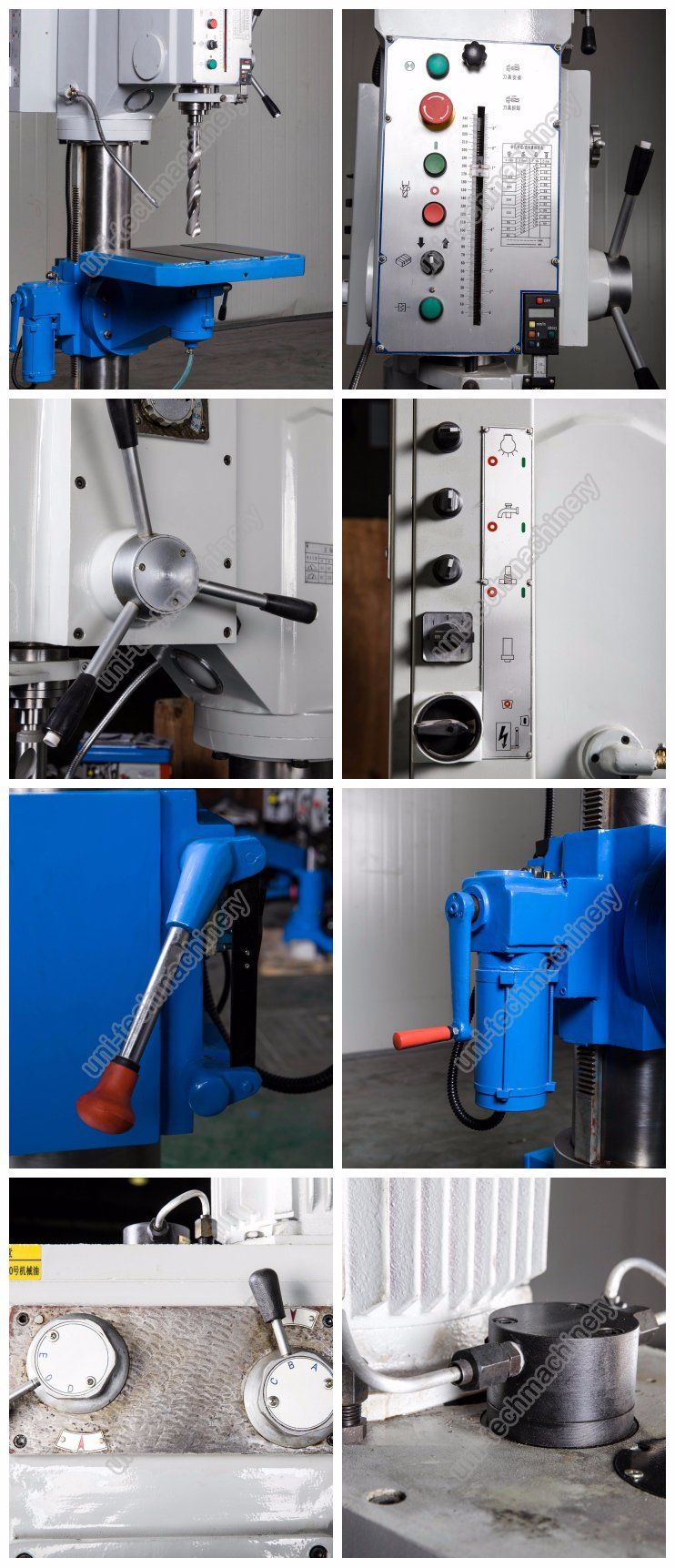

Main Features:1.New-designed, pleasing appearance, compact construction, wide speed change range, easy to operate.
2.Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
3.The working table can be rotated 180° and can be tited +45° and -45° also, it is reliable and easy job can be done.
4.Equipped with coolant system and tapping mechanism.
5.Equipped with short cut and overload protection, its electric system with powerful spindle motor, it designed according to IEC standard.
6.Characteristic protection device, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing, etc.
Z5050 Automatic column round hole vertical drilling machine for metal Specification:| Model | Z5050 |
| Max. drilling capacity(mm) | 50 |
| Max. taping capacity(mm) | M30 |
| Distance from spindle axis to of column(mm) | 360 |
| Max. distance from spindle nose to work table surface(mm) | 570 |
| Max. distance from spindle nose to base(mm) | 1160 |
| Max. spindle travel(mm) | 240 |
| Swivel of table and table reat | ±45° |
| Spindle bore taper(Morse) | MT4 or MT5 |
| Spindle steps | 12 |
| Spindle speed(r/min) | 42~2050 |
| Spindle feed steps | 4 |
| Spindle feed range(mm/r) | 0.07, 0.15, 0.26, 0.40 |
| Column diameter | 180 |
| Dimension of worktable(mm) | 550x470 |
| Dimension of base (mm) | 450x440 |
| Power of Main motor(kw) | 2.2/2.8 |
| Overall height(mm) | 2380 |
| Packing size(cm) | 108x62x245 |
| N.W./G.W.(kg) | 985/1045 |
Standard Accessories:1.Drill chuck
2.Arbor
3.Taper sleeve
4.Drift
5.Eyelet bolts
6.Wrench
Optional Accessories:
1.Multi-spindles
2.Angle vice
3.Safety guard

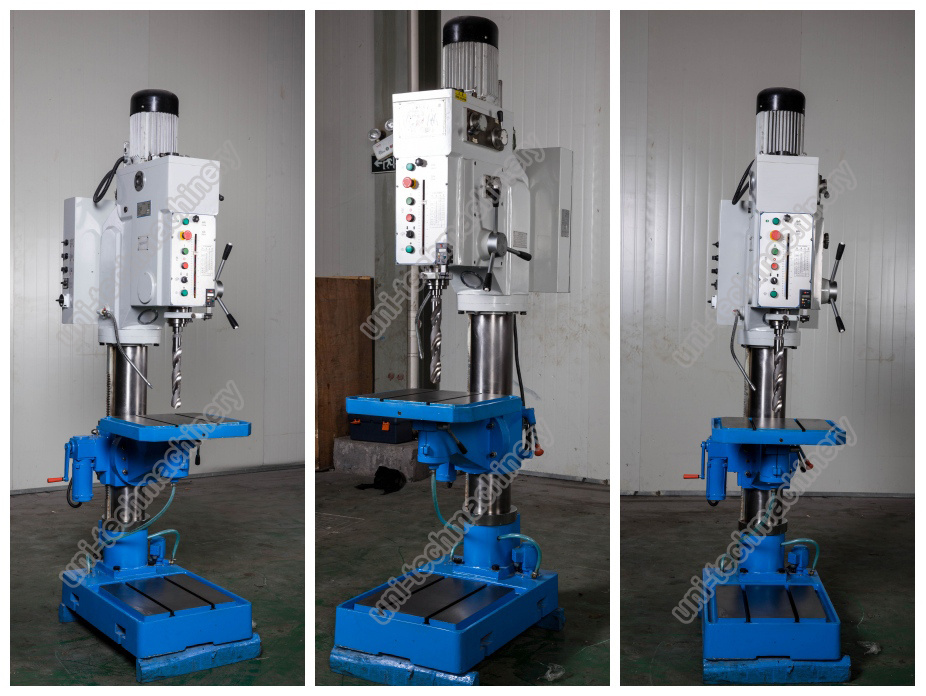

Z5050 Automatic column round hole vertical drilling machine for metal
Packing size: 1080x620x2450mm
Package: export standard plyw/case
Tengzhou Uni-tech machinery Co. Ltd , have more than 20 years export experiences, company grew up very fast and became a successful company in the machinery industry, using numerous machine tools. Specially in the range of supplying different vertical drilling machine with CE certificate. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.
After-sales service:
We guarantee that product could be used with free of defect in one year from the date of purchase. During our guarantee period, all customers enjoy free service of repairing of changing any defective parts. This guarantee does not apply to those defects directly or indirectly due to improperly use and repairs or maintenance.
We also would like to let you know our warranty about our Z5050 Automatic column round hole vertical drilling machine for metal:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Welcome come to contact us to get more details!
