Multi-Purpose Tool and Combination Machine Hq Series
| Price: |
US $ 650-1950/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
HQ-500, HQ-500N, HQ-500V, HQ-800, HQ-800N, HQ-800V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
420mm |
| Distance Between Centers: |
500/800mm |
| Spindle Taper: |
28mm |
| Model: |
Hq-500, Hq-500n, Hq-500V, Hq-800, Hq-800n, Hq-800V |
| Color: |
White and Black |
| Type: |
Multicut Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Table |
| Precision: |
High Precision |
| Tool Holder: |
None |
Product Description

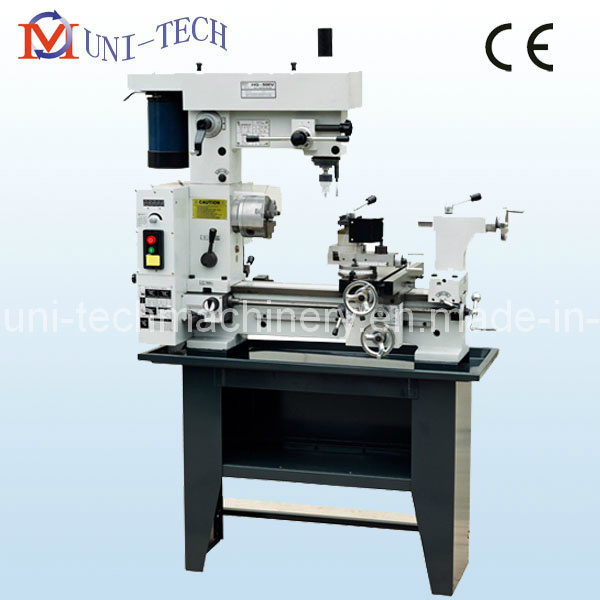

Multi-purpose machine HQ series
General Features:
1. A kind of combination machines with turning, milling, drilling and threading.
2. Metric or Imperial thread cutting.
3. Suitable for processing metal wood and others materials.
4. Widely used in job-shops, car-shops technical school, factories and family for
Machine machine parts repairing and making, education training, household
Utensiles'making, etc.
Standard accessories
Change gears
Tool post wrench
Wedge
Allen wrench
3-Jaw chuck
Tie red
Optional accessories:
Machine stand
Follow rest
Steady rest
4-Jaw chuck
Backplate for 4-jaw chuck
Reversible thread tapping tools
Lathe tools
Drill chuck
Mill cutter holder
Face plate
Bakck plate
Leadscrew guard
Drill chuck guard
Toolpost guard
Chuck guard
European quick change toolpost
| SPECIFICATION | HQ500 | HQ800 | HQ500N | HQ800N | HQ500V | HQ800V |
| Swing over bed | φ420mm | φ420mm | φ420mm |
| Distance between centers | 500mm | 800mm | 500mm | 800mm | 500mm | 800mm |
| Max. longitudinal travel | 440mm | 740mm | 440mm | 740mm | 440mm | 740mm |
| Max. cross travel | 200mm | 200mm | 200mm |
| Taper of spindle | M.T.4 | M.T.4 | M.T.4 |
| Spindle hole | φ28mm | φ28mm | φ28mm |
| Step of spindle speed | 7 | 7 | Variable speed |
| Range of spindle speed | 160-1360r.p.m | 160-1360r.p.m | 0-630r.p.m,630-1800r.p.m |
| Barrel travel | 70mm | 70mm | 70mm |
| Taper of center | M.T.3 | M.T.3 | M.T.3 |
| Metric thread range | 0.2-6mm | 0.7-4mm | 0.7-4mm |
| Inch thread range | 4-120T.P.I | 4-30T.P.I | 4-30T.P.I |
| Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014" | 0.088-0.55mm/0.0035-0.022" | 0.088-0.55mm/0.0035-0.022" |
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014" | 0.088-0.55mm/0.0035-0.022" | 0.088-0.55mm/0.0035-0.022" |
| Max. drilling capacity | φ22mm | φ22mm | φ22mm |
| Worktable size (L*W) | 475×160mm² | 475×160mm² | 475×160mm² |
| Max. end mill | φ28mm | φ28mm | φ28mm |
| Max. face mill | φ80mm | φ80mm | φ80mm |
| Distance between spindle center and column | 285mm | 285mm | 285mm |
| Distance between spindle and worktable | 306mm | 306mm | 306mm |
| Headstock travel of up and down | 110mm | 110mm | 110mm |
| Spindle taper | M.T.3 | M.T.3 | M.T.3 |
| spindle speed | 16 | 16 | Variable speed |
| Range of spindle speed | 120-3000r.p.m | 120-3000r.p.m | 0-800r.p.m, 800-2800r.p.m variable speed |
| Swivel degree of headstock | ±360° | ±360° | ±360° |
| Motor power | 0.55Kw/0.55Kw | 0.55Kw/0.55Kw | 1.1Kw/1.1Kw |
| Voltage/Frequency | As customers' requirement | As customers' requirement | As customers' requirement |
| Packing size | 1130×580×1100mm(HQ800:1430×580×1100mm) | 1130×580×1100mm(HQ800N:1430×580×1100mm) | 1130×580×1100mm(HQ800V:1430×580×1100mm) |
| N. weight/G .weight | 245kg/280kg(HQ800:275kg/325kg) | 250kg/285kg(HQ800N:280kg/330kg) | 245kg/280kg(HQ800V:275kg/325kg) |
| Loading amount | 40pcs/20'container(800: 32pcs/20'container | 40pcs/20'container(800N: 32pcs/20'container | 40pcs/20'container(HQ800V: 32pcs/20'container) |
