| Prod Model: |
SS-2700 |
| Max. Cutting Length: |
2700mm |
| Max. Cutting Width (Depth): |
2700mm |
| Max. Cutting Height: |
100mm |
| Max. Gripper Opening: |
105 mm |
| Max. Sawblade Projection: |
105 mm |
| Main Sawblade Motor: |
15HP (11.2kw) |
| Main Sawblade Diameter: |
405 mm |
| Scoring Sawblade Speed: |
6, 800 r.p.m. |
| Saw Carriage Drive Motor: |
2HP (1.5kw)(Inverter) |
| Forward Speed(Adjustable): |
0~45 M/Min |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

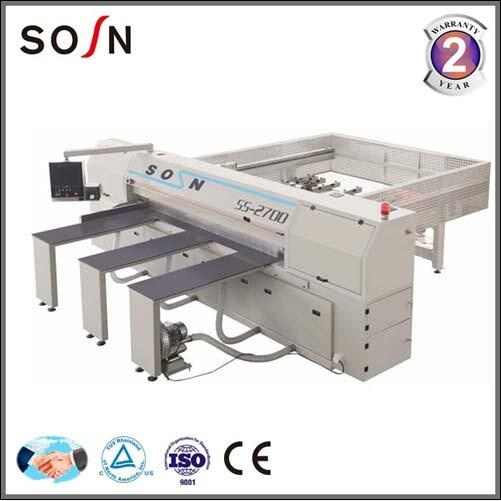

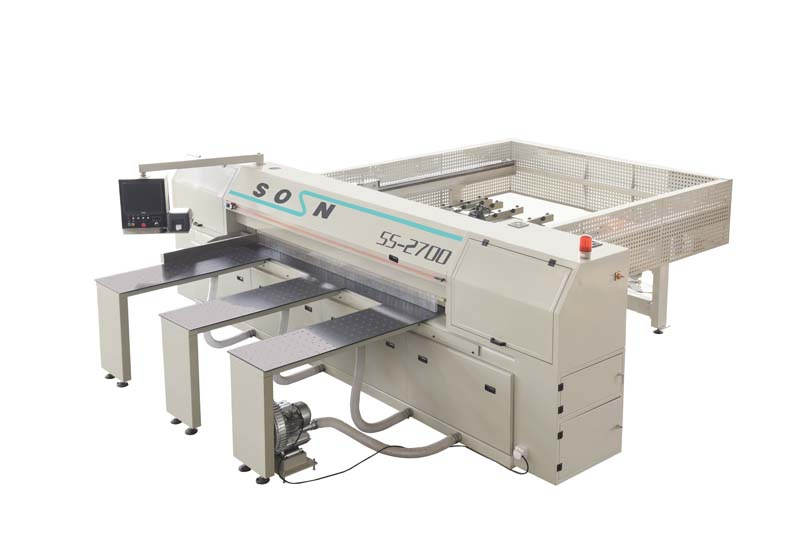

Automatic Computer Control High Quality Beam Panel Saw
Parameters
| MODEL | SS-2700 |
| CAPACITY | Max. cutting length | 2700 mm |
| Max. cutting width (depth) | 2700 mm |
| Max. cutting height | 100 mm |
| Max. gripper opening | 105 mm |
| Max. sawblade projection | 105 mm |
| MAIN SAWBLADE | Main sawblade motor | 15HP (11.2KW) |
| Main sawblade diameter | Ø405 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Main sawblade speed | 4,800 R.P.M. |
| SCORING SAWBLADE | Scoring sawblade diameter | Ø176 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Scoring sawblade speed | 6,800 R.P.M. |
| SAW CARRIAGE | Saw carriage drive motor | 2HP (1.5KW)(Inverter) |
| Forward Speed(adjustable) | 0~45 M/min |
| Return Speed | 70 M/min |
| PUSHER | Pusher system drive motor | 1KW |
| Pusher system pull speed | 5~70 M/min |
| Pusher system push speed | 5~60 M/min |
| OTHERS | High pressure blower motor | 3HP (2.2KW) |
| Side aligner motor | 90W |
| Working air pressure | 5~6 kg/cm2 |
| Table height from floor | 880 mm |
| Grippers | 9 units |
| Floating table | 3 units |
| Voltage | 220V | 380V | 415V | 440V | 575V |
| Hertz | 50HZ/60HZ |
| | Net weight | 4700kg |
| Gross weight | 5300Kg |
SOSN history
SOSN Woodworking Machine is focus on design and manufacture of professional
woodworking machines over 30 years.
The Main products of SOSN Woodworking Machine are precision panel saw, edge banding
machine, drilling machine and CNC router. We have mare than 70 sales agents in China
domestic market, and 21 sales agents in 12 foreign countries of oversea market. Our customers
and agents are from Southeast Asia, The Middle East, America, Europe, and so on.
Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality
product to customer on time.
In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran
technical Engineers, we design and manufacture new electronic panel saw and edge banding
machine.
SOSN Woodworking Machine are always researching and manufacturing professional and
economical woodworking machines to our customers.
Should you have any need of the machine , please feel free to contact with me
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
