| Prod Model: |
KET-PH, QBL Series |
| Name: |
Automatic Hydraulic Grip Puller |
| Certificate: |
ISO9001:2008 |
| Working Pressure: |
70MPa |
| Capcity: |
50-230ton |
| Warranty: |
One Year |
| Stock: |
Yes |
| Delivery Time: |
10-20 Days After Receive Payment |
| Pump Type: |
Electric Pump |
| Voltage: |
220V |
| Terms Of Payment: |
T/T |
Product Description

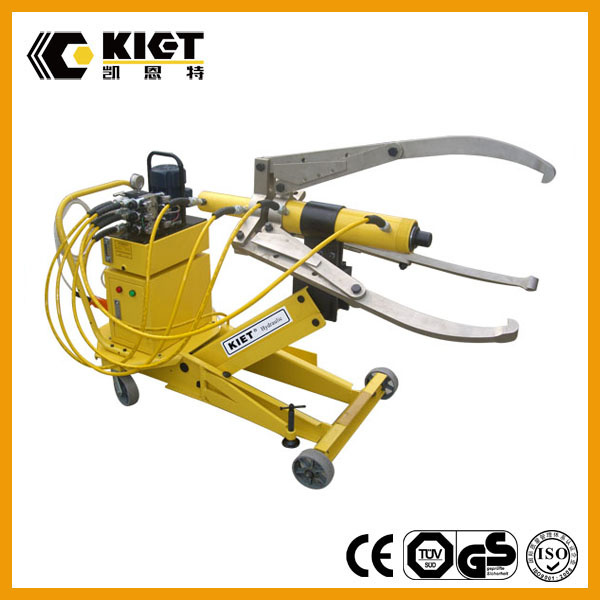

Automatic Hydraulic Grip Puller Jiangsu Canete Machinery Manufacturing Co.,Ltd
Description for 100 Ton Hydraulic Puller :
*Roller cart with power lift;
*Hydraulic actuated lift cylinder on cart extends puller from ground to a height of 1.7m
*Adjustable jaw tips
*Puller easily setaches from cart
*Includes electric one stage pump with remote jog switch for fingertip control of the removal process
*Puller height range 673 to 1690mm
*Multiple pushing adaptors included.
We are professional Integrated hydraulic puller manufacturers and factory.We can produce Integrated hydraulic puller according to your requirements.
High quality, forged steel components provide superior reliability and service
Foot Pedal to vertically position puller
Brife Information of KIET:
Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Photos:
FAQ:
Q1: How can contact sales?
A1: Please call: +86-18052606778 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.
Teams
For more information about the products please contact me as below:
Elena Tan
Tel: 86-523-81569666
Mob: +86 18052606778
Web: www.kaientehydraulic.com Welcome to visit our factory !
Parameters for Hydraulic car Puller :
| Model | Capacity(T) | Min. Opening(mm) | Min. opening Deep Drawing(mm) | Max. Opening(mm) | Max. Opening Deep Drawing(mm) | Overall Length(mm) | Center Height Adjustment(mm) | Stroke(mm) | Voltage(V) |
| KET-QBL-50 | 50 | 64 | 651 | 1150 | 559 | 2590 | 450-1120 | 337 | 220 |
| KET-QBL-50S | 50 | 100 | 381 | 1220 | 178 | 2286 | 450-1120 | 337 | 220 |
| KET-QBL-60 | 60 | 140 | 790 | 1000 | 650 | 2885 | 305-915 | 250 | 220 |
| KET-QBL-100 | 100 | 381 | 1066 | 1219 | 863 | 3015 | 305-915 | 250 | 220 |
| Model | Jaw | Capacity(T) | Spread(mm) | Reach(mm) | Height Range(mm) | Motor Power(mm)) | Voltage(V) |
| KET-PH100T | 3 | 100 | 191-1778 | 1219 | 673-1690 | 2.2 | 220 |
| KET-PH200T | 2 | 200 | 203-1334 | 1219 | 800-2134 | 2.2 | 220 |
| KET-PH230T | 4 | 230 | 203-1334 | 1219 | 800-2000 | 2.2 | 220 |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
