| Prod Model: |
DFD-150G |
| Application: |
Hard Rock |
| Drilling Depth: |
100m |
| Drilling Caliber: |
105~254mm |
| Walk Speed: |
2km/H |
| Power: |
56kw |
| Usage: |
Hard Rock Drill |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
| Power Type: |
Diesel or Gasoline |
Product Description

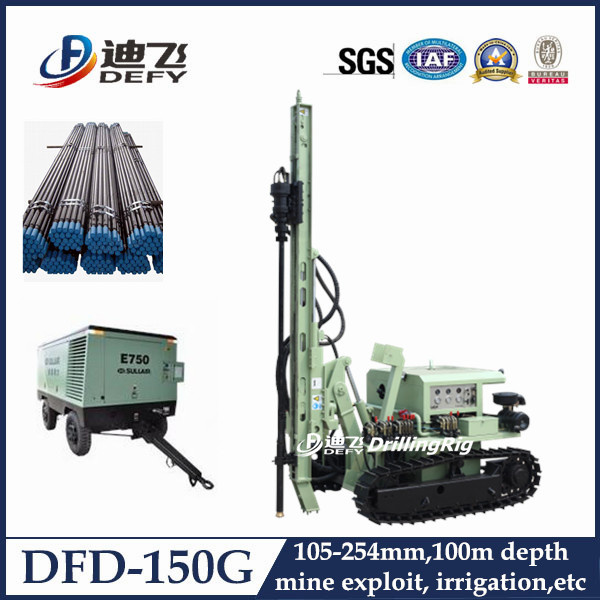

DFD-150G hot sale quality hard stone drill rig hammer drill
Introduction
DFD-150G takes advantages of low power consumption, high efficiency, easily to transport and excellent performance in outside work. The advanced hydraulic system drives the drilling rig. The air is only consumed by DTH hammer, which saves the cost of the air compressor. Rotary system adopts new type duplex-motor to drive, provides powerful strength in drilling large diameter hole. Suspension chassis makes the machine more flexible, easier to climb, especially suit the rough site working.
This machine widely apply to mine exploit, irrigation, power station, building road, pile foundation project hole drilling and other hard rocks drilling work.
1. Max 100m depth. diameter range: 105~254mm.
2. DFD-150G pole drilling machine is high efficiency when drilling very hard rock.
3. Drill tower angle can be adjustable, can suitable different drilling situation.
Parameter:| Technical Parameter |
| Weight(Kg) | 7200 |
| Dimension(mm) | 5750×2100×2450 |
| Drilling Caliber(mm) | 105~254 |
| Drilling Depth(m) | 100 |
| Walk Speed(Km/h) | 2.5 |
| Climbing Capacity(°) | 30 |
| Ground Clearance(mm) | 380 |
| Working Pressure(MPa) | 1.05~2.46 |
| Air Consumption(m³/min) | 10~25 |
| Once promotion distance(mm) | 3000 |
| Skid Compensate Length(mm) | 1200 |
| Skid Up and Down(°) | Total 100 |
| Skid Left and Right(°) | Total 100 |
| Drill Arm Left and Right(°) | Total 90 |
| Drill Arm Up and Down(°) | Total 120 |
| Speed of Spindle(r/min) | 0-120 |
| Rotary Torque(N.M) | 3600 |
| Power(Kw) | 56 |
| Applicable Hardness(f) | 6~20 |

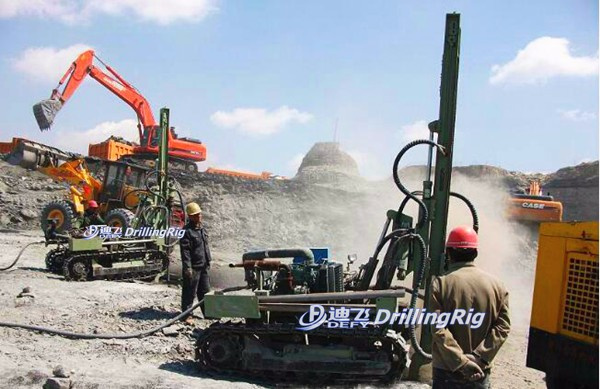

Working Site:
Company
FAQ:
1.Worried about the authenticity of seller?
--We are a professional drilling equipment manufacture in China. We do have our factory and office. We master the technology, and constantly adjust our products according to the market trend and customer feedback, ensure product quality.
As a professional drilling equipment manufacturer, you are welcomed to visit our factory to see and try your machine by yourself before purchasing.
2. First time to using drilling machine?
-The machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;
3. How to deal with the worn parts of the machine?
--We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.
4. About the warranty?
--All accessories of our machinery is available at Factory-price all Year around. We always do our best to solve our customers' worries.
We provide Turn-Key solution for all drilling project. No matter what you need, the professional drill machine, drill parts or just professional suggestion, you can send us an email and we will respond and offer you Complete set of Drilling Machine as per your requirements.

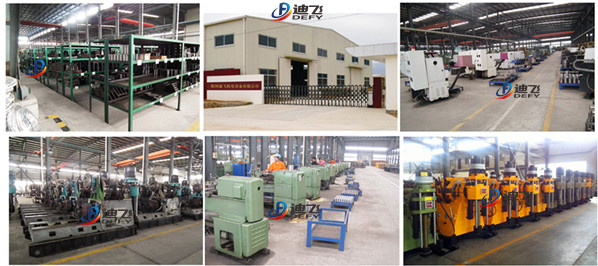

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.
Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.
Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
