Automatic Stone Bridge Saw Made with Full Options Cutting Granite&Marble&Engineered Stones
| Price: |
US $ 26000-27000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XZQQ625A |
| Blade Tilting: |
0-45 Degree |
| Table Tilting: |
0-85 Degree |
| Table Rotation: |
0-360 Degree |
| Cut Length: |
3200mm |
| Cut Width: |
2000mm |
| Cut Thick: |
170mm |
| Spindle Motor: |
15 Kw 20HP |
| Repeat Cutting: |
99 Repeat Cutting by Program |
| Type: |
CNC Cutting Machine |
| Usage: |
Quartz Sandstone Other Engineered Stones |
| Application: |
Stone Industry |
| Source Voltage: |
220V |
| Automation: |
Automatic |
Product Description

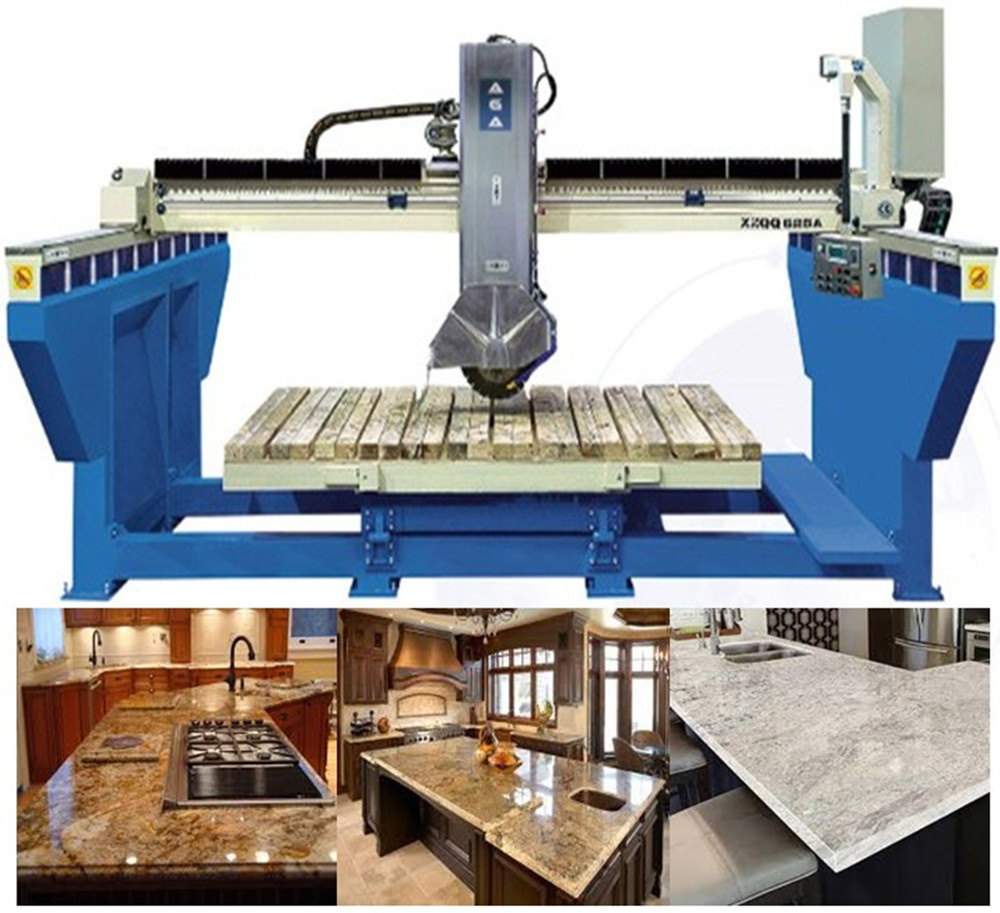

Automatic Monoblock Stone Bridge Cutting Machine with 45 Degree Miter Cut
Bridge saw is USA standard made with a power motor 20HP for cutting granite, marble, quartz and engineered stones. It is the best from China, most perferable for cutting and fabricating slabs, counter tops, bench tops, vanity tops, etc.
This saw is able to cut 3200mm length, 2000mm width and 170mm thick(126''*78''*6.7'' L*W*H).Machine video on http://youtu.be/5i0OPIXU0J8Machine specs:| Blade size | 400 - 625 mm 16" - 25" |
| Cut length | 3200 mm 126" |
| Cut width | 2000 mm 78.7" |
| Cut thick | 170 mm 6.7" |
| Blade tilt | 0 - 45° |
| Table rotate | 0 - 360° locked any position |
| Table tilt | 0 - 85° |
| Spindle motor | 15 Kw 20 HP |
| Size (L×W×H) | 6×5×3 m 20'×16'×9.9' |
| Weight | 7200 Kg 16,000 Lbs |
Bridge saw introduction:

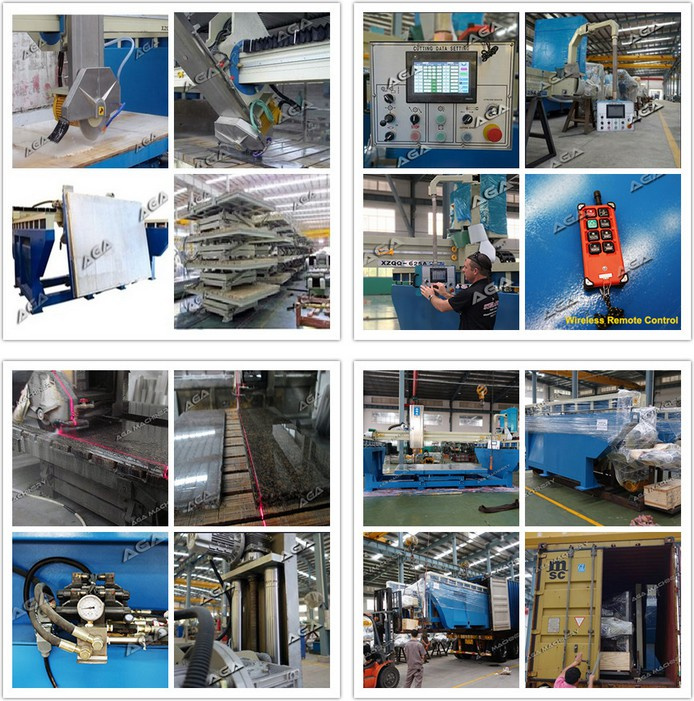

It is monoblock including very strong steel frame, it comes with full options, such as pendant control panel, touch screen, wireless remote, table rotation and tilting, blade miter cut, hydraulic pump, etc.

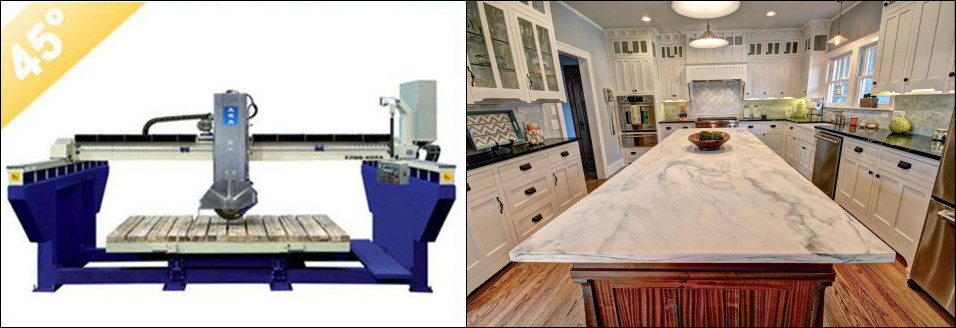

1) Blade tilting 0-45 degree for miter cut:
The blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. It is able to tilt 0-45 degree automatic for miter cut.
2) Table tilts0-85 degree and rotates 0-360 degree stopped any position:
Motorized table can be locked in any position 0-360 degree and it also tilts 0-85 degree hydraulic for easy load of stone materials.
3) PLC system for easy operation, color touch screen provides live datas:
Our bridge saw is made with PLC control, electric system is simple and easy to operate. Color touch screen provides live datas and all functions are operated on it that makes its users very friendly.
4)Laser cutting and wireless remote control:
The bridge saw is a laser cutting machine with a laser guide, which gives precision cuts every time and makes precise cut in +/-0.2mm. Wireless remote provides easy control of machine.
5)Easy loading and installed:
Full machine can be loaded 20 GP container. Easy to load, transport and install thanks to its monoblock structural frame.FAQ:
1) Payment:
The first payment of deposit for order, we start to produce the machine→the second payment, we start the container load and effect the shipment→ the last payment of balance, we send you the scan copy of B/L by email.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.AGA Machinery:

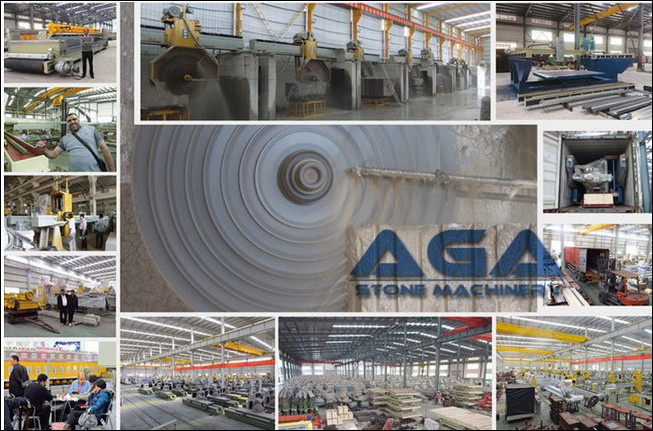

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
More details can be checked on http://www.marblegranitemachine.com/en.html
