Premium Stone/Granite/Marble Bridge Cutting Saw with Miter Cut

Premium Stone/Granite/Marble Bridge Cutting Saw with Miter Cut
Price: US $ 17500-30000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: XZQQ625A
Max. Blade Size: 625mm (Diameter)
Blade Tilting: 0-45°
Max.Working Thick: 170mm
Processing Size: 3200*2000*170mm
Table Tilting: 0-85°
Weight: 7200kg
Logevity: at Least 15 Years
Usage: Marble
Application: Stone Industry
Automation: Automatic
Type: PLC
Source Voltage: Any Standard Power

Product Description

Stone Cutting Saw for Kitchen Remodeling



Features of the Saw
- Brand new monoblock saw
- 20 Hp motor direct drive
- 0-45° miter cut
- 0° - 360° rotating table
- Computerized automatic work
- Color touch screen
- Laser guide
- Cast Iron bridge
- Wireless remote control




Description:

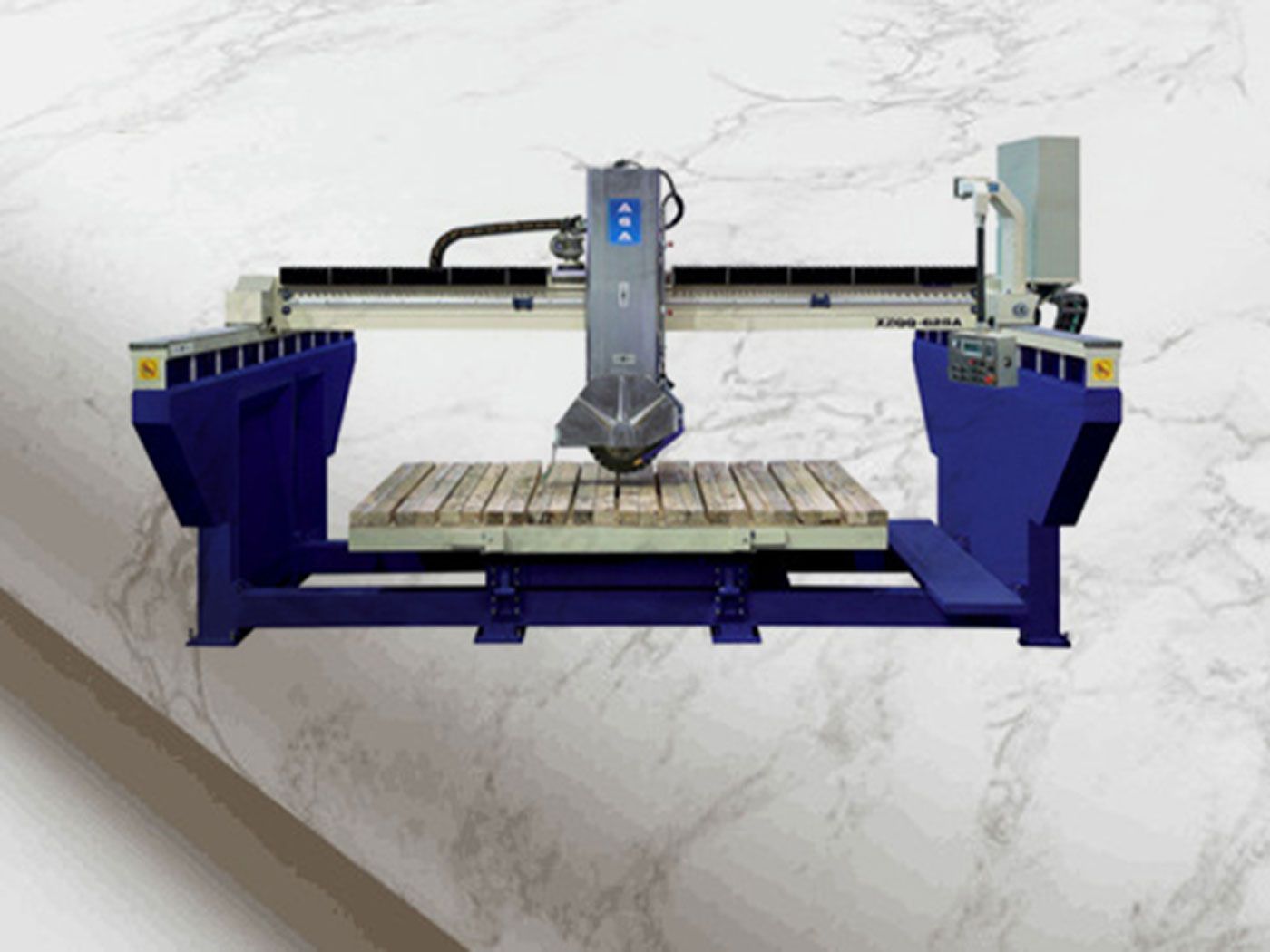

The Monoblock Bridge Saw (XZQQ625A) is fully automatic USA standard. It is designed to process countertops and tiles automatically and precisely under direction of set program.The bridge saw has been researched and developed along with time for more than 10 years. Now, it has reached a integrated state with premium configulation, stable functions and good price.
The bridge saw is suitable for cutting granite,marble, quartz and so on. It is drived by 20HP motor which provides and ensures sufficient and powerful strength for every pricise single cut on the hard stone.
Powered bridge miter capacities, The blade, together with vertical beam, are able to tilt 45 degree for angle cutting.
Every progarm is set in the color touch panel which feels like screen of smartphone. Since it shows live data, it is very easy and smart to operate.
Besides, the bridge saw is equipped with wireless remote control.
The table of the bridge saw turns 0 - 360° horizontally and can stop at any position for angle cutting.  And it tilts 0 - 85° vertically for easy loading and unloading. User-friendly design reduces massive weight from heavy stone.The automatic bridge saw with premium quality, full functions and favorable price has won trust and reputation from our customers, especially in North America.





Major Technical Parameters of Bridge Saw
Model XZQQ625A
Blade size400 - 625 mm   16" - 25"
Max. Cut length3200mm
Max. Cut width2000mm
Max. Cut thick170 mm     6.7"
Blade tilt0 - 45°
Table rotate0 - 360°
Table tilt0 - 85°



Gallery of Bridge Saw

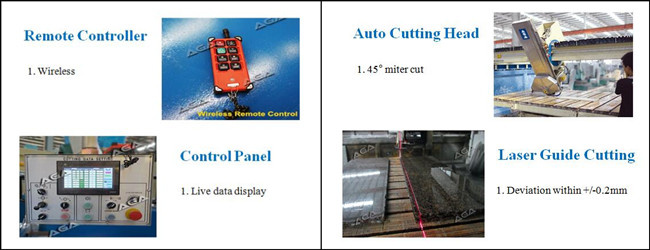

Simple Operation





Cutting Countertop and Tile

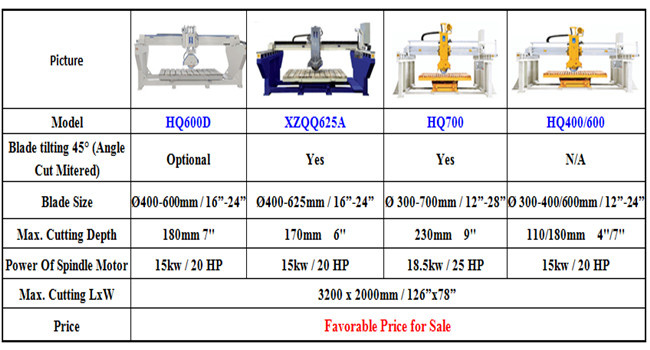

Comparision of Bridge Saw with Compatitive Prices






Direct Contact Information Directly
Name:Yoki
Mob:+86 15280214486 (what..sapp/we..chat)

Website:Http://www.againdustry.com | Http://www.marblegranitemachine.com
Your Dream Machine is Just a Contact Away





Guarantee & after sale service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.





FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading






Keyword:Tile Bridge Saw/Granite Bridge Saw/Bridge Cutting Saw
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.

AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
