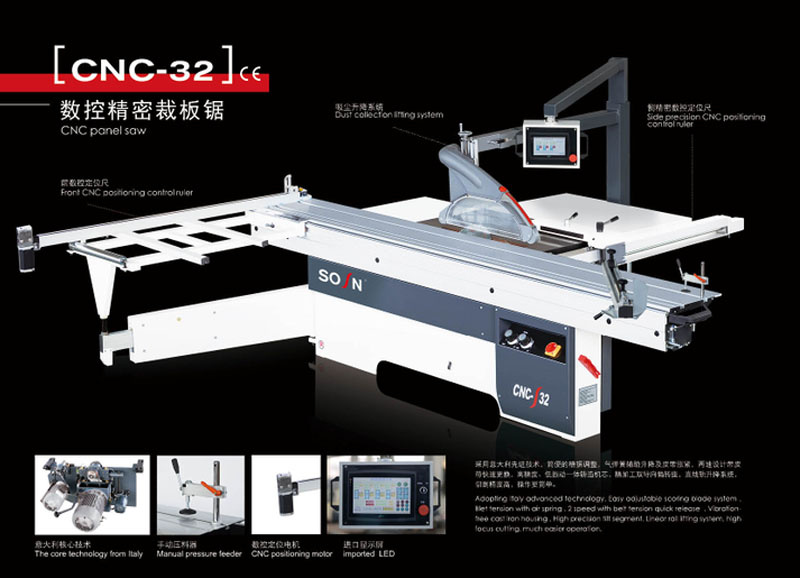

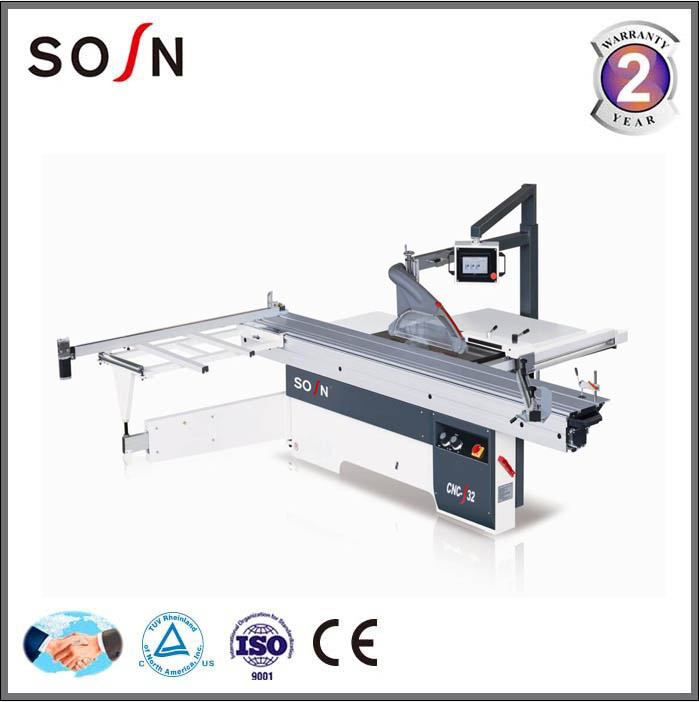

Automatic Wood Cutting 45 Degree Panel Saw
| Price: |
US $ 2000-9000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CNC-32TA |
| Model: |
CNC-32ta |
| Sliding Table Structure: |
Altendorf Sliding Table |
| Dimension Of Sliding Table: |
3200*400mm |
| Motor Power: |
5.5+1.1kw |
| Control System: |
All in an Touch Screen |
| Blade Diameter: |
250-400mm |
| Max Cutting Thickness: |
95mm |
| Weight: |
950kg |
| Machine Body: |
Width and Thickness |
| Using: |
Board Cutting |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Normal Precision |
| Certification: |
ISO |
Product Description
Machine parameters| CNC-32TA digital control panel saw (with stepper motor) |
| Dimension of sliding table | 3200x400mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 350mm(250-400mm) |
| Height of cut (300mm) | 90mm |
| Height of cut with saw blade 300mm at 45° | 70mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45° |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight | 900kg |
| Overall dimension | 3300x3150x900mm |

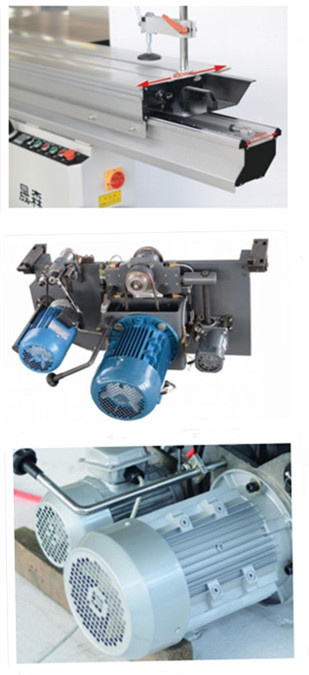

 | Altendorf sliding table, 400mm width,
inner side between rail guide is 145mm,
wider, stable, precise working.
|
Linear guide inner structure
More stable and precision
|
1.5.5kw +1.1kw big power motor,
2.National standard,
3.Cooper wire,
4.Aluminum shells,(radiating faster, not easy to burn out the motor, so this motor's life is much longer than common),
5.Maximum motor power transfer from
the Poly-V belt .
|
 |

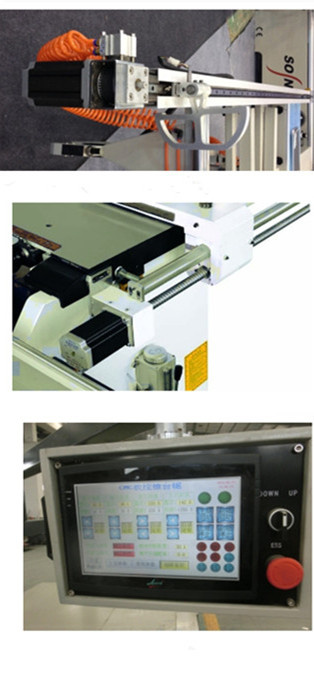

CNC positioning for big ruler
|
CNC positioning for rip fence
|
Full CNC control
with imported LED board
|
Sosn advantages
1.professional manufacture with more than 20 years production experience in woodworking
machines.

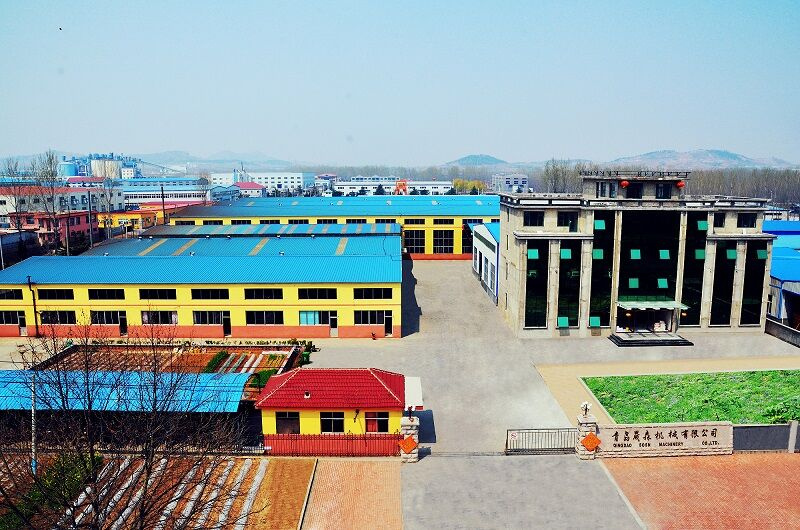

2.11,000 square meter workshop,first class skilled workers,near qingdao port,
3.5steps strict quality control,CE &ISO certificates
4.timely delivery with short production period
5.professional after-sale service available,email and calling is available in 24 hours.
6.more than 70 countries customers have enjoyed SOSN machines.
sosn historySOSN Woodworking Machine is focus on design and manufacture of professional
woodworking machines over 30 years. The Main products of SOSN Woodworking Machine are precision panel saw, edge banding
machine, drilling machine and CNC router. We have mare than 70 sales agents in China
domestic market, and 21 sales agents in 12 foreign countries of oversea market. Our customers
and agents are from Southeast Asia, The Middle East, America, Europe, and so on.Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality
product to customer on time.In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran
technical Engineers, we design and manufacture new electronic panel saw and edge banding
machine.SOSN Woodworking Machine are always researching and manufacturing professional and
economical woodworking machines to our customers.

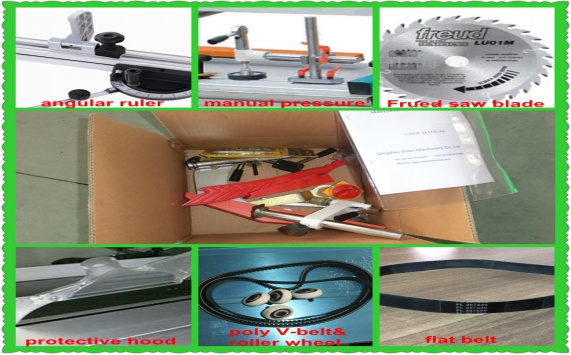

Spare parts of panel saw
Features:1. Apply to processing all kinds of density boards, shaving boards, wood- based
panels, ABS panels, PVC panels, organic glass plates and solid wood and
others with wood structure and similar hardness. 2. Movable table guide track is plating chromium steel bars structure, exact and durable.3. With oxidation treatment, movable table surface is beautiful and hardwearing.4. Made of high-strength extruded aluminum alloy, movable table is high in strength and would
not bend.
