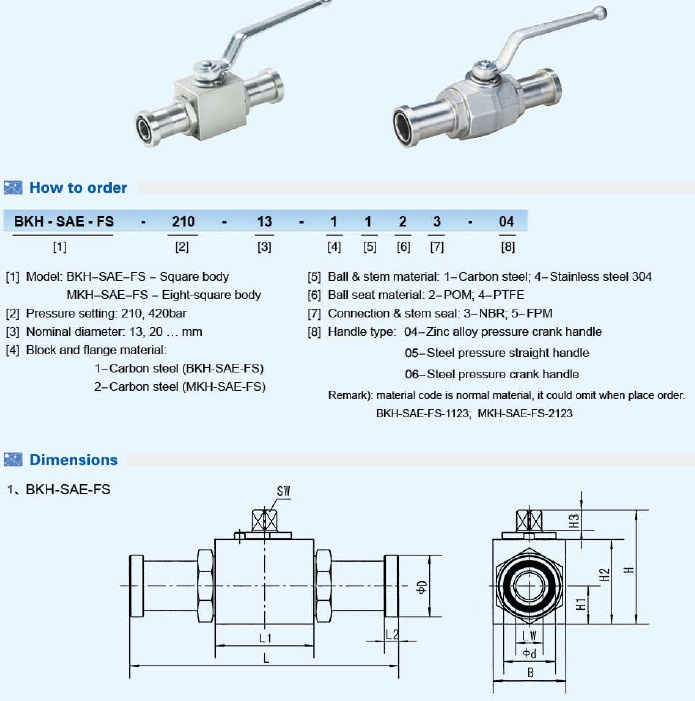

| Prod Model: |
BKH-SAE-FS |

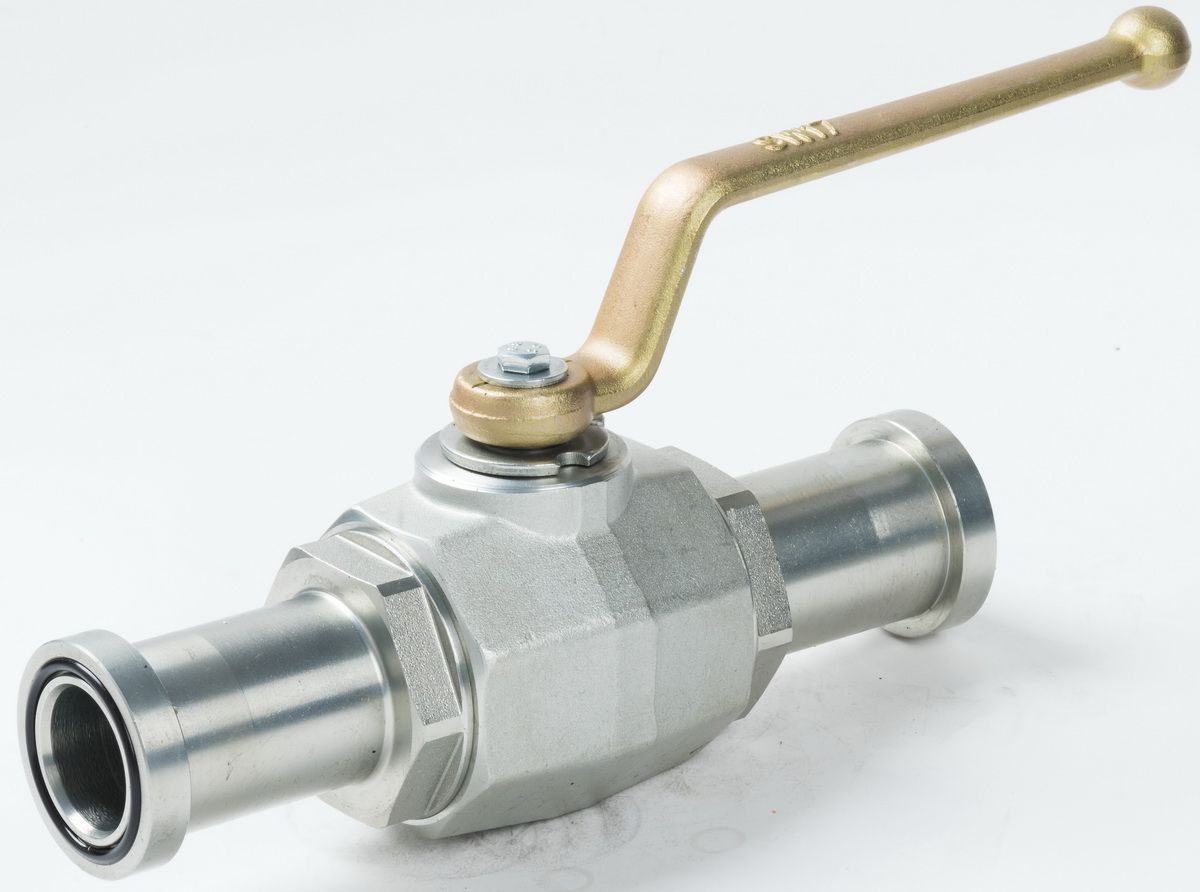

| Flange Ball Valve: |
Material: Carbon Steel & Stainless Steel |
| Flange Hydraulic Ball Valve: |
Closing & Opening in Hydraulic System |
| Carbon Steel: |
Hydraulic Valve |
| High Pressure: |
Flange Ball Valve |
| Carbon Steel Hyraulic Flange Ball Valve: |
Used in Hydraulic System |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Industrial Usage |
| Function: |
Closing /Opening |
Product Description

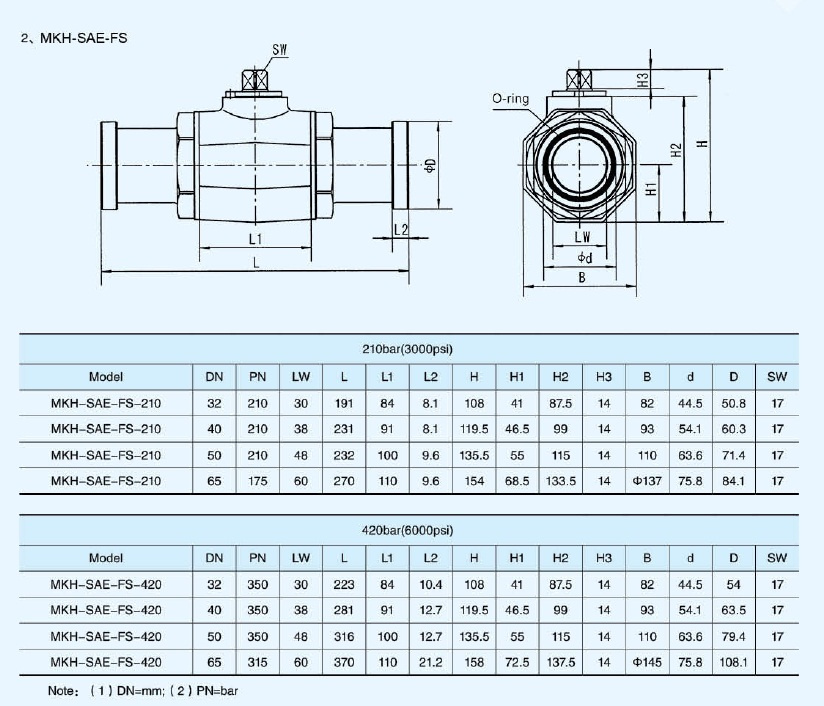

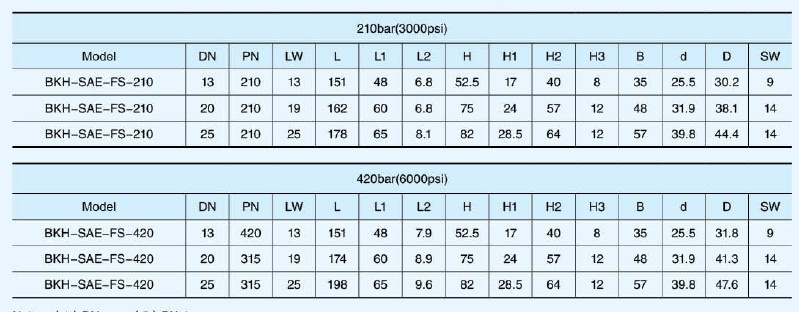

DN(mm): 13, 20, 25, 32, 40, 50
Pressure setting(bar): 210, 420
Applicable media: Oil, Nitric acid, Acetic acid, Mineral oil
Materials of main parts:
Valve body: Carbon steel, 304SS, 316SS
Ball: Carbon steel, 304SS, 316SS
Flange piece: Carbon steel
Stem: Carbon steel, 304SS, 316SS
Sealing: NBR, FPM(viton), POM, Polyamide
Surface Finishing: Granosealing& zinc-plating(yellow)
Ningbo Tianxiang Xinhua Hydraulic Co., Ltd. In Fenghua City belonged to Metallurgy Administration of State Machinery Department is one main factory of producing necessary accessories of hydraulic pressure elements. Its main products are nitrogen charging vehicle, series of accumulators, controlling safety valve group, ball valve with high pressure, closing valve with high pressure, check valve, SAE-Flanged ball valve and electromagnetic ball valve etc.
XH holds all kinds of manufacturing professional products including numerical control lathe, systematic processing facilities and equipped CAD design system. Performing the ISO quality standard strictly, we can provide high quality products in best time.
Hope to develop new products with craft brothers from home and abroad together. You are welcomed warmly to visit us and discussing business!
