| Prod Model: |
KHB3K |
| 3way Ball Valve: |
Material: Carbon Steel & Stainless Steel |
| 3way Hdyraulic Valve: |
Apply in Hydraulic System to Close & Open |
| Hydraulic Ball Valve: |

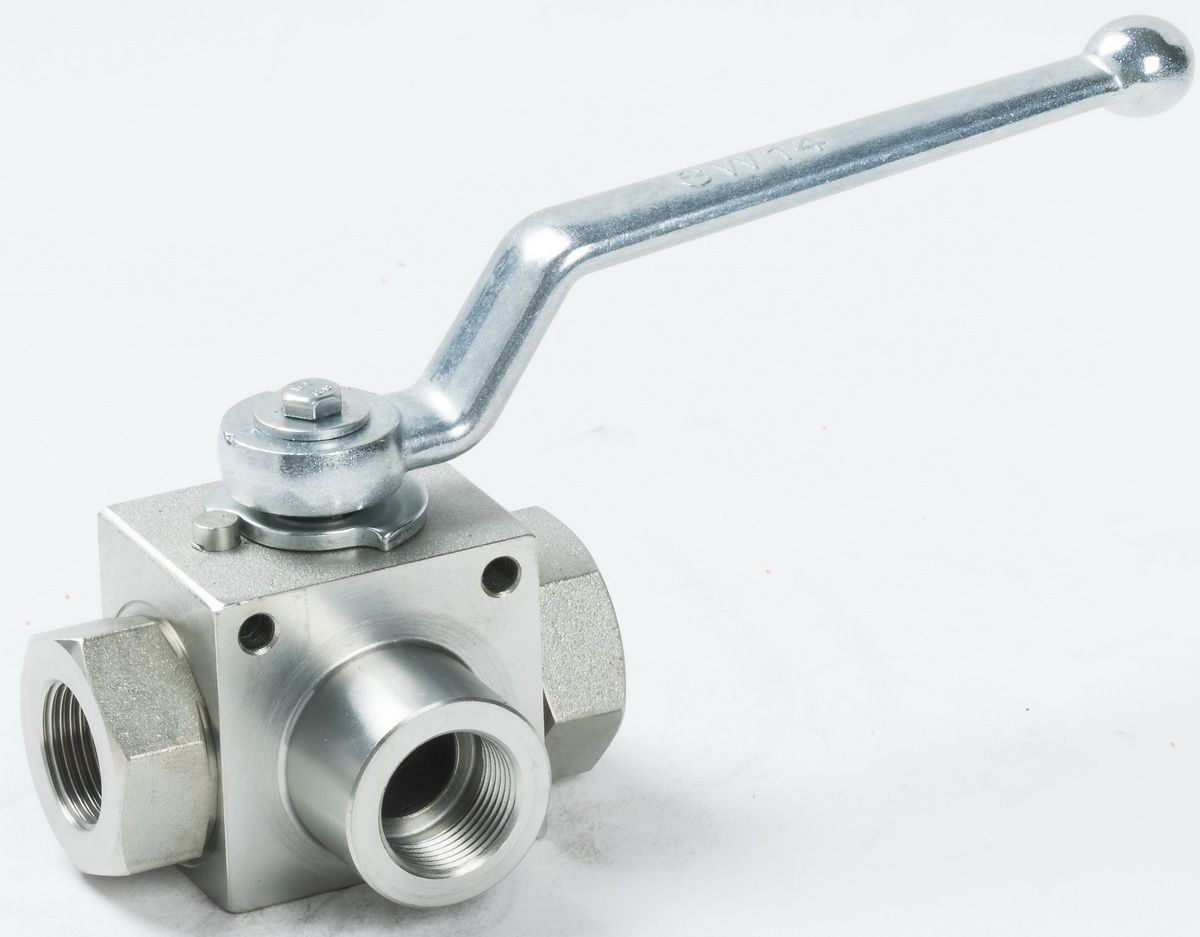

3way High Pressure Ball Valve |
| 3 Way High Pressure Ball Valve: |
Using in Hydraulic High Pressure System |
| Carbon Steel 3way Ball Valve: |
Hydraulic High Pressure 3 Way Ball Valve |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Oil Seal Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Industrial Usage |

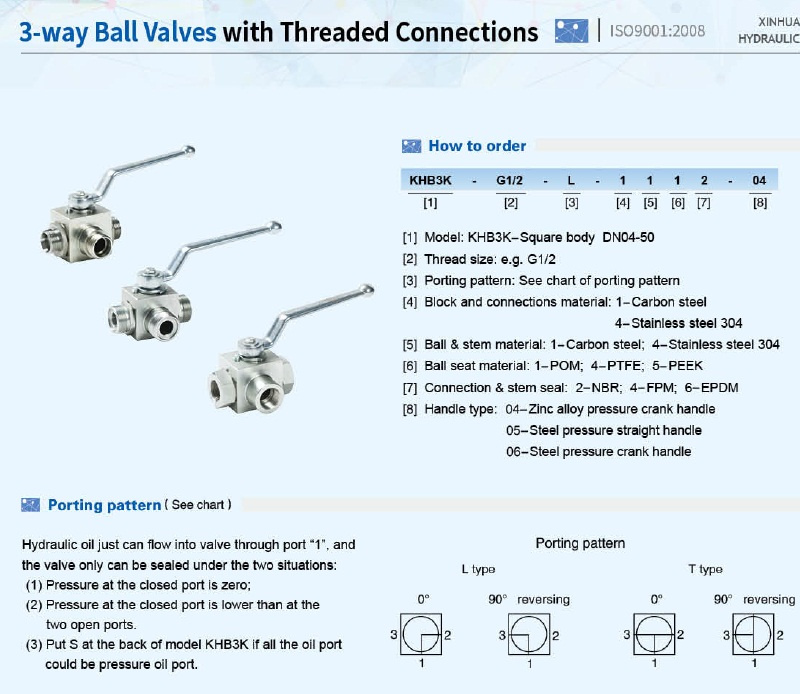

Product Description

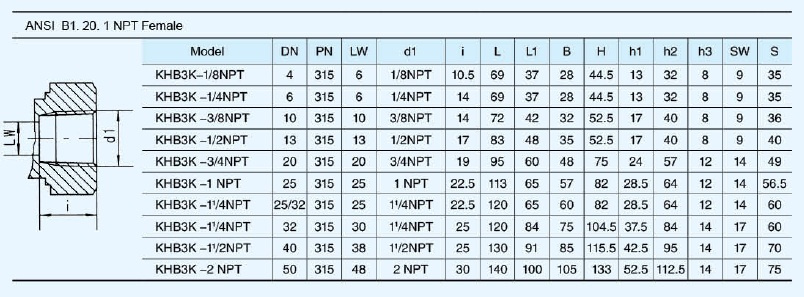

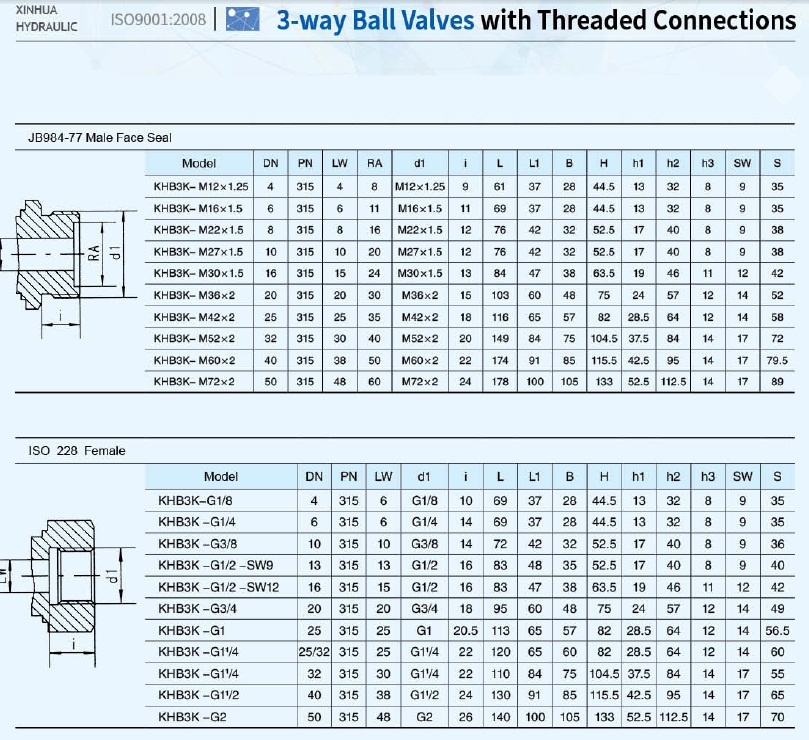

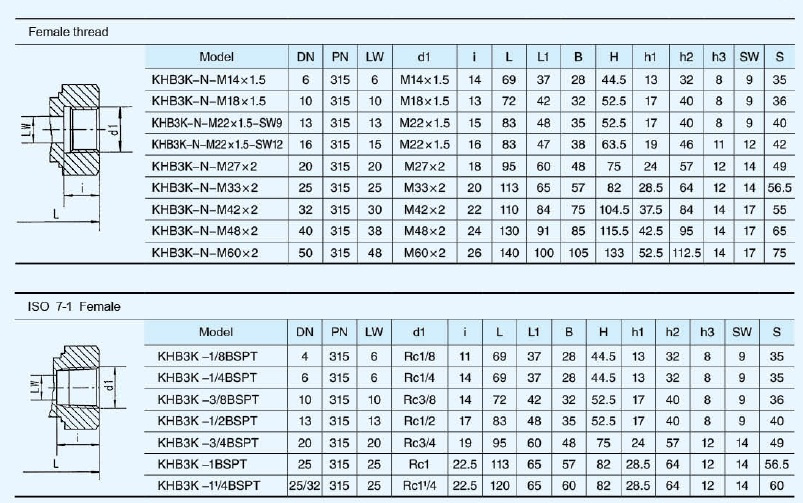

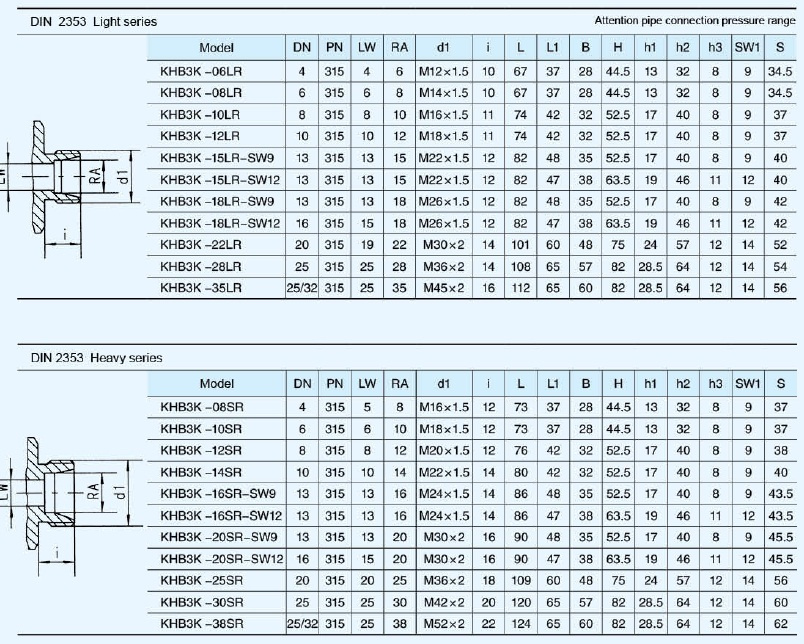

DN(mm): 4, 6, 8, 10, 12, 16, 20, 25, 32, 40, 50
Pressure setting(bar): 315
Applicable media: Oil, Nitric acid, Acetic acid, Mineral oil
Materials of main parts:
Valve body: Carbon steel, 304SS, 316SS
Ball: Carbon steel, 304SS, 316SS
Stem: Carbon steel, 304SS, 316SS
Sealing: NBR, FPM(viton), POM, Polyamide
Thread Standard: ISO, NPT, UNF, BSP
Plating: Granosealing, Zinc-plating (yellow) & Chromated-zinc coating(silver)
Ningbo Tianxiang Xinhua Hydraulic Co., Ltd. In Fenghua City belonged to Metallurgy Administration of State Machinery Department is one main factory of producing necessary accessories of hydraulic pressure elements. Its main products are nitrogen charging vehicle, series of accumulators, controlling safety valve group, ball valve with high pressure, closing valve with high pressure, check valve, SAE-Flanged ball valve and electromagnetic ball valve etc.
XH holds all kinds of manufacturing professional products including numerical control lathe, systematic processing facilities and equipped CAD design system. Performing the ISO quality standard strictly, we can provide high quality products in best time.
Hope to develop new products with craft brothers from home and abroad together. You are welcomed warmly to visit us and discussing business!
