| Prod Model: |
DEL3062G2Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Buggy/Golf Carts |
| Seats: |
7-8 |
| Power Fuel: |
Electric |
| Maximum Speed: |
20-30 km/h |
| Gradeability: |
20-30% |
| Suitable For: |
Tourist Area |
| Certification: |
CE |
| Voltage Of Battery: |
48V |
| Color: |
White |
| Power: |
3-4kw |
Product Description

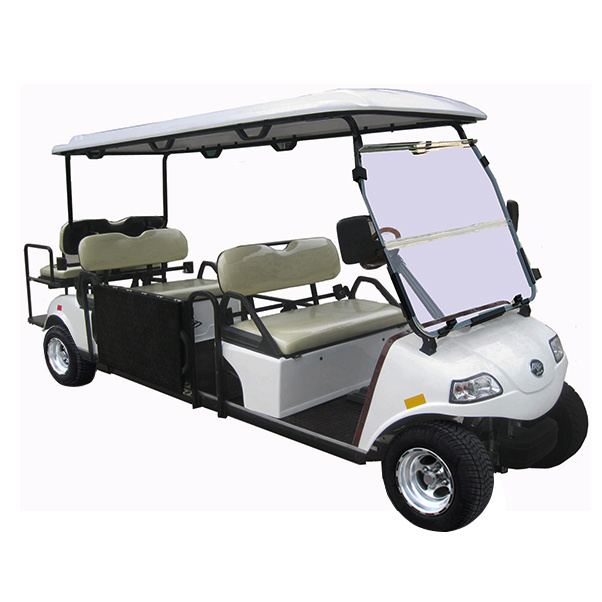

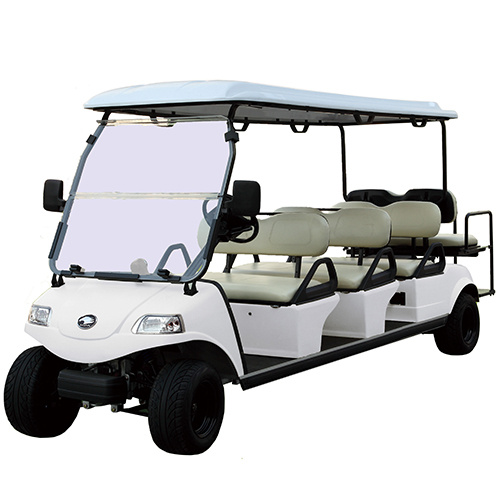

Battery Power Electric Sightseeing Golf Cart With 8 Seater (DEL3062G2Z) | Hot-Galvanzed-DIP 15 Years No Rust |
| 48V, six 8V or eight 6V US batteries |
| 10inch Aluminum wheels and tires |
| 6 passengers |
| 5.5H motor made in China |
| 400AMP Curtis programable Controller with regenerative braking |
| Speedmotor |
| Battery meter |
| Rear view mirrors on both sides |
| Retractable seat belts for each passenger |
| High/Low speed switch |
| Horn, reverse beeper, parking brake |
| Head lights, LED taillights, brake lights, turn lights |
| 48V or 12V voltage reducer for all accessories |
| Plastic battery tray |
| Foldable windshield |
| USA onboard battery charger included |
| Functional front and bumpers |
| 20mph maximum speed |
| |
| Options: |
| LSV/NEV package |
| Hybrid generator |
| Enclosure |
| Four wheels hydraulic brake |
| DOT windshield and DOT tire |
| Wiper |
Optional color: White, yellow, green, red, black, gold, navy blue,
Advantages of HDK:
1. Hot-Galvanized-DIP --- 15 years no rust gurantee for hot-galvanized-DIP frame and the cost is much more lower than aluminum;
2. Independent suspension with two arms --- It is Safe and comfortable for independent suspension with two arms;
3. Battery tray --- Battery tray can protect the batteries and prevent the electrolyte from rusting the frame;
4. Both mechanical and hydraulic brake (two options) --- All the automobiles are with hydraulic brake including BMW, brake distance is shorter and people feel comfortable when braking;
5. 10' Aluminum --- No rust for aluminum wheels, and bigger wheels look nice;
6. On-board smart charger from same manufacture of Delta-q (the Canadian name brand) --- On-board charger is convenient that customers can charge the car where there is a socket, HDK price includes this on-board charger.
Parameter List| Item | Unit | | Item | Unit | |
| Boundary Dimension(l*w*h) | mm | 4430×1180×1830 |
| Wheel Base | mm | 3230 | Passengers Capacity | | 8 |
| Wheel Track(Front & Back) | mm | 880/980 | Parking Capacity(Empty) | % | 28 |
| Braking Length(Full Load,20km/h) | m | ≤5 | Maximum Speed(Full Load) | Km/h | 30 |
| Minimum Turning Radius | m | 6.5 | Maximum Gradeability(Full Load) | % | 25 |
| Minimum Ground Clearance(Full Load) | mm | 110 | Rated Power | kw | 4 |
| Charging Time | h | 8-10 | Driving Range/A Charging Time | km | ≥50 |
| Curb Weight | kg | 680 | Maximum Total Mass | kg | 1380 |
ConfigurationModel
Configuration | DEL3062G2Z
|
| Electric System | Controller | Curtis1268 |
| Battery | 8V Domestic Colloidal Maintenance-free Battery |
| Motor | 5.3KW |
| Charger | HDK Car Charger |
Configuration | Body | Entirety Injection Molding |
| Front Windshield | Folded Windshield |
| Roof | Injection Molding With Handle |
| Chair | Sponge+ Leather +Plywood |
| Floor | Epoxy Board+ Entirety Rubber Abrasive Floor |
| Instrument Desk | Entirety Injection Molding Instrument Desk |
| Rearview Mirror | Outside Rearview Mirror |
| Lamp & Signal | Headlamp + LED Signal Lamp |
| Voice Box | No |
| Windscreen Wiper | NO [DOT With Wiper] |
| Speedometer | Yes |
| Color | Red | Blue | Black | White | Gold | Green | Yellow | |
| Rear Axle | Domestic Dedicated Rear Axle Differential Ratio :12.49:1 |
| Frame | Entirety Weld Steel Structural Framework, Hot-Dip Galvanizing |
| Tyre | 205/50-10(18×8-10) 4PR |
| Rim | 10×7 Aluminum Rim |
| Braking System | Rear Wheel Mechanical Drum Brake + Foot Parking Brake |
| Suspension System | Independent Front Suspension + Rear Leaf Spring + Cartridge Hydraulic Shock Absorber |
| Steering System | Rack And Pinion Steering + Machine Direction
|
| Speed Control System | Rear Axle Drive, CVT |
