| Prod Model: |
Del3022g2z-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Buggy/Golf Carts |
| Seats: |
3-4 |
| Power Fuel: |
Electric |
| Maximum Speed: |
20-30 km/h |
| Gradeability: |
20-30% |
| Suitable For: |
Golf Course |
| Certification: |
CE |
| Color: |
Blue |
| Power: |
3kw |
| Voltage Of Battery: |
48V or 36V |
Product Description

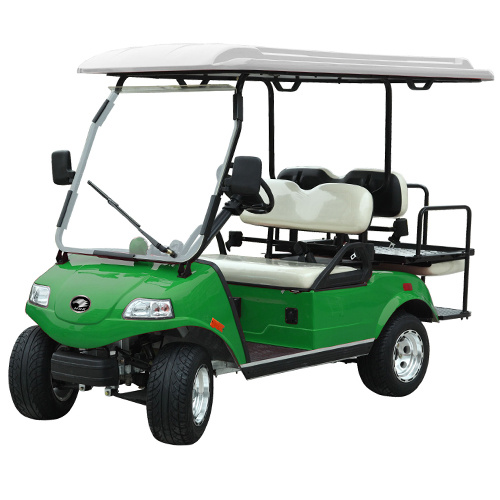

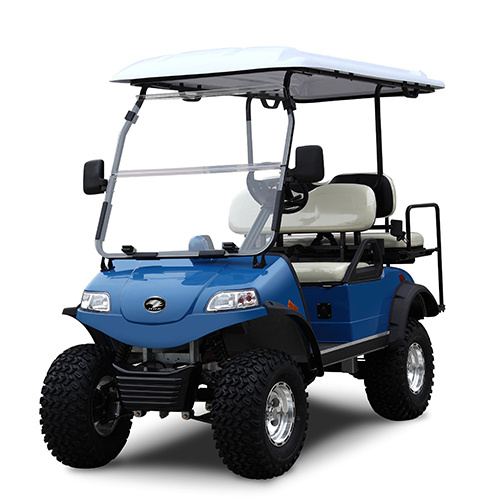

Hybrid Power Golf Cart With Folded SeaterProduct Model: DEL3022G2Z-H

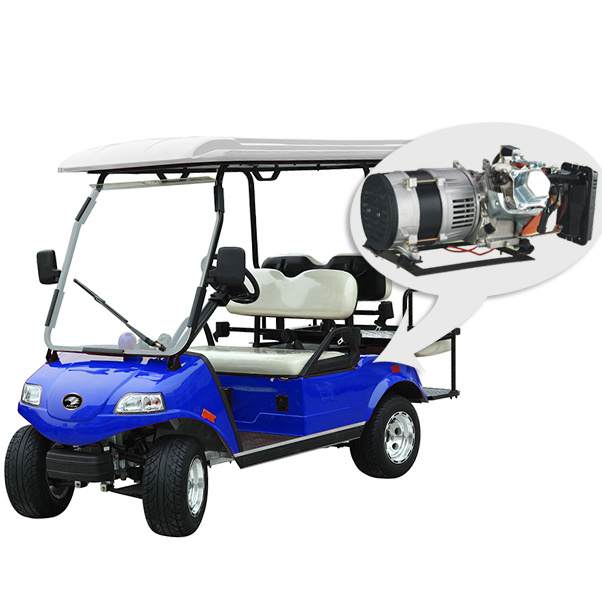

Generator:Hybrid
Parameter List| Item | Unit | | Item | Unit | |
| Boundary Dimension(l*w*h) | mm | 2550×1130×1980 |
| Wheel Base | mm | 1630 | Passengers Capacity | | 4 |
| Wheel Track(Front & Back) | mm | 880/980 | Parking Capacity(Empty) | % | 28 |
| Braking Length(Full Load,20km/h) | m | ≤3.5 | Maximum Speed(Full Load) | Km/h | 35 |
| Minimum Turning Radius | m | 3 | Maximum Gradeability(Full Load) | % | 25 |
| Minimum Ground Clearance(Full Load) | mm | 110 | Rated Power | kw | 3 |
| Charging Time | h | 8-10 | Driving Range/A Charging Time | km | ≥60 |
| Curb Weight | kg | 520 | Maximum Total Mass | kg | 720 |
Configurations Model
Configuration | DEL3022G2Z
|
| Electric System | Controller | Curtis1266 |
| Battery | 8V Domestic Maintenance-free Battery |
| Motor | 4KW |
| Charger | HDK Car Charger |
Configuration | Body | Entirety Injection Molding |
| Front Windshield | Folded Windshield |
| Roof | Injection Molding With Handle |
| Chair | Sponge+ Leather +Plywood |
| Floor | Epoxy Board+ Entirety Rubber Abrasive Floor |
| Instrument Desk | Entirety Injection Molding Instrument Desk |
| Rearview Mirror | Outside Rearview Mirror |
| Lamp & Signal | Headlamp + LED Signal Lamp |
| Voice Box | No |
| Windscreen Wiper | NO [DOT With Wiper] |
| Speedometer | Yes |
| Color | Red | Blue | Black | White | Gold | Green | Yellow | Camouflage |
| Rear Axle | Domestic Dedicated Rear Axle Differential Ratio :10.25:1 |
| Frame | Entirety Weld Steel Structural Framework, Hot-Dip Galvanizing |
| Tyre | 205/50-10(18×8-10) 4PR |
| Rim | 10×7 Aluminum Rim |
| Braking System | Rear Wheel Mechanical Drum Brake + Foot Parking Brake |
| Suspension System | Independent Front Suspension + Rear Leaf Spring + Cartridge Hydraulic Shock Absorber |
| Steering System | Rack And Pinion Steering + Machine Direction
|
| Speed Control System | Rear Axle Drive, CVT |
Options:-Optional color: White, yellow, green, red, black, gold, navy blue, metallic green
-LSV/NEV package
-Speedometer
-Seat belts
-Enclosure
HDK electric vehicles was founded in 2006, the factory is located in Xin Yang industrial area of XiaMen (a coastal city 1 hour flight north of Hong Kong ). The factory area is 60000 SQ MTRS.
HDK electric cars have USA advanced technology and accessories. It is the most efficient and economical golf car in the world today. It has a large model range and caters for Golf courses, Resorts, Parks, Airports, Schools, Mines and Farms.
HDK have built 50000 electric cars, utility vehicles and buses since inception. It has over 100 dealers and distributors worldwide. This network
Provides high quality, prompt service and warranty to customers.
Research, Development and French design is HDK's strongest quality. This will ensure it will remain a world leader in its industry.
A new plant is under construction and will be completed in 2014. It will provide an additional 88000 SQ MTRS of floor space to cater for HDK'S rapid growth. This factory is also in XiaMen.
HDK electric vehicle is the new exciting brand for Green energy car in United States, in which we position ourselves as "The Choice of the Royal Green Energy".
Since the beginning, HDK have been using the most advance technology to produce Electric Vehicles to assist our customer to feel the sense of pleasure of upper class, and retaining the enjoyment of blending into the environment.
We aim not only to produce Electric Vehicle with the trend of the market, but intend to lead the market into a new trend towards a perfect combination of commercial and environmental friendly vehicle.
HDK vehicle have the distinction of elegance, comfort and safety to be presented in different venue and occasion, it is the very reason HDK vehicle is the most popular Electric vehicle in China, with the unique and innovational idea of design, excellent workmanship with exclusive creative element.
