| Prod Model: |
BC6050 |
| Model: |
Bc 6050 |
| Maximum Cutting Length(mm): |
500, 630, 660 |
| Max.Range Of The Horizontal Movement: |
500, 630, 660mm |
| Max.Distance Between RAM Bottom,Table: |
370, 385, 385mm |
| Max.Length Of Vertical Movement Of Table: |
270, 360, 360mm |
| Dimensions Of Table Top(L×w): |
440×360mm, 630X400mm, 660X400mm |
| Max.Swivel Angle Of The Toolhead: |
±60° |
| Number Of RAM Reciprocation Per Minute: |
14-80 |
| Power Of The Main Motor: |
3kw |
| N.W/G.W(Kg): |
1650/1760, 1750/1870, 1800/1920kgs |
| Type: |
Shaping Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Power Source: |
Electric |
| Precision: |
High Precision |
Product Description

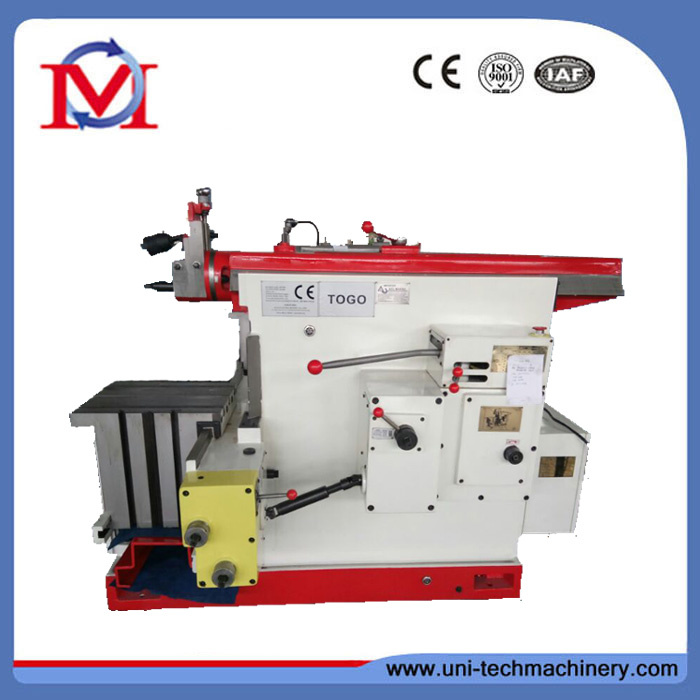

BC6050 Cheap Horizontal shaper machine for metal
Main Features:
1. The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available. For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.
Standard Accessories
1.Protecting pan
2.Rubber pad for protecting pan
3.Triangle belt
4. Allen wrench
5.Allen wrench
6. Crank handle
7.Spanner
8.Spanner
9.Oil gun
10. Foundation bolts
Optional Accessories:
1.Machine Vice
Technical specifications:
| Model | BC 6050 | BC 6063 | BC 6066 |
| Maximum cutting length(mm) | 500 | 630 | 660 |
| Max.range of the horizontal movement of the table | 500 | 630 | 630 |
| Max.distance between the ram bottom and table | 370 | 385 | 385 |
| Max.length of the vertical movement of table | 270 | 360 | 360 |
| Dimensions of table top(L×W) | 440×360 | 630X400 | 660X400 |
| Max.stroke length of the toolhead | 120 | 120 | 120 |
| Max.swivel angle of the toolhead | ±60° | ±60° | ±60° |
| Max.section of tool(W×T)(mm) | 20×30 | 20×30 | 20×30 |
| Number of ram reciprocation per minute | 14-80 | 14-80 | 14-80 |
| Range of table feed: | horizontal | 0.2-0.25 0.08-1.00 | 0.4-5.0 | 0.4-5.0 |
| Vertical | 0.08-1.00 | 0.08-1.00 |
| Width of the T-slot for center positioning(mm) | 18 | 18 | 18 |
| Power of the main motor | 3 | 3 | 3 |
| N.W/G.W(kg) | 1650/1760 | 1750/1870 | 1800/1920 |
| Overall dimensions(L×W×H)(mm) | 2160×1070×1194 | 2342×1225×1480 | 2357×1225×1480 |
|
| Model | BC6085 | BC60100 |
| Maximum cutting length(mm) | 850 | 1000 |
| Maximum table horizontal travel(mm) | 400 | 800 |
| Maximum distance from ram bottom to table surface(mm) | 710 | 400 |
| Maximum table vertical travel(mm) | 360 | 380 |
| Dimensions of table top surface(L×W)(mm) | 800X450 | 1000×500 |
| T ravel of tool head(mm) | 160 | 160 |
| Swivel of tool head(°) | ±60° | ±60° |
| Maximum size of tool shank(W×T)(mm) | / | 30×45 |
| Number of ram strokes per minute | 17,24,35,50,70,100 | 15,20,29,42,58,83 |
| Range of table power feed | horizontal | 0.25~3 | horizontalvertical | 0.3~3 |
| vertical | 0.12~1.5 | 0.15~0.5 |
| Rapid feed of table | horizontel(mm/min) | 3 | horizontalvertical | 3 |
| vertical (mm/min) | 1.5 | 0.5 |
| Width of central T-slot of table(mm) | 22 | 22 |
| Power of motor(kw) | 5.5 | 7.5 |
| Overall dimensions (L×W×H)(mm) | 2950x1325x1693 | 3640×1575×1780 |
| Weight(kg) | 2940/3090 | 4600/4800 |
BC6085 Cheap Horizontal shaper machine for metal
package and shipping:
Packing size: 3640×1575×1780mm
packaged in fully closed wooden case.
