| Prod Model: |
BC6050 |
| Bc6050: |
Mechanical Shaping Machine for Metal Shaper Planer |
| Max.Cutting Length: |
500mm |
| Max.Distance From RAM Bottom To Table: |
500mm |
| Max.Table Horizontal Travel: |
370mm |
| Max.Table Vertical Travel: |
270mm |
| Dimensions Of Table Top: |
400X360mm |
| Max.Stroke Length Of The Tool Head: |
120mm |
| Motor Power: |
3kw |
| Max.Section Of Tool: |
20X30mm |
| N.W./G.W.: |
1650/1760kgs |
| Type: |
Shaping Machine |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Electric |
| Precision: |
High Precision |
| Controlling Mode: |
Electric |
Product Description

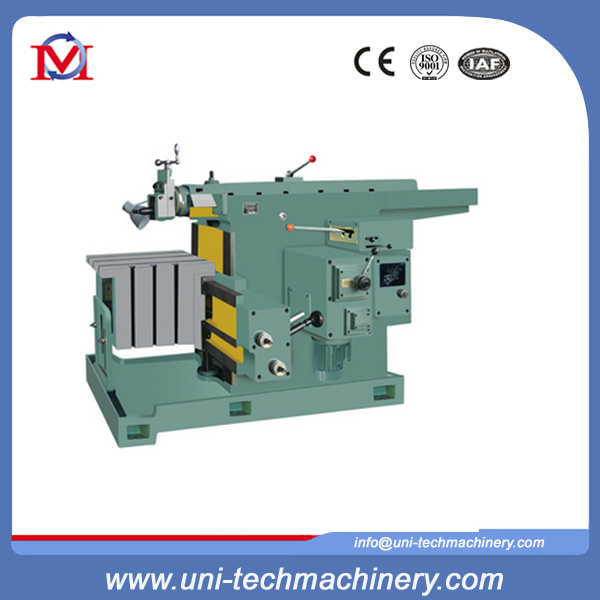

Mechanical Shaping Machine for metal shaper planer tools (BC6050)
Main features:
The tool post can rotate with more angle in the vertical plane,
Manual feeding is available. For tool post.
For slotting shaping more economic machining equipment.
worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
suitable for single piece or small match production.
Specification of our shaping machine BC6050:
| Model | BC 6050 | BC 6063 | BC 6066 |
| Maximum cutting length(mm) | 500 | 630 | 660 |
| Max.range of the horizontal movement of the table | 500 | 630 | 630 |
| Max.distance between the ram bottom and table | 370 | 385 | 385 |
| Max.length of the vertical movement of table | 270 | 360 | 360 |
| Dimensions of table top(L×W) | 440×360 | 630X400 | 660X400 |
| Max.stroke length of the toolhead | 120 | 120 | 120 |
| Max.swivel angle of the toolhead | ±60° | ±60° | ±60° |
| Max.section of tool(W×T)(mm) | 20×30 | 20×30 | 20×30 |
| Number of ram reciprocation per minute | 14-80 | 14-80 | 14-80 |
| Range of table feed: | horizontal | 0.2-0.25 0.08-1.00 | 0.4-5.0 | 0.4-5.0 |
| Vertical | 0.08-1.00 | 0.08-1.00 |
| Width of the T-slot for center positioning(mm) | 18 | 18 | 18 |
| Power of the main motor | 3 | 3 | 3 |
| N.W/G.W(kg) | 1650/1760 | 1750/1870 | 1800/1920 |
| Overall dimensions(L×W×H)(mm) | 2160×1070×1194 | 2342×1225×1480 | 2357×1225×1480 |
|
Standard Accessories
1.Protecting pan
2.Rubber pad for protecting pan
3.Triangle belt
4. Allen wrench
5.Allen wrench
6. Crank handle
7.Spanner
8.Spanner
9.Oil gun
10. Foundation bolts
Optional Accessories:
1.Machine Vice
Warranty:
