| Prod Model: |
BL-BL-J2B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Dia. Over Bed: |
305mm |
| Max. Swing Dia. Over Cross Slide: |
173mm |
| Max. Swing Dia. In Gap: |
440mm |
| Guideway Width: |
182mm |
| Center Distance: |
940mm |
| Spindle Bore: |
36mm |
| Main Motor Power: |
1.1kw(1.5HP) |
| Coolant Pump Power: |
0.04kw |
| Net/Gross Weight: |
435/385 Kg |
| Spindle Speed Class: |
12 Class |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
| Tool Holder: |
One |
Product Description

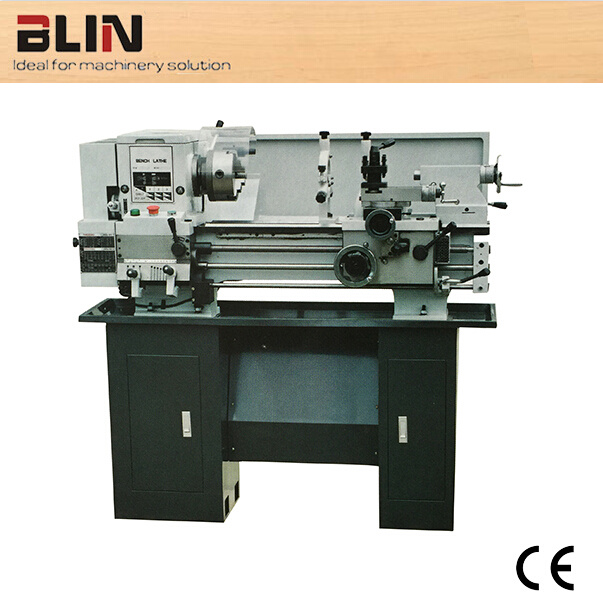

Gap Bed Lathe (BL-BL-J2B)(Cam-lock)
Feature:
| High class cast iron |
| V shape guideway, ultrasonic harden and precise ground |
| Gap bed |
| Cross and longitudinal interlocking feed, with enough safety |
| Inching switch for test running |
| Metric/Imperial threading available |
| Belt-driven headstock, low noise and easy operation |
Standard Accessories:
Tool post wrench
Double-head wrench
Allen wrench
Screwer
Dead Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Install on machine)
Follow rest(Install on machine)
Manual 3-jaw chuck(Install on machine)
steel stand
4-jaw chuck
Optional Accessories:
Drilling Chuck
Arbor
Driling Stock
Live Center
Face Plate
Working Lamp(common)
Coolant System
Foot Brake
Ball screw guard
Work lamp(aluminium cover)
Taper turning Attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
2 speed motor system
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand
Specification:
| Item | Unit | BL-BL-J1B | BL-BL-J2B |
| Max. swing dia. over bed | mm | Φ305 |
| Max. swing dia. over slide | mm | Φ173 |
| Max. swing dia. over gap | mm | Φ440 |
| Guideway width | mm | 182 |
| Center distance | mm | 530 | 940 |
| Spindle taper | / | MT5# |
| Spindle bore | mm | Φ36 |
| Spindle speed class | / | 12 class |
| Spindle speed range | rpm | 50~1200 |
| Metric thread | mm | 15kinds (0.25~7.5mm) |
| Inch thread | TPI | 40kinds(4~112TPI) |
| Feed range | mm/r | 0.12~0.42 (0.0047''~0.0165'') |
| Lead screw O.D. | mm | Φ22(7/8") |
| Lead screw pitch | mm | 3mm or 8TPI |
| Max. travel of saddle | mm | 510 | 850 |
| Max. travel of cross | mm | 150 |
| Max. travel of tool post | mm | 90 | 85 |
| Tailstock quill travel | mm | 100 | 95 |
| Tailstock quill dia. | mm | Φ32 |
| Tailstock quill | / | MT3# |
| Spindle motor power | kw | 1.1 |
| Coolant pump power | kw | 0.04 |
| Packing size of main machine | mm | 1420×750×760 | 1780×750×760 |
| Packing size of Left foot stand | mm | 400×370×700 |
| Packing size of right foot stand | mm | 300×370×700 |
| Main machine G.W./N.W. | kg | 415/365 | 435/385 |
| Foot stand G.W./N.W. | kg | 65/60 |
| Loading amount(20GP container) | pcs | 27 | 24 |
