| Prod Model: |
BL-HQ400/1V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
420mm |
| Distance Between Centers: |
400mm |
| Max. Longitudinal Travel: |
380mm |
| Max. Cross Travel: |
120mm |
| Taper Of Spindle: |
M.T.3# |
| Spindle Bore: |
20mm |
| Step Of Spindle Speed: |
Stepless |
| Range Of Spindle Speed: |
Low:0~600rpm,High:600~1800rpm |
| Spindle Travel: |
85mm |
| Motor Power: |
1.1kw |
| Type: |
Horizontal Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Chuck |
Product Description

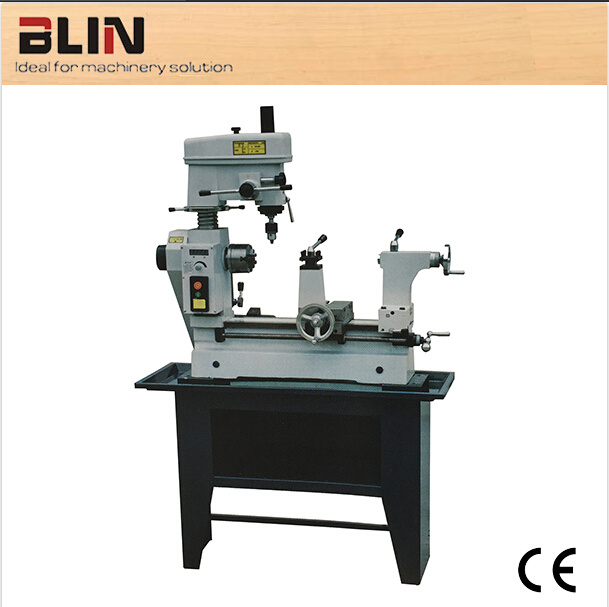

Multi-purpose Machine(Lathe/Drill/Mill)(BL-HQ400/1V)
Features:(For all Multi-purpose machine)
A kinds of combination machine with turning,milling, drilling and threading
Metric or inch thread turning(Exclude HQ400,HQ400/1,HQ400V,HQ400/1V)
Suitable for processing metal, wood and other materials
Excellent advantage of various funcitions,small oocupation and economization.
Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making,education training,household utensil's making etc.
Specification:
Item | Unit | BL-HQ400/1V |
| Turning | Max. swing dia. Over bed | mm | Φ420 |
| Center distance | mm | 400 |
| Max. longitudinal travel | mm | 380 |
| Max. cross travel | mm | 120 |
| Spindle taper | / | MT3# |
| Spindle bore | mm | Φ20 |
| Spindle speed steps | / | Stepless |
| Spindle speed range | rpm | Low:0~600,High:600~1800 |
| Tailstock quill travel | mm | 70 |
| Tailstock qiull taper | / | MT3# |
| Drilling&Milling | Max. drilling capacity | mm | Φ15 |
| Table size(L×W) | mm | 200×150 |
| Max. end mill capacity | mm | Φ20 |
| Max. face mill capacity | mm | Φ63 |
| Spindle travel | mm | 85 |
| Headstock travel of up and down | mm | 80 |
| Spindle taper | / | MT3# |
| Spindle speed steps | / | Stepless |
| Spindle speed range | rpm | Low:0~600,High:660~2030 |
| Headstock swivel angle | ° | ±360° |
| Others | Motor power | kw | 1.1 |
| Packing size(L×W×H) | mm | 1030×580×1070 |
| N.W./G.W | kg | 155/185 |
| Loading qty/20GP container | pc | 44 |
Standard Accessories:(For all Multi-purpose machine)
Change gears(exclude HQ400,HQ400/1)
Tool post wrench
Wedge
Allen wrench
3-jaw chuck and wrench
Tie rod
Optional Accessories:(For all Multi-purpose machine)
Machine stand
Follow Rest
Steady rest
4-jaw chuck
Backplate for 4-jaw chuck
Reversible thread tapping tools
Lathe tools
Drill chuck
Mill cutter holder
Face plate
Back plate
Leadscrew guard
Drill chuck guard
Tool post guard
Chuck guard
European quick change tool post

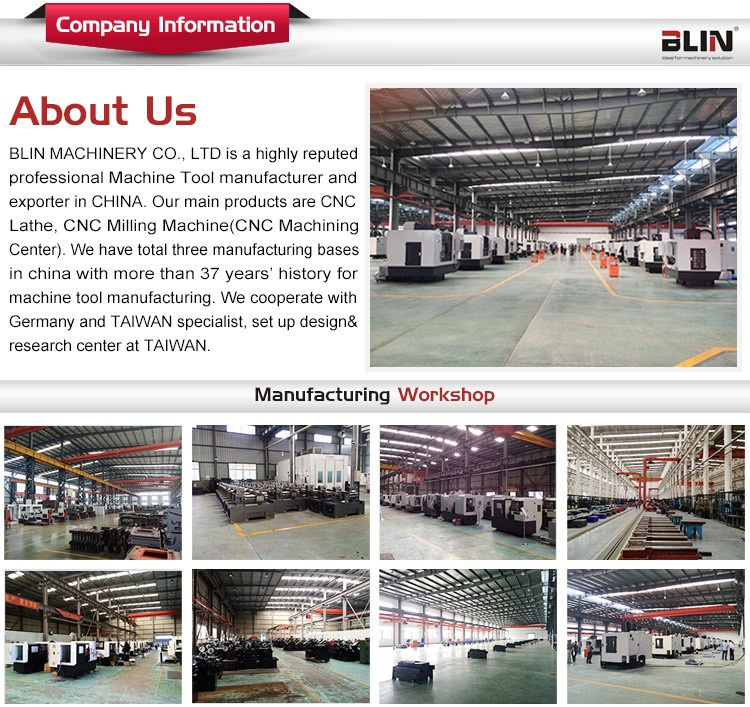

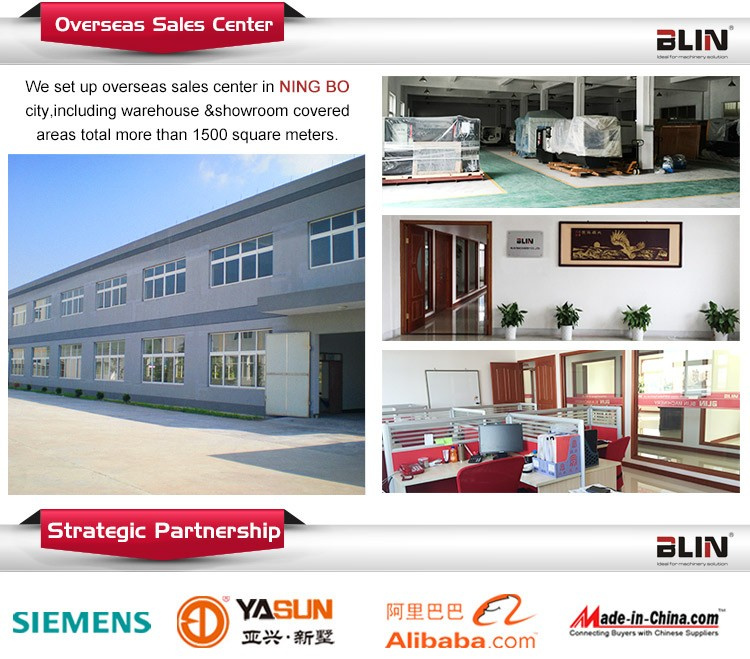

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

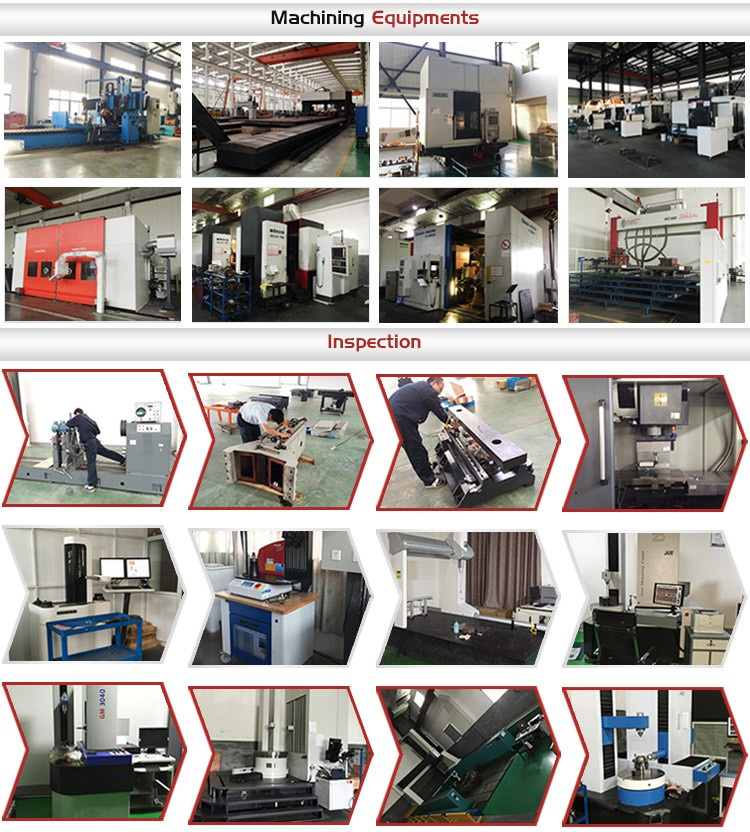

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
