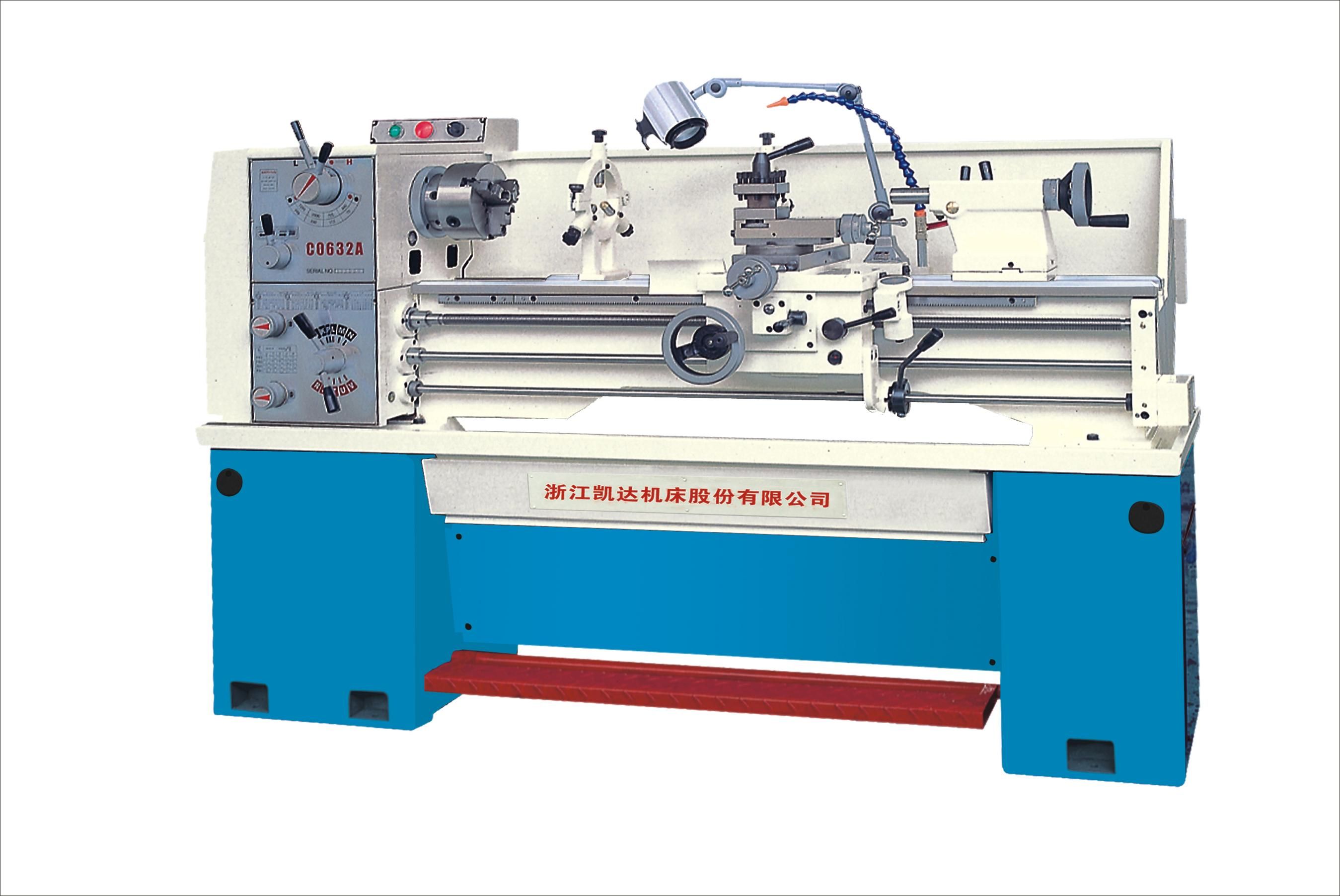

Prod Model: |
C0632A/1000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
1.5 Kw or 2HP |
Spindle Bore: |
38mm |
Gross Weight: |
710kg |
Swing Over Bed: |
330mm |
Max.Length Workpiece: |
1000mm |
Packing Size: |
1920X750X1400(mm) |
Weight: |
710kg for 1 Meter |
Type: |
Horizontal Lathe |
Power Source: |
Electric |
Automatic Grade: |
Manual |
Setting Mode: |
Floor-type |
Precision: |
Precision |
Processing Accessory: |
Metal Part Machining |
Tool Holder: |
4-Way Tool Post |
Controlling Mode: |
Manually |
Product Description
ITEMS | C0632A | C0636A |
Max. swing over bed | 13" (330mm) | 14" (360mm) |
Max. swing in gap | 183/4" (476mm) | 197/8" (506mm) |
Max. swing over slide | 71/4" (185mm) | 81/2" (215mm) |
Bed width | 73/8" (187mm) |
Max. Length of workpiece | 30" (750mm)40" (1000mm) |
Spindle nose | D1-4 |
Spindle bore | 11/2" (φ 38mm) |
Taper of bore in spindle Morse | No. 5 |
Spindle speed steps | 8 |
Spindle speed scope | 70~2000r/min |
Inch thread | 4~56T. P. I/32 |
Metric thread | 0.4~7mm/32 |
Diametral thread | 8~120D. P. /33 |
Module thread | 0.2~3.5MP/27 |
Longitudinal feed range | 0.0032~0.1067in/r(0.082~2.71mm/r) |
Cross feed range | 0.00086~0.0367in/r(0.022~0.933mm/r) |
Max. travel of tailstock quill | 35/8" (95mm) |
Taper hole of tailstock | No. 3 |
Electric motor | 2HP(1.5KW)110v or 220v(1ph) 220v or 380v(3ph) |
Net weight / Gross weight(1000mm) | 495/595kg |
Specifications:
Standard accessries:
1.160mm 3-jaw chuck;
2.200mm 4-jaw chuck;
3.300mm face plate;
4.10-70mm steady rest;
5.10-50mm follow rest;
6.Foot brake;
7.Working light;
8.Cooling system;
9.Tool box with wrenches,spanners etc.
Optional accessories:
1.Quick change tool post;
2.Digital readout;
3.Taper turning attachment;
4.5C collet;
5.Chuck cover;
6.Tool post cover;
7.Leadscrew cover;
Packing:
1.Sea worthy wooden case with IPPC
2.Size:1920*750*1400(mm)
3.Weight:610/710kg
Warranty:
Factory supplys easy worn-out parts under EXW in free of charge
Delivery: around 45 days after deposit
