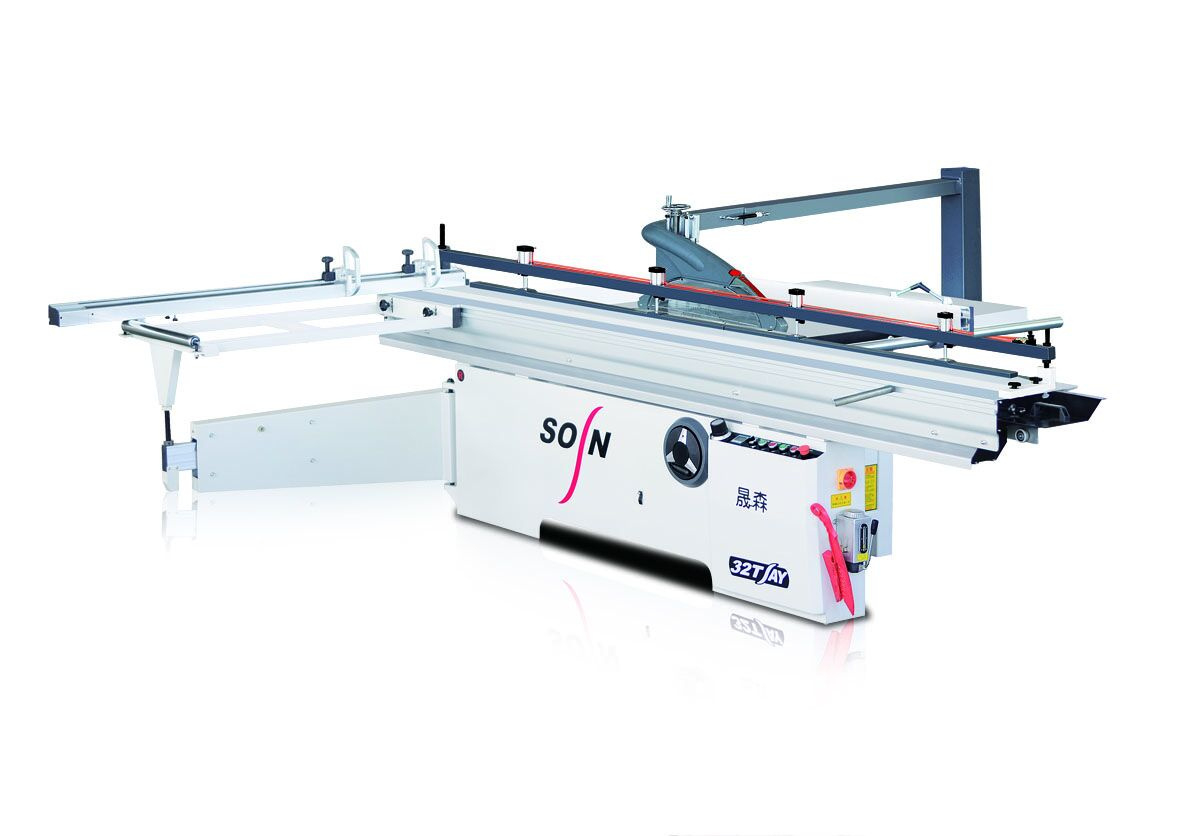

Best Price Cutting Saw Machine Sliding Table Panel Saw (MJ6132TAY)
Price: |
US $ 2000-5000set |
Min Order: |
1set |
Pay Type: |
T/T,Western Union |
Prod Model: |
MJ6132TAY |
Dimension Of Sliding Table: |
3200*400mm |
Gross Cut Capacity: |
3200mm |
Saw Blade Diameters: |
250--400mm |
Height Of Cut: |
90mm |
Speed Of Main Saw Spindle: |
4500-6000rpm |
Main Spindle Dimater: |
30mm |
Scoring Spindle Diameter: |
20mm |
Tilting Saw Blade: |
0-45 Degree |
Motor Power: |
5.5+1.1kw |
Weight: |
850kg |
Type: |
Wood Saw Machine |
Controlling Mode: |
Artificial |
Feed Mode: |
Manual |
Spindle Layout: |
Horizontal |
Certification: |
CE |
Screw: |
Multi-Screw |
Spindle Number: |
Double-Spindle |
Precision: |
High Precision |
Plastic Processed: |
ABS |
Cutting Machine Type: |
Hydraulic Cutting Machine |
Product Description
ParametersDimension of sliding table | 3200 x 400mm |
Opening cut | 1250mm |
Diameter of saw cutting | 250-400mm |
Cutting height | 125mm |
Cutting height at 45 degrees | 80mm |
Rotation of saw cutting | 4000/6000mm |
Diameter of scoring saw | 120mm |
Motor | 5.5kw+1.1kw |
Control of Saw blade degree | Digital |
Package size of machine body | 2200*1150*1100mm |
Package size of sliding table | 3350*480*320mm |
weight | 850kgs |

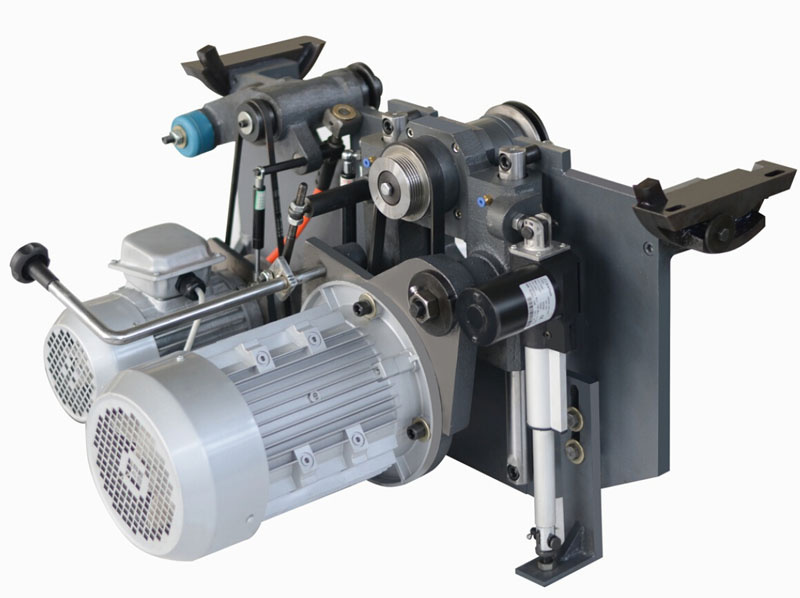

1. inner structure of sliding table panel saw MJ6132TAYvertical motor power 5.5+1.1kw with aluminum cover prolong service time of machine2.3200*400mm width and thickness sliding table ,smoothly and stable 3.electric un & down,digital readout ,more stable and easy operation Features:

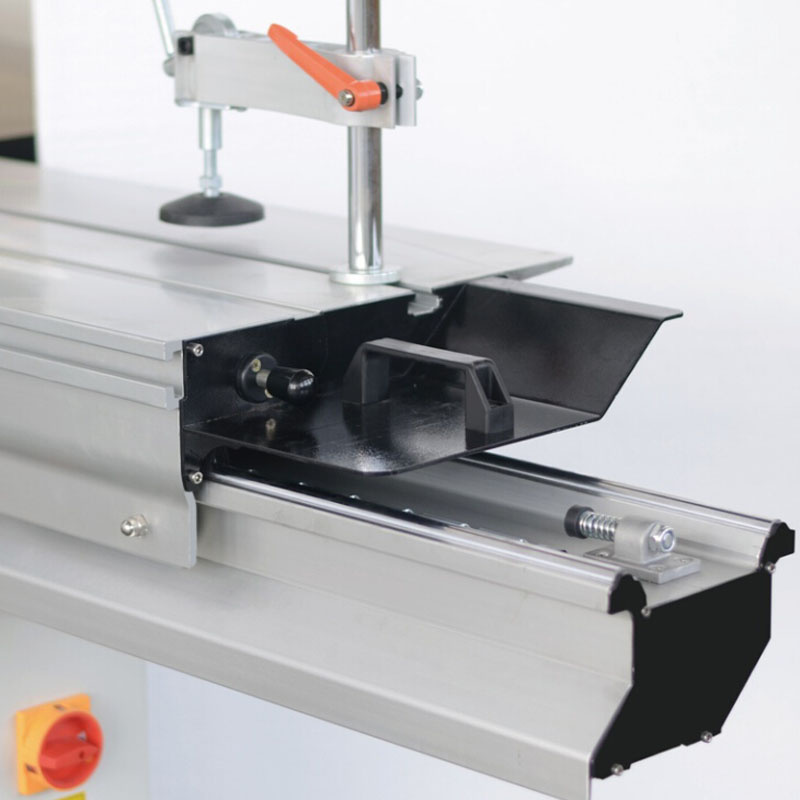

3200*400mm size Altendorf type sliding table, electric up and down, 0-45 tilting with digital readout, 5.5kw+1.1kw motor power, cylinder guide internal structureAdvantages of precision sliding table saw MJ6132TAY1.Altendorf sliding table, 400mm width, inner side between rail guide is 145mm, wider, stable, precise wor king.
2.cylindrical guide way of lifting,same as Altendorf.
3.5.5kw +1.1kw big power motor,,National standard, Cooper wire, Aluminum shells, Maximum motor power transfer from the Poly-V belt .

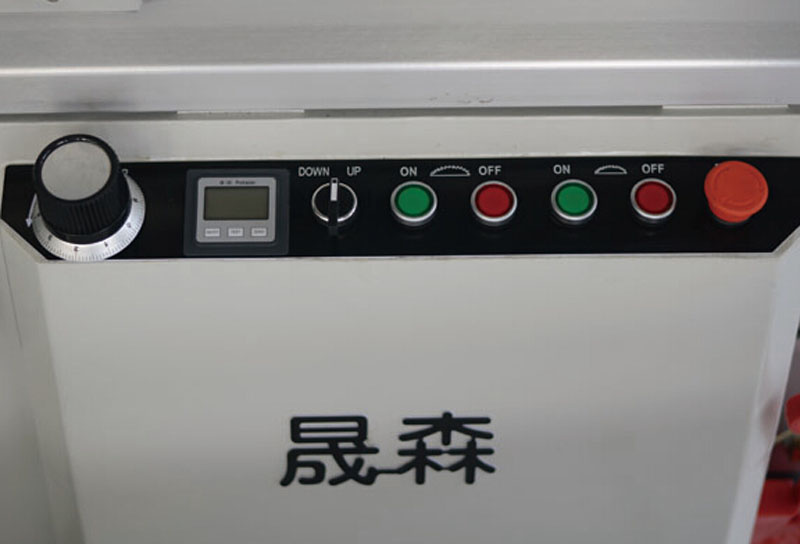

4.Digital display for saw blade tilt, precision.Electric control up and down of main saw blade.Europe qu ality buttons.
5.Lubrication oil pump.Emergency button for safety working.
6.Aluminum extruded fence with large stopper;Big ruler with high quality Emergency button for safety working.NOTE1.Payment term:30% TT as deposit,70%TT after readiness of the machine
2.Package:standard wooden case for export
3.Delivery time:20 days after getting deposit
4.Warranty:12 month for whole machine.
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
