Best Quality SUS321 Convoluted Metal Hose
| Price: |
US $ 2/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
stainless steel hose |
| Used For: |
Flexible Metal Hose |
| No. Of Braids: |
Single or Double |
| Rated Voltage: |
300V/500V |
| Rated Temperature: |
- 60 ° C~ +180° C |
| Standard: |
JIS |
| Morphology: |
Gas |
| Cross-Section Shape: |
Round |
| Connection Type: |
Welding |
| Diameter: |
8mm~400mm |
Product Description
Best quality sus321 convoluted metal hose
Flexible metal hose can be used widely in systems like water, steam, hot oil and gas with their resistance to pressure and flexible structure.
They are utilized for conducting liquids, compensating the problems originated from installation,absorbing vibrations and expansions.
Flexible metal hoses may be strengthened by double braiding in order to increase their resistance to pressure and environmental conditions. It is also possible to reinforce them by springs with different wire thicknesses or by strip wounds to lengthen their service life for more severe environmental conditions.
Material specifications:
Hose: SS304, SS316, SS321
Braid: SS304
Connection: Galvanized steel
Parameter | Standard Flexility hoses | |
| DN | Corrugated hoses | Braid | Single Braid | Double Braid | |
| ID | OD | Pitch Distance | Thickness | No. of
Carrier | No. of wires
in carrier | Wire
Dia. | Dia of Hose with
Single Layer of
braiding | Working Press. | Test Press. | Working Press. | Test Press. | |
| |
I. D.
(mm) | Devi.
(mm) | O. D.
(mm) | Devi.
(mm) | I(mm) | Devi.
(mm) | S(mm) | NC | NW | WD(mm) | OD(mm) | Bar | Bar | Bar | Bar | |
| 8 | 8 | ± 0.10 | 12...3 | ± 0.10 | 2.9± 0.2 | ± 0.02 | 0.2 | 36 | 4 | 0.3 | 14.5 | 80 | 120 | 140 | 210 | |
| 10 | 10 | ± 0.10 | 14.6 | ± 0.10 | 2.8 | ± 0.01 | 0.2 | 36 | 5 | 0.3 | 15.8 | 90 | 135 | 140 | 200 | |
| 12 | 12 | ± 0.10 | 18 | ± 0.10 | 2.8 | ± 0.02 | 0.2 | 36 | 6 | 0.3 | 19.2 | 80 | 125 | 120 | 180 | |
| 15 | 14.4 | ± 0.10 | 21.5 | ± 0.10 | 3.5 | ± 1 | 0.3 | 36 | 6 | 0.3 | 22.1 | 80 | 125 | 120 | 180 | |
| 20 | 20 | ± 0.10 | 27 | ± 0.10 | 4.5 | ± 1 | 0.28 | 36 | 9 | 0.3 | 29.2 | 60 | 90 | 80 | 100 | |
| 25 | 25 | ± 0.10 | 32.5 | ± 0.10 | 5 | ± 1 | 0.28 | 36 | 10 | 0.3 | 33.7 | 60 | 90 | 80 | 100 | |
| 32 | 32 | ± 0.10 | 40 | ± 0.10 | 5 | ± 1 | 0.28 | 36 | 11 | 0.3 | 41.2 | 50 | 80 | 70 | 90 | |
| 40 | 40 | ± 0.10 | 50 | ± 0.10 | 6 | ± 1 | 0.28 | 36 | 11 | 0.3 | 51.2 | 50 | 80 | 70 | 90 | |
| 50 | 50 | ± 0.10 | 63 | ± 0.10 | 6 | ± 1 | 0.3 | 48 | 12 | 0.4 | 64.6 | 40 | 70 | 60 | 80 | |
| 65 | 65 | ± 0.10 | 81 | ± 0.10 | 7 | ± 1 | 0.4 | 64 | 1 | 0.4 | 82.6 | 40 | 70 | 60 | 80 | |
| 80 | 80 | ± 0.10 | 98 | ± 0.10 | 10 | ± 1 | 0.4 | 64 | 15 | 0.4 | 99.6 | 30 | 60 | 50 | 70 | |
| 100 | 100 | ± 0.10 | 120 | ± 0.10 | 11.5 | ± 1 | 0.4 | 96 | 12 | 0.4 | 121.6 | 16 | 30 | 30 | 50 | |
| 125 | 125 | ± 0.10 | 150 | ± 0.10 | 13 | ± 1 | 0.5 | 96 | 12 | 0.5 | 151.6 | 16 | 30 | 30 | 50 | |
| 150 | 150 | ± 0.10 | 180 | ± 0.10 | 14 | ± 1 | 0.5 | 96 | 14 | 0.5 | 181.6 | 16 | 30 | 30 | 50 | |
| 200 | 200 | ± 0.10 | 230 | ± 0.10 | 17 | ± 1 | 0.6 | 120 | 16 | 0.5 | 232 | 16 | 30 | 30 | 50 | |
| 250 | 250 | ± 0.10 | 280 | ± 0.10 | 27 | ± 1 | 0.8 | 140 | 18 | 0.5 | 282 | 10 | 20 | 20 | 40 | |
| 300 | 300 | ± 0.10 | 340 | ± 0.10 | 28 | ± 1 | 0.8 | 144 | 18 | 0.5 | 342 | 8 | 16 | 16 | 30 | |

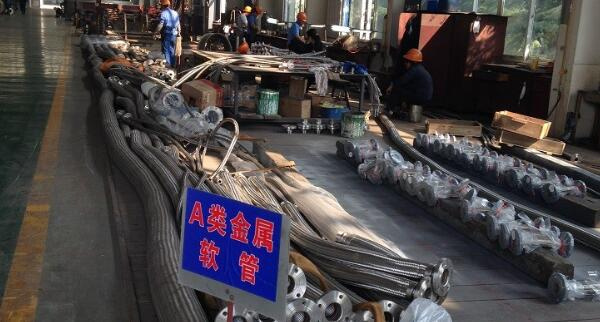

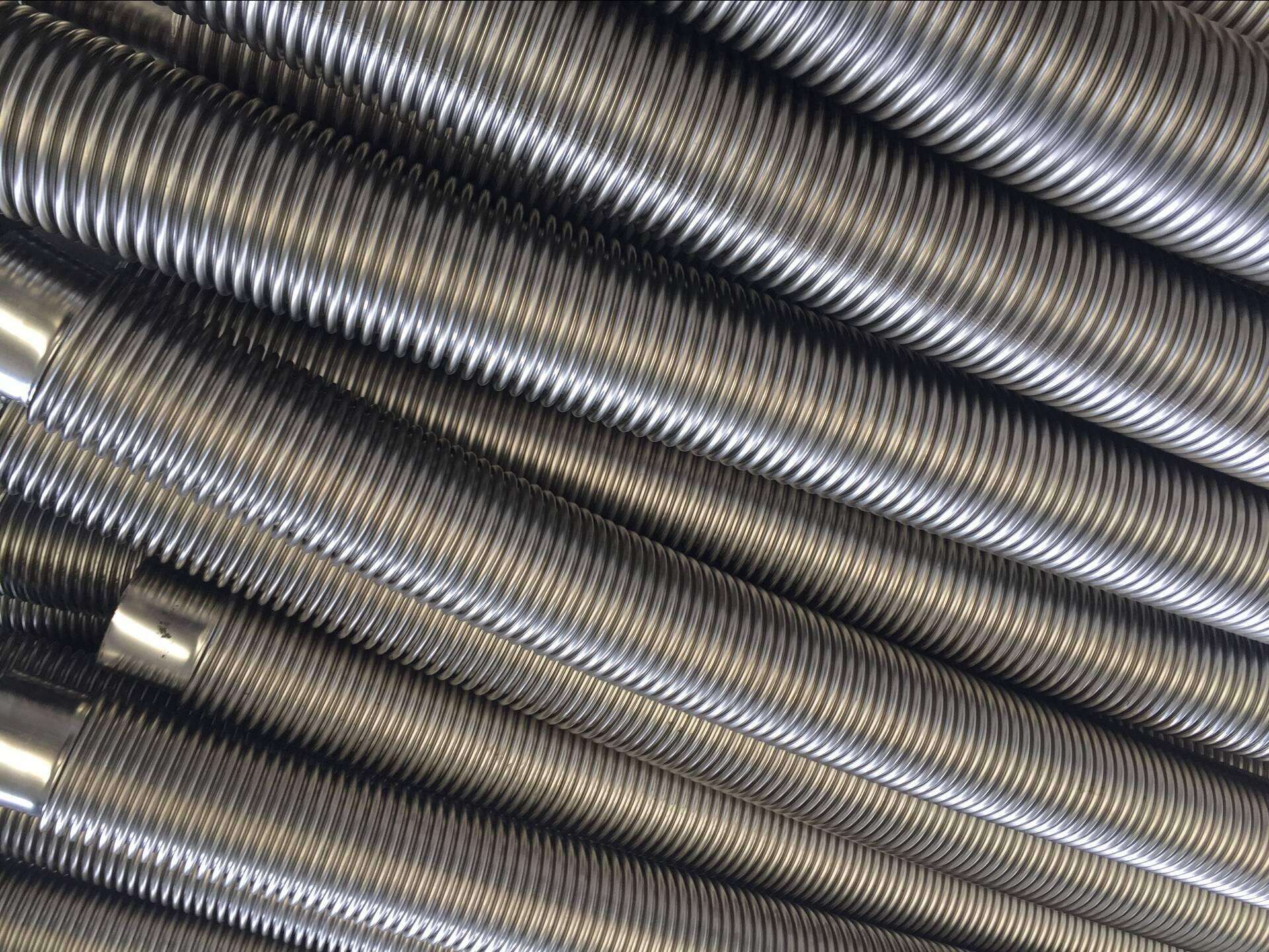

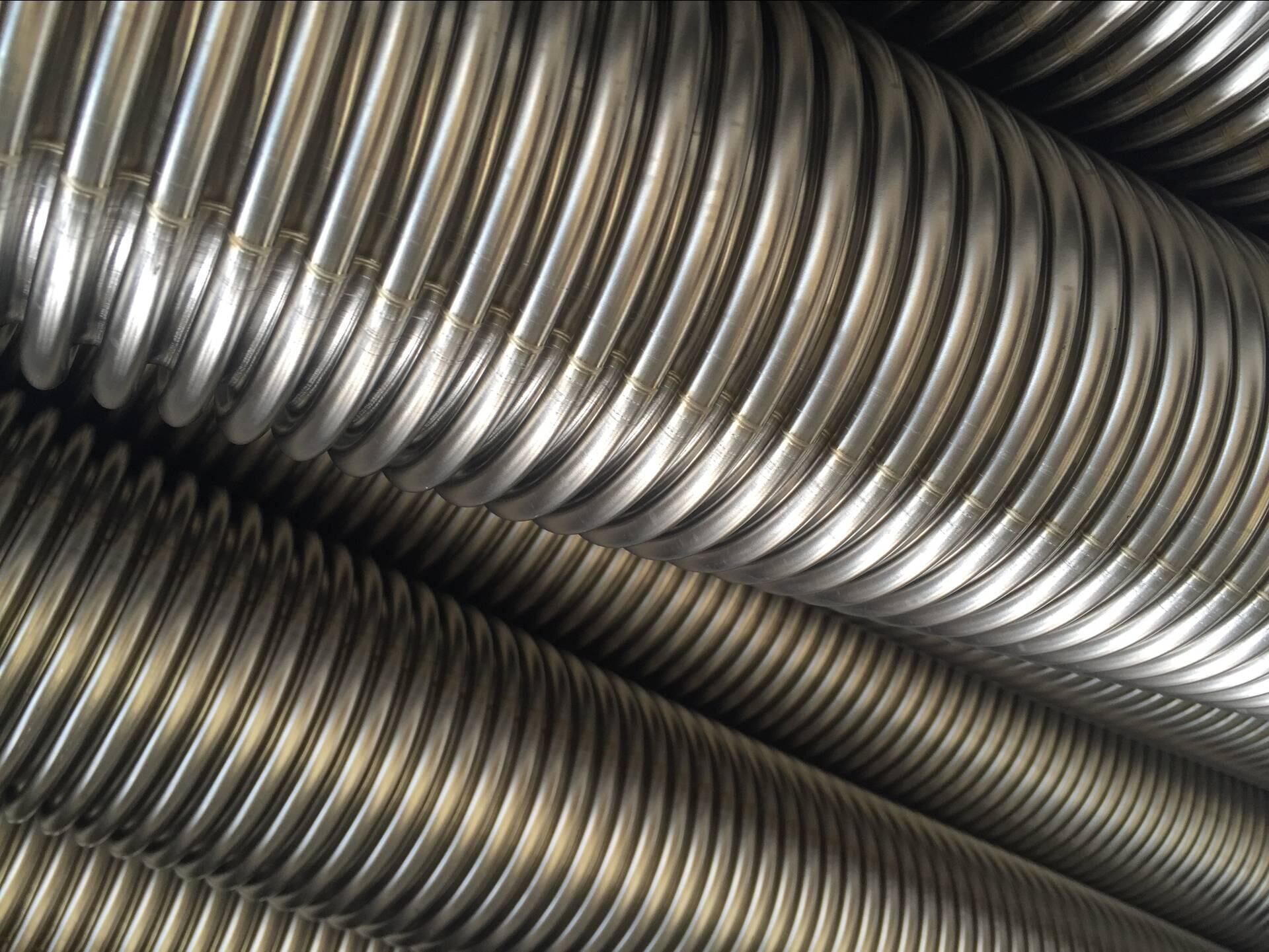

Product Show for Flexible metal hose
Company Information
We are professional manufacturer of all types of metal flexible metal hose and machinert,such as corrugated metal hose, square lock and interlock hose/conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose, and wire&cable protection circuit, etc..
The sizes are as follows:
Square lock hose and machinery:ID6-ID103
Interlock hose and machinery:ID3-ID350mm on different machine
Annular and corrugated metal hose: ID8 till ID600 on different machine
F&Q for Certificated Stainless Steel High Flexible Metallic HoseQ: What material hose do you have?
A: stainless less steel (304, 316L, 321).
Q: What size hose and what type do you have?
A:We have both spiral/helical hose and annular hose
B:Spiral/helical hose: ID 8mm-100mm
C:Annular hose: ID 8mm-400mm
Q: Can you customize for us?
A: yes we accept customize, including hose size, diameter, and braiding, material & thickness.
Q: why should I chose you?
A: we produce both hose and hose making machine with many years' experience and professional technology.
Q: what is your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send quotation for the hoses/conduit you need:
1.Hose material
2.Hose type, for instance, spiral hose or annular hose
3.Size/diameter
4.Quantity, for big quantity order, the prices will be much lower
We are most professional metal hose, metal bellow and related machineries manufacturer and exporter with more than 30 years of history. Our products exported and are exporting to many countries, such as Denmark, UK, USA, Russia, Ukraine, Iran, Australia, Zambuwae etc...Bellow and Hose machineries are exported to world wide, such as Turkey, India, Russia, Ukraine, Iran, Australia, Canada, USA, UK, etc...We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc...We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
Our metal hose and braid is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.
All kinds of expansion joints for different applications are available, such as metal expansion joints, fabric expansion joint, rubber expansion joints. For details, please refer to our catalogue.
Our hoses are formed with TIG welded tubes with high quality.
Size: DN6-630mm
Forming Method: Hydraulic, mechanical and elastomer
Hose shape: Omega and U type
Material: Stainless steel 304, 321 and 316L, incoloy
Metal hose forming machine:
Elatomer metal hose forming machine: DN10-150mm
Hydraulic metal hose forming machine: DN16-630mm
Mechanical metal hose forming machine: DN6-50mm
Metal Bellow Forming machine
Vertical Hydraulic Presser: DN14-5000mm
Horizontal hydraulic presser: DN14-300mm
Mechanical mandrel punching machine: DN800-5000mm
Bellow Rolling & forming machine: DN800-5000mm
Testing Device:
Testing bench: DN6-150mm
Hose fitting welding machine: DN6-50mm
