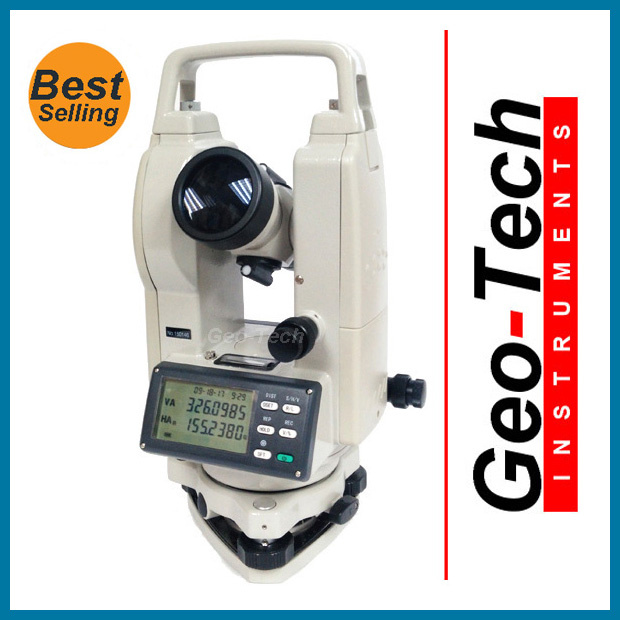

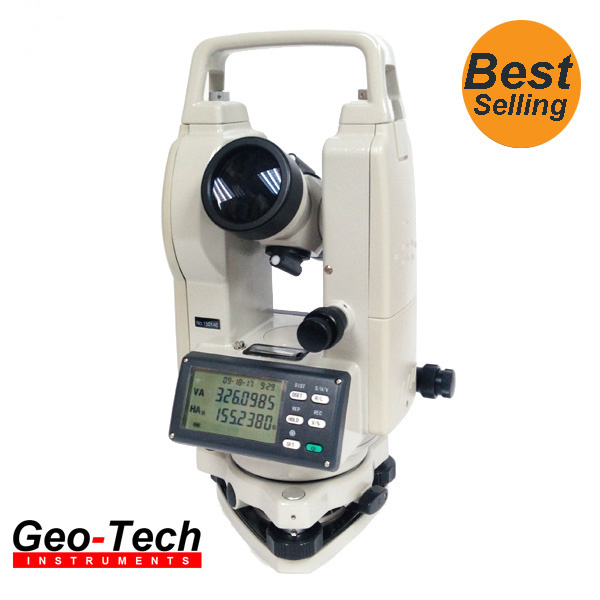

Best Selling 2 Second Electronic Digital Theodolite (GTH-02)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GTH-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Encoding System: |
Absolute Encoding |
| Compensator: |
Yes, Vertical |
| Plummet: |
Optical or Laser Optional |
| Accuracy: |
2" |
| Vertical Lines: |
Optical or Laser |
Product Description
Geo-Tech's best selling electronic digital theodolite
Model GTH-02(Absolute Encoding, with compensator)Features:Vertical angle compensation
Absolute encoding system
Water resistant, sealed construction
2 large LCD panels with easy to read numbers
Switchable horizontal and vertical angle readout
Built in cross hair and display panel illumination
Rechargeable on board battery & dry battery box supplied

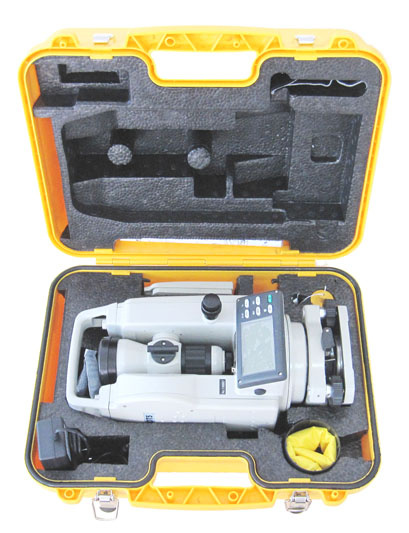

removable tribrach for multiple set upsStandard outfit:Electronic Theodolite, plumb bod, adjusting pin, soft brush, woolen cloth, wrench, charger, alkaline battery box, operation manual, plastic carry case
Specifications:| Model | GTH-02 | GTH-05 | GTH-10 |
| Telescope | | Upright Image | |
| Length: | | 155mm | |
| Objective aperture | | 45mm | |
| Magnification | | 30x | |
| Field of view | | 1°30' | |
| Resolving power | | 2.5" | |
| Shortest focus distance | | 1.3m | |
| Electronic angle measurement | | 360° or 400gon | |
| Minimum reading | 1" | 5"/10" | 5"/10" |
| Accuracy | 2" | 5" | 10" |
| Display | | LCD | |
| Display Panel | | 2 sides | |
| Illumination | | Provided | |
| Optical Plummet | | | |
| Magnification | | 4x | |
| Field of view | | 5° | |
| Focusing range | | 0.5m - | |
| Level sensitivity | | | |
| Plate level | | 30" / 2mm | |
| Circular vial | | 8' / 2mm | |
| Power supply | | | |
| Dry Alkaline battery | | AA(1.5v/500mAH)x4(6hours) | |
| Chargeable on board battery | | 6v/1500mAH(15hrs) | |
| Weight | | 4.4kg/6.8kg with case | |
| | | | |
