| Prod Model: |
DTH-10 |
| Encoding System: |
Absolute Encoding |
| Plummet: |
Optical or Laser Optional |
| Compensator: |
No |
| Accuracy: |
10" |
| Vertical Lines: |
Optical or Laser |
Product Description

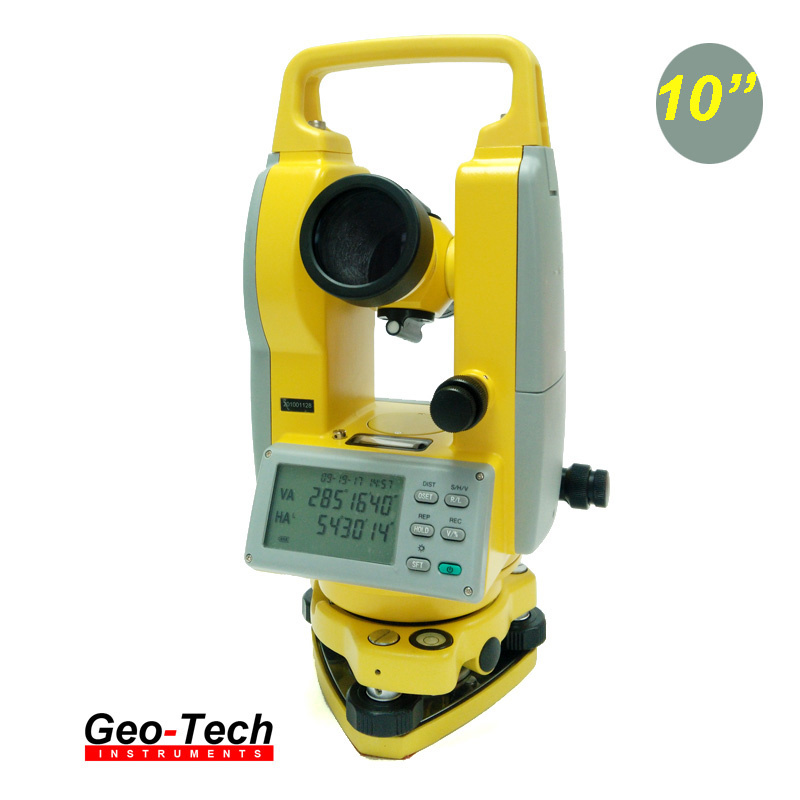

Geo-Tech's new 10" electronic digital theodolite
Model DTH-10(Absolute Encoding, without compensator)Features:Absoluting encoder system

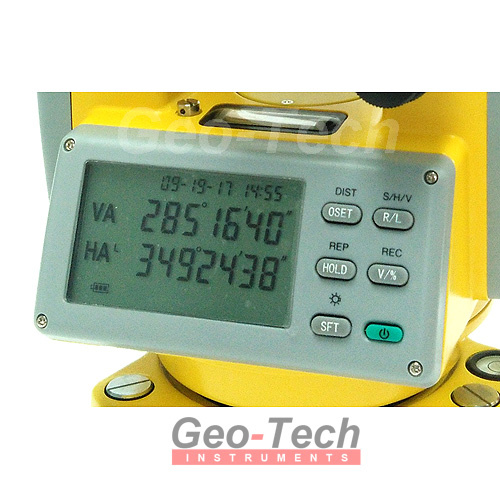

2 large LCD panels with easy to read numbers
Switchable horizontal and vertical angle readout
Built in cross hair and display panel illumination
Rechargeable on board battery & dry battery box supplied
removable tribrach for multiple set upsWater resistant, sealed construction IP45

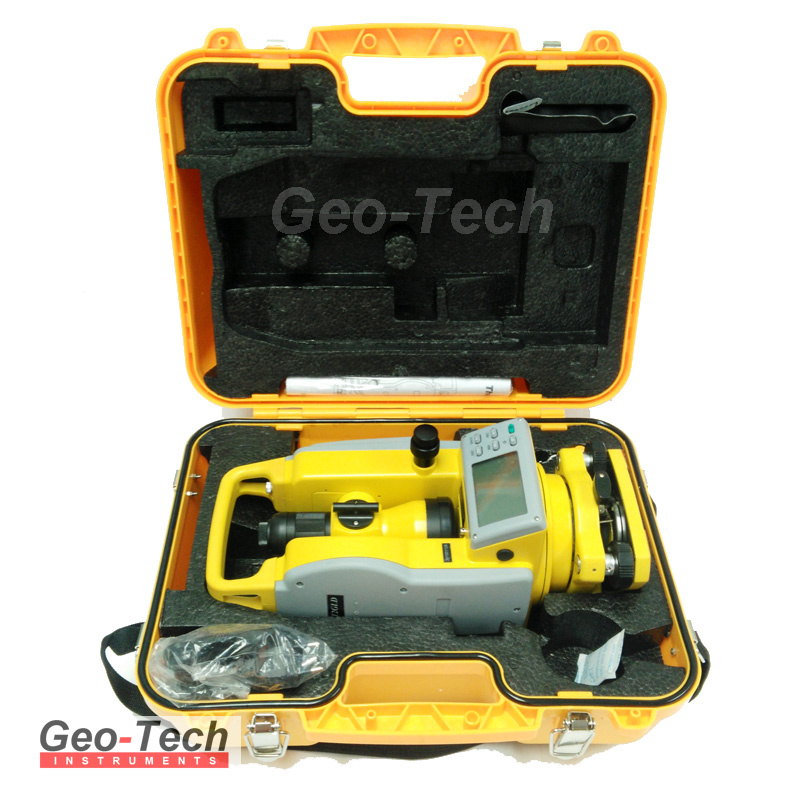

Standard outfit:Electronic Theodolite, plumb bod, adjusting pin, soft brush, woolen cloth, wrench, charger, alkaline battery box, operation manual, plastic carry case
Specifications:| Model | DTH-02 | DTH-05 | DTH-10 |
| Telescope | | Upright Image | |
| Length: | | 156mm | |
| Objective aperture | | 45mm | |
| Magnification | | 30x | |
| Field of view | | 1°30' | |
| Resolving power | | 3.5" | |
| Shortest focus distance | | 1.3m | |
| Electronic angle measurement | | 360° or 400gon | |
| Minimum reading | 1"/5" | 5"/10" | 5"/10" |
| Accuracy | 2" | 5" | 10" |
| Display | | LCD | |
| Display Panel | | 2 sides | |
| Illumination | | Provided | |
| Optical Plummet | | | |
| Magnification | | 4x | |
| Field of view | | 5° | |
| Focusing range | | 0.5m - | |
| Level sensitivity | | | |
| Plate level | | 30" / 2mm | |
| Circular vial | | 8' / 2mm | |
| Power supply | | | |
| Dry Alkaline battery | | AA(1.5v/500mAH)x4(6hours) | |
| Chargeable on board battery | | 6v/1500mAH(15hrs) | |
| Weight | | 4.8kg/6.8kg with case | |
| Waterproof | | IP45 | |
